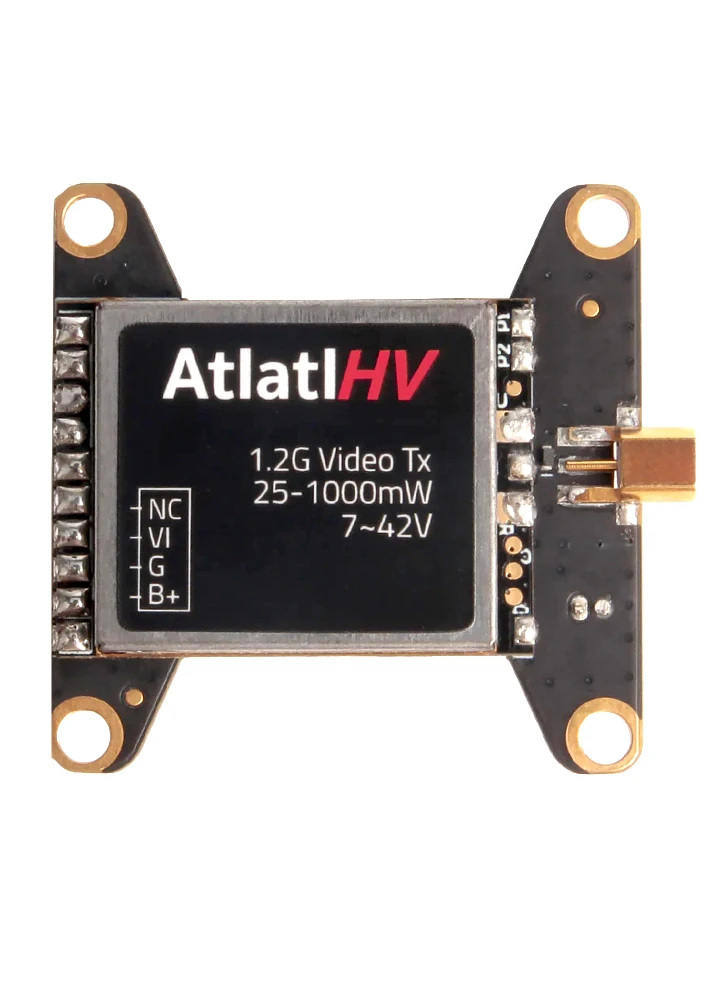

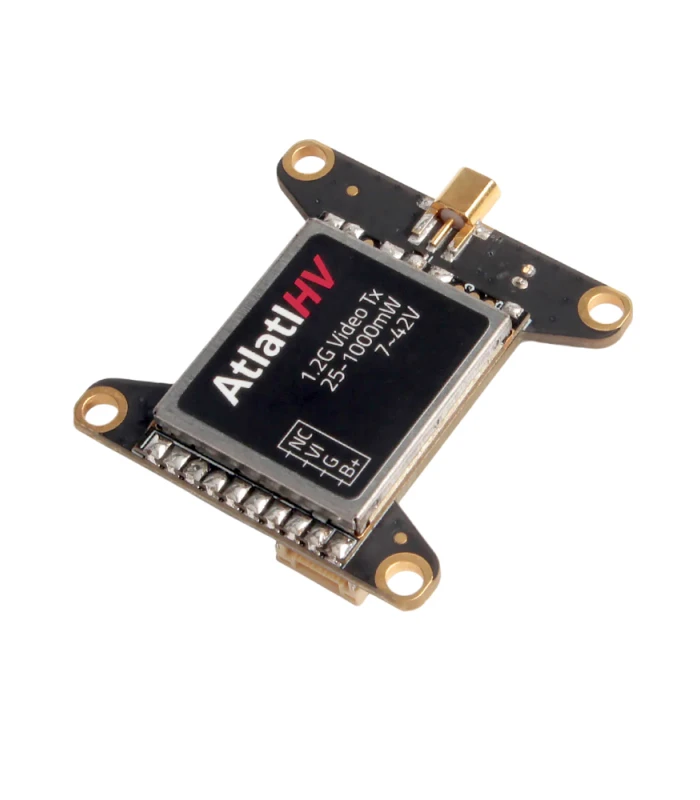

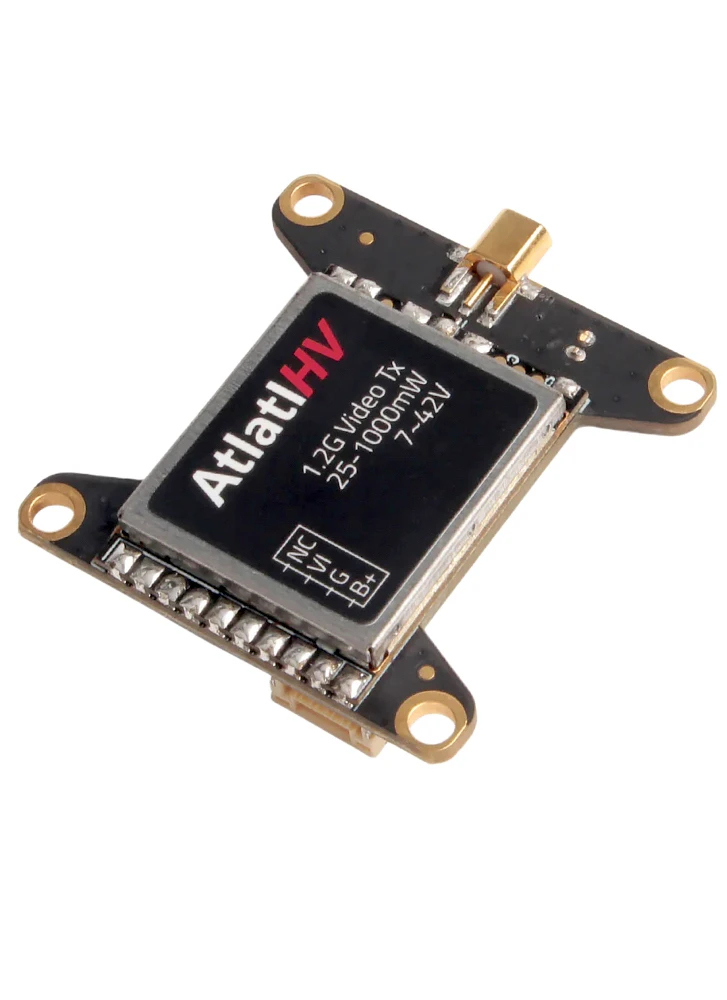

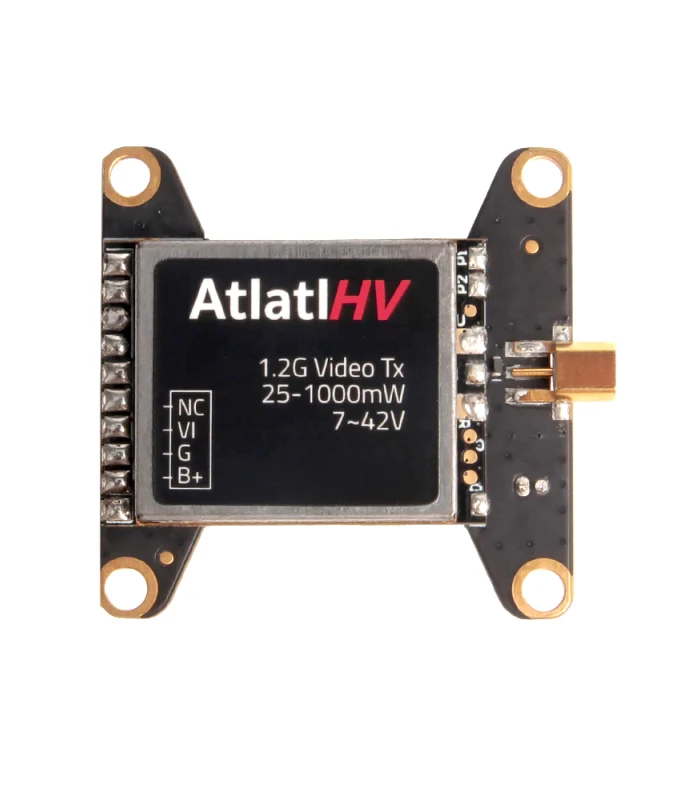

Holybro Atlatl HV V2 VTX – 1.2GHz 1W

Name: Holybro Atlatl HV V2 VTX - 1.2GHz 1W - Flying Tech
Brand: Holybro
SKU: FPV-TX-13035
Price: 48.99 GBP
Availability: OutOfStock

£48.99 Inc. VAT

This video transmitter is designed for super long range FPV. It operates on 1.2-1.3Ghz.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the Privacy policy

Compare

0 People watching this product now!

SKU: FPV-TX-13035 Categories: Long Range FPV, FPV, Analog FPV, FPV Video Transmitters (VTXs) Tags: 1.2GHz, 1.3G, FPV, Long range

Description

The Atlatl HV V2 VTX – 1.2GHZ 1W is a low-frequency signal VTX compared to a VTX operating on the 5.8G frequency band. It has excellent diffraction ability and has stronger anti-interference and penetration. Images are clearer and more stable, the transmission distance is longer, and it is more suitable for long-range and various complex environments.

The VTX has an adjustable power output (Pit Mode/25/200/100mW) and a single band with 9 channels. A compatible video receiver for the 1G3-VTX is sold here.

Note: Powering on without antenna can result in damage!

Features

Supports up to 9 frequency Channels.
Variable transmit power: Pit/25/200/1000mw
Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
Onboard microphone, so you can listen to your motors while you fly, no matter how far away you fly.
Standard 30.5 x 30.5mm mounting holes, allows you to mount the Atlatl directly in your flight controller stack.

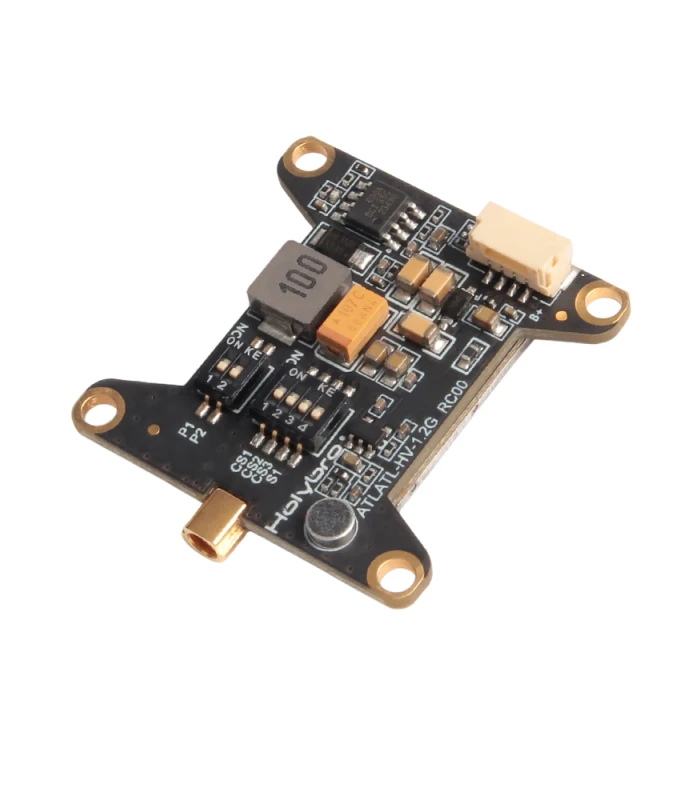

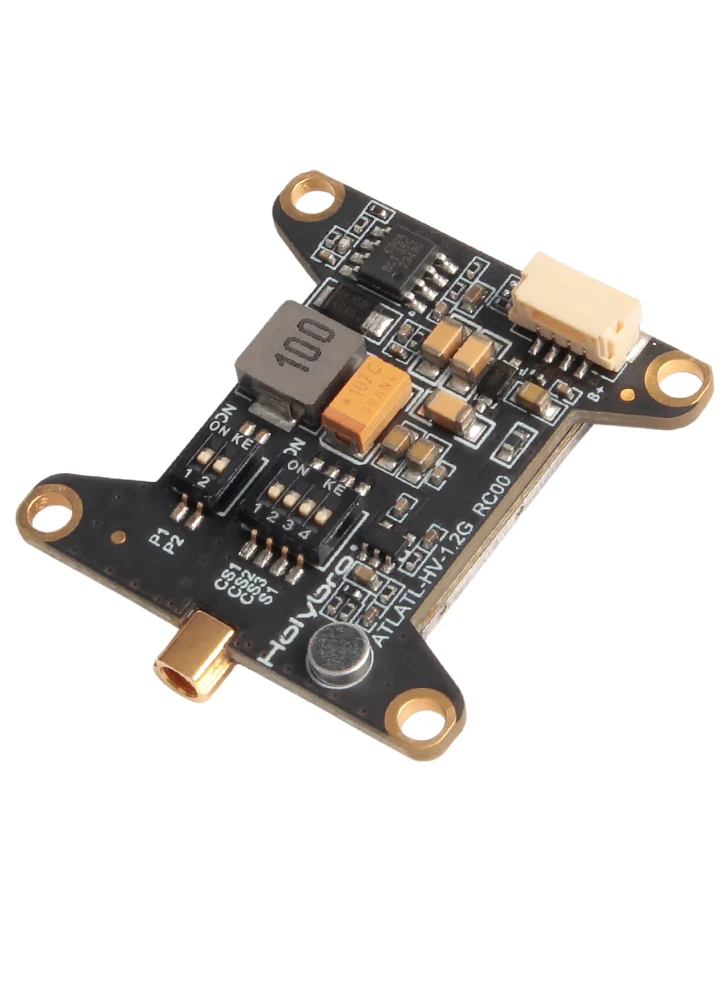

Transmitting Power

_______	Pit Mode	25 mw	200 mw	1000mw
P2	ON	OFF	ON	OFF
P1	ON	ON	OFF	OFF

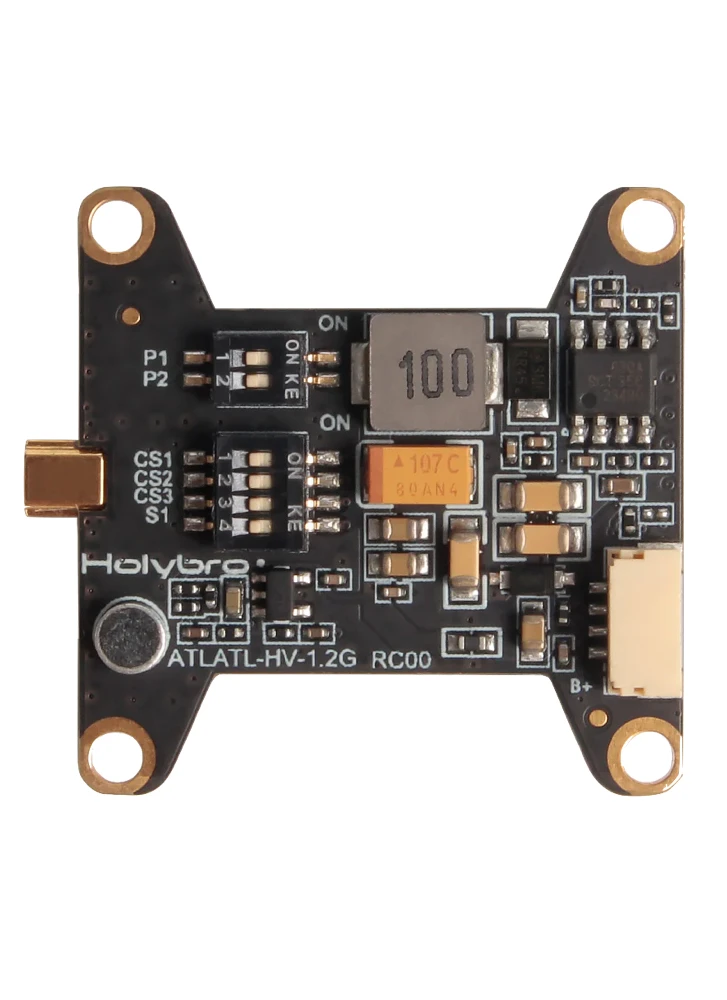

Frequency Chanel

Channel	CS3	CS2	CS1	S1
CH1: 1080MHz	ON	ON	ON	OFF
CH2: 1120MHz	OFF	ON	ON	OFF
CH3: 1160MHz	ON	OFF	ON	OFF
CH4: 1200MHz	OFF	OFF	ON	OFF
CH5: 1240MHz	ON	ON	OFF	OFF
CH6: 1280MHz	OFF	ON	OFF	OFF
CH7: 1320MHz	ON	OFF	OFF	OFF
CH8: 1380MHz	OFF	OFF	OFF	OFF
CH9: 1258MHz	ON	ON	OFF	ON

IMPORTANT: The use and operation of this product in your country may require an amateur radio license, and some countries may forbid its use entirely (it is NOT Legal in the UK). It is the responsibility of the purchaser to ensure that the purchase and use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Flying Tech Ltd cannot be held responsible for your actions if you purchase and/or use this product in violation of your government’s regulations.

FrSky R9 / TBS Crossfire Users – these radio control systems can interference with the 1G3 video link as they operate on adjoining frequencies. To help reduce interference we recommend fitting a notch filter or using a 5.8Ghz relay station so that the 1G3 VRX can be positioned away from your radio control.

Specification

Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 1000 mW
Audio: 6.5 MHz Mono (6.0 MHz Optional)
Antenna Connector: MMCX
Input Voltage: 2-8S LiPo
Dimensions: 35x35x9mm (Including connector)
Mounting Holes: Standard 30.5mm square to center of holes
Weight: 9.3g (VTX Only)

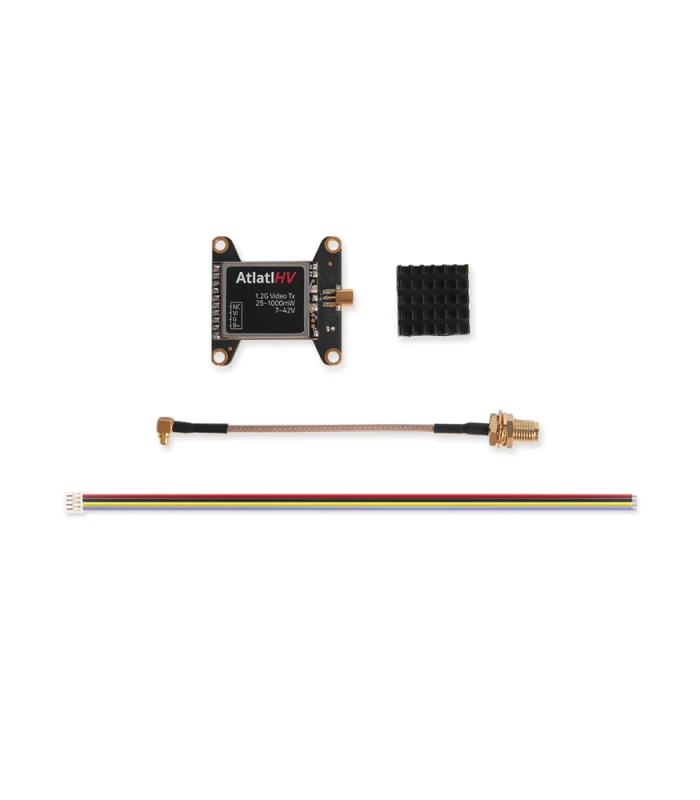

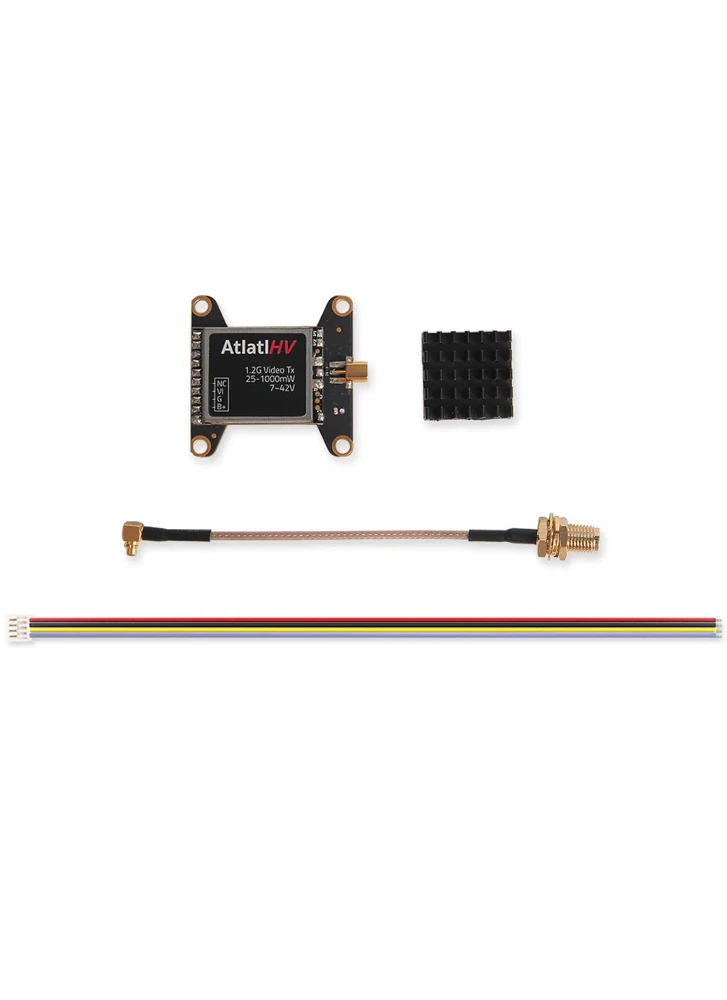

Included:

1x VTX Board with Heat Sink
1z 80mm SMA–MMCX Cable
1x 150mm 4pin JST GH wire

Downloads

Dimensions (webp, 19KB)

Download

Pinout (webp, 23KB)

Download
