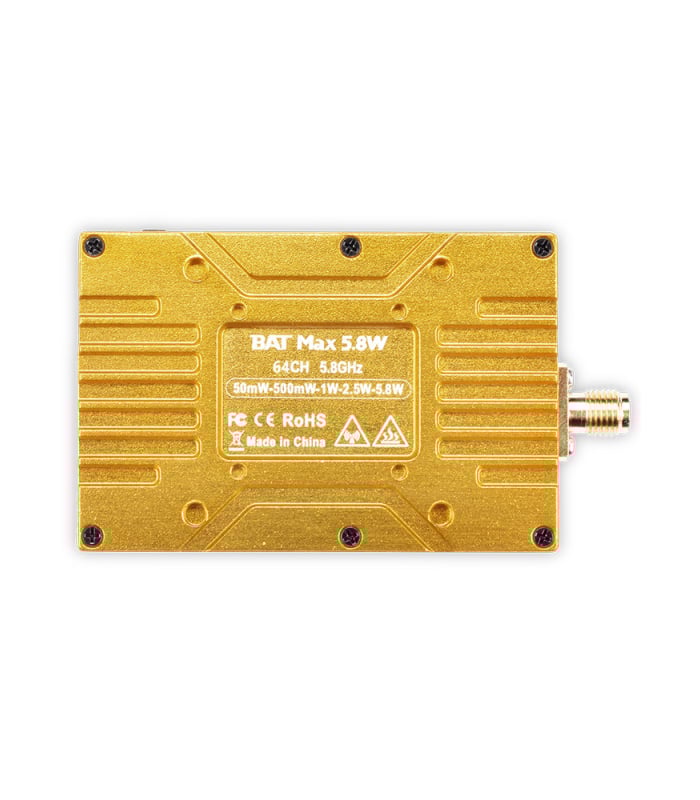

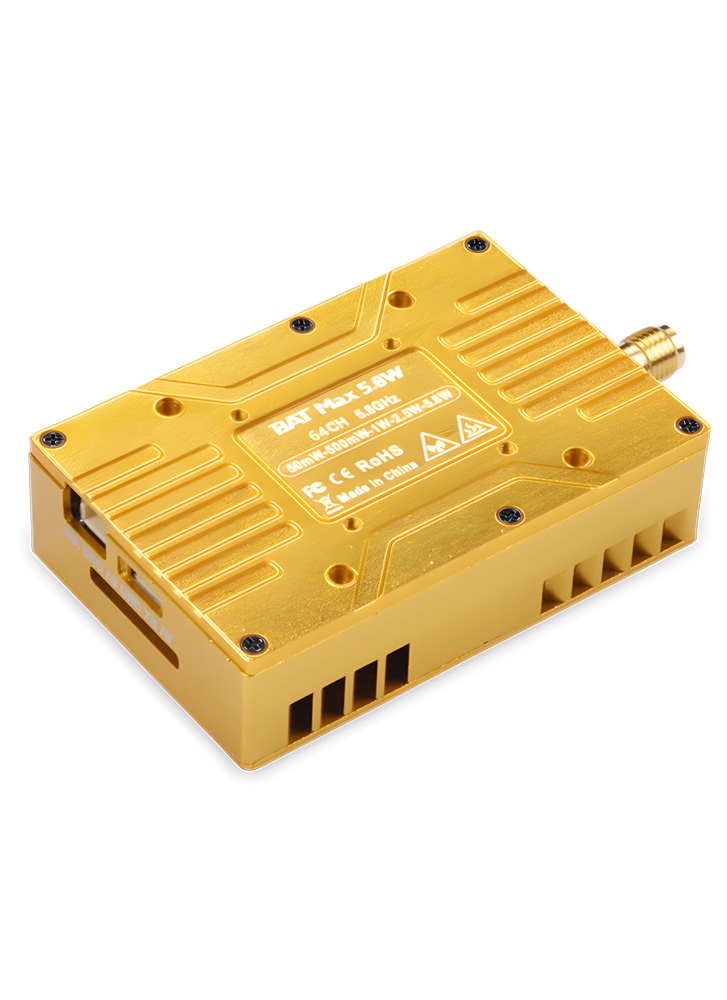

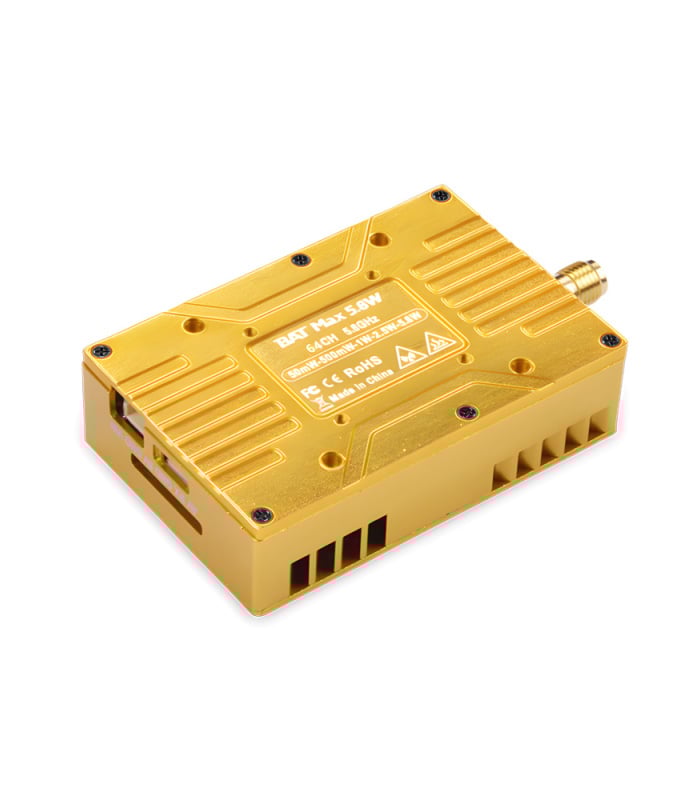

PandaRc – VT5804 BAT Max 5.8W Long Range FPV Video Transmitter

Name: PandaRc - VT5804 BAT Max 5.8W Long Range FPV Video Transmitter - Flying Tech
Brand: PandaRC
SKU: FPV-VTX-VT5804BATMAX
Price: 84.90 GBP
Availability: InStock

£84.90 Inc. VAT

PandaRc – VT5804 BAT Max is currently the most powerful VTX we sell! With built in cooling fan. Antenna connection SMA.

In stock

Compare

0 People watching this product now!

SKU: FPV-VTX-VT5804BATMAX Categories: FPV Video Transmitters (VTXs), FPV, Analog FPV, Long Range FPV Tags: 25mw, 5.8Ghz, High Power VTX, Long range, Transmitter, TX, VTX

Description

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

The PandaRC VT5804 BAT Max is a video transmitter for long range FPV or ground-based applications such as FPV RC cars & boats. It has an adjustable power output ranging from 0 mW right up to a massive 5800mW. It’s currently the most powerful VTX we sell!

Changing channels is quick and easy thanks to the VT5804 BAT Max having a channel selection button or the option of remote OSD control via the Tramp Protocol when used with a flight controller. The VTX is easy to wire up as it can be powered straight from your flight battery without the need for a UBEC as it supports a wide input voltage (6-36V).

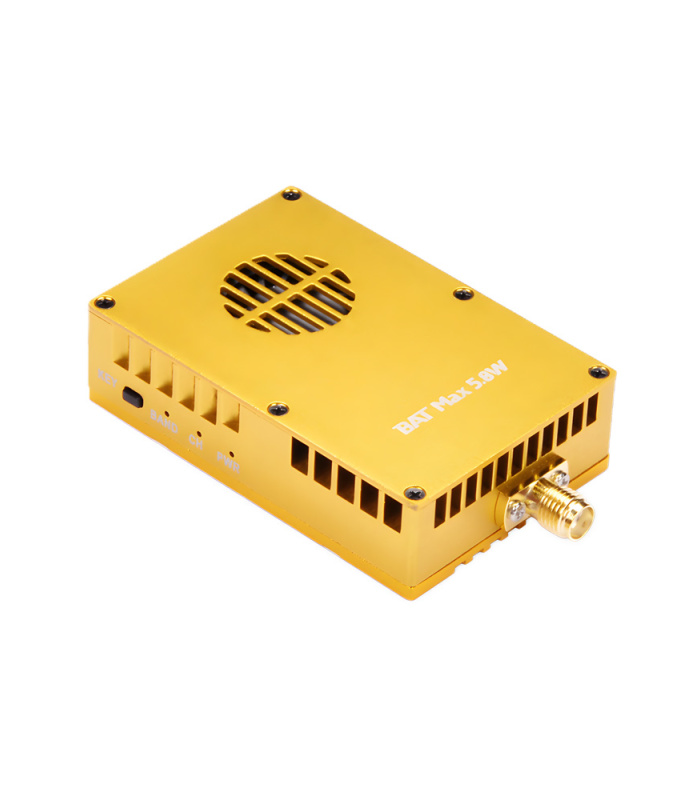

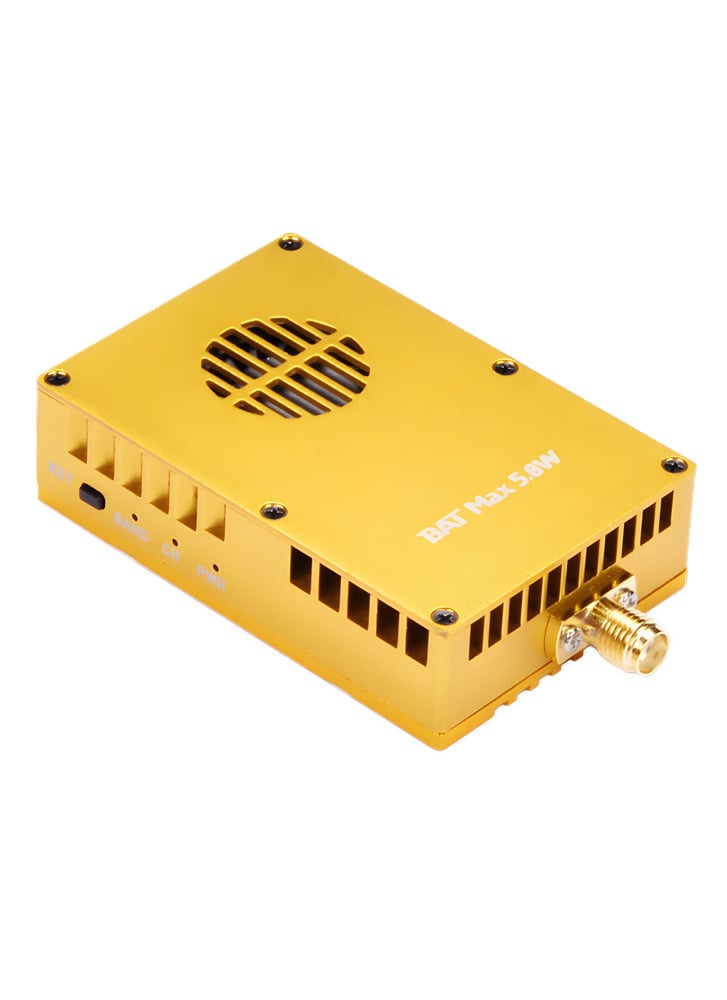

The VTX is quite large compared to most other VTXs, but then it has a large CNC aluminium body and inbuilt fan to provide good heat dissipation which is needed for such a powerful transmitters. It measures 60x40x16.5mm and weighs 58 grams. The body of the VTX has M2 and M3 threaded holes mount. The mounting patterns are 20x20mm for M2 and 30x30mm for M3.

The VTX doesn’t include antenna. The connection is SMA.

Specification

Output power: 0-50-500-1000-2500-5800mW
Input voltage: 6-36V
Parameter tuning: Buttons/OSD
Operating Current:1W/12@ 1000ma / 5.8W/12@ 200ma
Antenna Interface: SMA
Video Format: NTSC/PAL automatic detection
Output Frequency: 64CH(A-B-E-F-R-X-L-S)
Mounting Holes: 30.5 x 30.5mm — 20 x 20MM
Weight: 58g (without antenna and power cord)
Dimensions: 60x40x16.5mm

Included:

1x VT5804-BAT MAX PRO
Wiring
