Discontinued: PandaRC VT5804 Mini X 25-400mW 5.8GHz 20×20 VTX

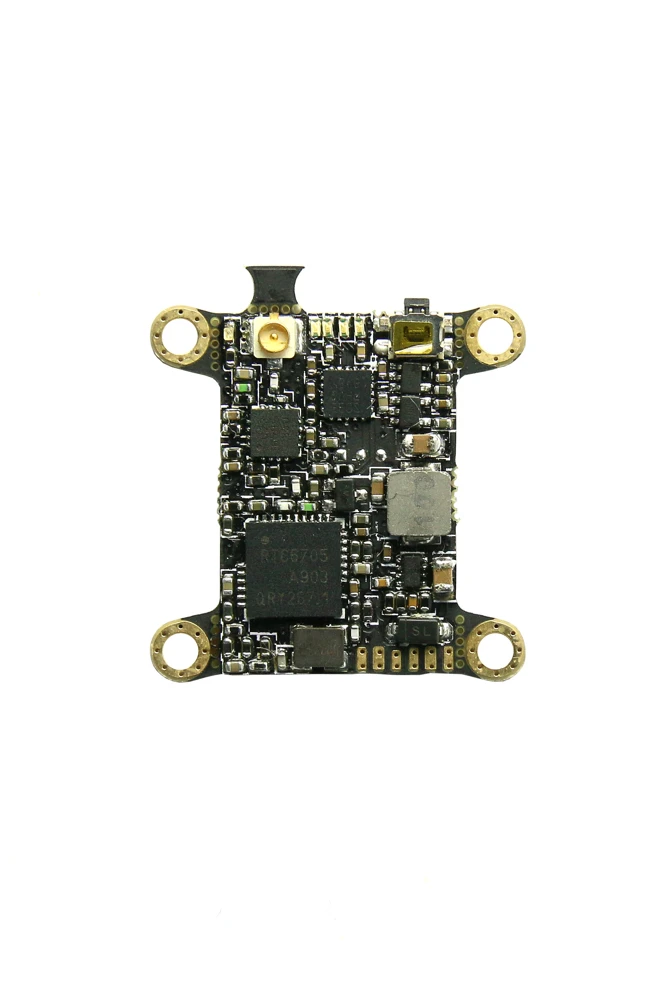

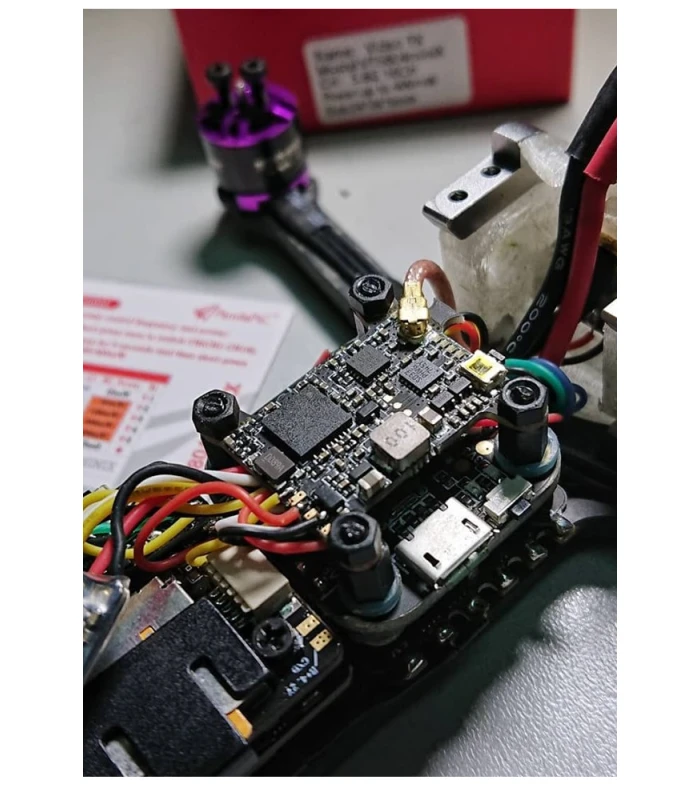

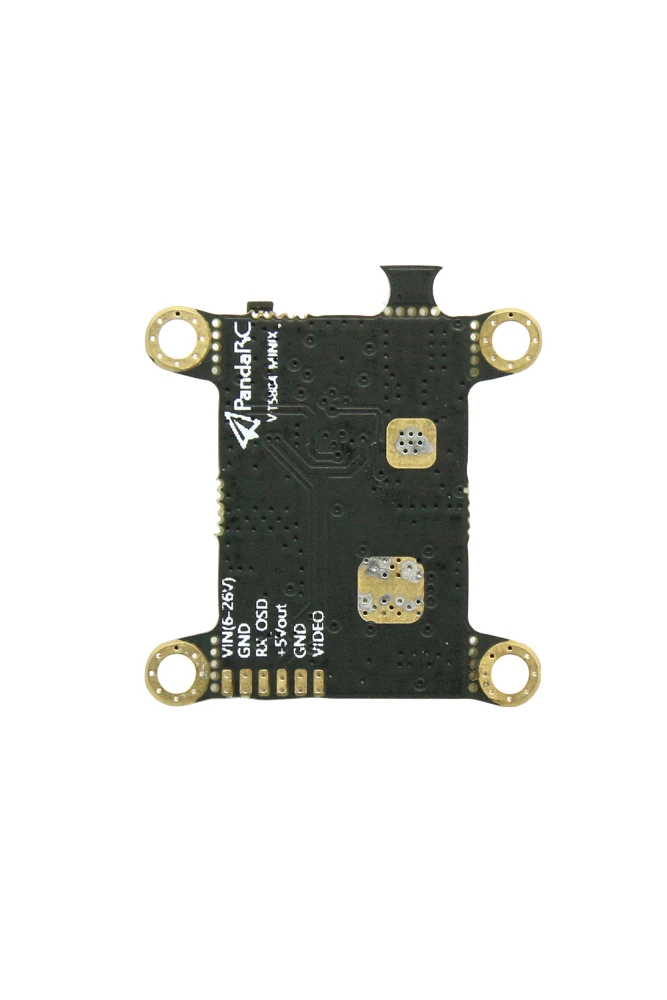

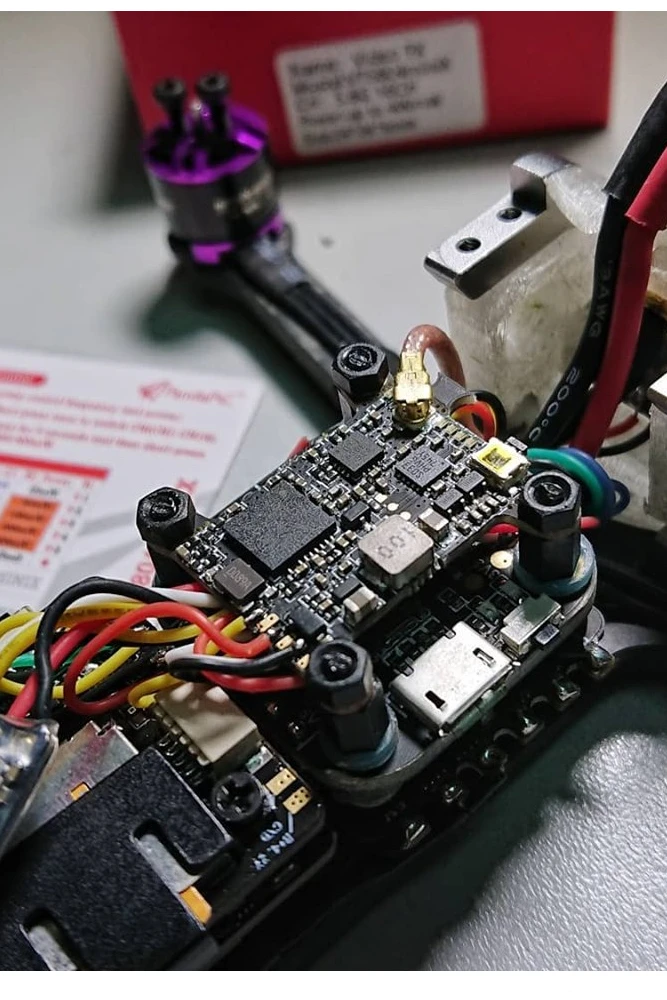

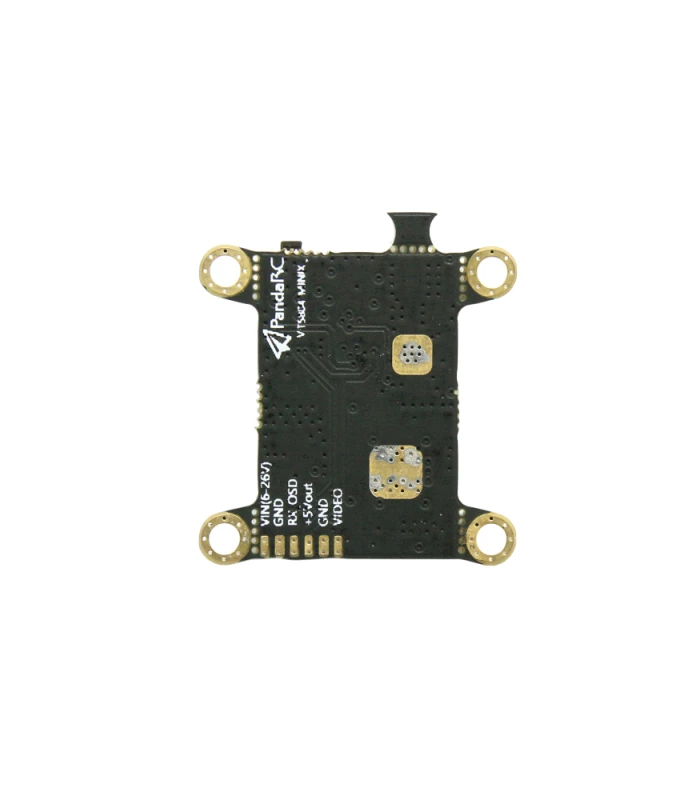

The PandaRC Mini VTX is a good choice for mini drones and compatible with a 20×20 flight stacks.

0 People watching this product now!

Description

Product Discontinued – for an alternative please see other PandaRC VTXs HERE.

The PandaRC Mini VTX is a good choice for mini drones and compatible with a 20×20 flight stacks. It comes with six adjustable power outputs ranging from 0mW-400mW and includes Pitt Mode. It supports 2-6S input voltage and has a U.FL antenna connection. Overall it’s a good value VTX and an excellent choice for all your small builds!

Features

Small 24x24mm with 20×20 M2 installation holes
Lightweight (<3g without antenna)
Up to 400mW of output power
Low power consumption: 12V/240mA@400mW
Ultra-clean transmission (Up to 8 pilots at once)
PitMode – Power up your quad during a race
Supports IRC Tramp OSD Control, with fallback button menu.
CE Certified

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Specification

Input Voltage: 6-26V
Operating Voltage: 5V
Output power: 0mW/25mW/50mW/100mW/200mW/400mW
Frequency: 5.8GHz 40CH
Video format: NTSC/PAL
PitMode
Connector: UF.L(IPE-X)
Dimension: 24mmx24mmx3mm (with out mounting holes）
Mounting holes: 20mmx20mm
Weight: <3g (without antenna)

Included:

1x PandaRC VT5804 Mini
1x Antenna
1x Cable
1x Manual
