PandaRC VT5804HV Max 25-1000mW 5.8GHz 30×30 VTX – MMCX

£28.90 Inc. VAT

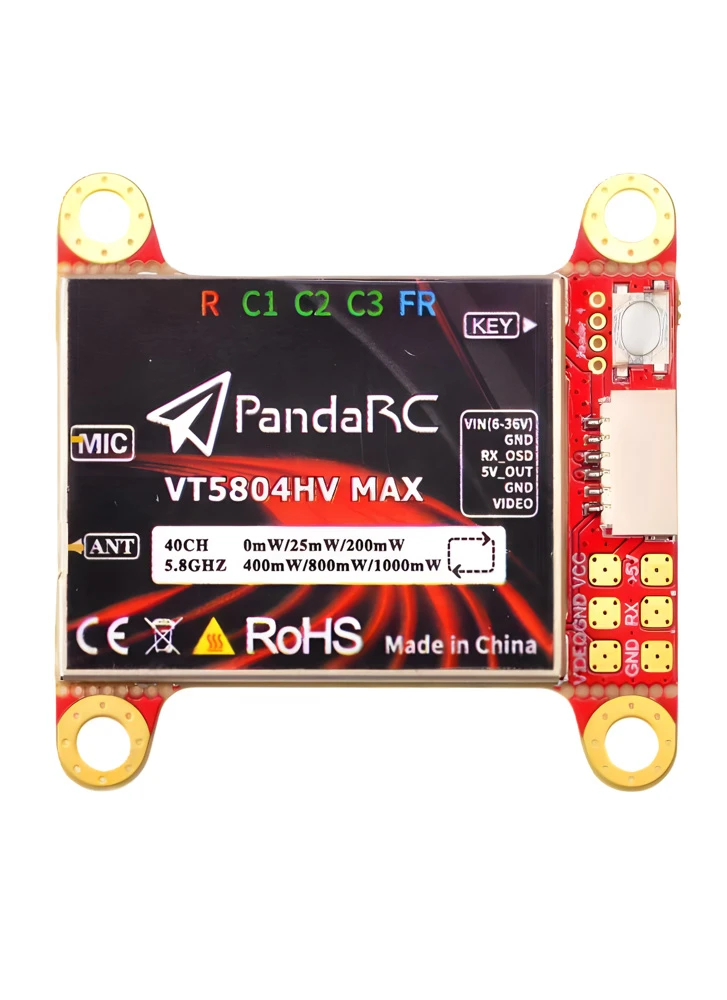

This VTX board has M3 hole mounts for a neat installation into a 30×30 flight stack.

In stock

0 People watching this product now!

Description

PandaRC has many options available for reliable and affordable 5.8GHz Video Transmitters (VTX), featuring different sizes, connectors, and output power levels. This VTX in particular features the MMCX connector and 30×30 holes for easy mounting to your flight electronics stack.

Features:

Switchable transmitting power, including 0mW / 25mW / 100mW / 200mW / 400mW / 800mW / 1000mW mode.
Ultra-clean transmission (Up to 8 pilots at once).
Fast frequency lock, boot does not interfere with other pilots.
Comes with output power self-test function.
Full format video format: NTSC / PAL.
Wide input voltage range and low power consumption: 6V-38V, 9V/700mA 1000mW.
Installation hole corresponds to 30×30 stacks.
Controllable through Tramp protocol.
Built-in microphone.

Specification

Input voltage: 6-36V
Output Power: PIT/25/100/200/400/800/1000mw switchable
Frequency: 5.8G 40CH
Connector: MMCX
Mounting: 30.5×30.5mm
Size: 36x36x5mm
Weight: 8g (not including antenna)

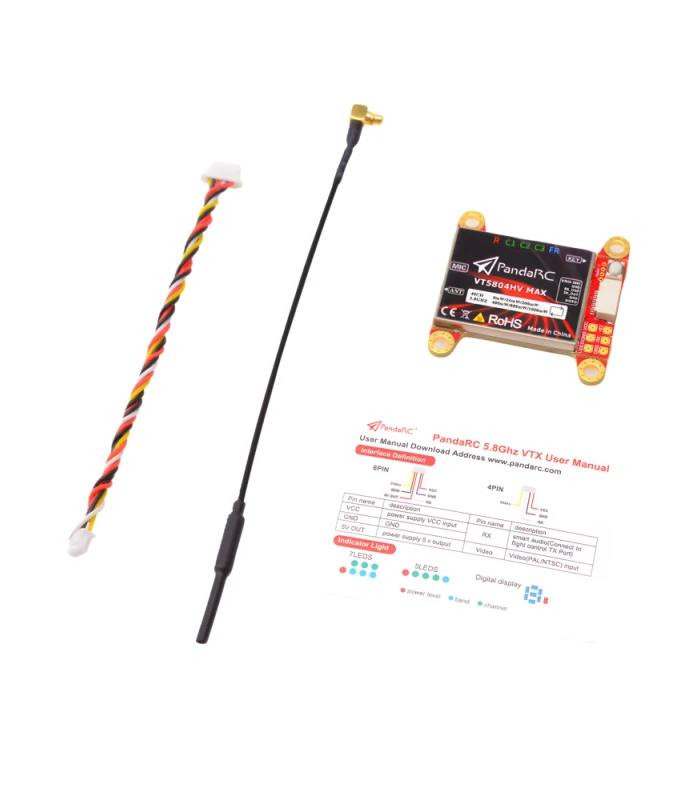

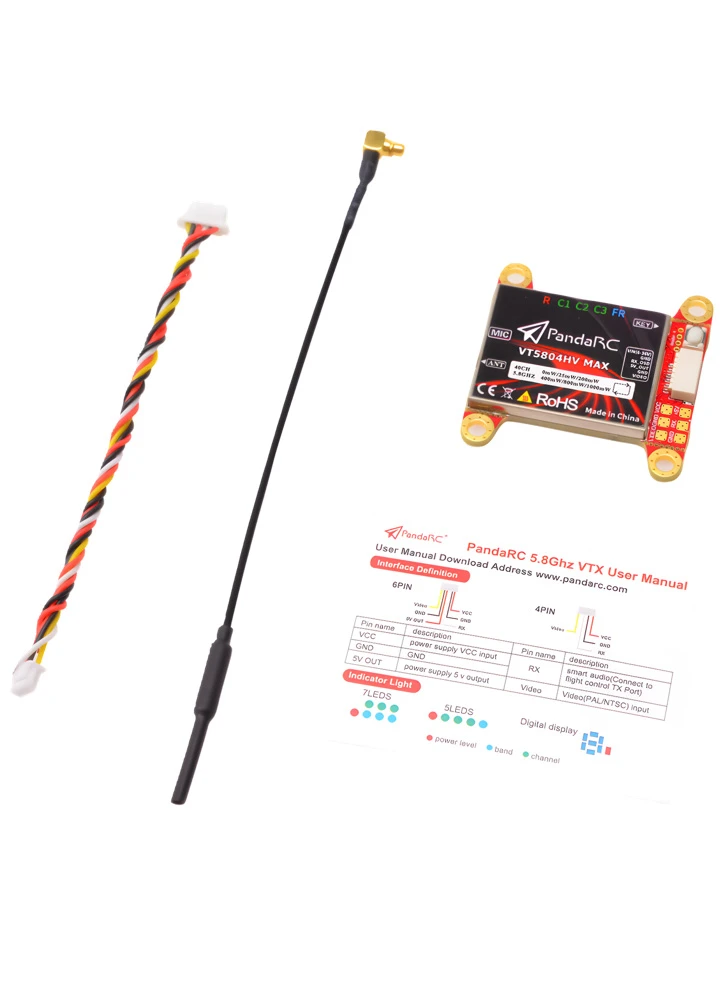

Included:

1x PandaRC VT5804HV Max 30×30 5.8GHz VTX – MMCX
1 x Linear Antenna
1 x Wiring Kit
