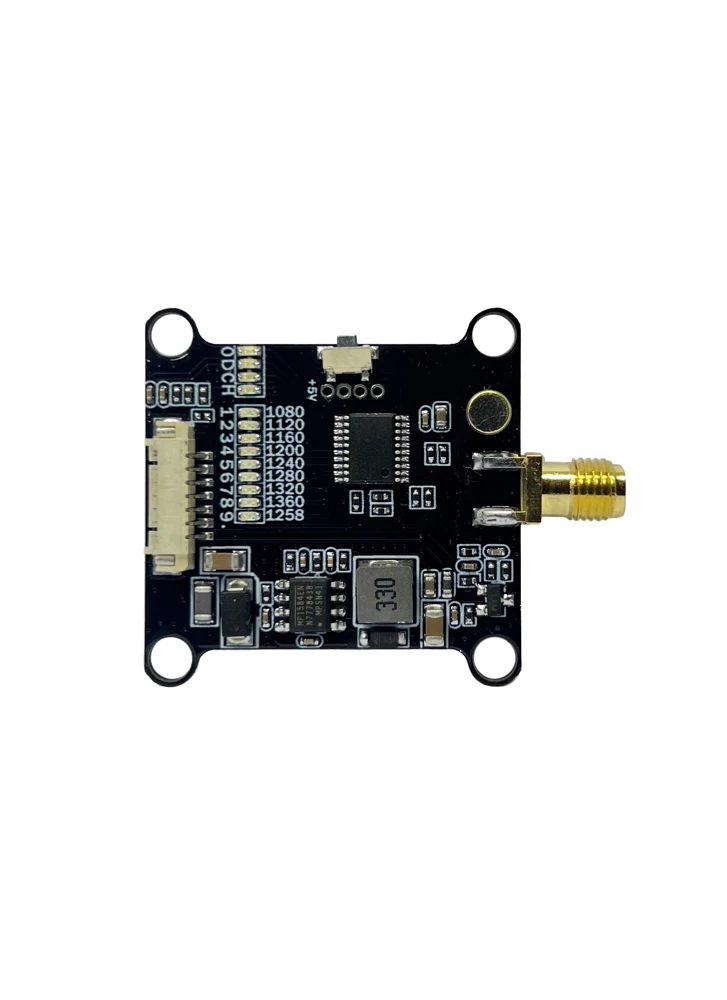

Long Range 1.2GHz-1.3GHz 9CH 0.1mW- 800mW Transmitter

Name: Long Range 1.2GHz-1.3GHz 9CH 0.1mW- 800mW Transmitter - Flying Tech
SKU: FPV-TX-12G800MW
Price: 57.90 GBP
Availability: InStock

£57.90 Inc. VAT

This video transmitter is designed for super long range FPV. It operates on 1.2-1.3Ghz.

In stock

Compare

0 People watching this product now!

SKU: FPV-TX-12G800MW Categories: Long Range FPV, FPV, Analog FPV, FPV Video Transmitters (VTXs) Tags: 1.2GHz, 1.3G, FPV, Long range

Description

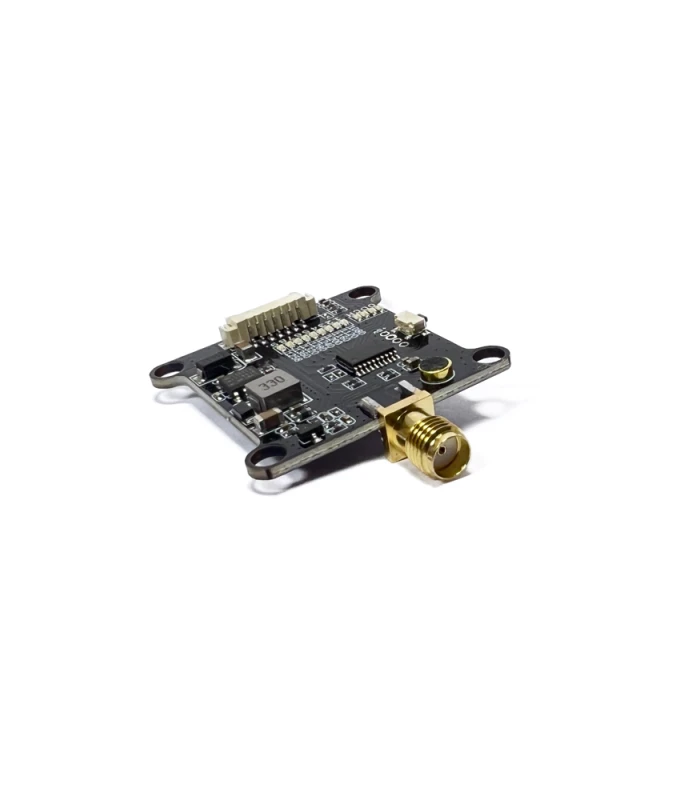

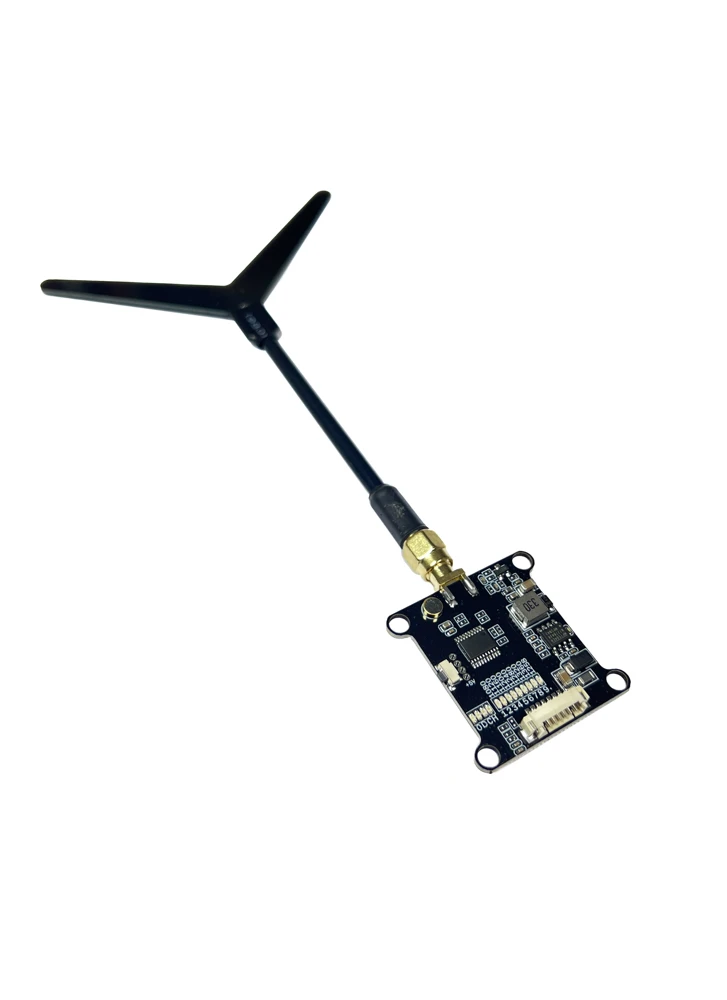

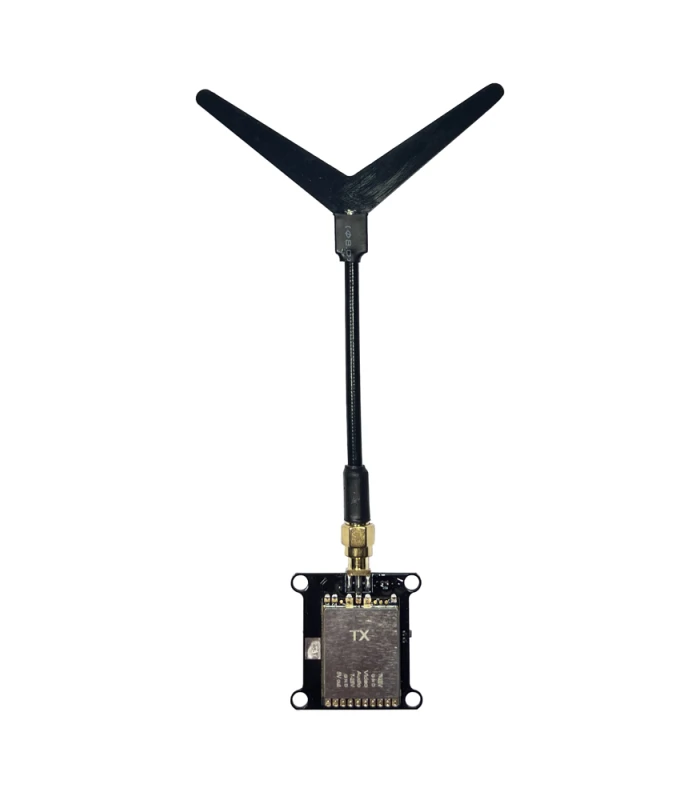

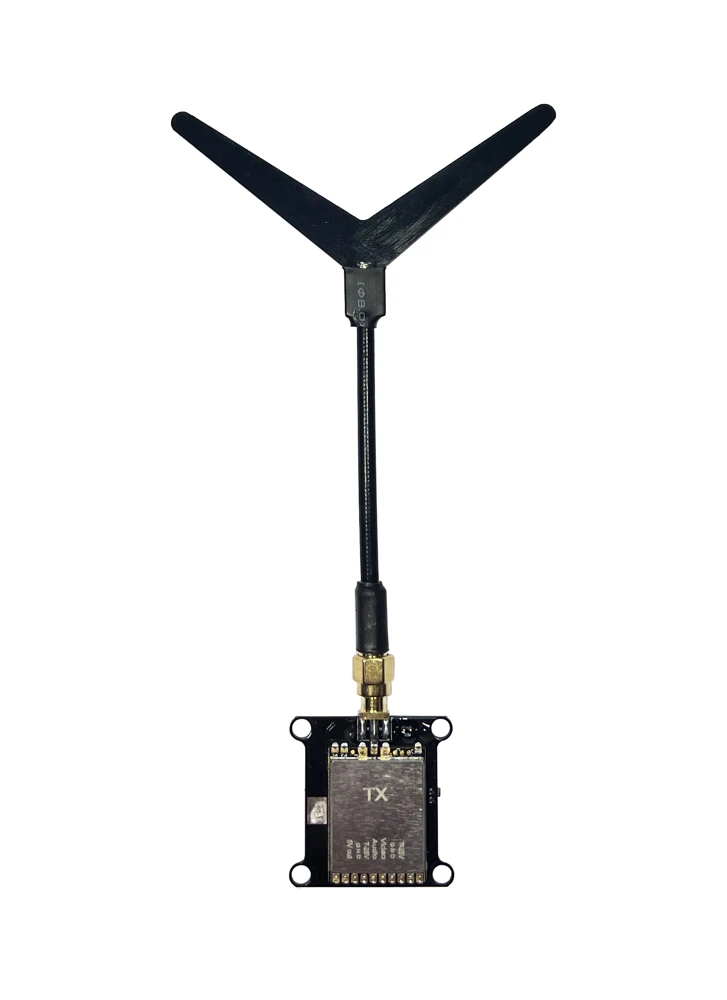

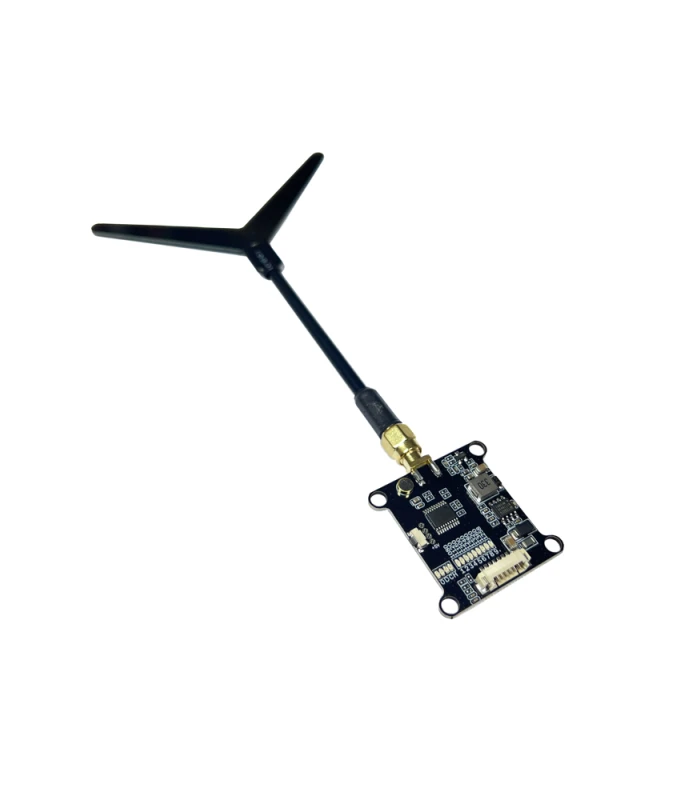

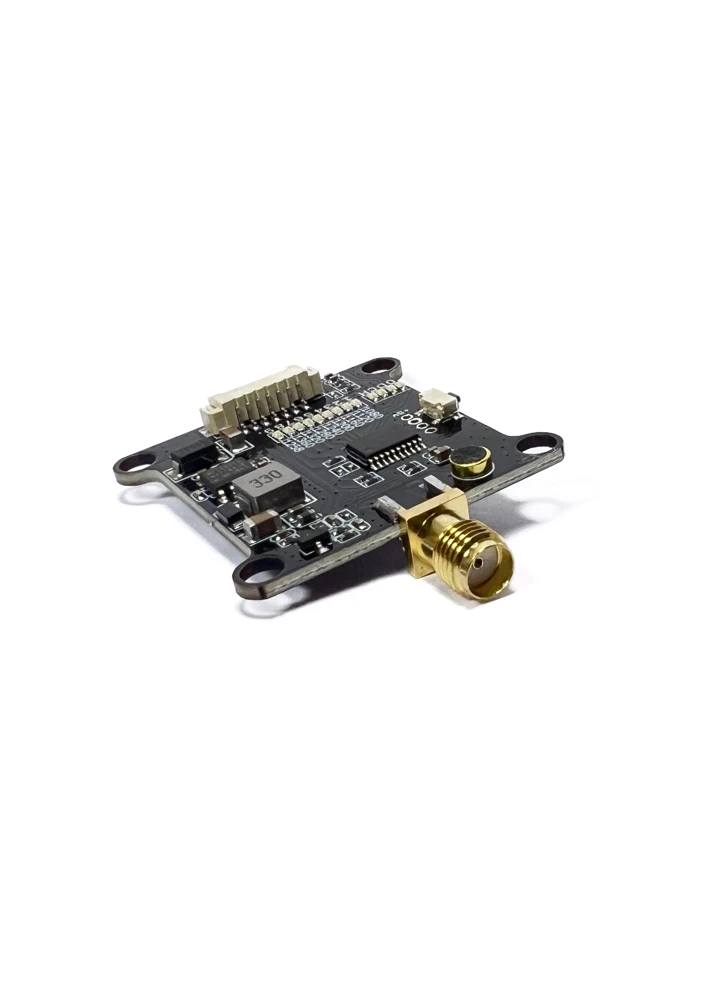

This video transmitter is designed for super long range FPV. It operates on 1.2-1.3Ghz (1060~1380MHz), which provides much better signal penetration through obstacles and long-range reception than 5.8Ghz. The VTX has an adjustable power output (0.1/25/200/800mW) and a single band with 9 channels. A compatible video receiver for the 1G3-VTX is sold here.

IMPORTANT: The use and operation of this product in your country may require an amateur radio license, and some countries may forbid its use entirely (it is NOT Legal in the UK). It is the responsibility of the purchaser to ensure that the purchase and use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Flying Tech Ltd cannot be held responsible for your actions if you purchase and/or use this product in violation of your government’s regulations.

FrSky R9 / TBS Crossfire Users – these radio control systems can interference with the 1G3 video link as they operate on adjoining frequencies. To help reduce interference we recommend fitting a notch filter or using a 5.8Ghz relay station so that the 1G3 VRX can be positioned away from your radio control.

*** This is the International 9HC Version. The 2CH US version is locked to 1258 & 1280MHz and cannot be unlocked to 9CH.

Specification

Frequency band: 1060-1380MHz
Channel customer: 9
Channel Frequency: 1080/1120/1160/1200/1240/1280/1320/1360/1258 (MHz)
Audio Sub carrier: 6.5MHz/6.0MHz
Modulation type: FM
Frequency control: PLL
Audio subcarrier control: PLL
Output Power: 0.1mW, 25mW, 200mW, 800mW
Frequency Stability: ± 100KHz (Typ.)
Frequency precision: ± 200KHz (Typ.)
A/V ratio: -26 ± 2dB
Signal to noise ratio S/N: (Fo ± 3MHz)>70dBc
Channel Carrier error: 1dB
Antenna Port Impedance: (50 Ohms)
Input format: NTSC or PAL
Video input level range: 1V ± 0.2Vp-p type
Audio input level range: 1V ± 0.2Vp-p type
Operating Temperature: -10 ℃~+60 ℃
Input power supply: DC 7-28V
Power output (Output voltage): DC7.28V; DC5V
Profile dimension: 45.5mm (L) x 35.8mm (W) x 8.4mm (H)
Installation hole position: 30.5mm x 30.5mm
Weight: 10g

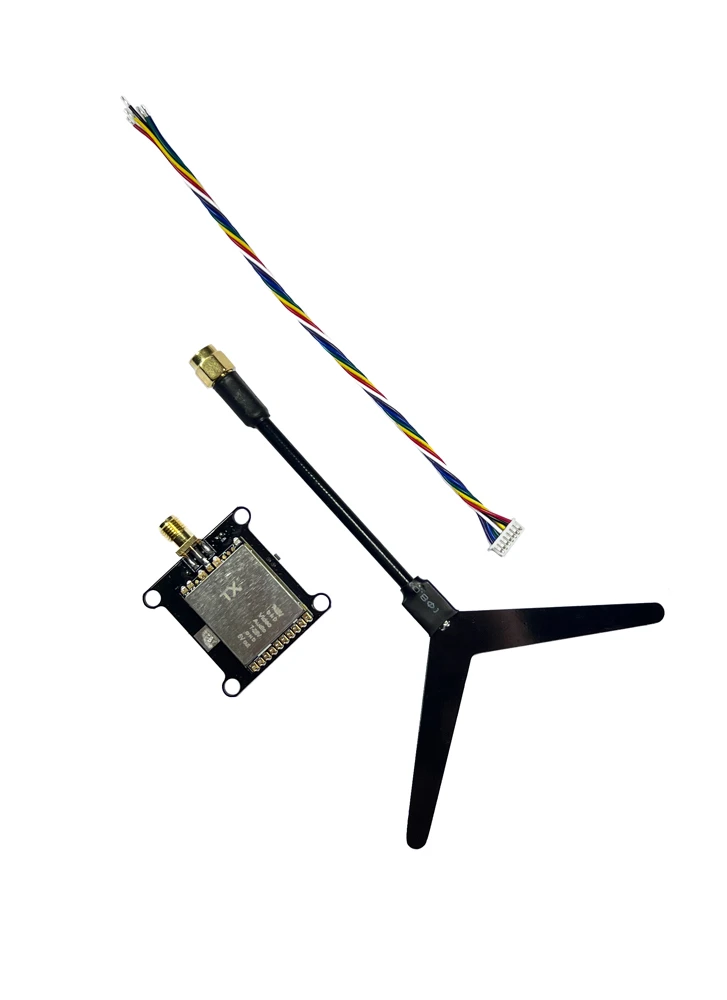

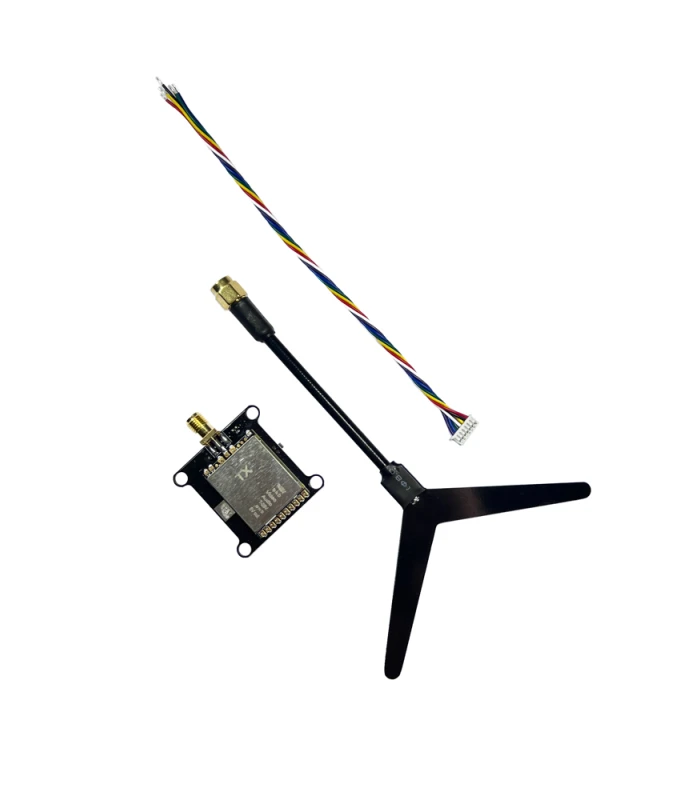

Included:

1x VTX module
1x “Y” type antenna
1x 7P 1.25 cable

Downloads

Manual (jpeg, 749KB)

Download

Q&A

Questions and answers of the customers

Wire diagram of it. How to connect to flight controller fpv??

0 votes

Q Wire diagram of it. How to connect to flight controller fpv?? answer now

A
Hi, please see the manual here for information regarding the pin connections. You wire it in the same way as you would a 5.8Ghz analog FPV transmitter (basically a power supply and video signal connection). Youtube has lots of videos showing how that is done.
