Name: PandaRC VT5804 Air 25-400mW 5.8GHz Whoop/Toothpick VTX - Flying Tech
Brand: PandaRC
SKU: FPV-VTX-VT5804AIR
Price: 16.90 GBP
Availability: InStock

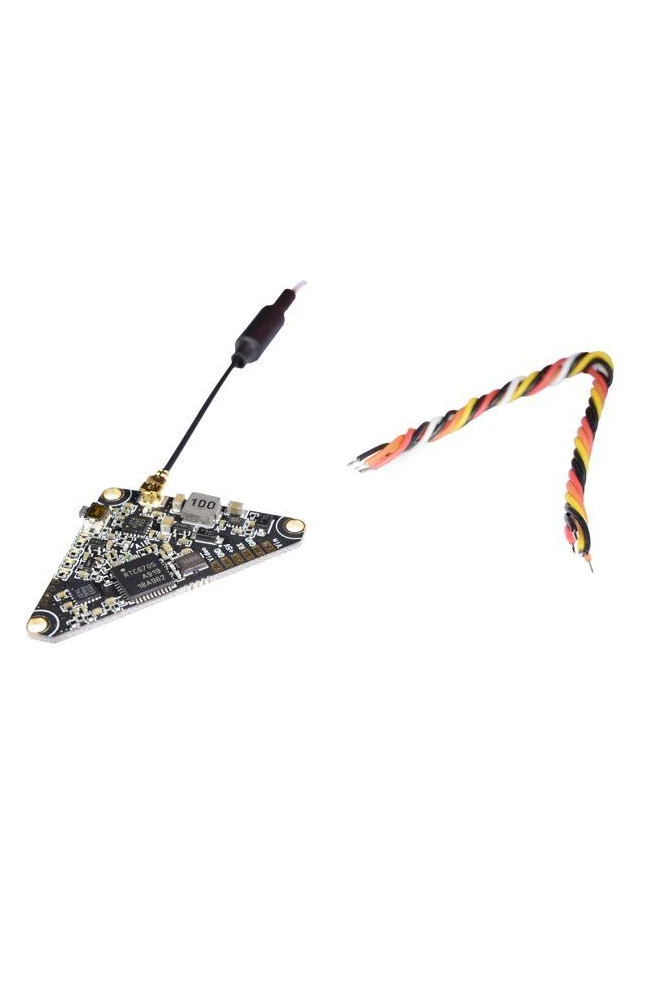

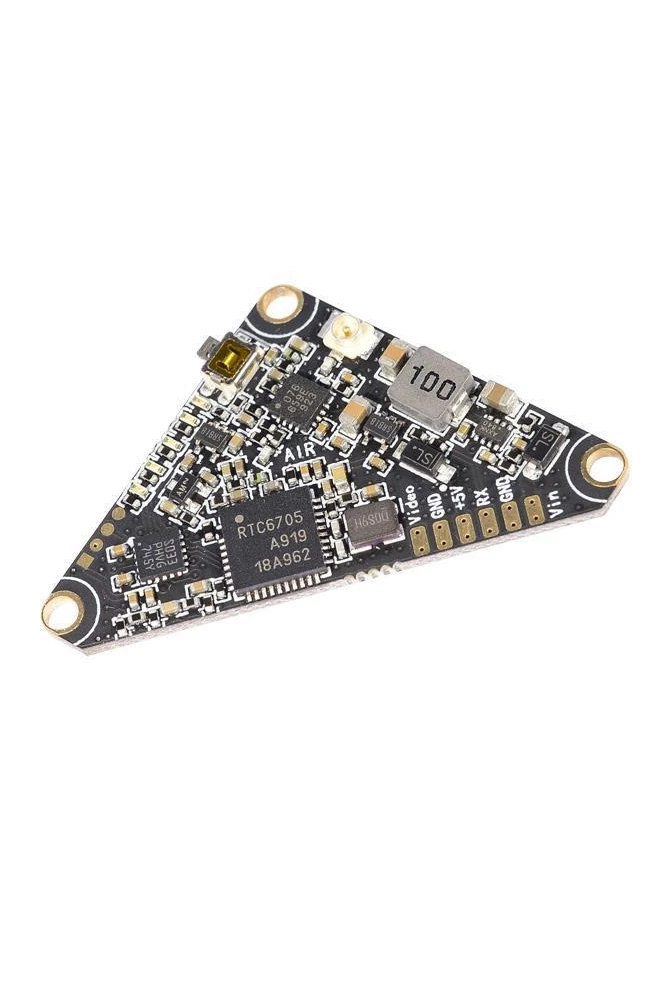

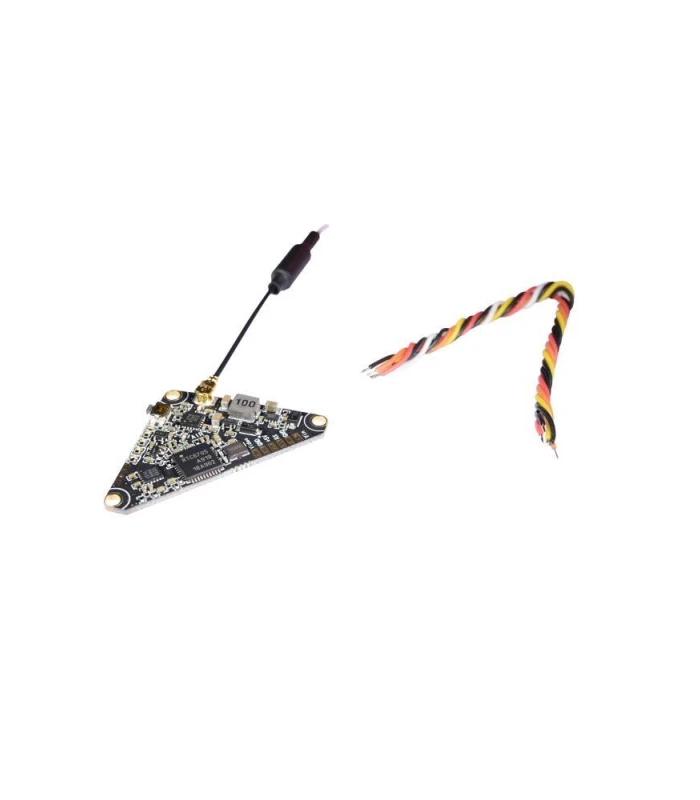

PandaRC VT5804 Air 25-400mW 5.8GHz Whoop/Toothpick VTX

£16.90 Inc. VAT

With its triangular form factor, this VTX works well for Whoops and Toothpick class micro drones.

Only 2 left in stock

0 People watching this product now!

Description

PandaRC has many options available for reliable and affordable 5.8GHz Video Transmitters (VTX), featuring different sizes, connectors, and output power levels.

This VTX in particular has been designed for Whoops and Toothpick class micro drones. Its triangular form factor is easier to install into these smaller drones and it has the common 25.5X25.5mm mounting hole pattern. It features an impressive max power output of 400mW and supports 2-6S input voltage. Its antenna connection is U.FL.

Features:

Switchable transmitting power, including 0mW / 25mW / 100mW / 200mW / 400mW
Fast frequency lock, boot does not interfere with other pilots
Comes with output power self-test function
Wide input voltage range 2-6S LiPo
Whoop / Toothpick compatible hole mounts 25.5X25.5mm
Controllable through Tramp protocol

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Specification

Frequency Band: 5.8GHz
Channel: 40CH
Power: 0/25/50/100/200/400mW Switchable
Input Voltage: 6-26V,+12V/240mA @400mW
Video Format: NATSC/PAL
Dimension: 28.5×28.5x3mm
Mounting Holes: 25.5X25.5mm
Weight: ≤3g (Without antenna)

Included:

1x PandaRC VT5804_AIR FPV VTX
1x Antenna
1x Cable
1x Manual
