FXT X50 5.8Ghz 40CH Race Band FPV VTX with 90 Degree SMA

£29.90£39.90 Inc. VAT

Theseย transmitters come housed in a neat aluminium case.

0 People watching this product now!
Description

We are now stocking the Quanum Elite X40-2 (rebranded version of FXT X40) – this transmitter has a straight SMA connection rather than vertical found in the X50.

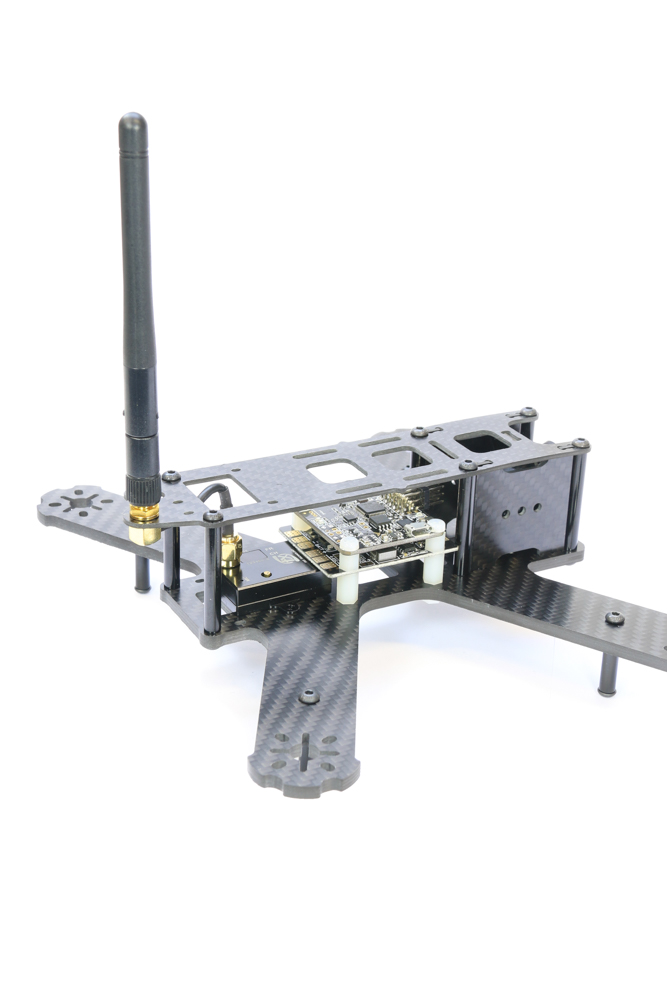

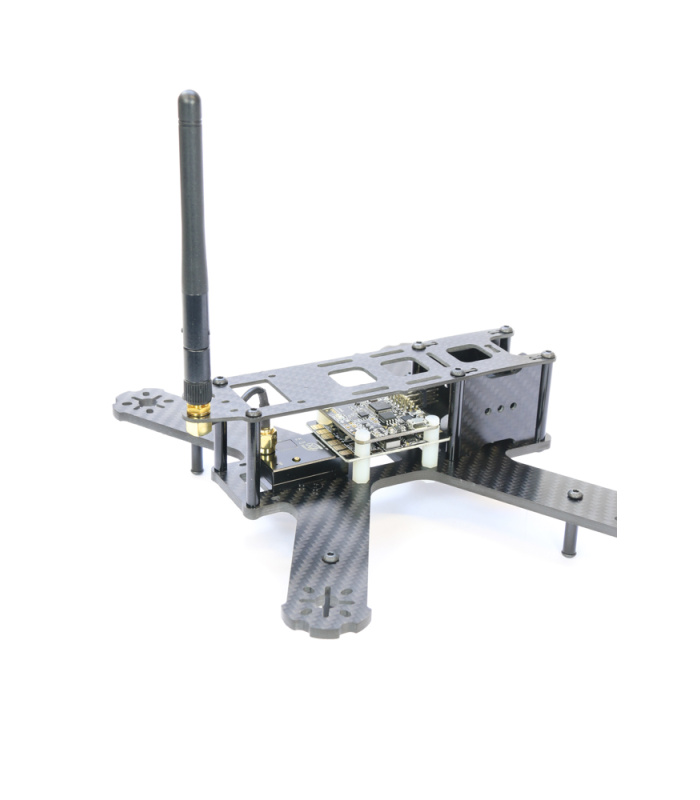

The FXT X50 is a very popular video transmitter (VTX) with FPV miniquad racers due to its small size, ease of use, vertical antenna mountย and compatibility with RaceBand channels.

There are several versions of the VTX available with difference power outputs: 25mW (X50-L), 200mW (X50-2)ย and 600mW (X50-6). The 25mW is the UK legal version, free to use without a license. With the stock antenna you can get a range of 200m in open space. If you use some circular polarised antennas, this can be increased to over 300m. Low power FPV transmitters like the X50-L are also really good for indoor environments, where high-powered transmitter often cause multipathing. On the other hand, the 600mW version is much better outdoors and for long range FPV. With the stock 2 dBi dipole(Rubber Duck) antenna the transmitter is good for 1km LOS, but this can be extended to 1.5km+ by using a combination of circular polarised and helical antennas. Finally, 200mW is a perfect all rounder. It’s aย power output used by a lot of FPVย mini quad racers because it’sย enough to provide a decent range and reception and equally won’t kibosh everyone elseโ€™s fun, or eat into your battery life.

Both transmitters boast a big range of channels and support Raceband frequencies, which makes them compatible with most FPV gear on the market including Fatshark and ImmersionRC gear. RaceBand frequencies basically allow more pilots to race together without interference. Best still, thereโ€™s not a dipswitch in sight, it has a channel selection button and LED display that makes changing channels a painless experience. The ability to change channels quickly really comes into its own at drone racing events when lots of people are operating on the same channel.

Race Band channels: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5817mhz

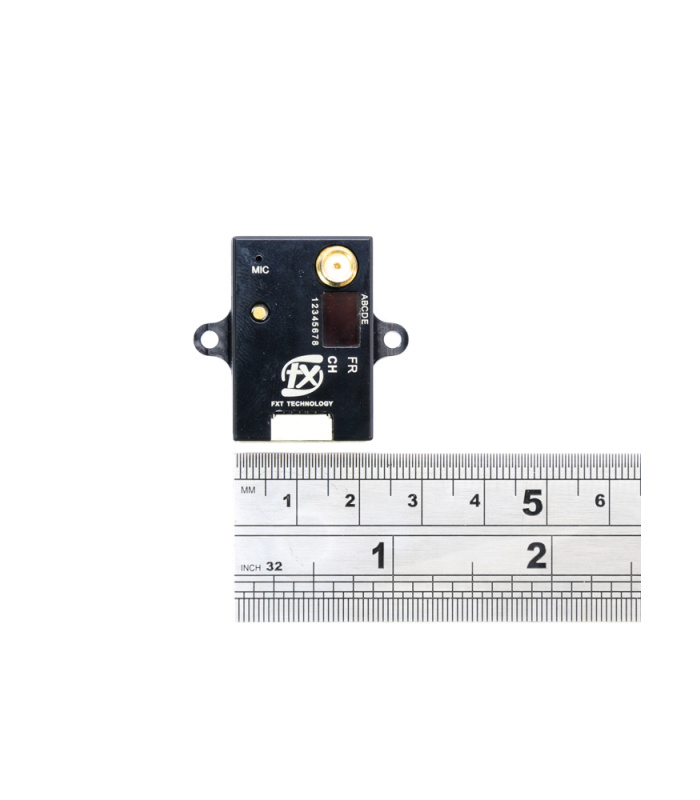

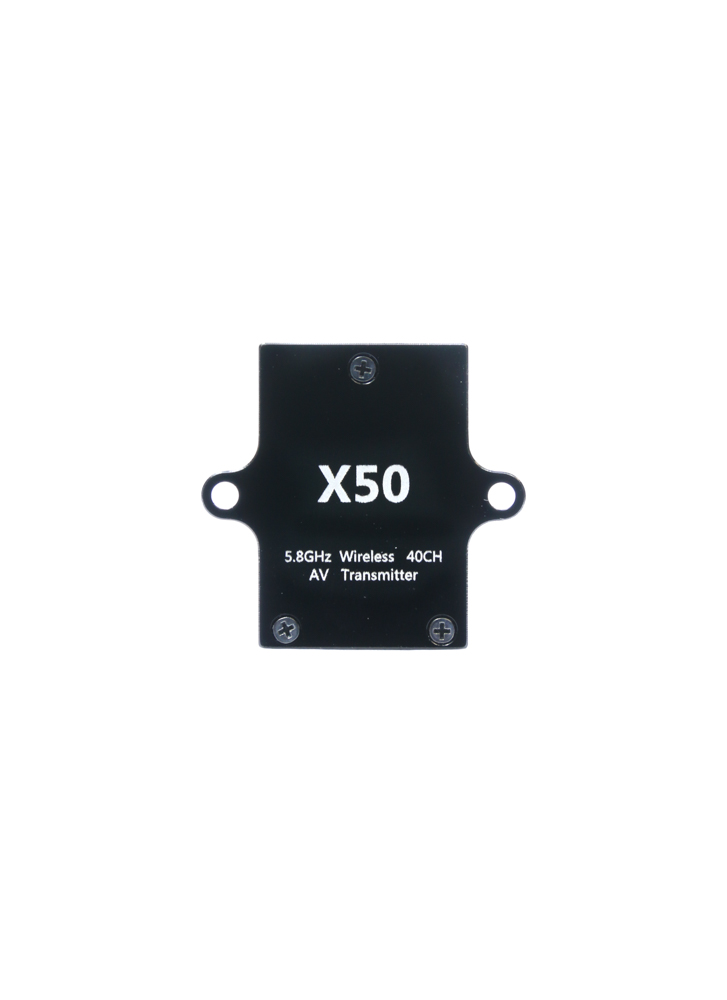

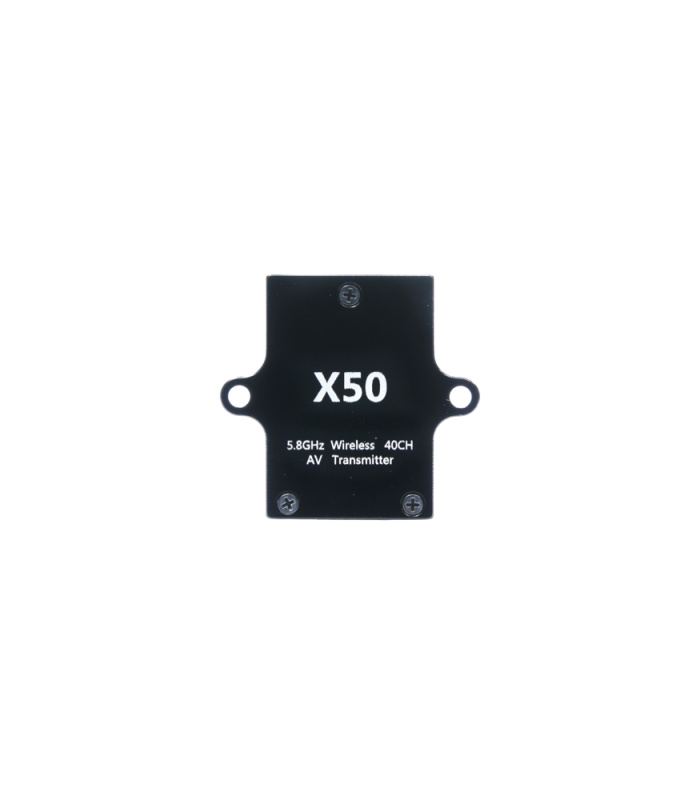

The X50 transmitter come housed in a neat aluminium case, which helps with cooling and offers some crash protection. Its SMA connection is vertical so you can mount your antenna upwards without needing an adapter.

A wiring harness is provided which features a three-pin connector which is compatible with a lot of FPV cameras.ย  The Tx also provides a regulated 5V power supply which could be used to power a camera like the Foxeer HS1177.

Features:

  • Aluminium casing for better cooling & crash protection

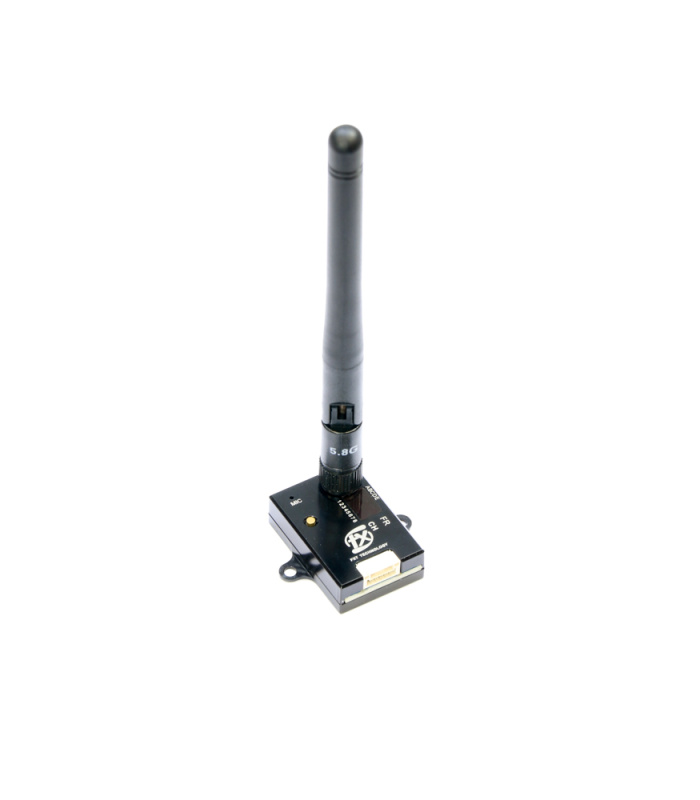

  • 90 degree upward SMA antennaย mount
  • 40 channels includes RaceBand – compatible withย Fatshark and ImmersionRCย gear
  • Intuitive and easy to use button and LEDs for frequency selection
  • Not affected by 2.4GHz R/C radios
  • Micro sized and very lightweight,ย only 12g – perfectย for racing drones
  • Wide operating voltage (7-20V)

IMPORTANT: Do not turn the transmitter on before attaching the antenna,ย doing so will permanentlyย damage the board!

Note:ย Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licensesโ€™ to operate vary from region to region.

Channels:

  • Band A: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
  • Band B: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
  • Band C: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
  • Band D: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917
  • Band E: 5733, 5725, 5771, 5790, 5809, 5828, 5847, 5866

Legal Notice:ย Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licensesโ€™ to operate vary from region to region.

Specification
  • Antenna connector: SMA Female
  • Module :ย Wideband FM Module
  • Video Format : ย NTSC / PAL
  • Output Impedance :ย 50 Ohm
  • Frequency Range: 5645 ~ 5945 Mhz
  • Channels:ย 40CH (RaceBand)
  • Operating Voltage:ย 7V~20V
  • Supply Current: ย 260mA
  • Output Voltage (VOUT) : 5V
  • Operating Temperature: ย -10~85 degrees
  • Video Band Width: 8mhz (except R Band, that is 37mhz apart)
  • Audio Carrier Frequency:ย 6.5MHz
  • Video Input Level:ย 0.8~1.2 Vp-p
  • Video Input Impedance:ย 75 Ohm
  • Audio Input Level:ย 0.5~2.0 Vp-p
  • Input Impedance:ย 10K Ohm
  • Dimension:ย 32mm x 22mm x 9.4mm
  • Weight:ย 12 (without antenna)

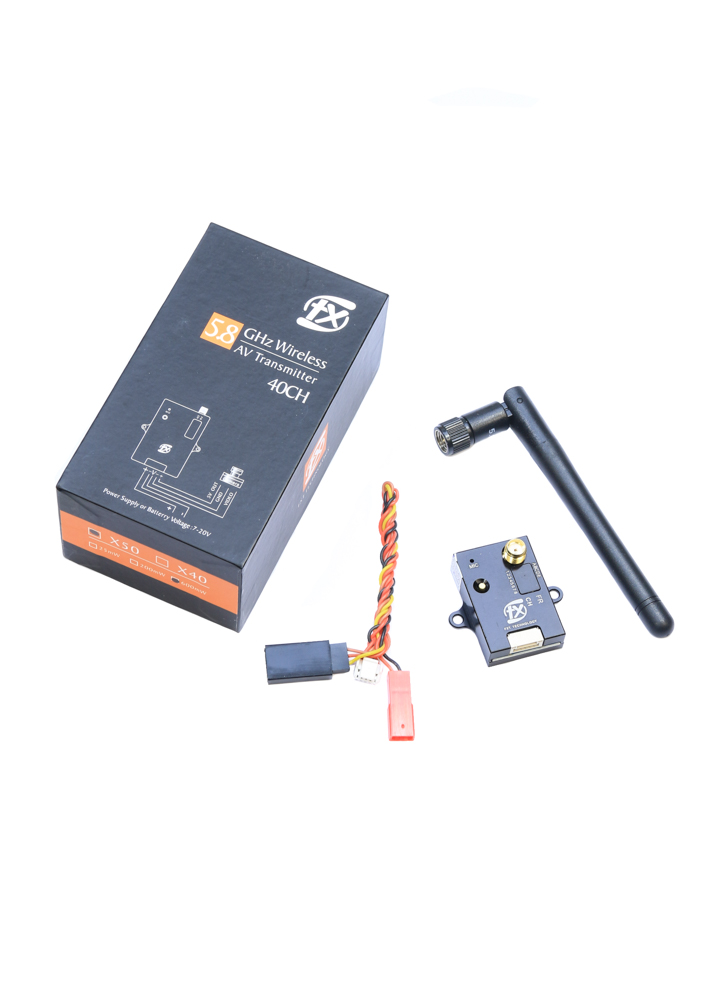

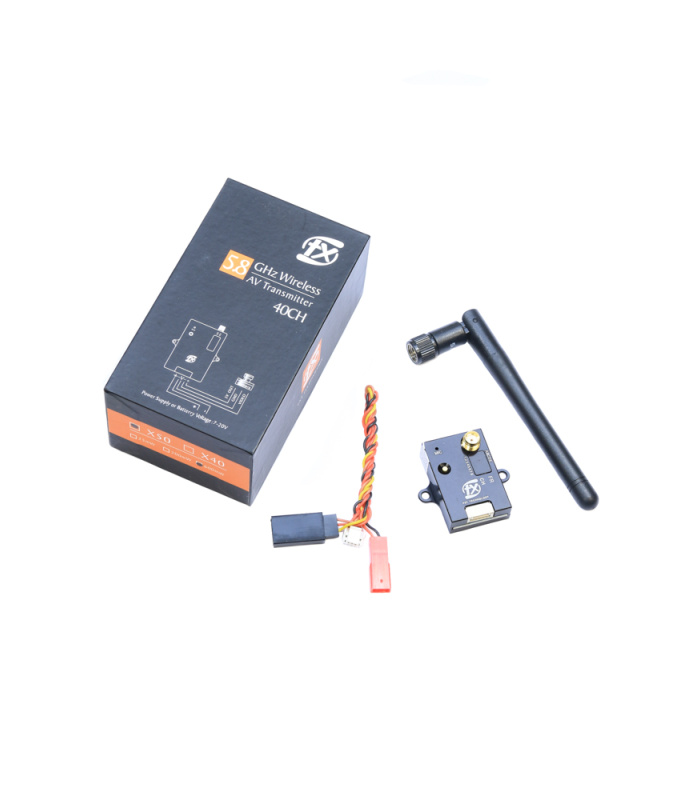

Included:

  • 1x X50-6 FPV 5.8Ghz Transmitter
  • 1x Transmitter Connection Cable
  • 1x Antenna
  • 1xย Frequency Guide and Booklet
Q&A

Questions and answers of the customers

    Hello, is there a picture of the connections (circuit diagram)? I need to look that up, if it fits for my FC. Thank you really much! Greetings ๐Ÿ‘‹
  1. 0 votes
    Q Hello, is there a picture of the connections (circuit diagram)? I need to look that up, if it fit...... Read more answer now
    A

    Hi, we don't have a circuit diagram, but the wiring is the same as this VTX. You provide power input using the red JST connector. The black connector goes to your camera, providing 5V power and the video signal.
