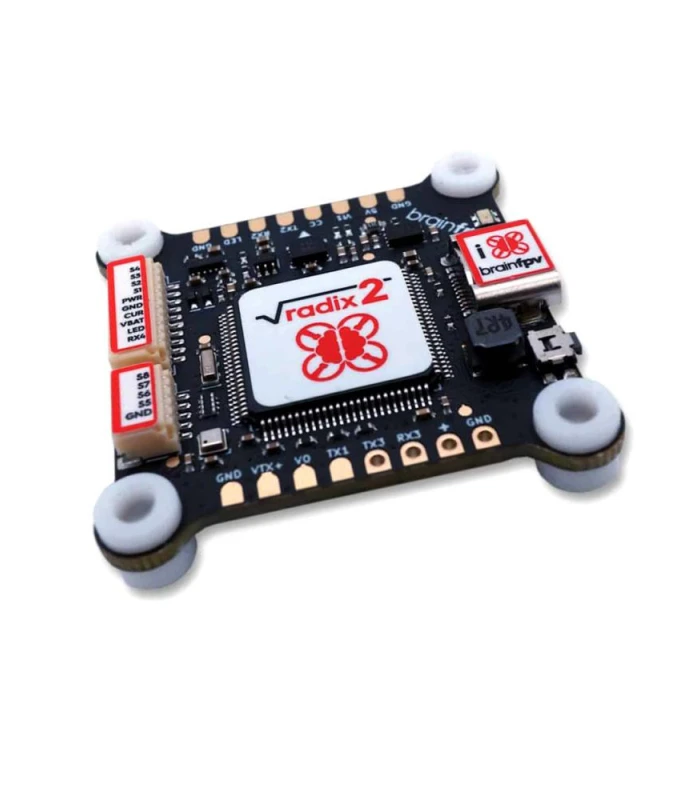

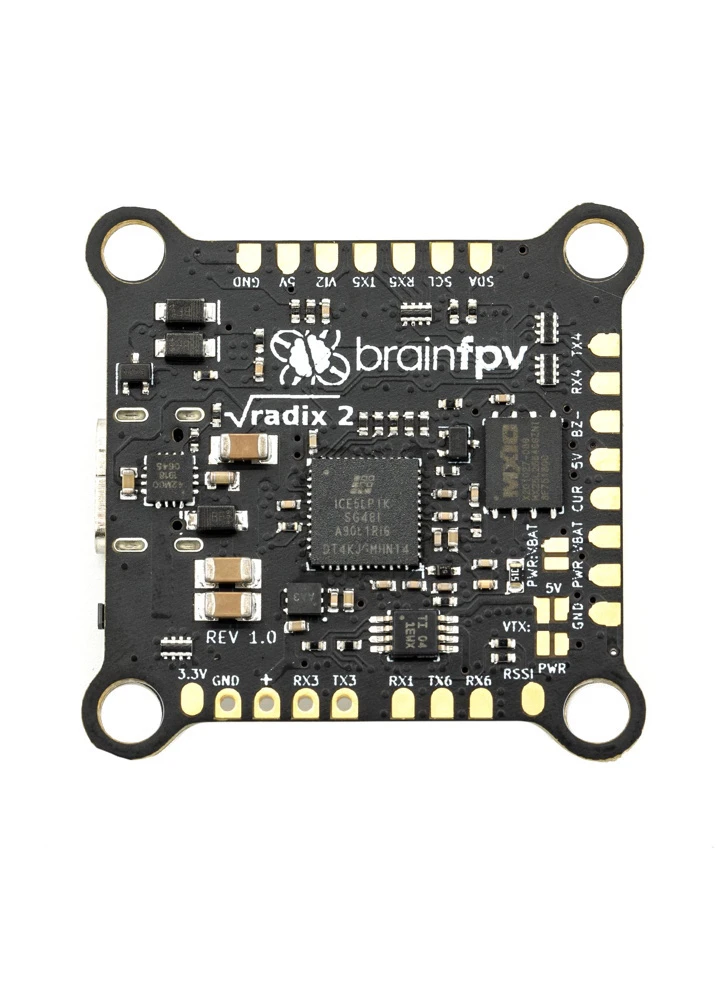

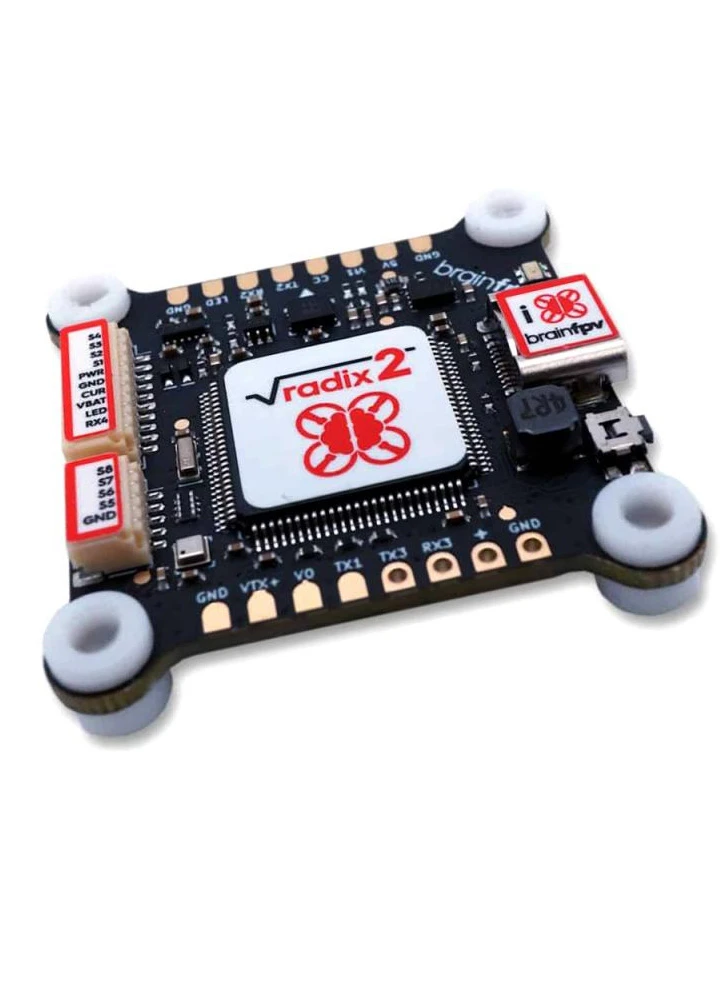

BrainFPV Radix 2 30×30 Flight Controller (H7 + graphic OSD)

BrainFPV products are all made in the USA, and are NDAA Compliant.

30×30 H7 FC W/ FULL GRAPHIC OSD FOR ANALOG FPV

* NEW 2024 BATCH: REVISION 2.0*

Changes for RADIX 2 Revision 2.0 Released in 2024:

• Improved barometer: Infineon DPS310
• Improved 5 V voltage regulator that we also use in the RADIX 2 HD

The RADIX 2 is the latest generation flight controller by BrainFPV. It is the successor of the legendary RADIX flight controller and everything has been vastly improved. From a blazing fast H7 processor running at 480 MHz, an improved graphical OSD, a built-in voltage regulator that can handle up to 8S (35 V), to 8 motor outputs, driverless flashing, and more.

BrainFPV is famous for bringing the BEST documentation and a unique Bosch gyro. The Radix 2 is now using a NEW Bosch Sensortec BMI270 Gyro. They have also upgraded to a NEW Bosch Sensortec BMP388 barometer.

BrainFPV is also known for the first Graphical OSD system with custom pilot logos and start screens and this has been improved even more with Radix 2.

The RADIX 2 is designed to be compatible with any 4-in-1 motor controller (ESC) on the market. For octocopters, you can use the included 5-pin cable to connect a second 4-in-1 ESC for motors 5 to 8. All outputs fully support bi-directional DSHOT that enables the motor controllers to send back real-time telemetry that is used by the flight controller to perform adaptive RPM based noise filtering.

If you prefer to use a separate ESC for each motor, the companion product, the RADIX 2 Power Board (PB) got you covered. It is designed for serious power and can handle up to 8S (35 V) battery voltage and 160 A constant current (220 A burst). It also features an LC filter and voltage regulator for clean power to the flight controller and connected peripherals.

About the Company BrainFPV:

Based in Portland, Oregon, BrainFPV specializes in flight controllers that are fully integrated, easy-to-use and work flawlessly, providing FPV (First Person View) drone pilots the smoothest ultimate flight experience. You can just SEE the love, passion, and craftsmanship that goes into designing our products, from start to finish.

RADIX 2 Flight Controller Features

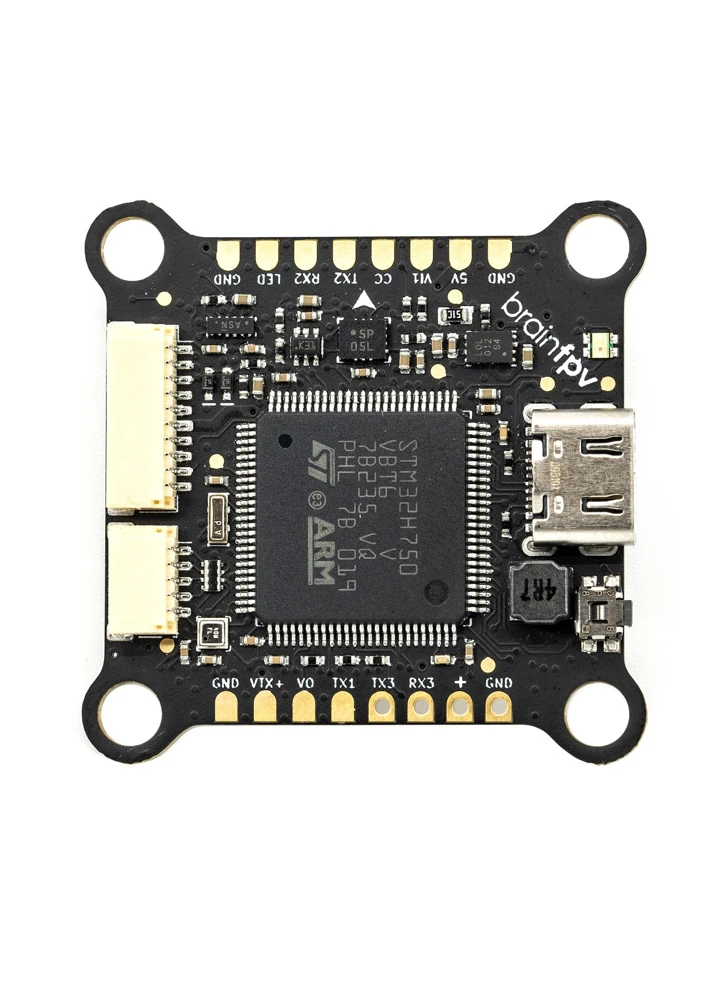

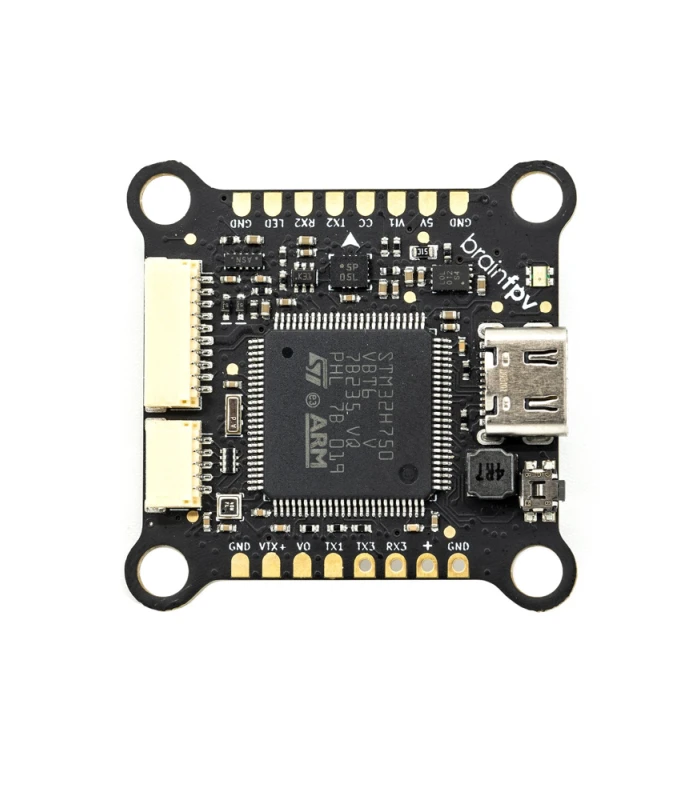

• New Processor: STM32 H7 processor running at 480 MHz with 1 MB RAM
• New Gyro: New Bosch Sensortec BMI270 gyro / accelerometer delivering superior flight performance
• New Baro: Latest generation Infineon DPS310 barometer for accurate altitude readings. Previous revisions used Bosch Sensortec BMP388 (Rev 1.0) or Omron 2SMPB-02B (Rev 1.2)
• Better OSD: Improved full graphical on-screen-display (OSD) with gray levels and transparency
• Dual camera input: Camera can be switched using a switch on the RC transmitter
• VTX pit switch: to turn on/off the video transmitter. Voltage for VTX can be 5 V or the battery voltage.
  Note: The original RADIX 2 had over-current protection for the pit switch, which was removed in hardware revision 1.2 released in 2022.
• 32 MByte built-in flash memory: 30 MByte available for logging and settings storage
• Driverless flashing with the BrainFPV USB mass storage bootloader. Simply copy the firmware file to the flight controller when connected to your computer. No more messing with DFU drivers
• RGB status LED with customizable color
• 8 motor outputs: all supporting bi-directional DSHOT for RPM filtering. All outputs are available on connectors for easy connection of one or two 4-in-1 motor controllers (ESC’s).
• 6 serial ports (UARTs): all with integrated inverters for S-BUS and other inverted protocols
• I2C port for external sensors
• RGB LED output
• Buzzer output
• Camera control output for configuring analog cameras
• Analog RSSI input
• 5 V regulator with 1.5 A output and up to 8S (35 V) input voltage
• USB Type-C connector
• Size: 37 x 37 mm (30.5 mm hole spacing)
• Weight: 7g
• Firmware support: Betaflight, iNav planned

To learn how to use the RADIX 2, check out the manual.
