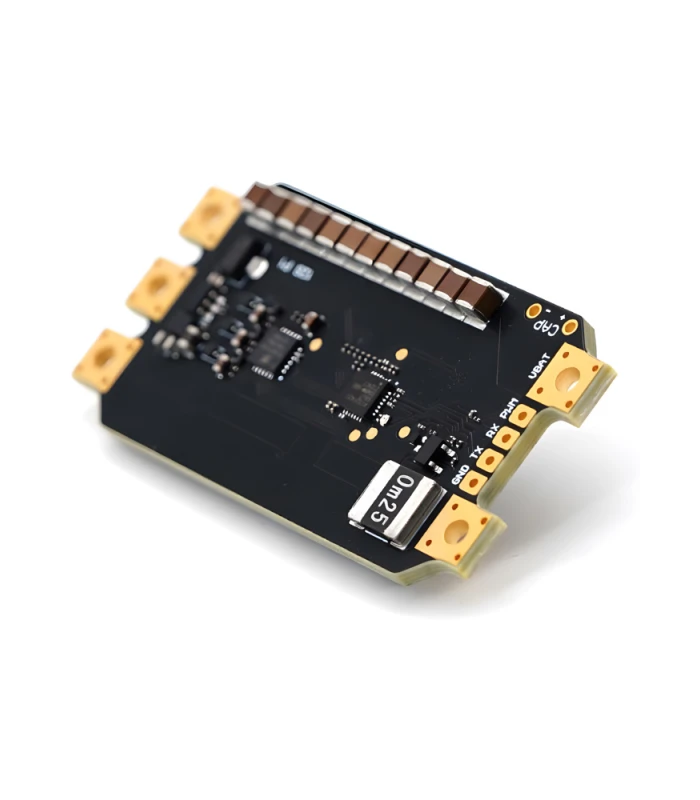

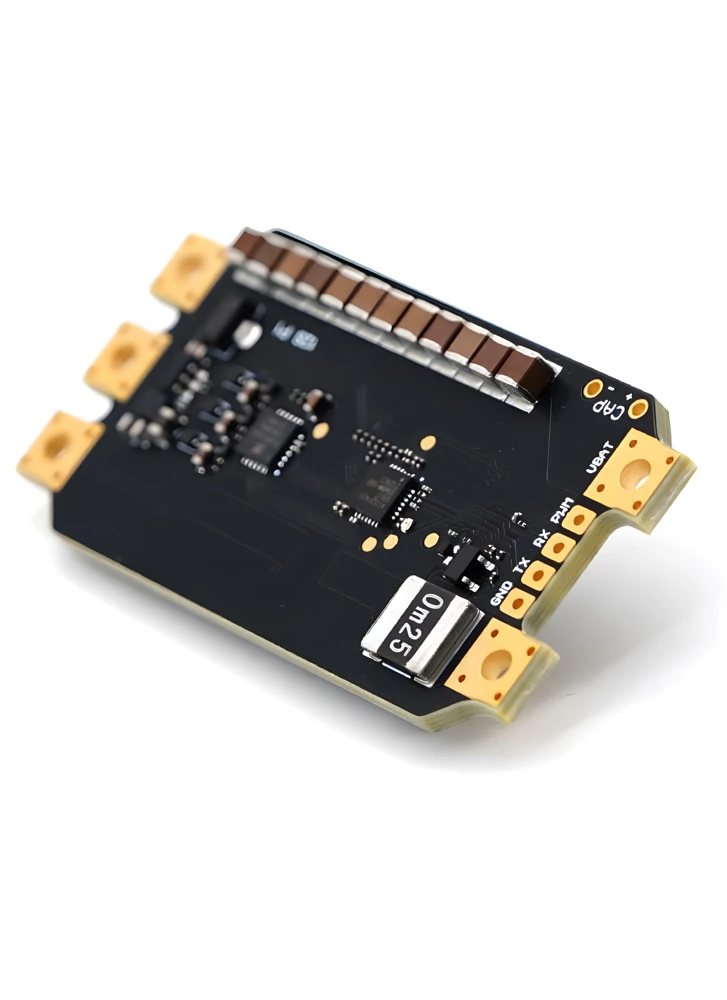

TBS Lucid 3S-12S 90A Single ESC with AM32 – NDAA Made in the USA
£57.95 Inc. VAT
The NDAA Version of the TBS Lucid 12S ESC is built for high-voltage, high-power applications where reliability is non-negotiable.
In stock|Next shipping: 16/03/2026
This version is NDAA-compliant and made in the USA. Original Made in China Version HERE.
The NDAA Version of the TBS Lucid 12S ESC is built for high-voltage, high-power applications where reliability is non-negotiable. Featuring an 8-layer high current density board with exceptional heat resistance, this ESC can handle the rigors of intense flying while supporting heavy payloads. Integrated TVS protection safeguards against voltage spikes, giving you peace of mind in every flight. With a design focused on thermal dissipation—without the added weight of bulky heat sinks—the Lucid 12S strikes the perfect balance between power and efficiency. Developed in close collaboration with AM32, it pushes performance to the limit without breaking the bank. NDAA-Compliant for added security and compatibility
Features
- Advanced Thermal Dissipation
- AM32 Firmware Collaboration
- Built for Harsh Conditions
- High Voltage Powerhouse
- Lightweight & Powerful

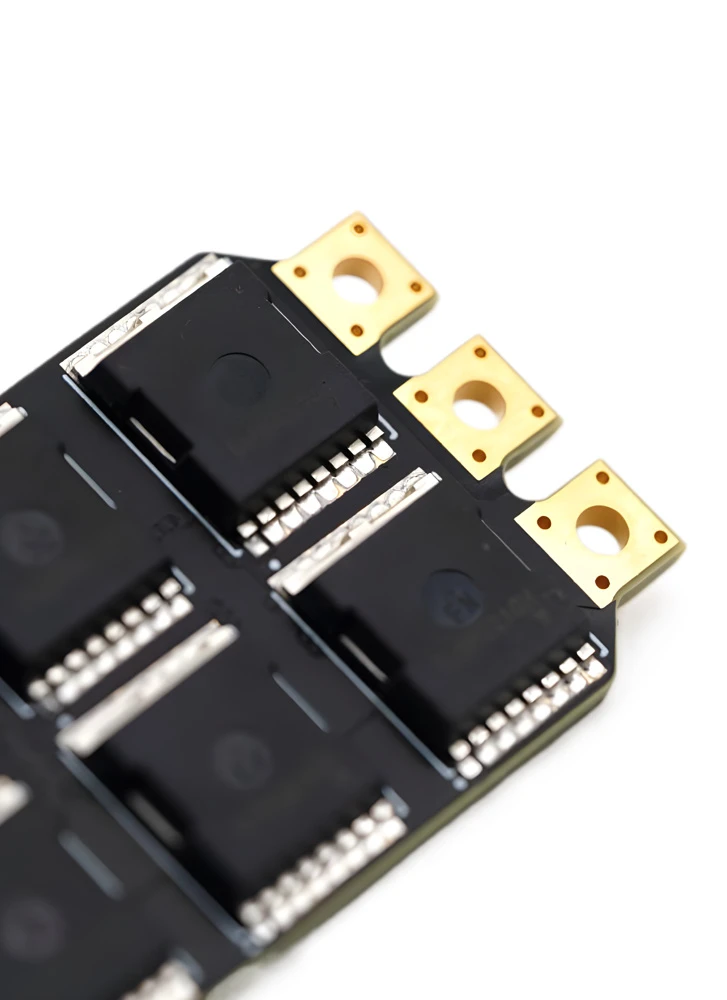

- Robust 8-Layer PCB
- NDAA Compliant
- TVS Protection
Links
- ESC software: AlkaMotors32 (AM32)
- ESC target: AM32_TBS_12S_F421
- Rated current: 70A, 60 seconds, 90A 40 seconds
- Peak Current: 120A, 30 seconds
- Propellers: Up to 15″, over 7″ requires good airflow
- Input: 3-12S Lipo
- Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry

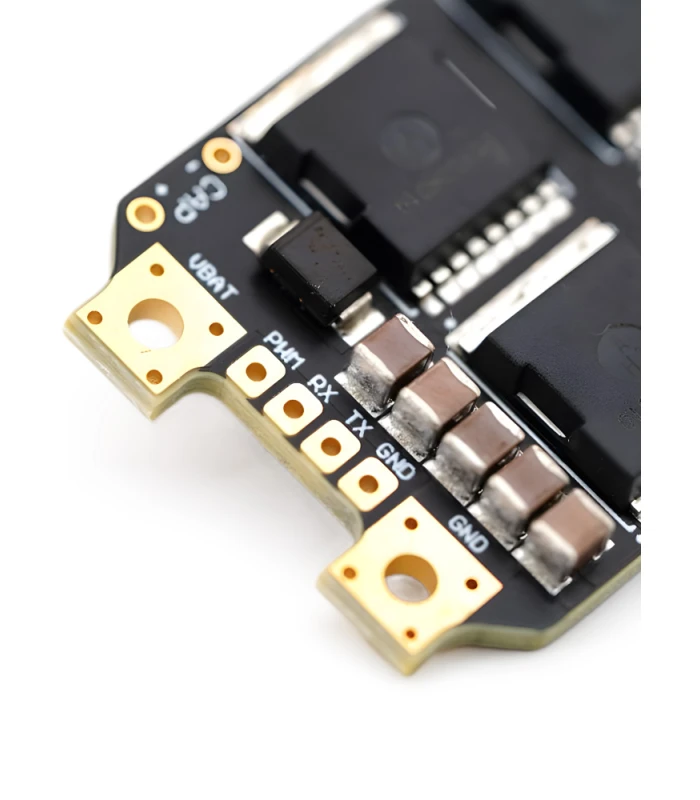

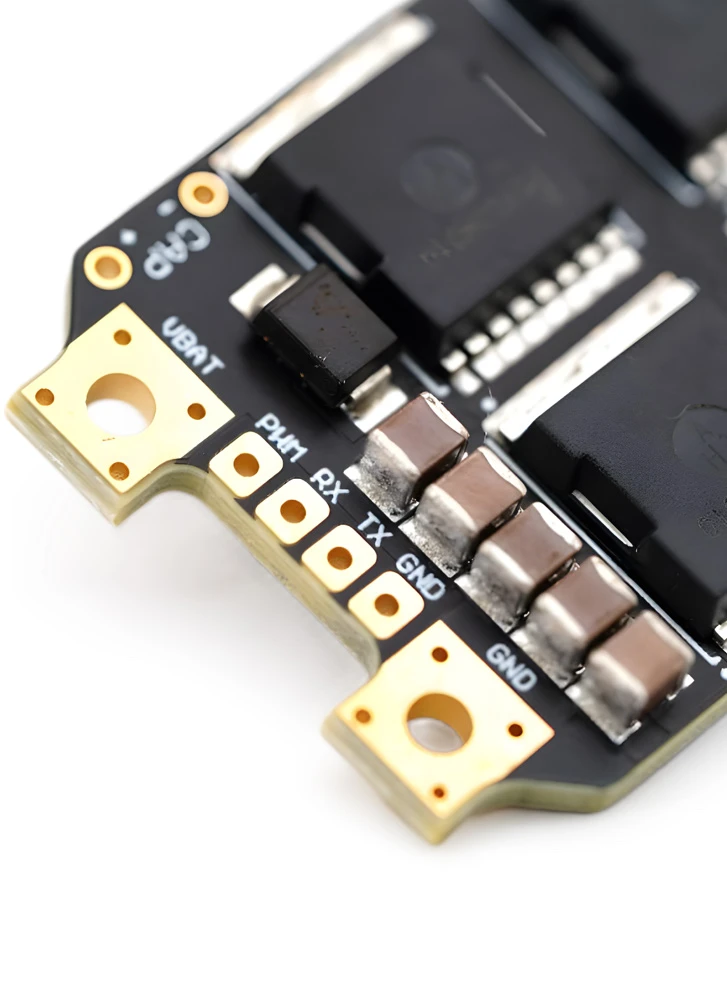

- ESC Current port: Yes
- BEC: No
- Size: 57.75mm x 29mm
- Mounting: See DXF drawing
- Weight: 19g excl. cable and capacitors

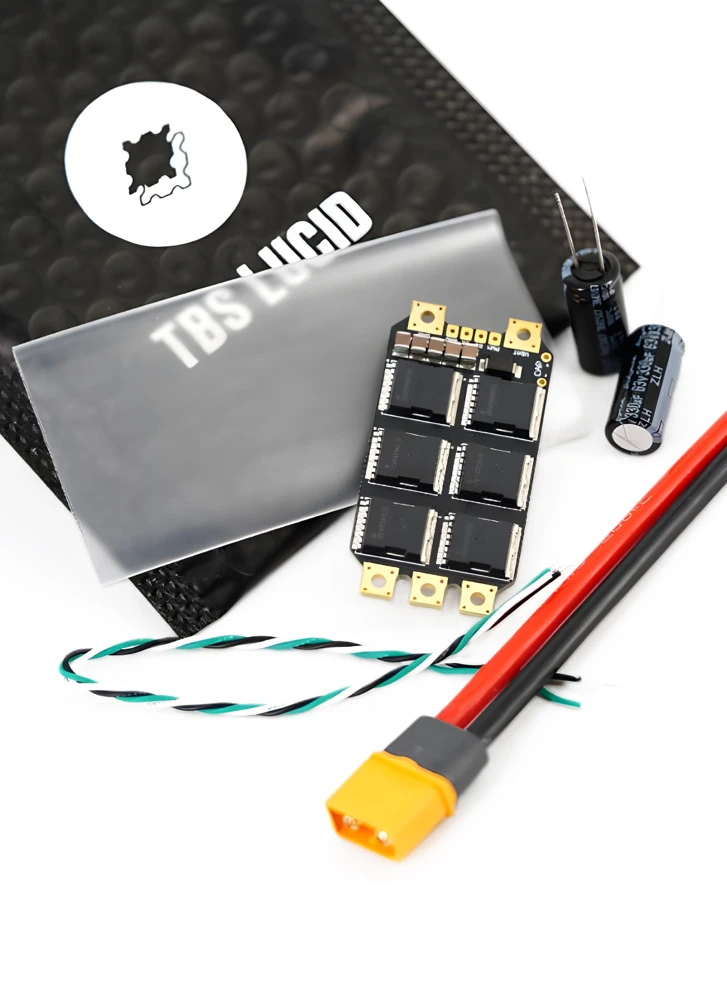

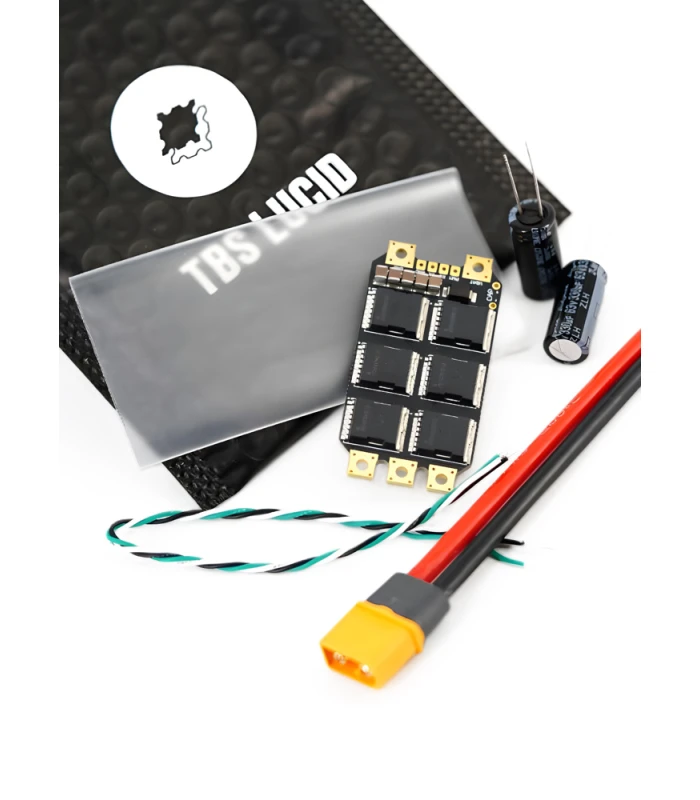

Included:
- 1x TBS Lucid 12S ESC
- 1x XT60 12 AWG wire
- 1x 3-color wire for PWM or Serial (D-Shot, CRSF)
- 1x shrink tube (transparent)
- 2x 330uF 12S low-ESR Capactior
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).
There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.
This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.
When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
TBS is the brand behind Crossfire, the famed long Range RC system. They are also experts on FPV, making some of the best quality analog video transmitters and antennas out there.
TBS has a loyal following and for good reason. Their customer service is second to none. We are big fans of anything TBS!
Best Sellers: Tango 2, Crossfire Nano, Fusion VRX, Triumph Pro, M8 GPS, Unify Pro32, Solder.
