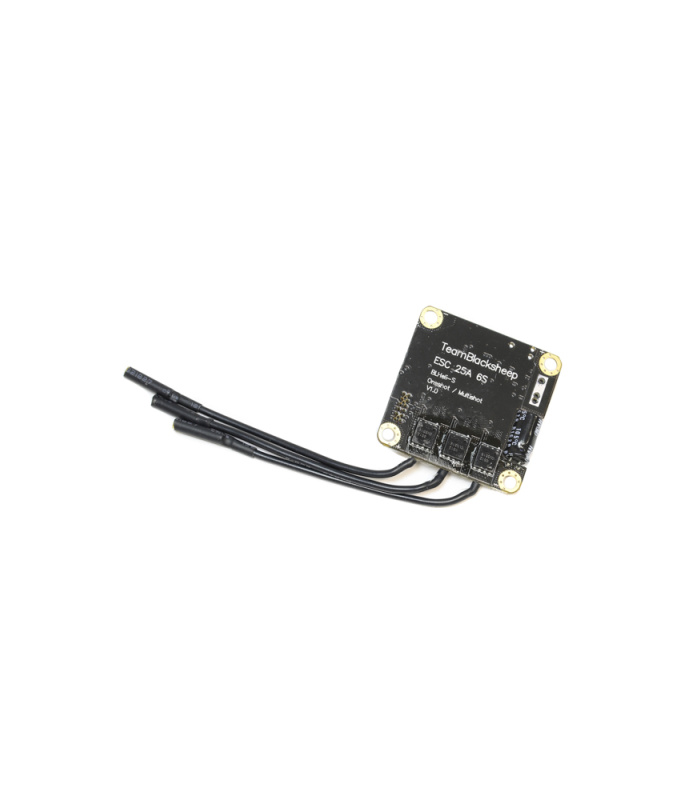

TBS BulletProof Powercube 25A 6S V2 – Spare ESC

£17.90 Inc. VAT

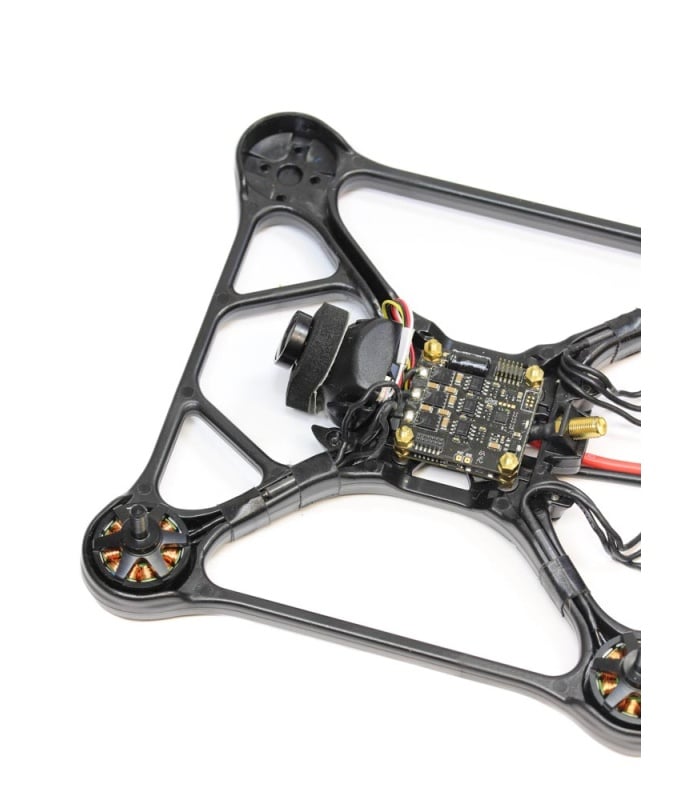

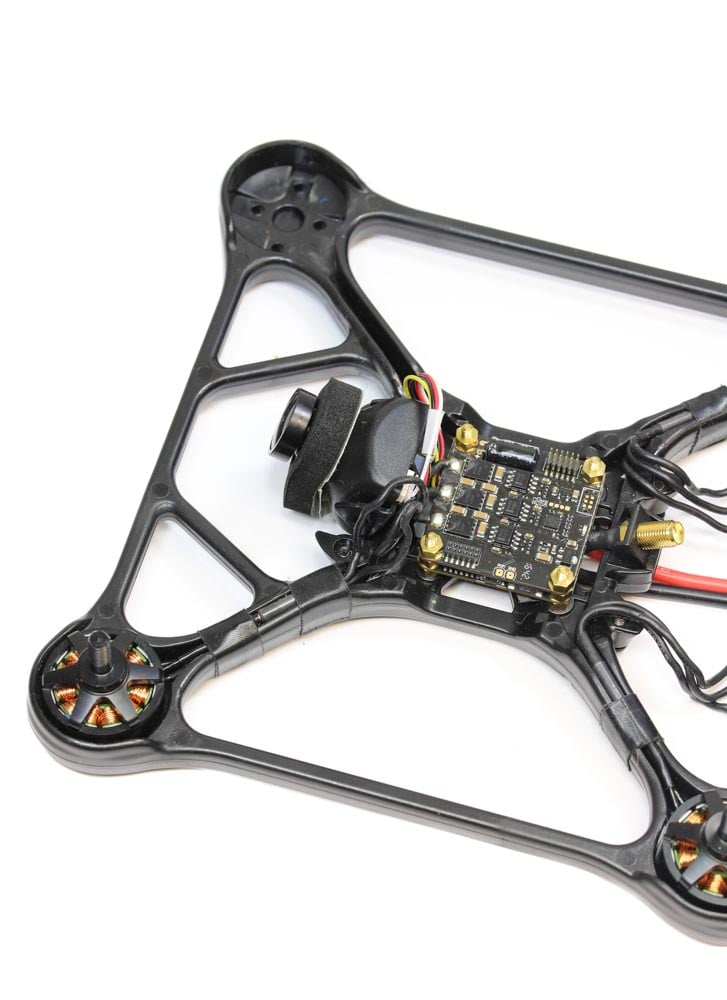

Spare part for the TBSย Oblivion drone / TBS Powercube Stack.

Only 4 left in stock

0 People watching this product now!
Description

The world’s most reliable, powerful and precisely switching ESC just got a major overhaul and re-design. With raceing driving the technology forward, TBS was dead set on setting a new milestone in ESC technology. Stackable to cater any kind of multi rotor configuration, with unmatched input resolution, output power, regenerative braking and ease-of use. Forget the days were you had to bother about configuring your ESCs. Stack, plug and fly!

** These are the new V2 versions **

Note: requires Coiibri Race >V2.0!

BUILT FOR RACE

  • 960 step input resolution
  • Multishot 32KHz, OneShot auto detection
  • Fastest regenerative braking
  • Dedicated PWM FET driver IC for fastest in class FET switching (lowest deadtime)
  • Latest BlHeli-S firmware

SAFE AND RELIABLE

  • Mechanical crash protection (no more fires!)
  • Optimized passive cooling
  • Automatic Motor/ESC protective cutoff
  • Status LED

For defualt settings of the ESCs, please click here

Specification
  • Continuous Current 25A, peak 45A
  • Voltage Range: 6 – 26V
  • Firmware: BlHeli (actual V16.x, FH-00)
  • Dimensions: 36mm x 36mm x 3mm
  • Weight: 4.8g without wires. 7.3g incl. wires & 2mm bullet connectors
  • Input: Multishot up to 32kHz, Oneshot or PWM
  • Connectors: 2.0mm bullet connectors, 80mm wire
  • Motor start at 1020us, max at 1980us

Included:

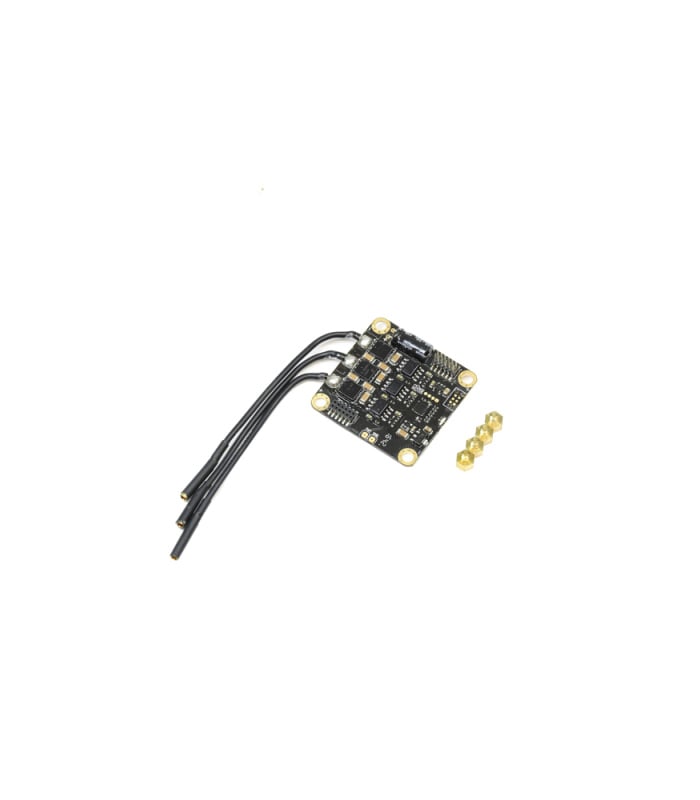

  • 1x TBS Powercube ESC
  • 4x Brass standoffs
Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.ย

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying โ€œCineliftersโ€.ย

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an โ€œAIO flight controllerโ€ (a type of flight controller with integrated PDB) for power supply.
