60A 4in1 ESC SpeedyBee BLS 60A 30x30 4-in-1 ESC

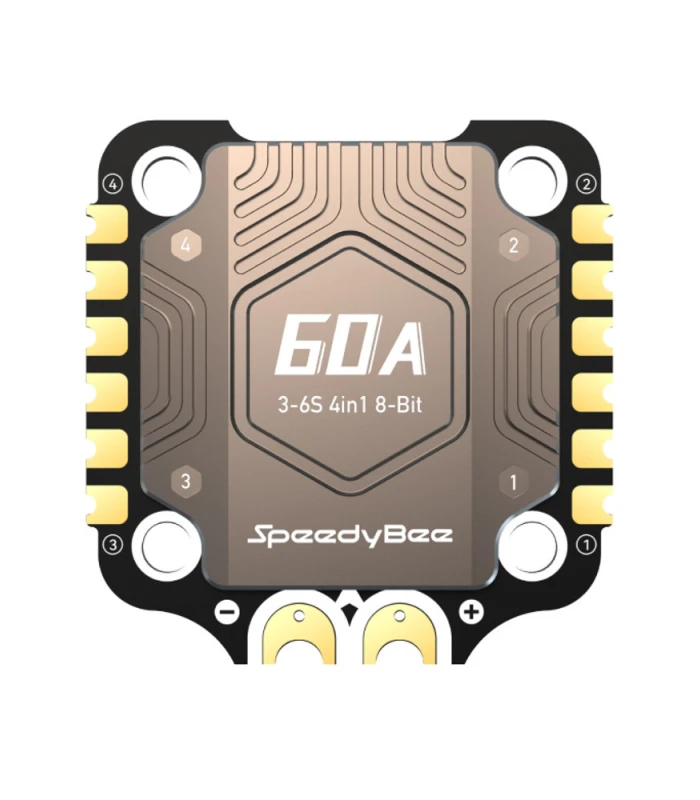

SpeedyBee BLS 60A 3-6S 30×30 4-in-1 ESC

Name: SpeedyBee BLS 60A 3-6S 30x30 4-in-1 ESC - Flying Tech
Brand: Speedybee
SKU: ESC-BLS60A
Price: 44.99 GBP
Availability: InStock

£44.99 Inc. VAT

A 60A 4in1 ESC for an unbeatable price. The BLS 4in1 ESC is an excellent choice for a wide range of builds.

Only 2 left in stock

Compare

0 People watching this product now!

SKU: ESC-BLS60A Categories: 4 in 1 ESCs, Electronics, Speed Controllers (ESCs) Tags: 4in1, BLHeli_S, ESC, Speed Controller

Description

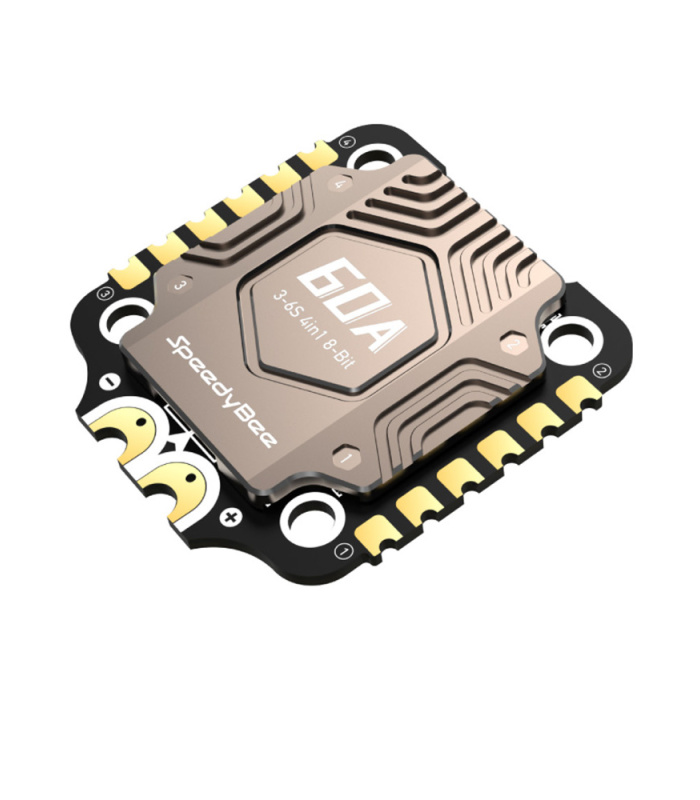

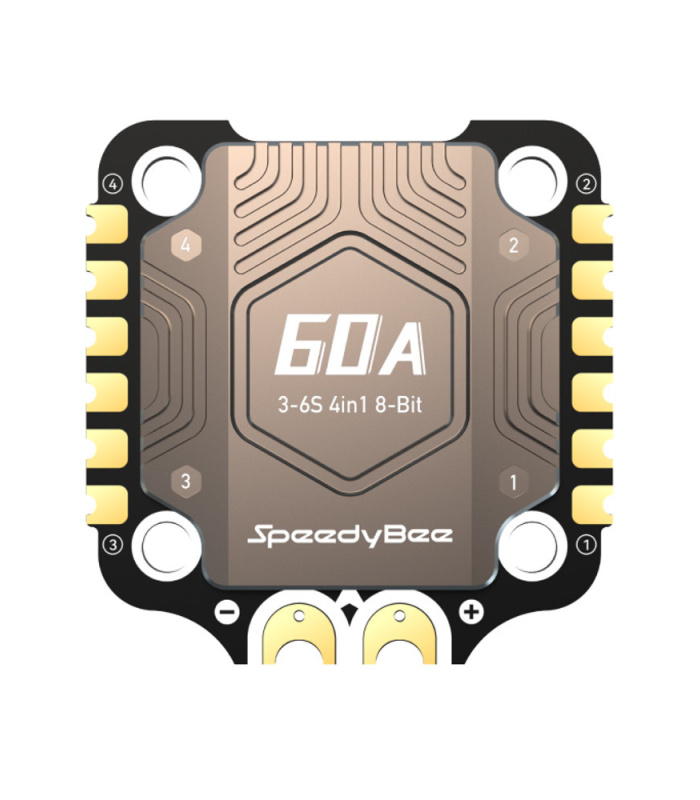

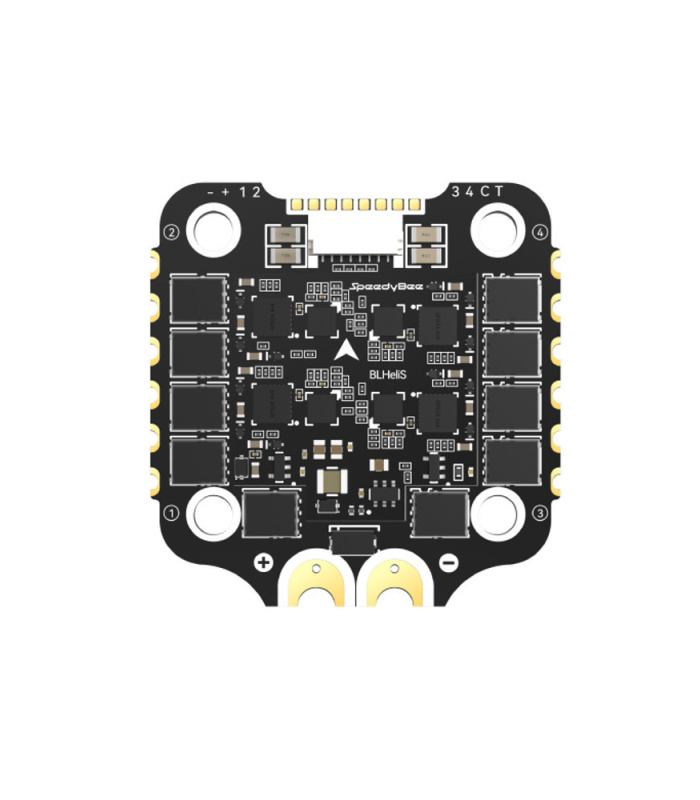

This is the latest version of the SpeedyBee BLS ESC – the PCB has bee refined, using increased copper thickness and enhanced MOSFET specifications. There’s also the addition of an aluminium alloy heat sink to ensure efficient MOSFET heat dissipation for stable ESC output.

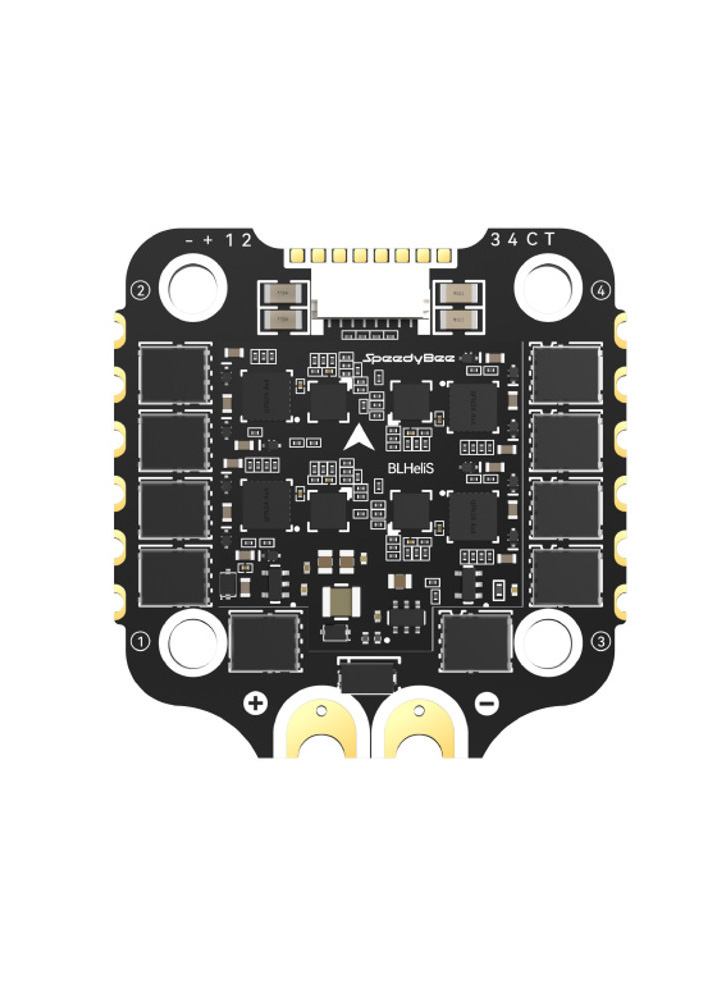

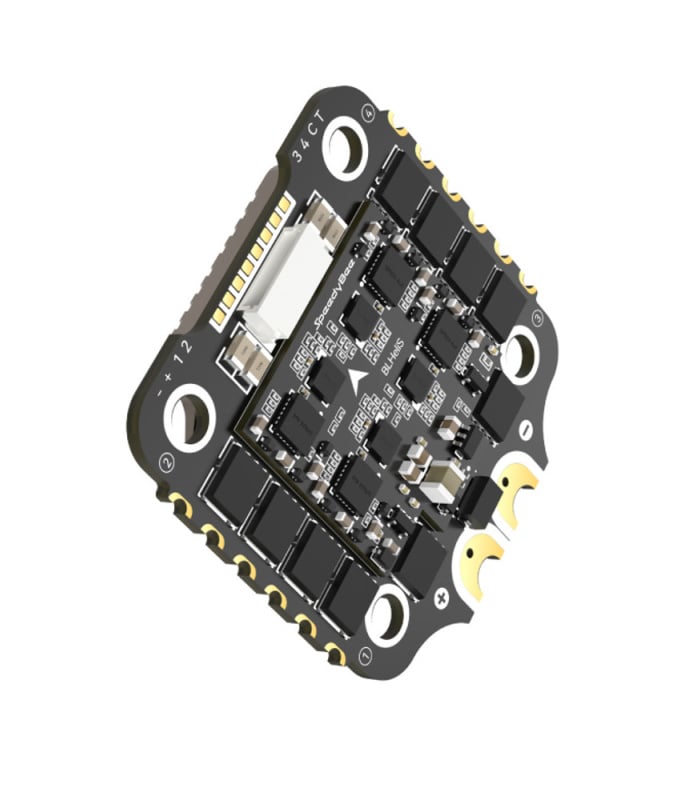

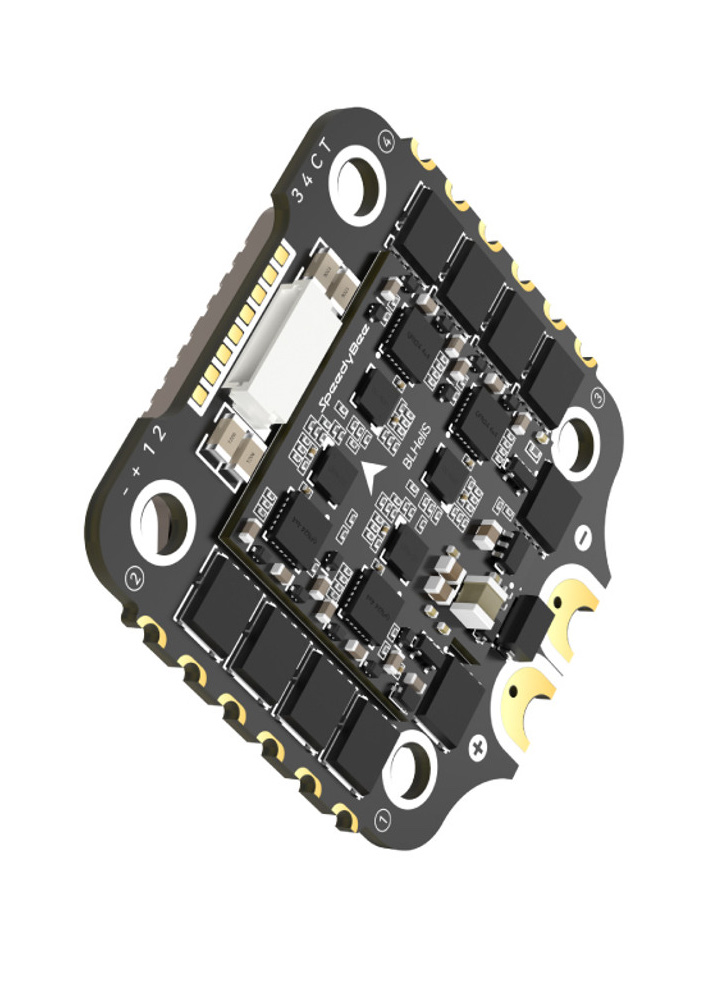

A high quality ESC for a great price. The SpeedyBee BLS 4in1 ESC is an excellent choice for a wide range of builds, from power hungry freestyle drones, to long range cruisers. Each ESC motor output can withstand a true continuous current of 60A and 80A peak for 10 seconds. Built with the robust BB21 MCU, this ESC runs BLHeli_S firmware and operates under the Dshot 300/600 protocol. It features Japan made TDK filtering SMT capacitors and the ESC is built with a TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. SpeedyBee also provide a humongous 1000uF low ESR capacitor, ensuring clean data from the gyro to the FC. Lastly, the ESC has large motor pads for easy soldering.

Specification

Firmware: BLHeli_S JH50
Wireless Configuration: Full Configuration Supported in Speed Bee App
PC Configurator: https://esc-configurator.com/
Continuous Current: 60A * 4
Burst Current: 80A * 4
TVS Protective Diode: YES

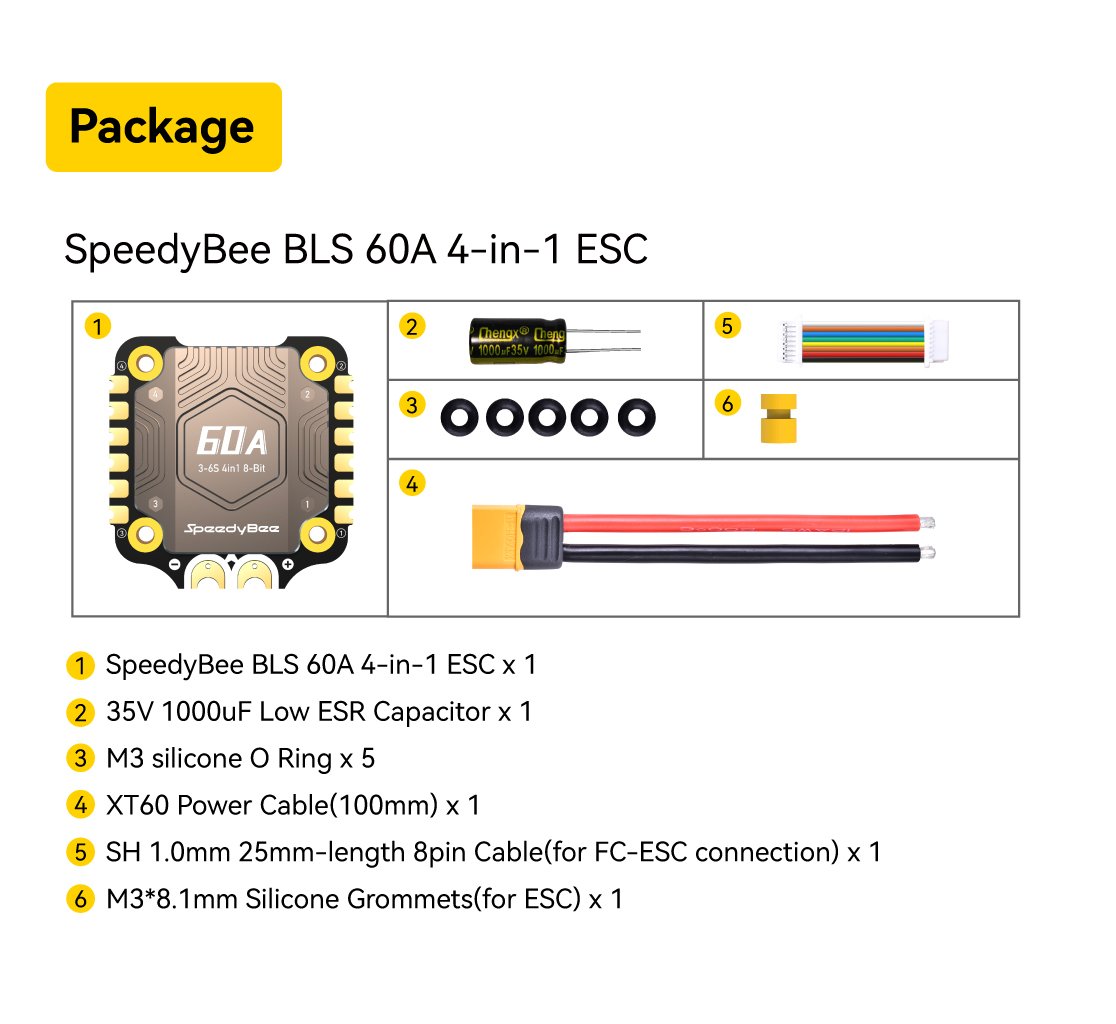

External Capacitor: 1000uF Low ESR Capacitor Included
ESC Protocol: DShot 300/600
Power Input: 3-6S LiPo
Power Output: VBAT
Current Sensor: Scale=400 Offset=0

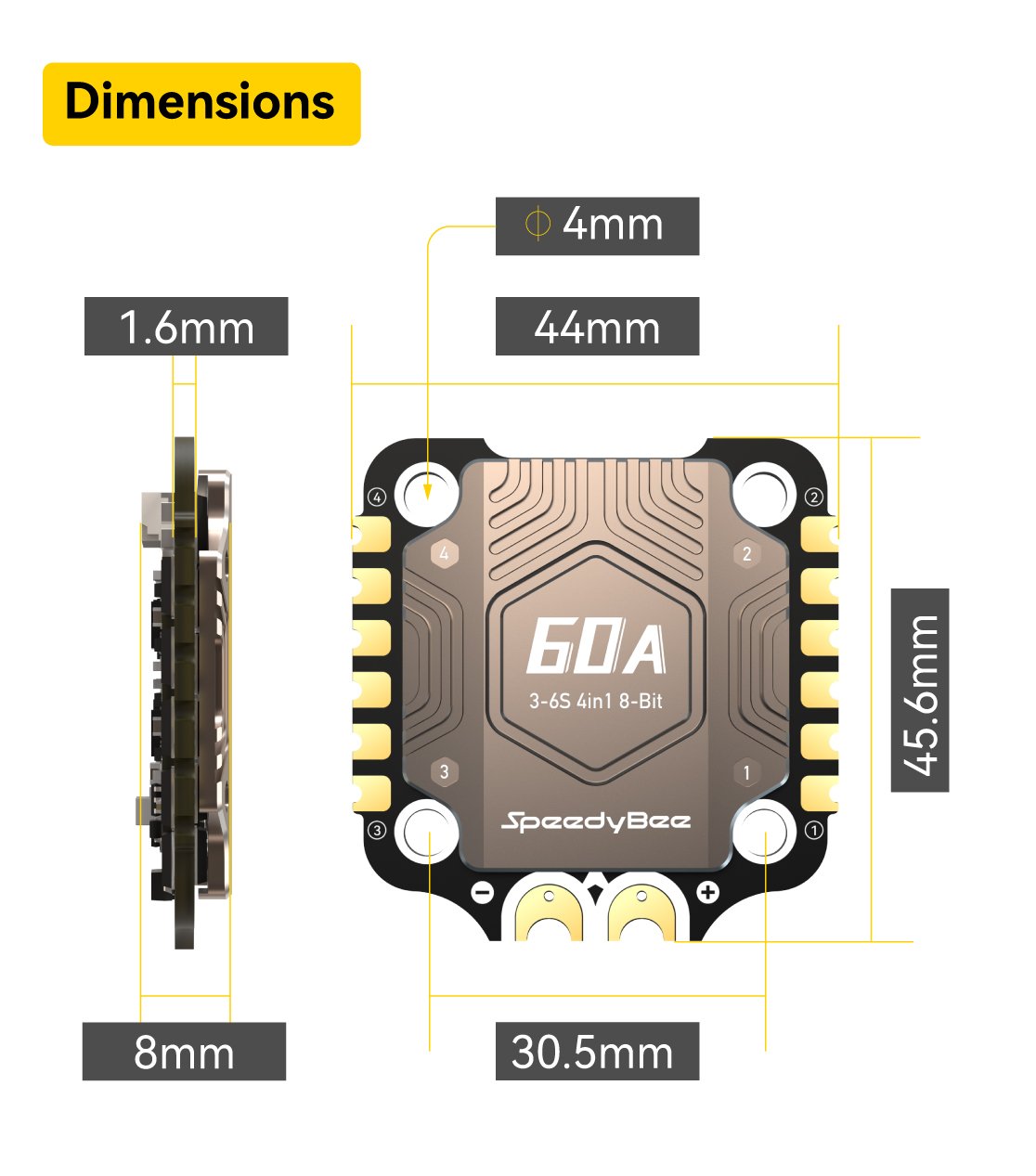

Mounting: 30.5 x 30.5mm ( 4mm hole diameter )
Dimensions: 45.6(L) * 44(W) * 8mm(H)
Weight: 23.5g
