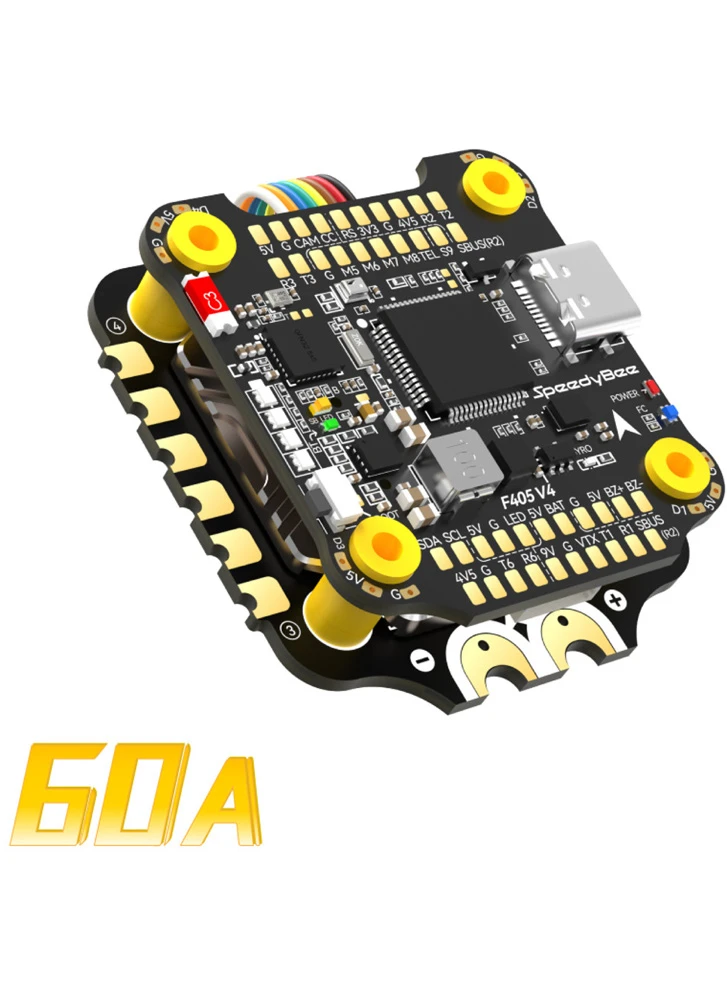

SpeedyBee F405 V4 BLS Flight Controller / Stack with 60A ESC
Price range: £41.90 through £64.70 Inc. VAT
This is our best selling FC and flight stack. Given the awesome feature list and price, it’s not surprising!
This is the latest version of the SpeedyBee F405 drone flight controller & stack – For the flight controller the V4 edition brings an updated the Gyro, it is now using the ICM-42688P. The BECs have also been uprated from 2A to 3A allowing for use of more power hungry HD systems. Other tweaks include native supports for DShot on all 8 motor outputs allowing for full DShot support in iNav. The most significant update is to the 4in1 ESC which brings more performance and improved reliability. It now boasts a rating of 60A and 80A burst, up from 55A and 70A burst. There’s also the addition a metal heatsink and the selection of MOSFETS with lower internal resistance. A built-in TVS diode for surge protection reduces voltage spikes. Furthermore, the ESC is built with a thicker copper layer in its PCB, a 50% increase from previous version, providing additional reliability and heat dissipation capability.

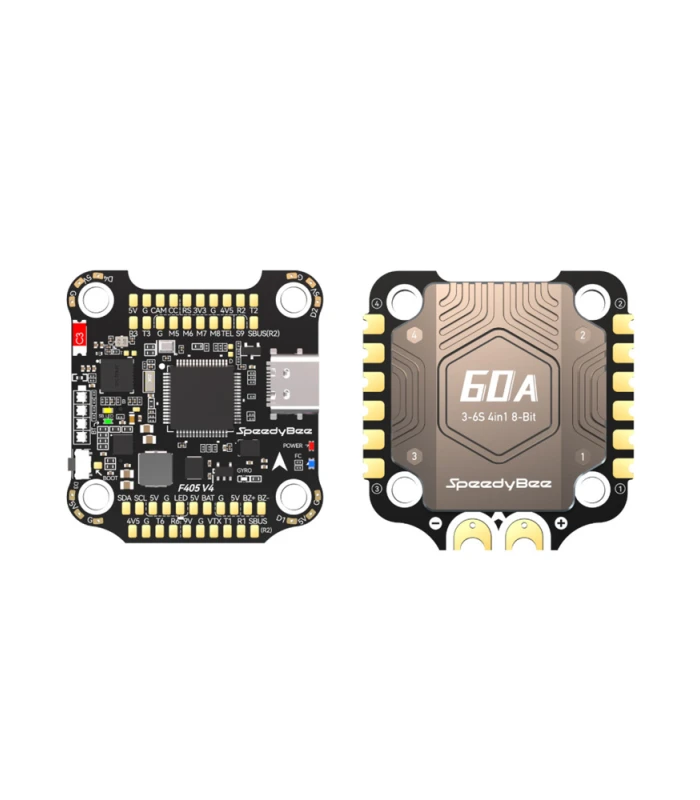

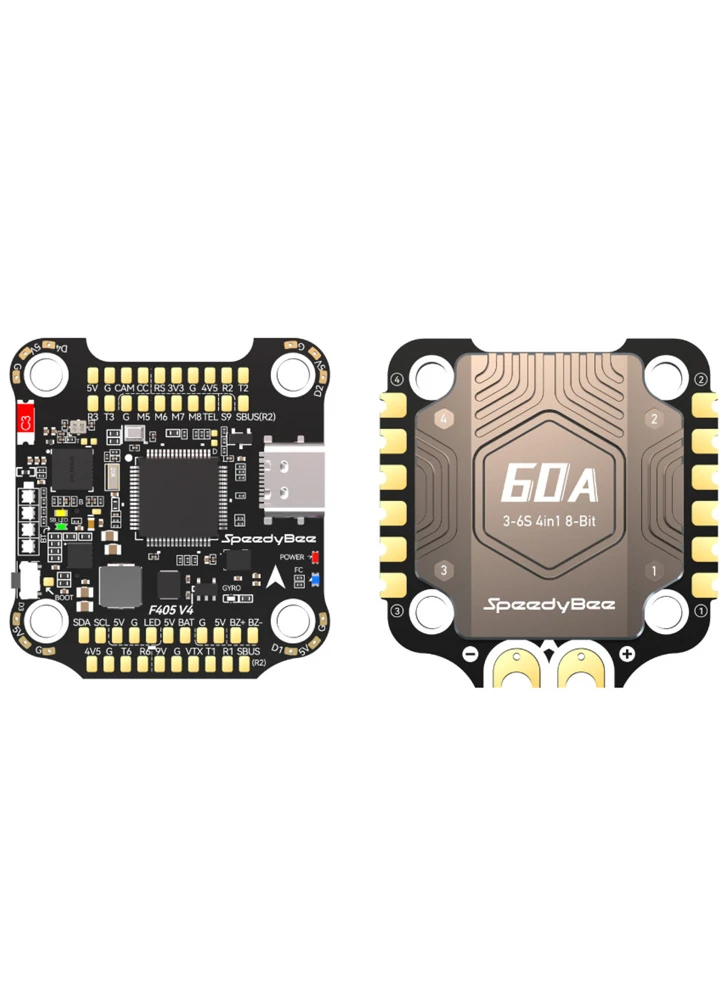

The Speedy Bee F405 50A Stack V4 includes all the features a user would expect from a modern flight controller and ESC stack, but at an incredible price. The flight controller features the STM32F405 MCU, onboard 4-level battery life indicator, Micro-SD card slot for Blackbox logging, connections for LED strip (available here), DJI plug for digital quads, and built-in Bluetooth for wireless configuration through the SpeedyBee App. Paired with the SpeedyBee BLS 60A 4-in-1 ESC, delivering up to 80A continuous current, these components ensure a powerful and reliable drone setup for your aerial adventures.
SPEEDYBEE F405 V4 FLIGHT CONTROLLER
- MCU: STM32F405
- IMU(Gyro): ICM42688P
- USB Port Type: Type-C
- Barometer: Built-in
- OSD Chip: AT7456E chip
- BLE Bluetooth: Supported for Flight Controller configuration (MSP enabled with Baud rate 115200 on UART4)
- WIFI: Not supported
- DJI Air Unit Connection Way: Two ways supported – 6-pin connector or direct soldering.
- 6-pin DJI Air Unit Plug: Supported and compatible with various DJI models, no wire changes needed.
- Blackbox MicroSD Card Slot: Compatible with Standard (SDSC) or High Capacity (SDHC) cards under 32GB.
- Current Sensor Input: Supported (for SpeedyBee BLS 55A ESC, set scale = 400 and Offset = 0).
- Power Input: 3S – 6S LiPo (Through G, BAT pins/pads).
- 5V Output: 9 groups of 5V output.
- 9V Output: 2 groups of 9V output.
- 3.3V Output: Supported up to 500mA current load.
- 4.5V Output: Supported up to 1A current load.
- ESC Signal: M1 – M4 on the bottom side, M5-M8 on the front side.
- UART: 6 sets (UART1, UART2, UART3, UART4 (Dedicated for Bluetooth connection), UART5 (Dedicated for ESC telemetry), UART6).
- ESC Telemetry: UART R5 (UART5).
- I2C: Supported for various sensors.
- Traditional Betaflight LED Pad: Supported for WS2812 LED controlled by Betaflight firmware.
- Buzzer: BZ+ and BZ- pad used for 5V Buzzer.
- BOOT Button: Supported for firmware flashing and LED control.
- RSSI Input: Supported (named as RS on the front side).
- Smart Port / F.Port: Not supported.
- Supported Flight Controller Firmware: BetaFlight (Default), INAV.
- Firmware Target Name: SPEEDYBEEF405V4.
- Mounting: 30.5 x 30.5mm (4mm hole diameter).
- Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm.
- Weight: 10.5g.

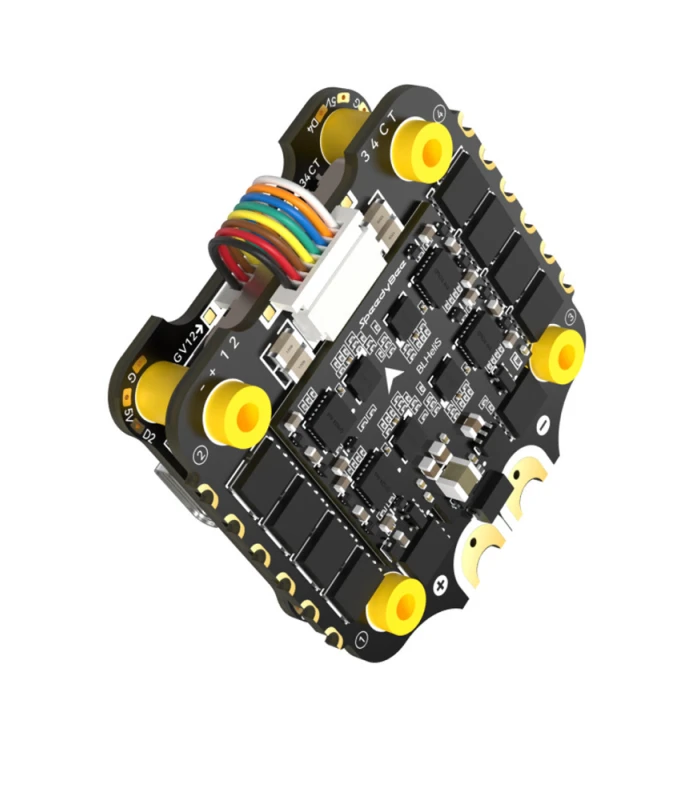

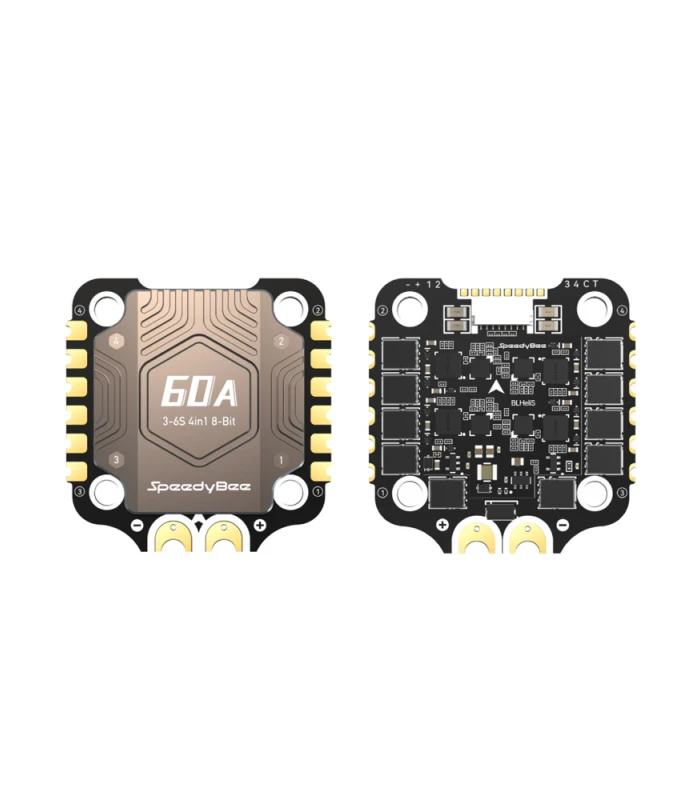

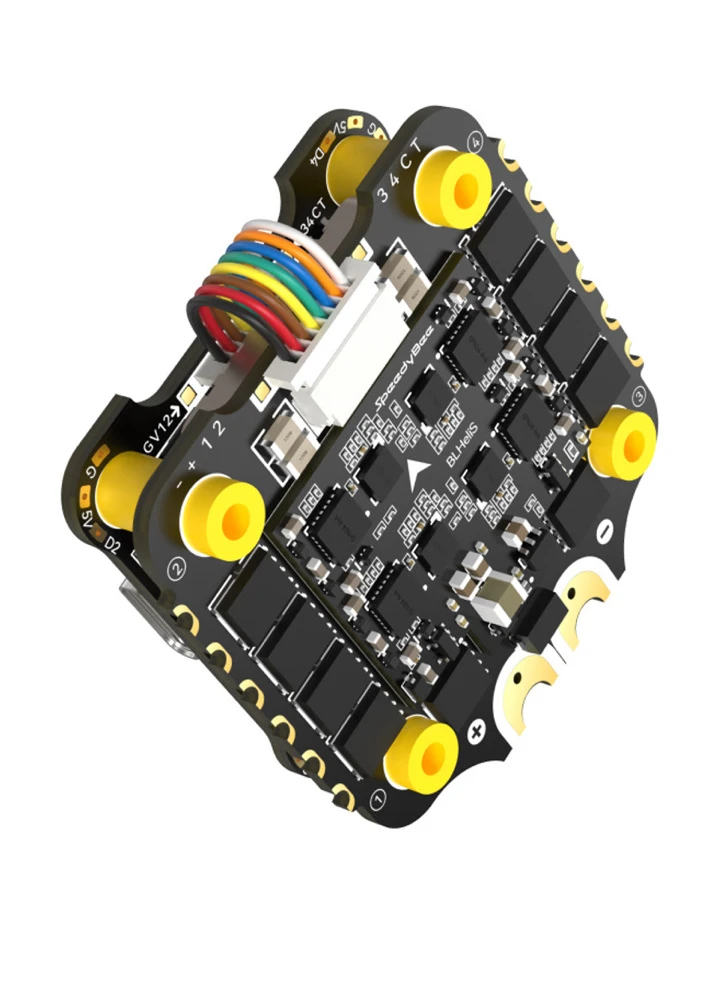

SPEEDYBEE 60A BLHELI_S ESC
- Firmware: BLHeli_S J-H-40.
- Wireless Configuration: Full Configuration Supported in the SpeedyBee app.
- PC Configurator Download Link: Link.
- Continuous Current: 60A * 4.
- Burst Current: 80A (10 seconds).
- TVS Protective diode: Yes.
- External Capacitor: 1000uF Low ESR Capacitor (Included in the package).
- ESC Protocol: DSHOT300/600.
- Power Input: 3-6S LiPo.
- Power Output: VBAT.
- Current Sensor: Support (Scale=400 Offset=0).
- ESC Telemetry: Not supported.
- Mounting: 30.5 x 30.5mm (4mm hole diameter).
- Dimension: 45.6(L) * 44(W) * 8mm(H).
- Weight: 23.5g
