Sequre SQESC 12200 BLHeli_32 Brushless 200A ESC 5-12S

Version	Clear

Description

Sequre is a brand well known in the hobby world for making innovative hobby tools like smart soldering irons and screwdrivers. They are now expanding their offering with component electronics.

This SQESC 12200 is a powerful 200A brushless speed controllers (ESC) which makes use of the latest in drone ESC technology. This ESC isn’t just for drones though. It’s universal to all RC models, be that fixed-wing aircraft, cars, boats and so on. The ESC runs BLHeli_32 firmware allowing it to be configured to meet your needs. For example setup relating to: ESC brake, motor timing, direction, throttle calibration, current detection and other settings can be adjusted (ESC programmer required – here).

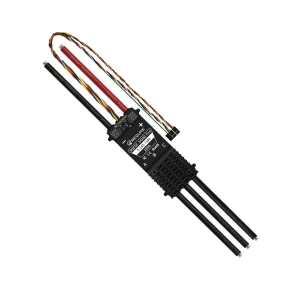

The SQESC 12200 ESC is sold in two versions: unsoldered or pre-wired using heavy gauge 8AWG silicone wire – please select as required.

Features:

Utilises 32-bit high-performance processor STM32G071
Supports working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency
Works with all Dshot signals. Also supports signal protocols such as PWM, Oneshot and Multishot.
Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
Features multiple protections such as low voltage protection, temperature protection, locked rotor protection and current protection.

Specification

Processor: STM32G071
Input voltage: DC 18V-50.4V（5-12S Lipo）
Continuous current (good heat dissipation): 200A
Maximum current (good heat dissipation): 250A
Support firmware: BLHeli_32，AM32
BLHeli_32 firmware: SEQURE_G071_01
AM32 firmware: SEQURE_G071
Signal protocol: Dshot (All), PWM, Oneshot, Multishot, etc.
Programming parameter adjustment: Support
Throttle calibration: Support
Timing angle setting: Support
Current detection: Support
Telemetry signal: Support
Motor steering settings: Support
RGB LED color lights: Support
BEC (if any): NO
Size: 84x38x27mm / 230x38x27mm (Pre-wired/BEC)
Weight: 120g / 155g (Pre-wired/BEC)
Application scenarios: FPV racing drones, multi-axis drones, fixed-wing UAV, model ships, climbing vehicles, model cars, etc.

Downloads

Manual

Download File

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
