SpeedyBee F405 V4 BLS Flight Controller / Stack with 55A ESC

£39.90 – £69.90 Inc. VAT

This is our best selling FC and flight stack. Given the awesome feature list and price, it’s not surprising!

Version

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: FC / ESC Flight Stacks, Electronics, Flight Controllers / Autopilots, Racing Drone Flight Controllers Tags: Bluetooth, F4, FC, Flight Controller, Flight Stack, SpeedyBee App, Stack, WiFi

Description

NEW STACK Version – Now with 60A ESC – HERE

SpeedyBee F405 drone flight controller & stack – For the flight controller the V4 edition brings an updated the Gyro, it is now using the ICM-42688P. The BECs have also been uprated from 2A to 3A allowing for use of more power hungry HD systems. Other tweaks include native supports for DShot on all 8 motor outputs allowing for full DShot support in iNav. The most significant update is to the 4in1 ESC which brings more performance and improved reliability. It now boasts a rating of 55A and 70A burst, up from 50A and only a 55A burst. There’s also the addition a metal heatsink and the selection of MOSFETS with lower internal resistance. A built-in TVS diode for surge protection reduces voltage spikes. Furthermore, the ESC is built with a thicker copper layer in its PCB, a 50% increase from previous version, providing additional reliability and heat dissipation capability.

The Speedy Bee F405 50A Stack V4 includes all the features a user would expect from a modern flight controller and ESC stack, but at an incredible price. The flight controller features the STM32F405 MCU, onboard 4-level battery life indicator, Micro-SD card slot for Blackbox logging, connections for LED strip (available here), DJI plug for digital quads, and built-in Bluetooth for wireless configuration through the SpeedyBee App. Paired with the SpeedyBee BLS 55A 4-in-1 ESC, delivering up to 55A continuous current, these components ensure a powerful and reliable drone setup for your aerial adventures.

Specification

SPEEDYBEE F405 V4 FLIGHT CONTROLLER

MCU: STM32F405
IMU(Gyro): ICM42688P
USB Port Type: Type-C
Barometer: Built-in
OSD Chip: AT7456E chip
BLE Bluetooth: Supported for Flight Controller configuration (MSP enabled with Baud rate 115200 on UART4)
WIFI: Not supported
DJI Air Unit Connection Way: Two ways supported – 6-pin connector or direct soldering.
6-pin DJI Air Unit Plug: Supported and compatible with various DJI models, no wire changes needed.
Blackbox MicroSD Card Slot: Compatible with Standard (SDSC) or High Capacity (SDHC) cards under 32GB.
Current Sensor Input: Supported (for SpeedyBee BLS 55A ESC, set scale = 400 and Offset = 0).
Power Input: 3S – 6S LiPo (Through G, BAT pins/pads).
5V Output: 9 groups of 5V output.
9V Output: 2 groups of 9V output.
3.3V Output: Supported up to 500mA current load.
4.5V Output: Supported up to 1A current load.
ESC Signal: M1 – M4 on the bottom side, M5-M8 on the front side.
UART: 6 sets (UART1, UART2, UART3, UART4 (Dedicated for Bluetooth connection), UART5 (Dedicated for ESC telemetry), UART6).
ESC Telemetry: UART R5 (UART5).
I2C: Supported for various sensors.
Traditional Betaflight LED Pad: Supported for WS2812 LED controlled by Betaflight firmware.
Buzzer: BZ+ and BZ- pad used for 5V Buzzer.
BOOT Button: Supported for firmware flashing and LED control.
RSSI Input: Supported (named as RS on the front side).
Smart Port / F.Port: Not supported.
Supported Flight Controller Firmware: BetaFlight (Default), INAV.
Firmware Target Name: SPEEDYBEEF405V4.
Mounting: 30.5 x 30.5mm (4mm hole diameter).
Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm.
Weight: 10.5g.

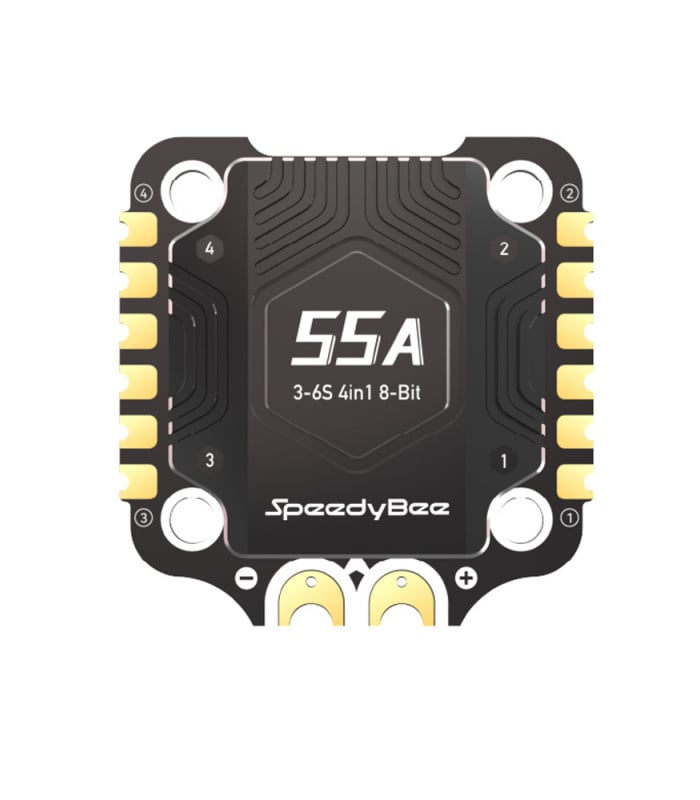

SPEEDYBEE 55A BLHELI_S ESC

Firmware: BLHeli_S J-H-40.
Wireless Configuration: Full Configuration Supported in the SpeedyBee app.
PC Configurator Download Link: Link.
Continuous Current: 55A * 4.
Burst Current: 70A (10 seconds).
TVS Protective diode: Yes.
External Capacitor: 1000uF Low ESR Capacitor (Included in the package).
ESC Protocol: DSHOT300/600.
Power Input: 3-6S LiPo.
Power Output: VBAT.
Current Sensor: Support (Scale=400 Offset=0).
ESC Telemetry: Not supported.
Mounting: 30.5 x 30.5mm (4mm hole diameter).
Dimension: 45.6(L) * 44(W) * 8mm(H).
Weight: 23.5g.
