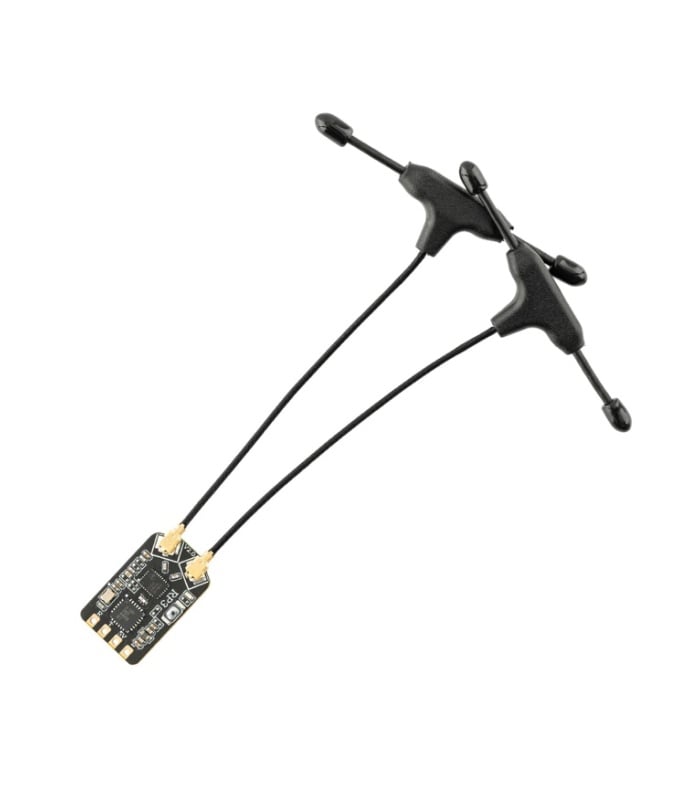

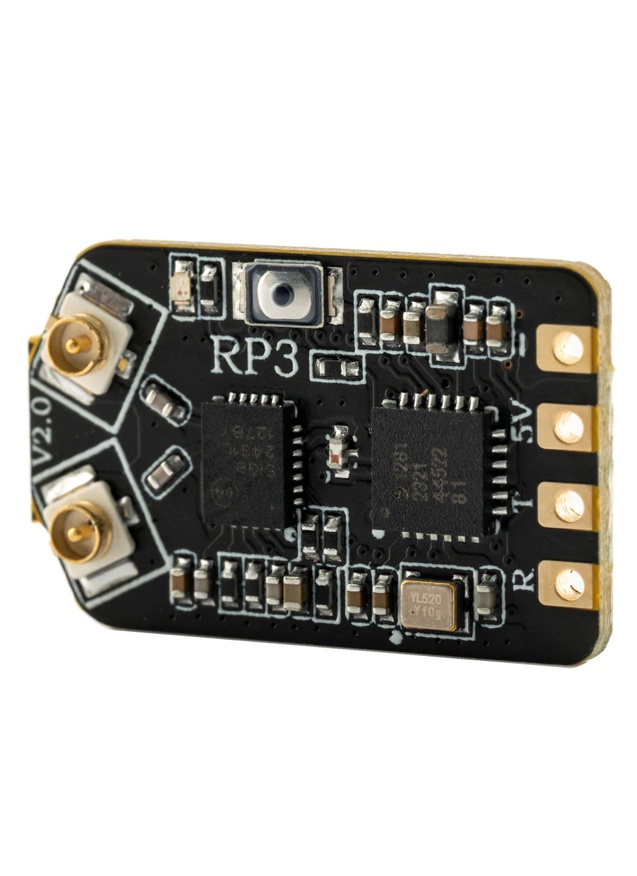

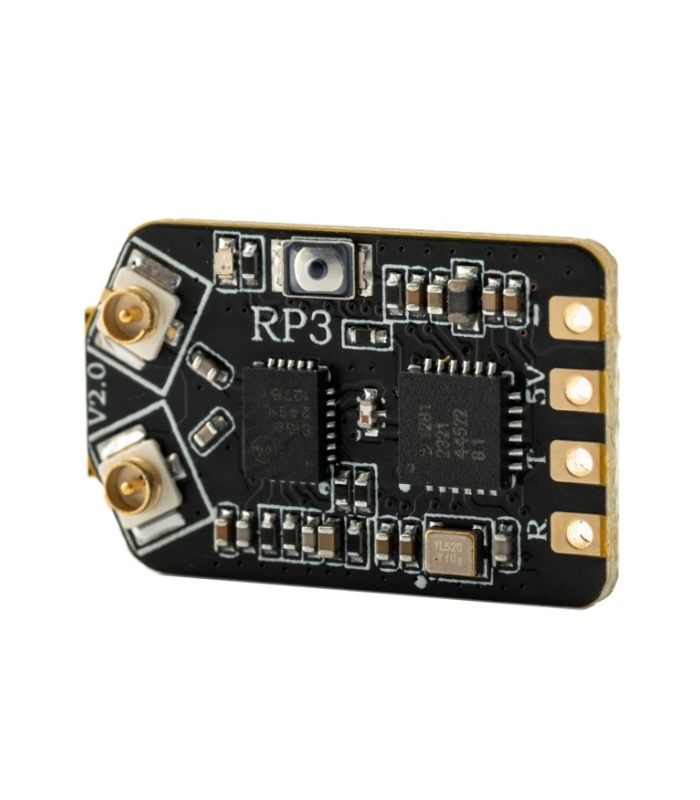

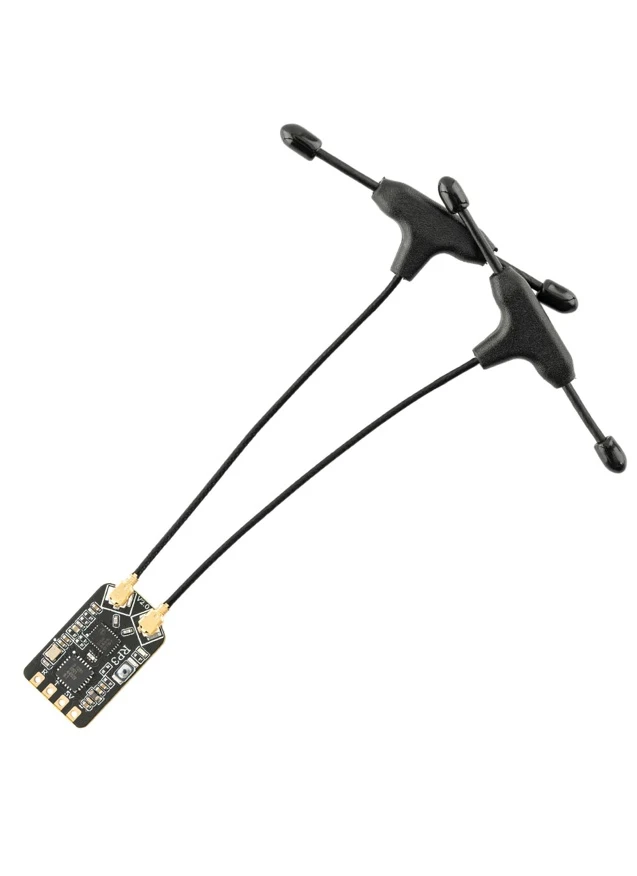

RadioMaster 2.4G ELRS RP3 Nano Diversity Receiver V2

RadioMaster 2.4G ELRS RP3 Nano Diversity Receiver V2 - Image 3

RadioMaster 2.4G ELRS RP3 Nano Diversity Receiver V2 - Image 4

RadioMaster 2.4G ELRS RP3 Nano Diversity Receiver V2

Name: RadioMaster 2.4G ELRS RP3 Nano Diversity Receiver V2 - Flying Tech
Brand: RadioMaster
SKU: RX-RMRP3V2
Price: 24.00 GBP
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

£24.00 Inc. VAT

The RP3 has antenna diversity to offer improved signal stability and range over single antenna designs.

In stock

Firmware Flashing Service

If you would like this ELRS product re-flashing with a different firmware to factory stock (EU LBT) then we can do this for an additional fee. Please note this service adds a 1 day lead-time.

EU LBT (Default)

FCC (+£1.99)

Add to compare

0 People watching this product now!

SKU: RX-RMRP3V2 Categories: ELRS Receivers, ExpressLRS, Long Range RC, Radio Control Tags: Diversity, ELRS, ExpressLRS, Long range, RP-Series, RX

Description

Our stock is the latest V2 edition.

The RadioMaster RP series of receivers are designed with size, ease of use and range in mind. Utilizing ExpressLRS 2.4ghz Open-source firmware the RP series of nano receivers deliver features and range today’s pilots have come to expect.

Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer Lora and FLRC 2.4ghz RF links offering incredible range and low latency. With Wifi built-in FW updates can be done on your craft without the need to remove the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.

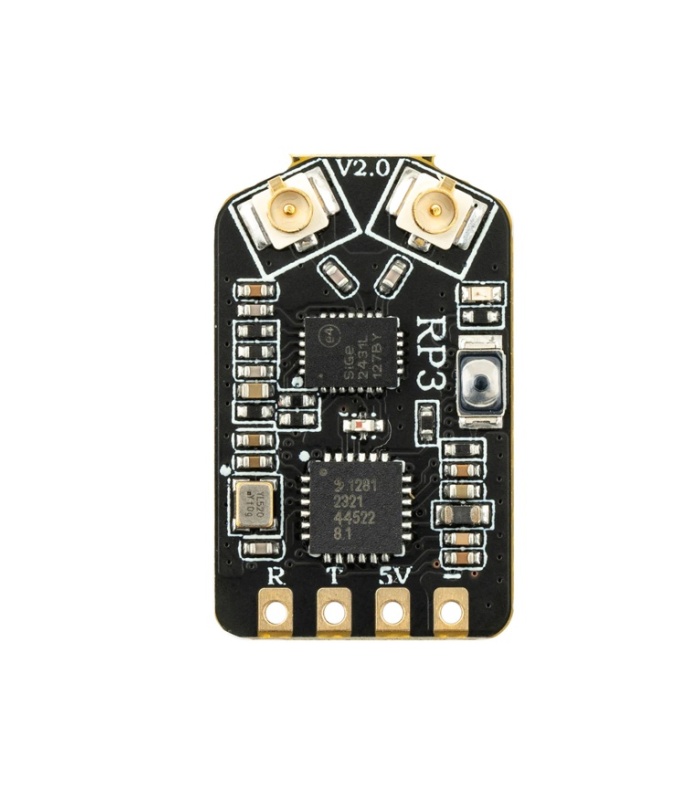

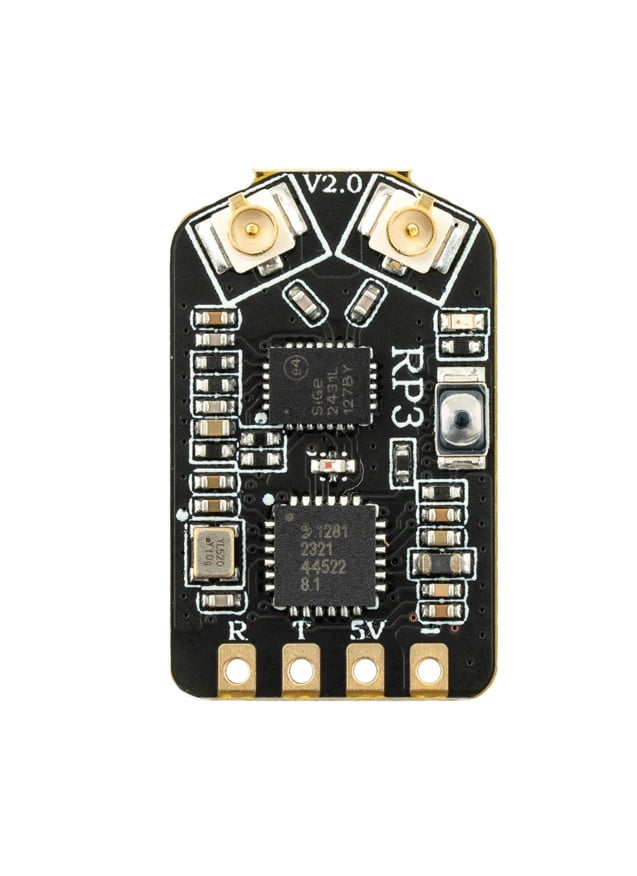

The RP3 receiver features a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 100mW of telemetry performance and antenna switching for antenna diversity.

Firmware Options: LBT & FCC – please select as required.

Features:

Optimized PCB design for better heat dissipation.

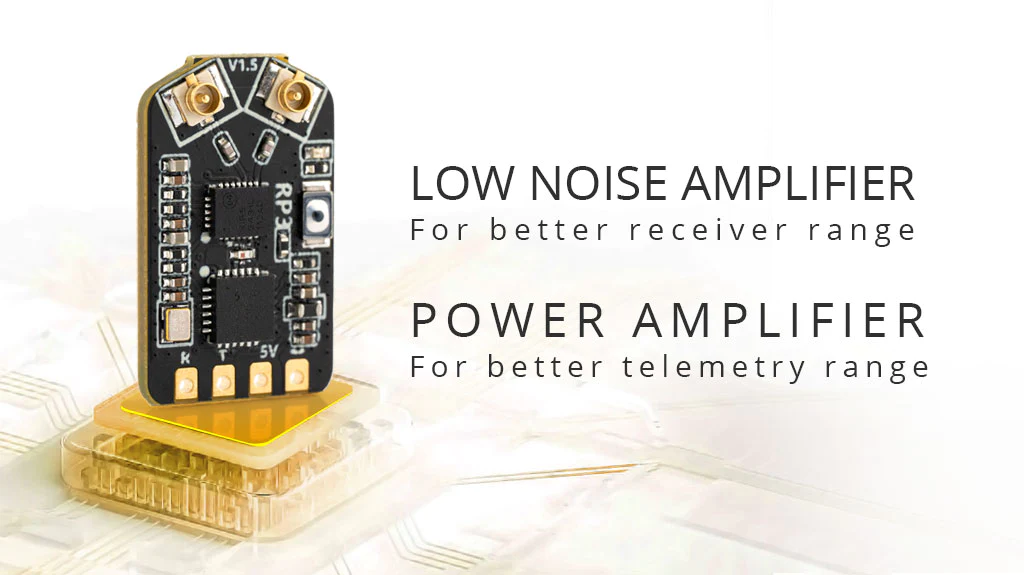

LNA for better receiver range.
PA for better telemetry range.

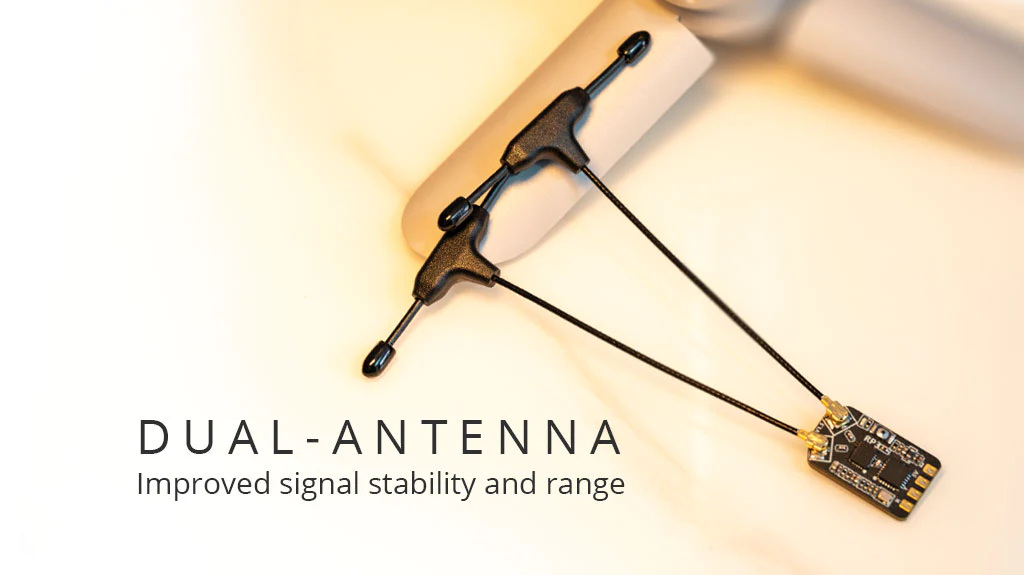

Antenna Diversity for improved signal stability and range.
Built-in a TCXO (temperature compensated crystal oscillator)

TCXO (temperature compensated crystal oscillator)

The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click to learn more about the TCXO.

RP3 A RP3 B

Specification

Item: RP3 Diversity Receiver
Type: ISM
MCU: ESP8285
RF Chip: SX1281
Telemetry RF power: Max 100mw
Antenna: 65mm 2.4ghz T Antenna x 2
Frequency Range: 2.404 – 2.479 Ghz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 4.6g (Including two antenna)
Dimension: 22mmx13mmx4mm
Firmware Version: ExpressLRS v3.0 pre-installed
FW Target: RadioMaster RP3 Diversity 2400 RX
Bus interface: CRSF

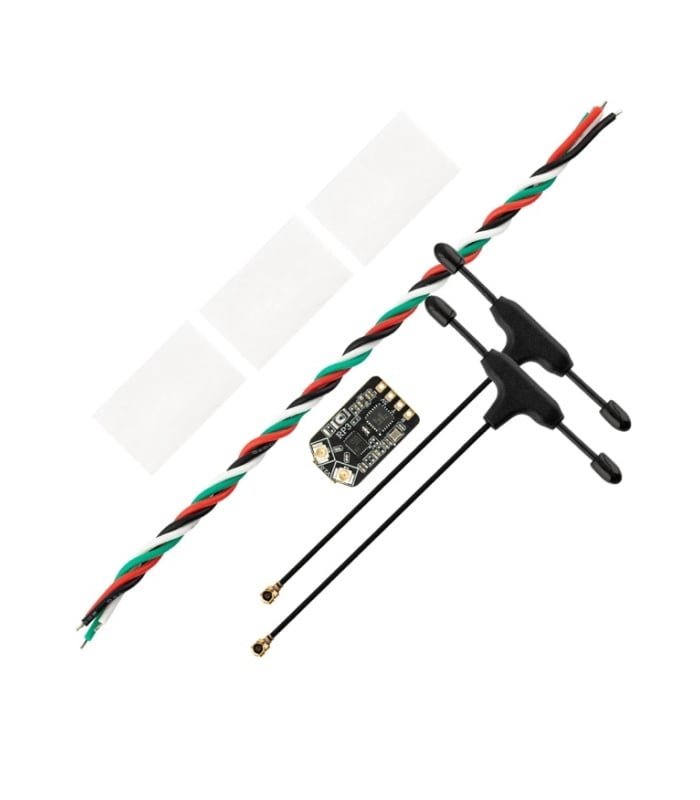

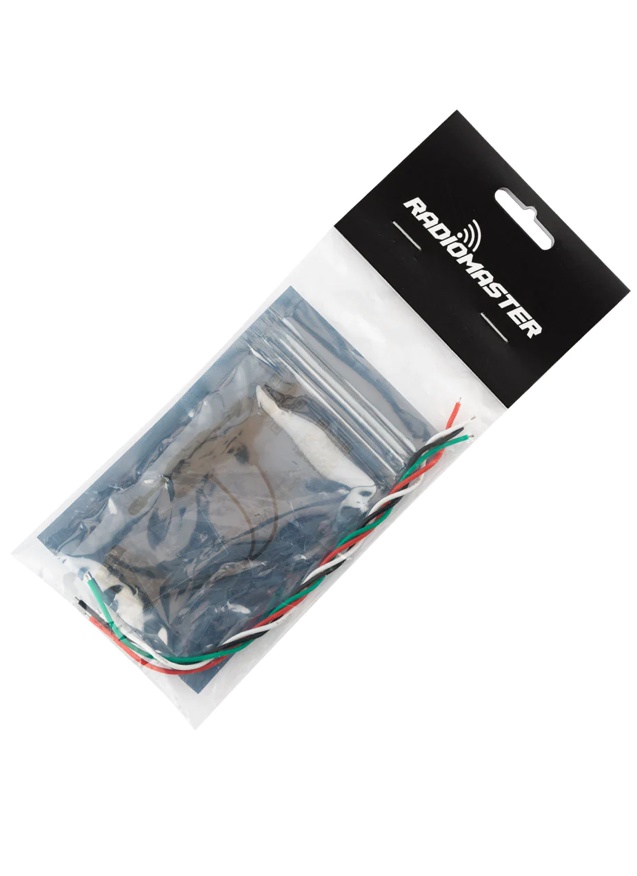

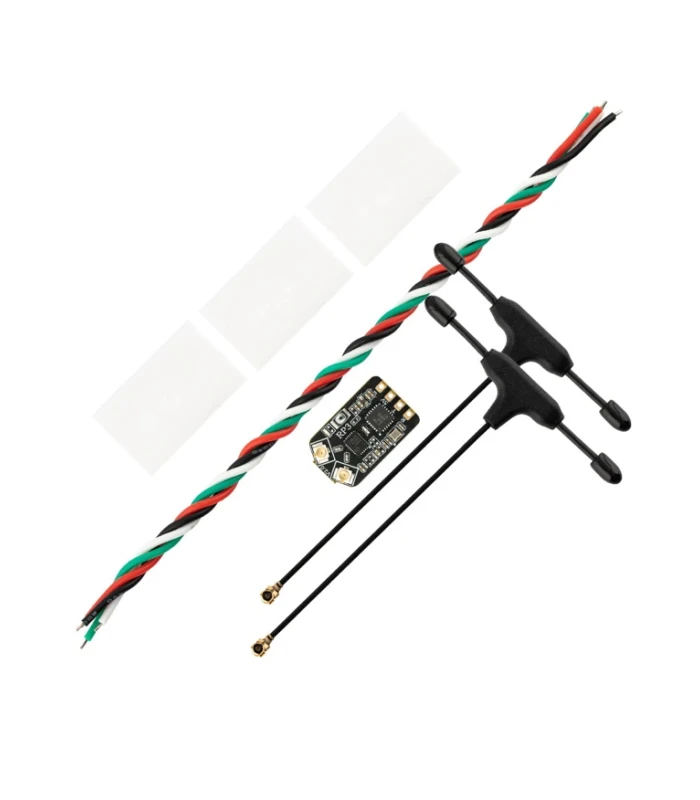

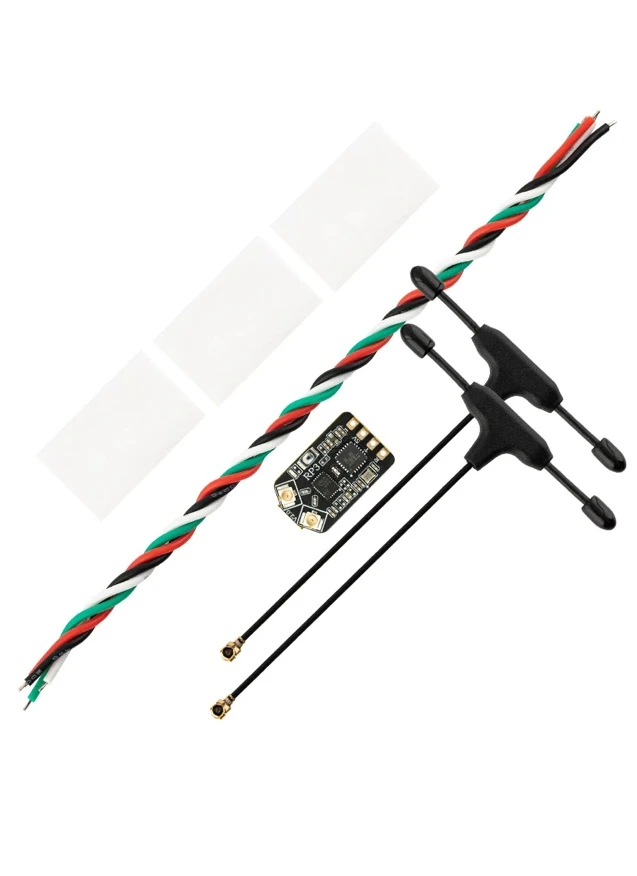

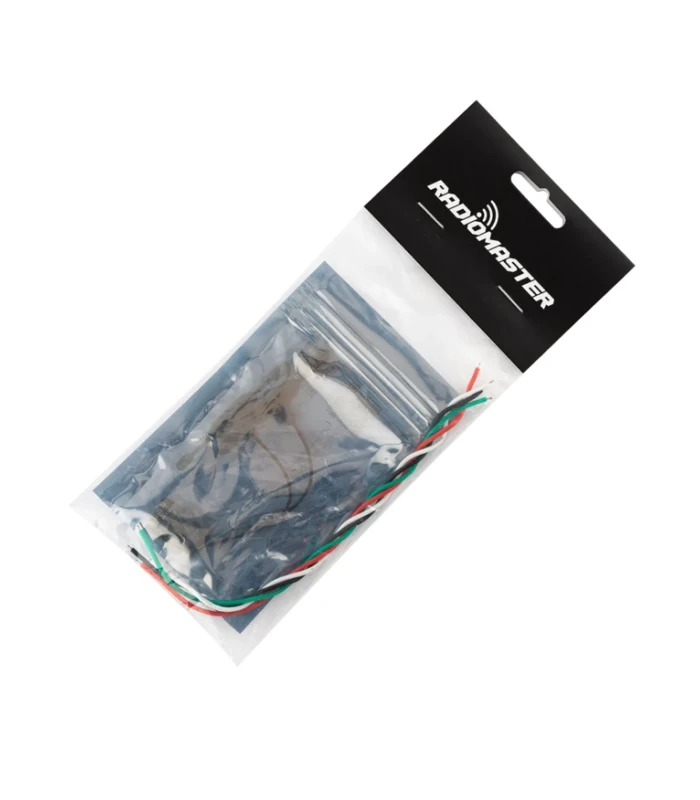

Included:

1 x RP3 ExpressLRS 2.4ghz Nano Receiver
2 x 65mm UFL 2.4Ghz T Antenna
1 x User Manual
1 x CRSF wire

Q&A

Questions and answers of the customers

How does the antenna setup work? Do you have to install both all the time?

0 votes

Q How does the antenna setup work? Do you have to install both all the time? answer now

A
Hi, yes you should installed both antennas. Usually you would mount the antennas perpendicular to each other (at 90 degree apart). This helps the radio Tx to get good alignment with at least one of the antennas at all times.
