Skyzone SteadyView / RapidMix Receiver Module for SKY04X

£79.90£87.90 Inc. VAT

Upgrade module for SKY04X, can also be used to add โ€œquad-versityโ€. Pick between standard and ELRS backpack versions.

0 People watching this product now!
Description

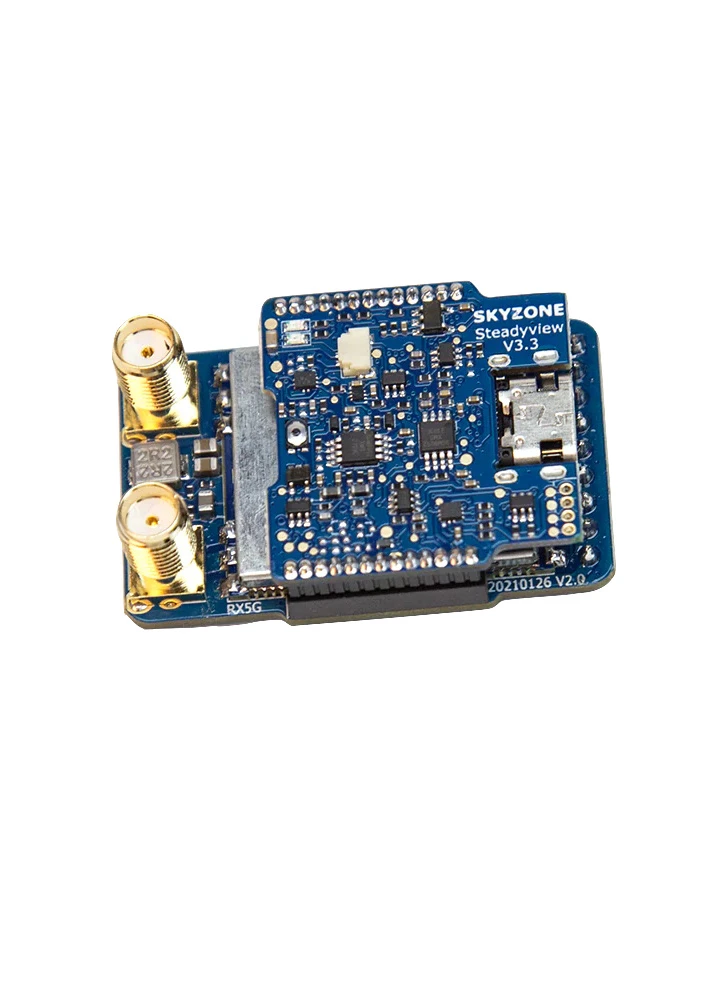

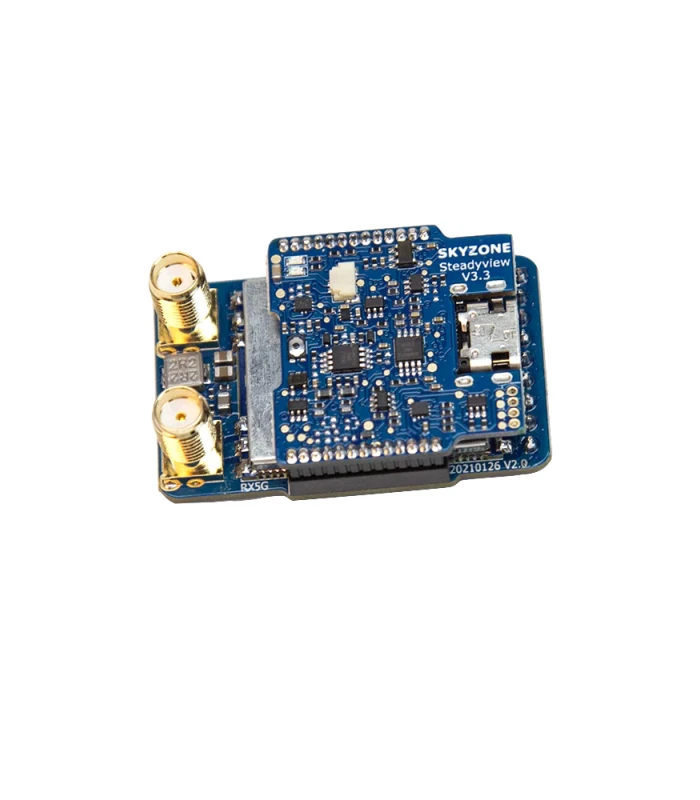

Our latest stock usesย V3.3 hardware whichย solves dark and rolling image issues.

If you own a set ofย Skyzone SKY04X / Eachine EV300O FPV goggles, we can guarantee that this additional receiver upgrade will improve your FPV range and reception. As standard those goggles include a single receiver that worksย like other leading Rxย modules, in that it merges two videoย signals into one image to produce the strongest possible reception and clearest image.ย It does a great job and is well reviewed, but now you can go even better by adding this additional module. It’s easy to install, theย SKY04X /ย EV300O goggles have a second module bay ready to accept the module and with it you will able to add two further antennas toย benefit fromย โ€œquad-versityโ€!

For those users running ELRS, Skyzone have made another version of the SteadyViewย receiver module which adds a ELRS backpack (please select as required). This adds aย built-in ExpressLRS receiver that can be bound to your ExpressLRS radio system to sync the VTX and VRX, and also can be setup to automatically start recording DVR in your Skyzone goggles when you arm. This version alsoย supports quadversity with the stock receiver, you just need to plug the ELRS version receiver into the left bay and choose the mode steadyview X mode.

This receiverย module is only compatible with theย Skyzone SKY04X / Eachine EV300O, SKY04O,ย SKY04Lย & Skyzone Cobra goggles (not compatible with SKY04X PRO). On the Eachine branded goggle, the receiver is known as the RapidMix module, but it’s the same thing and cross compatible with Skyzone. Theย ELRS Backpackย Version is slightly longer than the standard module, so Cobra users would need to do a quick mod on the module bay cover in order for it to fit.

New version: 5G Version 4.9-6GHz. This version offers 56CH to cover even more frequencies. Please see the frequency table here.

Specification
  • Frequency : 5.3~6.0Ghz / 5G Version 4.9-6GHz
  • Sensitivity: -98dBmยฑ1dBm
  • Antenna port:ย 2 X SMA-K,50ohm
  • USB port: Type-C to upgrade the firmware or power the receiver
  • Power Consumption: 5V@ 380mA
  • Weight: 20g

Included

  • 1 x Skyzone SteadyView RX 5.8Ghz FPV Receiver
Downloads
Manual (pdf, 836KB)
5G Frequency Table (png, 135KB)
Q&A

Questions and answers of the customers

    Tรดi muแป‘n 1 chiแบฟc module skyzone 04x v1. Bแบกn cรณ thแปƒ bรกn cho tรดi ฤ‘ฦฐแปฃc khรดng ?
  1. 0 votes
    Q Tรดi muแป‘n 1 chiแบฟc module skyzone 04x v1. Bแบกn cรณ thแปƒ bรกn cho tรดi ฤ‘ฦฐแปฃc khรดng ? answer now
    A

    Hi this module, Skyzone Module (V3.3 hardware) can be used with Skyzone 04x V1 goggle.
