RadioMaster 2.4G ELRS RP2 Nano Receiver

(1 customer review)

£18.90 Inc. VAT

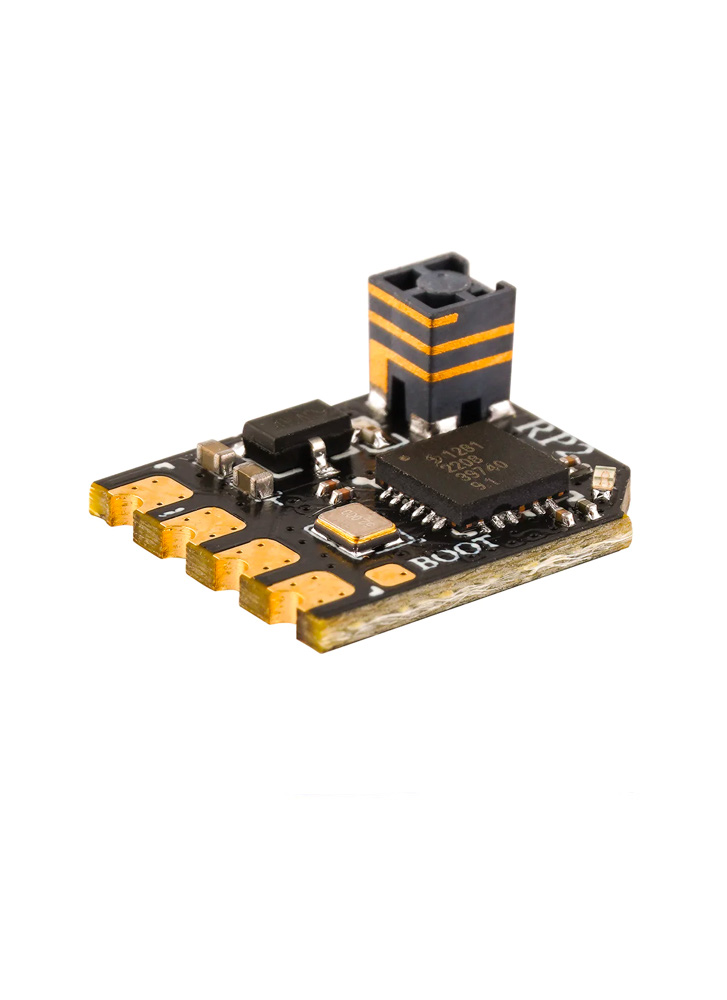

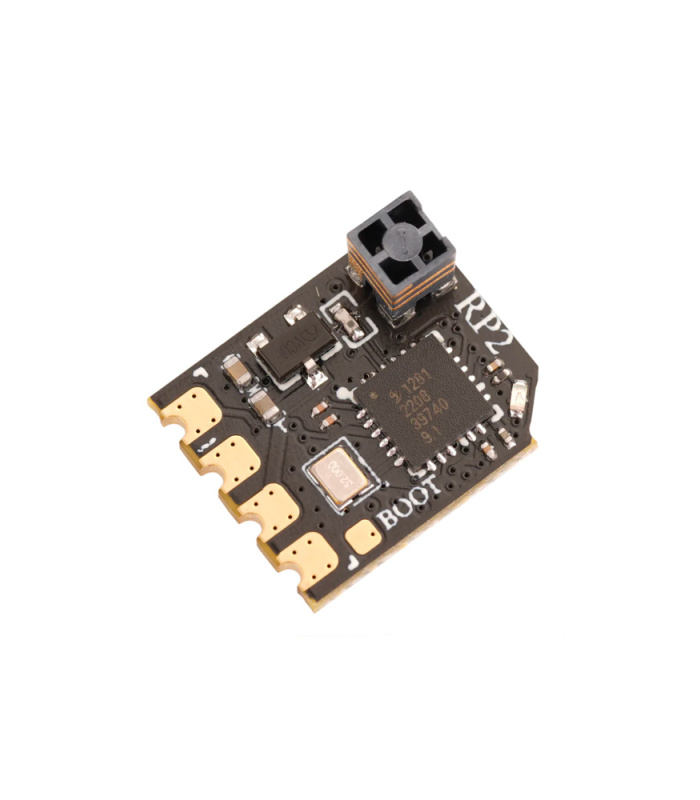

The RP2 has a built-in ceramic antenna which is super light and small in size, ideal for micro builds.

In stock

Firmware Flashing Service

If you would like this ELRS product re-flashing with a different firmware to factory stock (EU LBT) then we can do this for an additional fee. Please note this service adds a 1 day lead-time.

(+£1.99)
0 People watching this product now!
Description

Theย RP2ย is nano size, open-source receiver based on ExpressLRS.

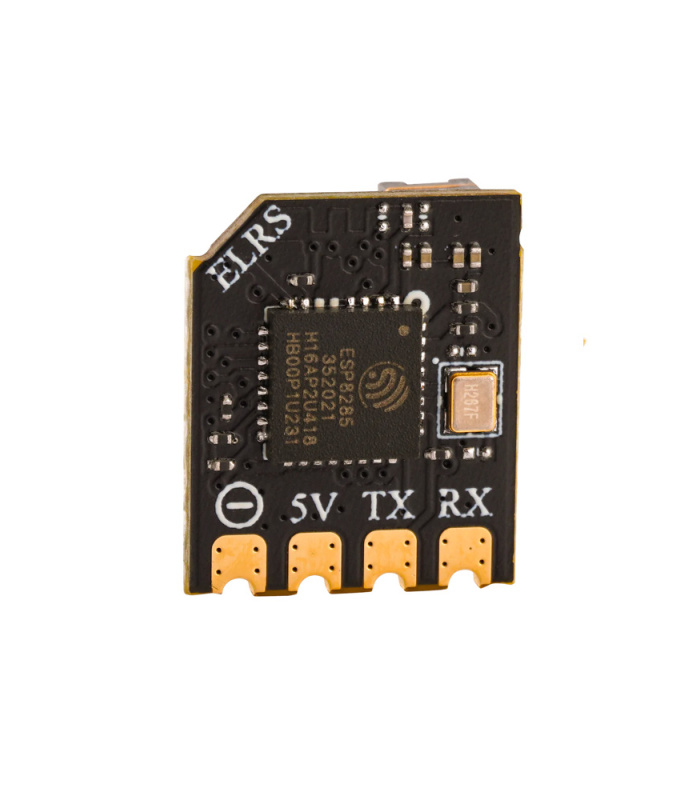

Developed around the ESP8285 MCU and SX1280 RF Chip, the RP series offer incredible range and low latency. With WIFI built in, firmware updates can be done on your craft without the need to remove the receiver. Binding can be done via the WebUI with your PC or mobile phone, meaning no more bind plugs or fiddly button presses while trying to plug in your battery.

There are two versions of the RP series receiver, RP1 and RP2. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size.

Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and Nano size, these receivers can fit just about anywhere!

Visitย https://www.expresslrs.org/ย to learn more.

Firmware Options:ย LBT & FCC – please select as required.

Whatโ€™s new on the RP2

  • Improved PCB design is better for heat dissipation.
  • Solder pads are improved and easier to solder to.
  • LED on top side of PCB.

ELRS RP1 RP2RP2 NanoRP2 Nano Size

Specification
  • Type: ISM
  • Antenna: On Board SMT Antenna
  • Maximum receive refresh rate: 500Hz/F1000Hz
  • Minimum receiver refresh rate: 25Hz Working voltage: 5v

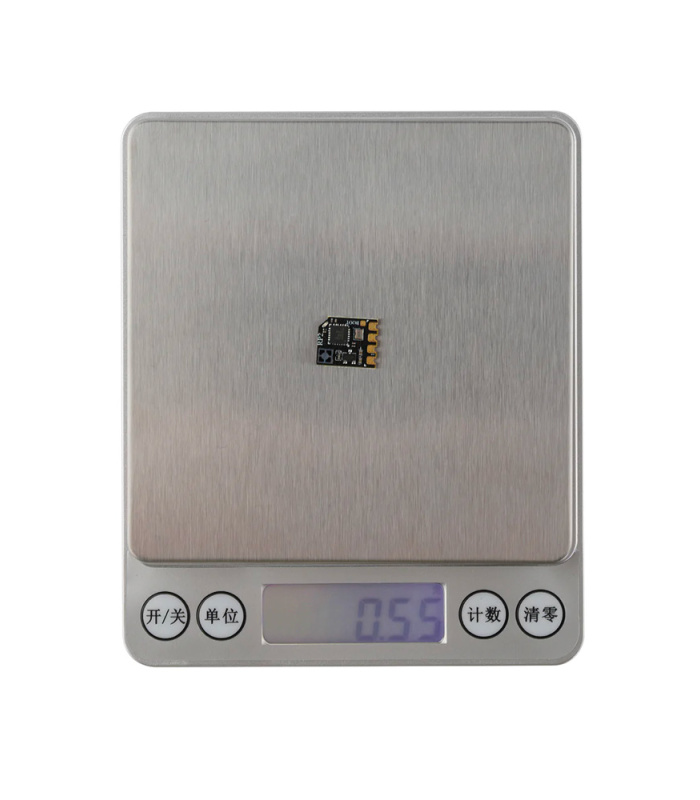

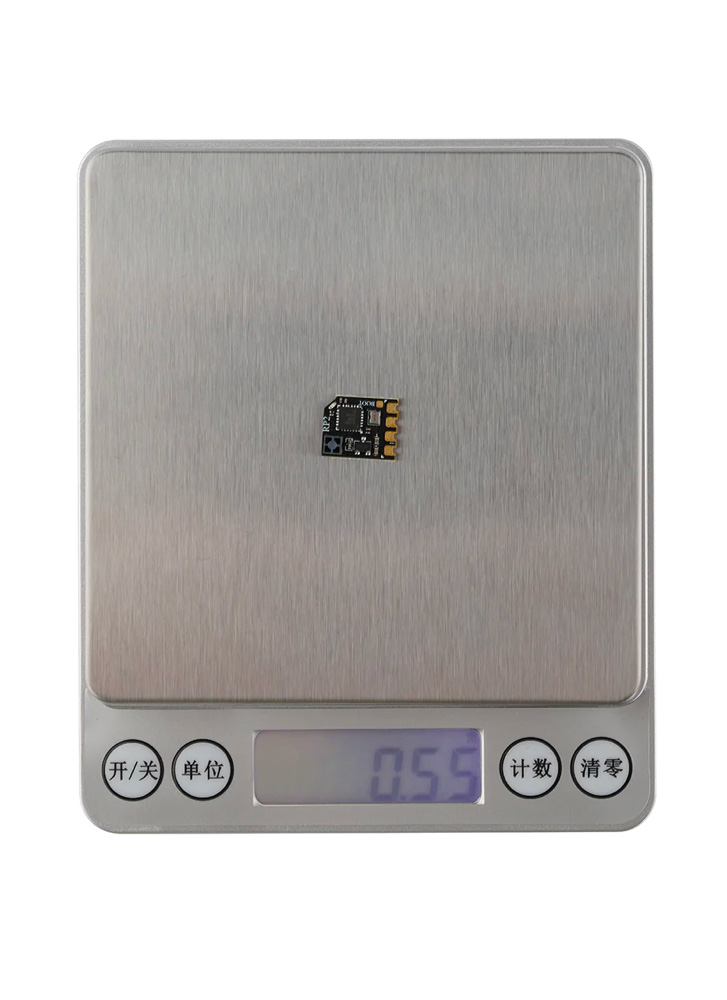

  • Weight: 0.55g (On Board antenna)
  • Dimension: 13mm*11mm*7mm
  • Firmware Version: ExpressLRS v2.4 pre-installed
  • FW Target: RadioMaster RP1/2 2400 RX
  • Bus interface: CRSF

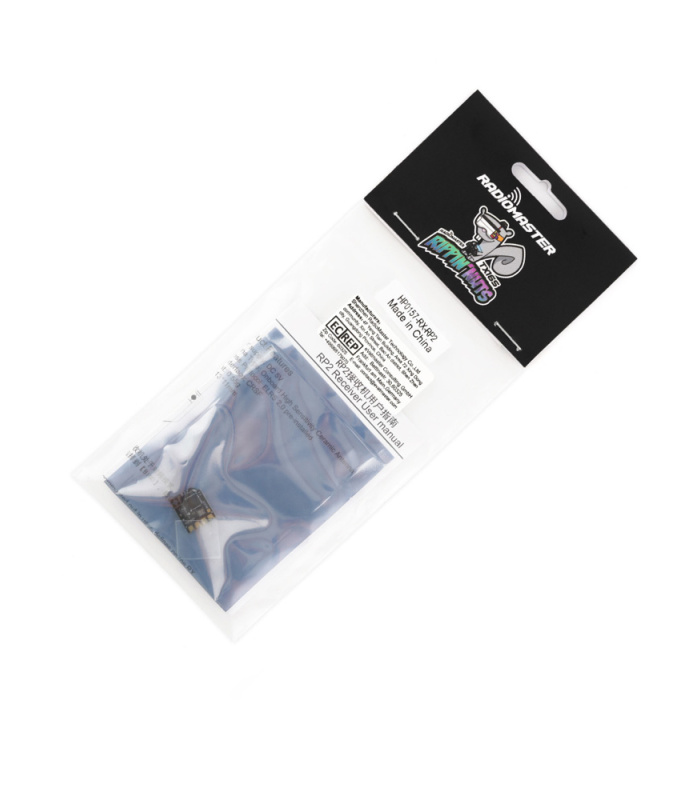

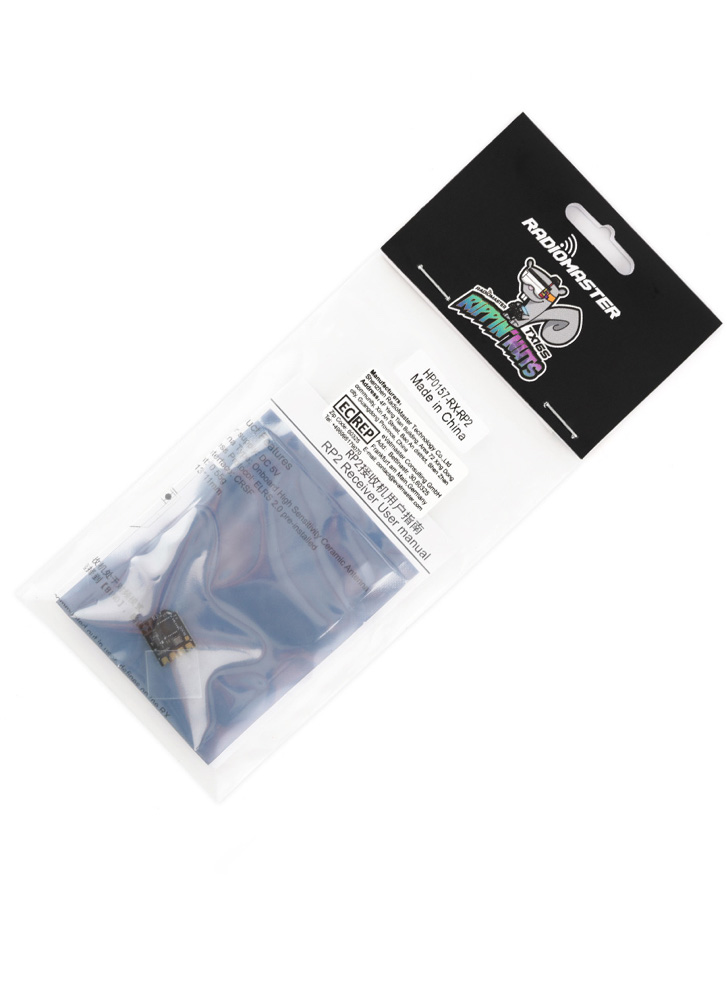

Included:

  • 1 xย RP2 ExpressLRS 2.4ghz Nano Receiver
  • 1 x User Manual
