Radiomaster Ranger Micro 2.4GHz ELRS Module / Starter Combo

£43.90 – £63.90 Inc. VAT

The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays.

Version	Clear

0 People watching this product now!

Description

Our stock is the latest version using the V1.6 PCB, which has resolved the external power issue.

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays. For Nano connectors, please consider the Ranger and the Ranger Nano modules.

Firmware Versions – FCC and EU LBT: Radios can be reflashed to EU LBT or FCC, the hardware itself is not restricted.

FCC: ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)
LBT: ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Features

High-efficiency cooling system
Up to 1Watt Power output
Wifi and Bluetooth support
Packet rates up to F-1000Hz
T-antenna included
With the Micro connector, support TX16S MKII and TX12 MKII radio

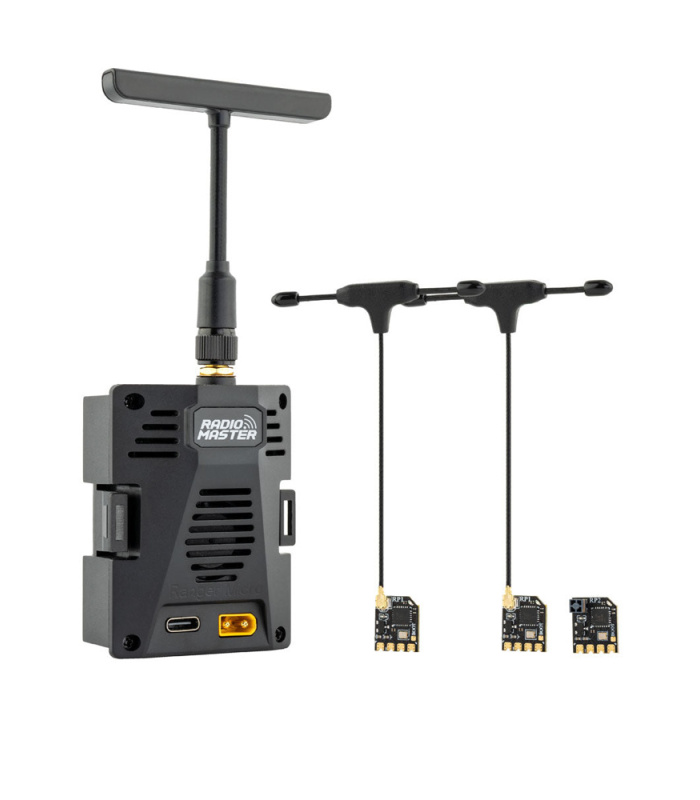

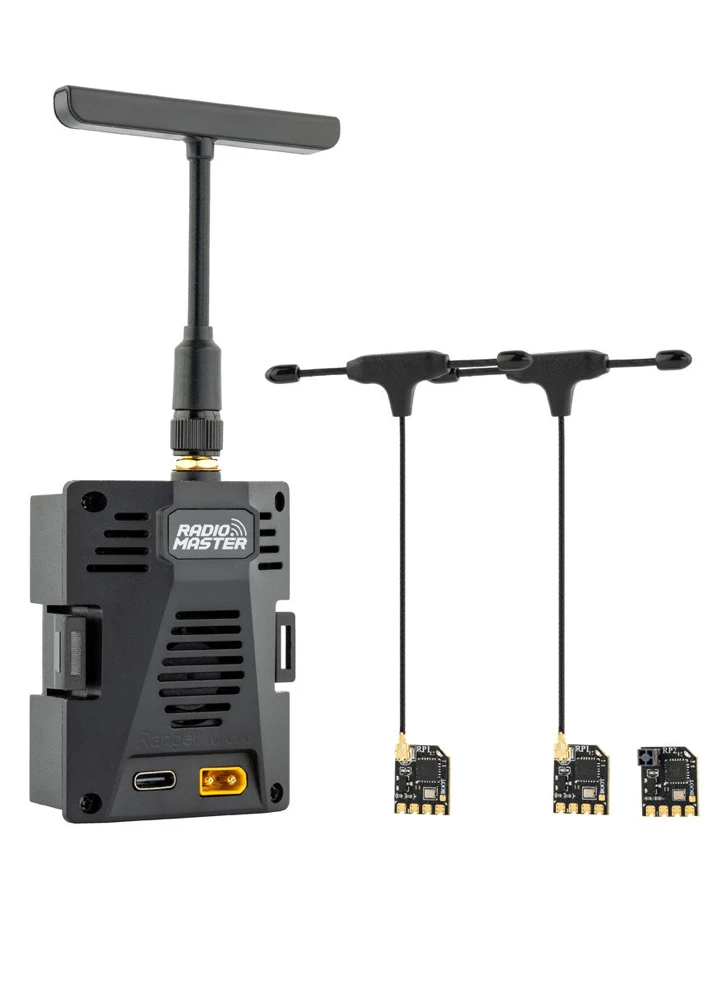

The Radiomaster Ranger Micro is also available as a starter set combo which includes two RP1 receivers and one RP2 receiver – please select as required.

Specification

Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz – 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes
XT30 Power supply voltage: DC 6V – 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)
Dimension: 136x49x33mm (with T antenna) / 74x49x33mm (without antenna)

Included:

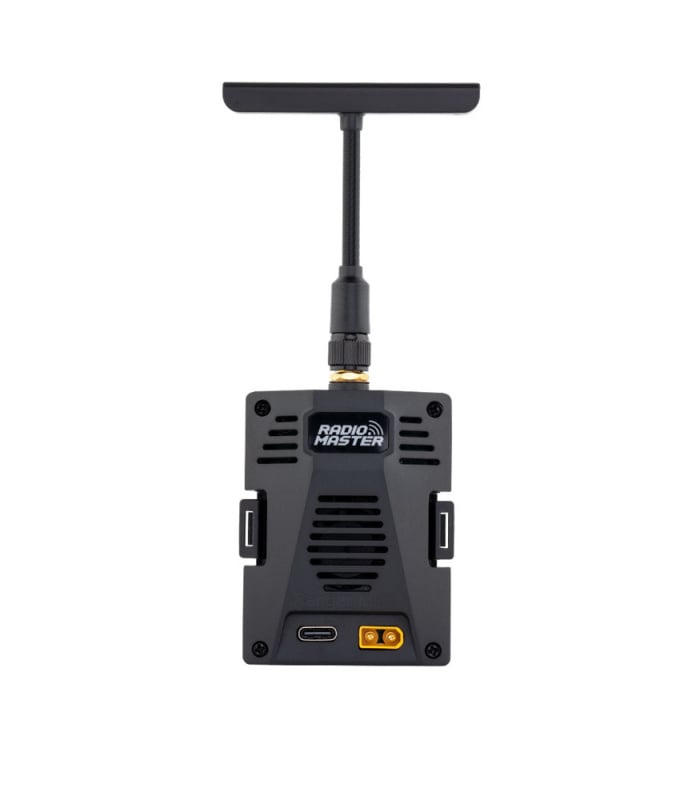

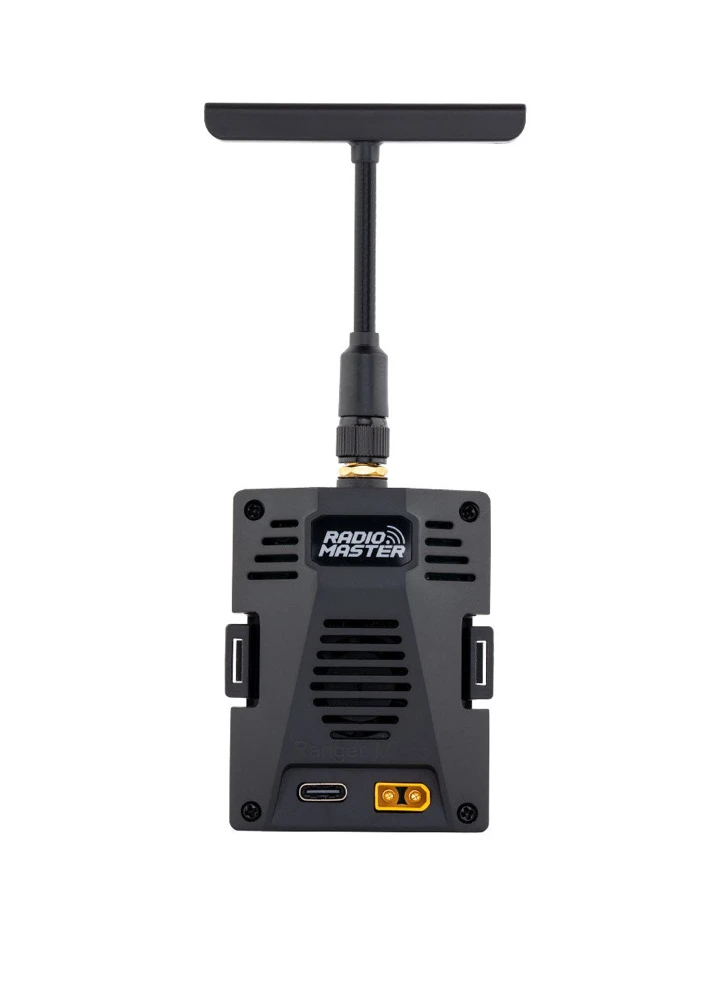

1x Ranger Micro Module
1x T Antenna

Need receivers too? Purchase the Ranger Micro Combo, which includes the following items:
