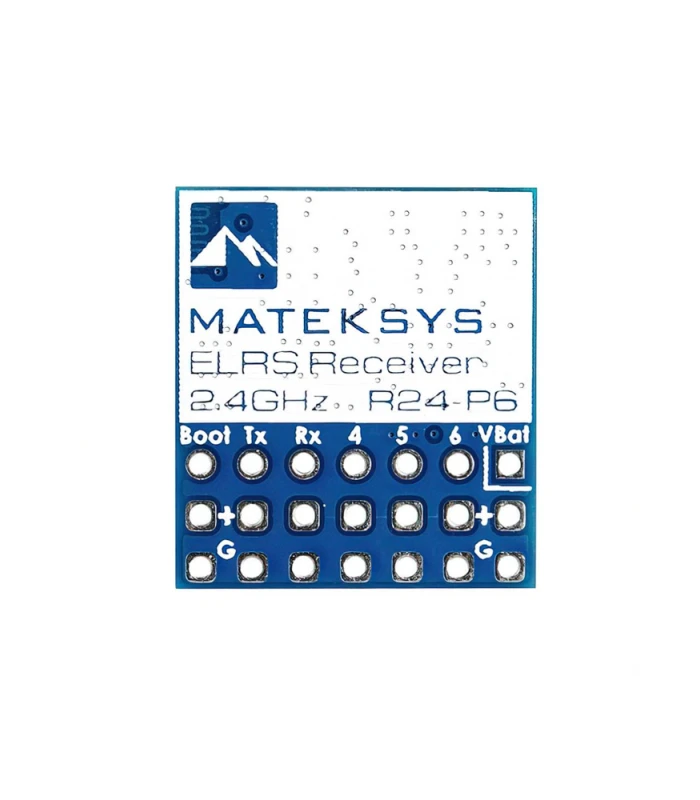

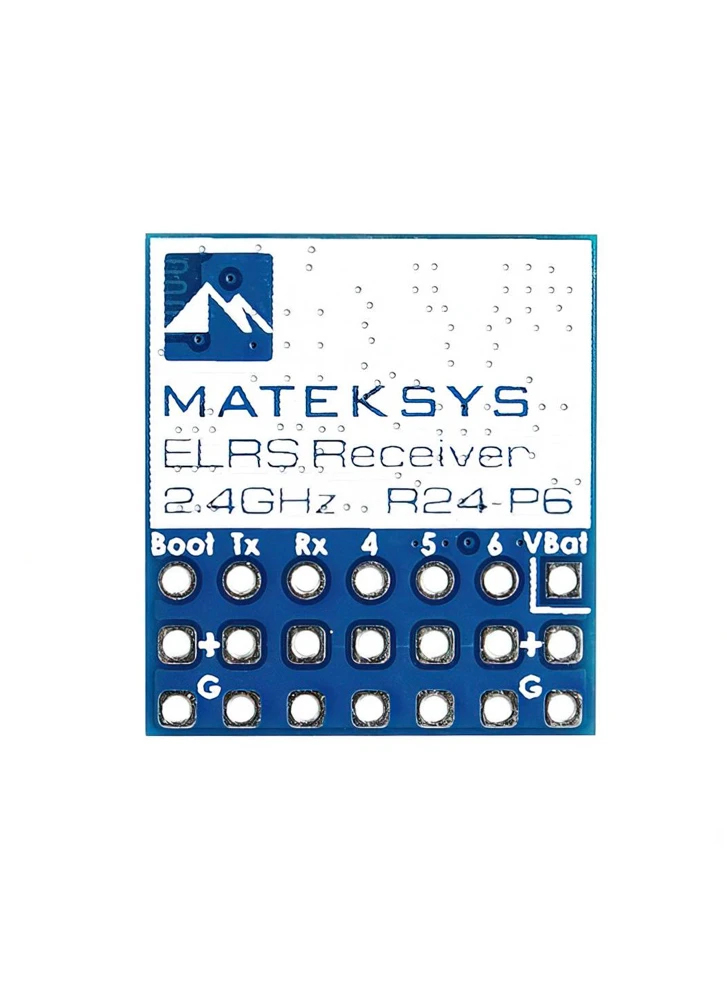

Matek 2.4GHz R24-P6 ELRS Receiver with 6 PWM Channels

Name: Matek 2.4GHz R24-P6 ELRS Receiver with 6 PWM Channels - Flying Tech
Brand: Matek Systems
SKU: RX-MTELRS-R24-P6
Price: 14.90 GBP
Availability: InStock

£14.90 Inc. VAT

The Matek ELRS-R24-P6 is a 2.4GHz ExpressLRS receiver with 6 PWM outputs.

In stock

Compare

0 People watching this product now!

SKU: RX-MTELRS-R24-P6 Categories: ELRS Receivers, Radio Control, Long Range RC, ExpressLRS Tags: 2.4GHz, ELRS, RX

Description

ExpressLRS is rapidly becoming the choice control link for those looking for ultra-low latency and long-range. The Matek ELRS-R24-P6 is a 2.4GHz ExpressLRS receiver with 6 PWM outputs. It’s perfect for those looking to connect servos directly, without needing to run them through a flight controller. The receiver accepts 4-9V DC input voltage.

Please note, the header pins are included but don’t come soldered.

Advice:

Make sure Receiver and TX module both are running ExpressLRS 3.0 or newer
Receiver has ExpressLRS 3.0 preloaded with binding phrase “123456”, the receiver will never enter binding mode if using the traditional binding procedure.
You need to reflash it with your binding phrase OR go into WebUI to set your binding phrase.

Features:

ExpressLRS 3.0 firmware
2.4GHz Frequency
6 PWM Outputs

Specification

Power dissipation: 45mA(binding), 85mA(wifi mode)
RF Frequency: 2.4GHz (2400~2480MHz)
Voltage sense: 34V Max. @ “VBat” pad
Input voltage: 4~9V DC @ “+” pad
Support 2~8S VBat voltage sense
Antenna connector: IPEX MHF 1
Receiver output protocol: PWM
Telemetry power: 12dbm
PCB size: 20mm x 18mm
Weight: 2g w/ antenna

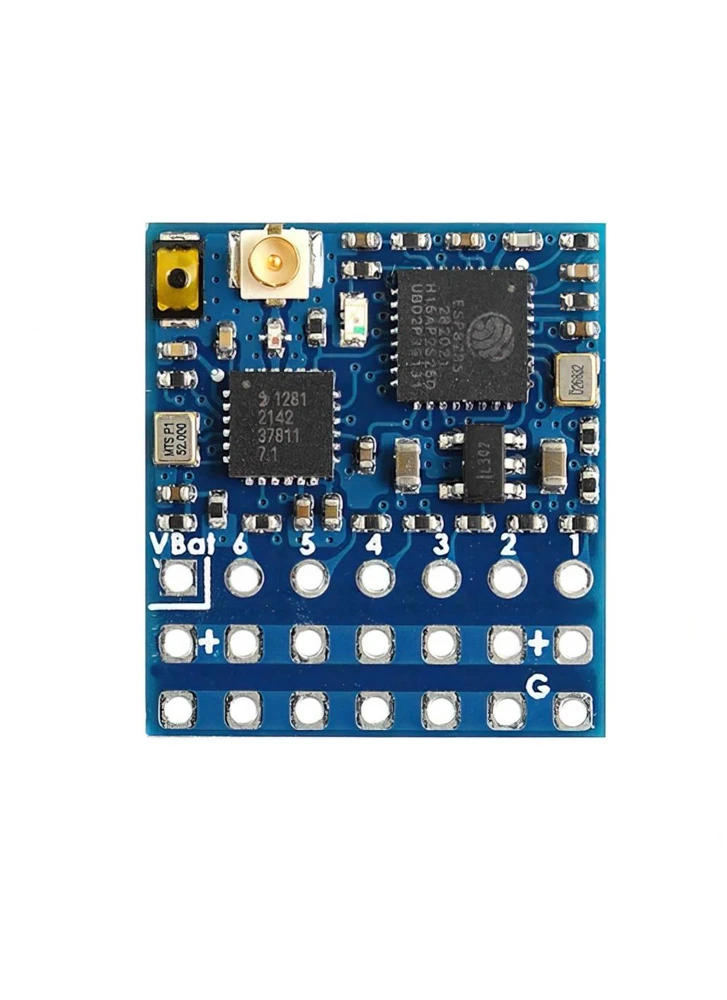

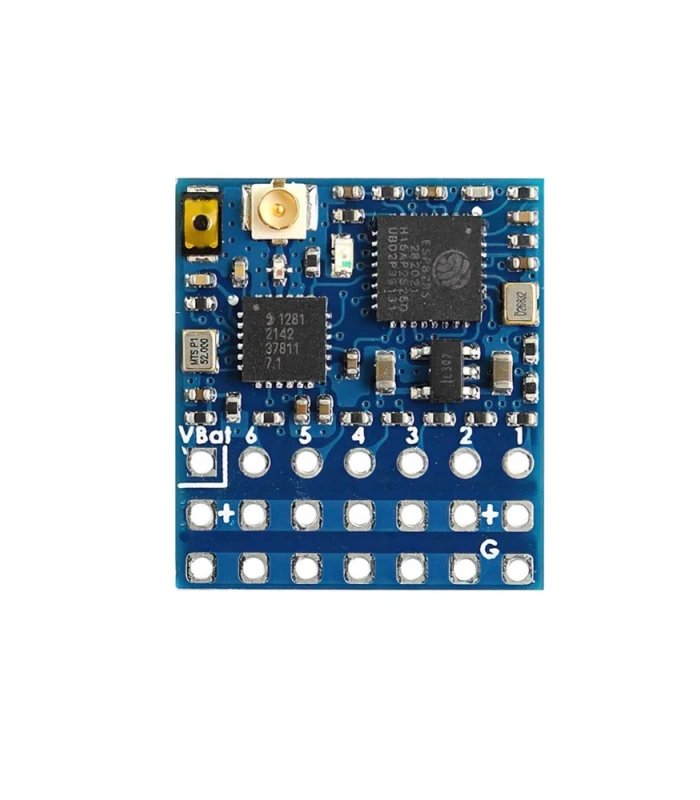

ESP8285, SX1281
PWM outputs: 6

Links

Included:

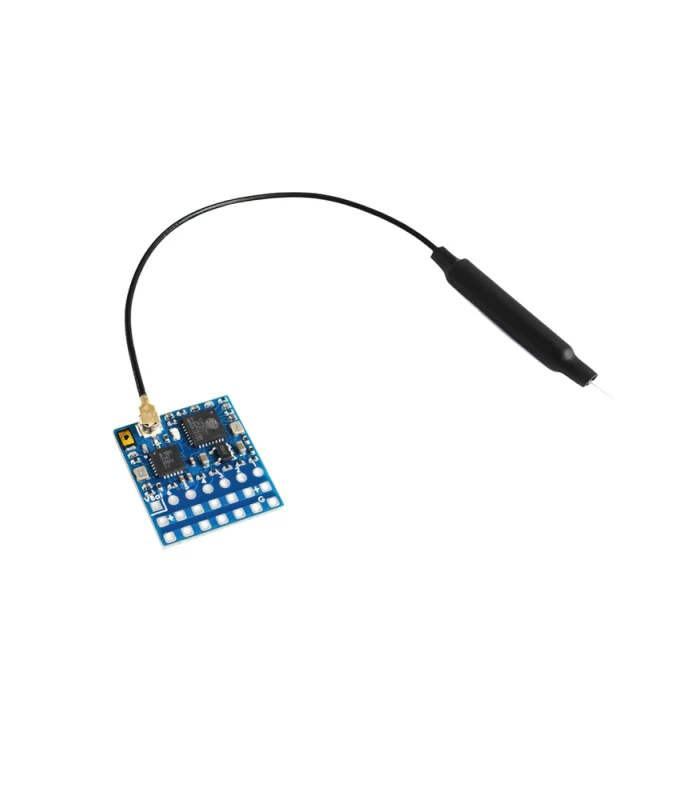

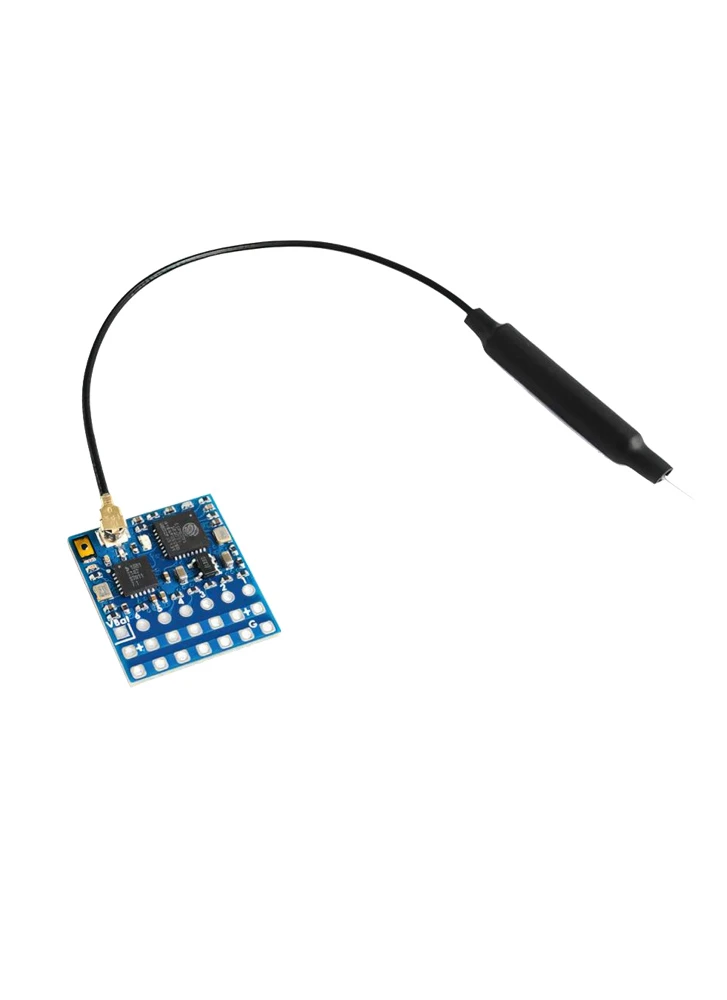

1x MATEKSYS ExpressLRS 2.4GHz Receiver – PWM ELRS-R24-P6
1x IPEX MHF1 Antennas. 15cm
1x Dupont 2.54 pins
