Bandit BR1 ExpressLRS 915/868MHZ Receiver

Name: Bandit BR1 ExpressLRS 915/868MHZ Receiver - Flying Tech
Brand: RadioMaster
SKU: RX-RMBR1
Price: 19.90 GBP
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

£19.90 Inc. VAT

This ELRS receiver operates on 915/868MHz frequency with 50Mw telemetry power.

In stock

Add to compare

0 People watching this product now!

SKU: RX-RMBR1 Categories: RadioMaster Bandit, Radio Control, Long Range RC, ExpressLRS, ELRS Receivers Tags: 915/868MHz, Bandit, BR Series Receivers, ELRS, ELRS Receiver, ExpressLRS

Description

The RadioMaster Bandit BR1 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR1 ExpressLRS receiver also features superior resistance to vibration.

Bandit BR1 Expresslrs Receiver incorporates an ESP8285 MCU and SX1276 RF chip, renowned for its low latency, high sensitivity and exceptional long-range performance. The included T Antenna and Y Antenna designed with high-sensitivity are both lightweight and easy to install depending on your application.

Due to the low-latency and high-refresh-rate RF module, the Bandit BR1 Expresslrs Receiver is ideal for FPV freestyle or Long Range.

Features

Built-in TCXO oscillator
Utilizing 0402 components, superior resistance to vibration
Lightweight and compact design
High-sensitivity 915/868MHz T Antenna and Y Antenna included

Specification

Regulatory Domain: FCC915
MCU: ESP8285
RF Chip: SEMTECH SX1276
Telemetry RF Power: 50mw/17dbm
Antenna: 915/868MHz T Antenna & Y Antenna
Antenna Interface: IPEX1
Bus Interface: CRSF
Working Voltage: DC 5.0V
Dimension: 18×13.8mm
Weight: 1.7g (with Y antenna)/2.9g (with T antenna)

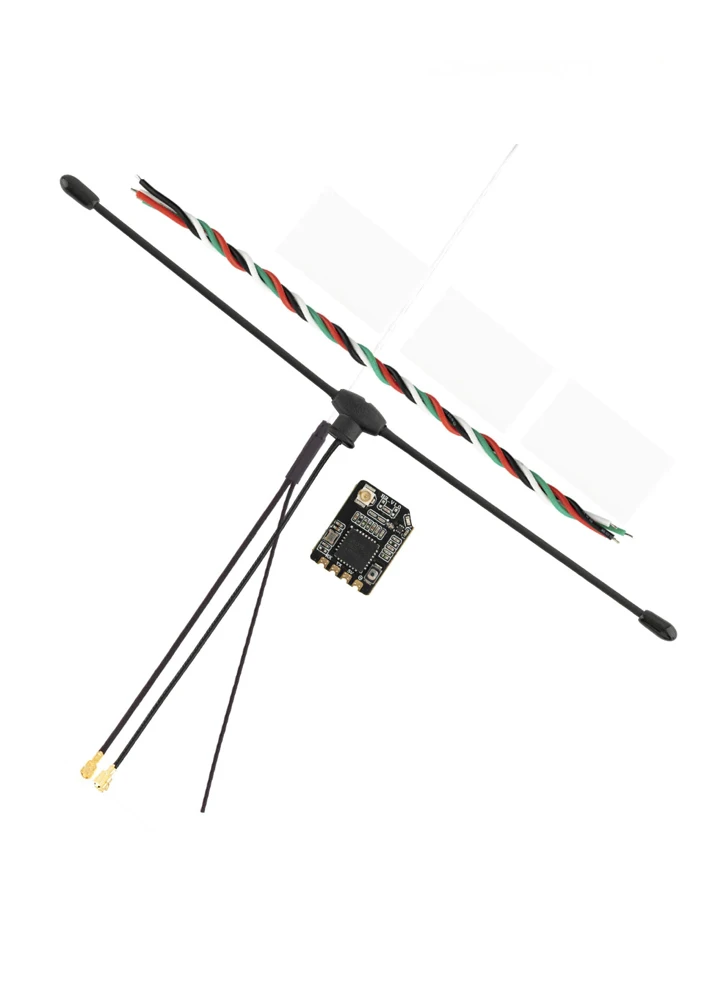

Included:

1 x Bandit BR1 Expresslrs Receiver
3 x Receiver Shrink Tube Sleeves
1 x Y Antenna (Installed on Receiver)
1 x T Antenna
1 x CRSF Wire
1 x Manual
