RadioMaster – ER5C V2 2.4GHz 5Ch ExpressLRS ELRS Receiver

Name: RadioMaster - ER5C V2 2.4GHz 5Ch ExpressLRS ELRS Receiver - Flying Tech
Brand: RadioMaster
SKU: RX-ER5CV2
Price: 19.99 GBP
Availability: InStock

£19.99 Inc. VAT

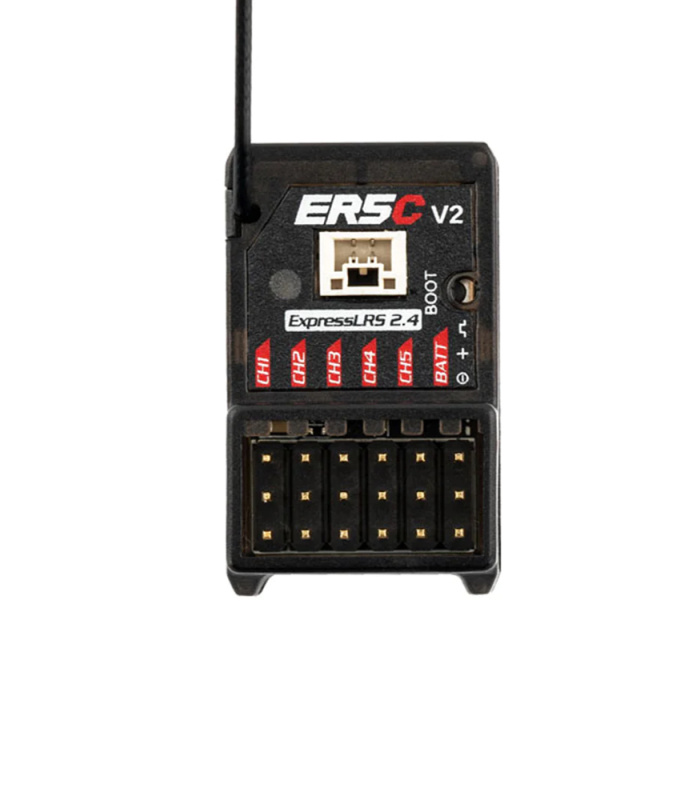

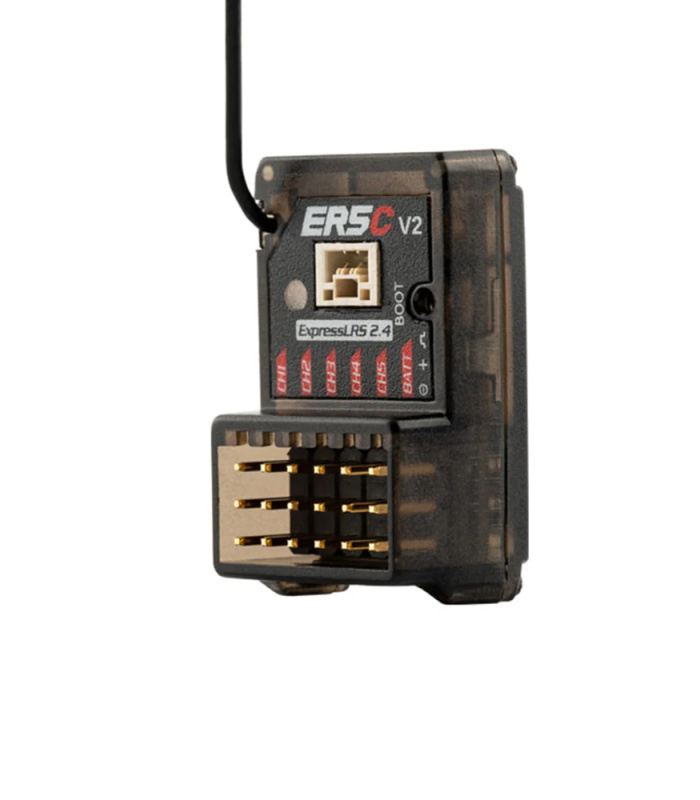

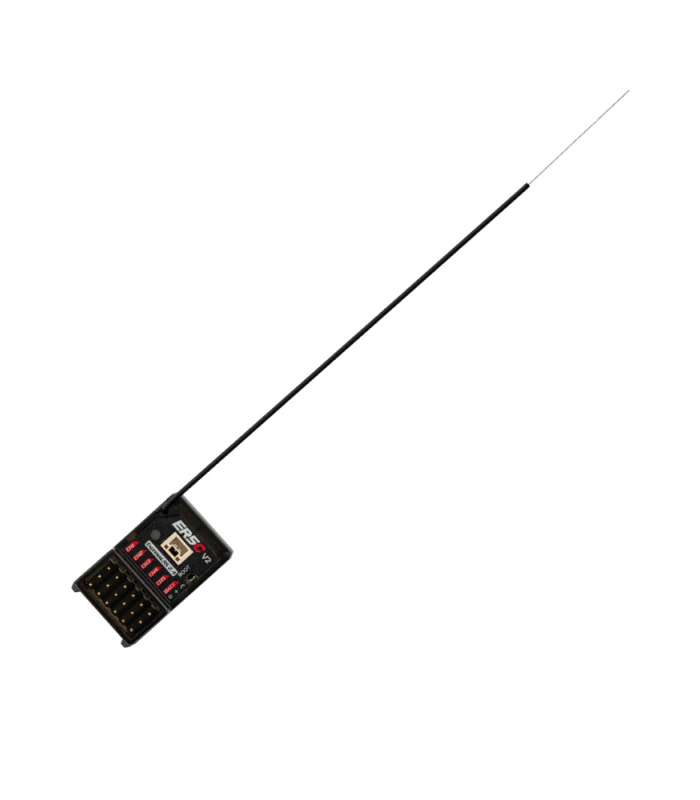

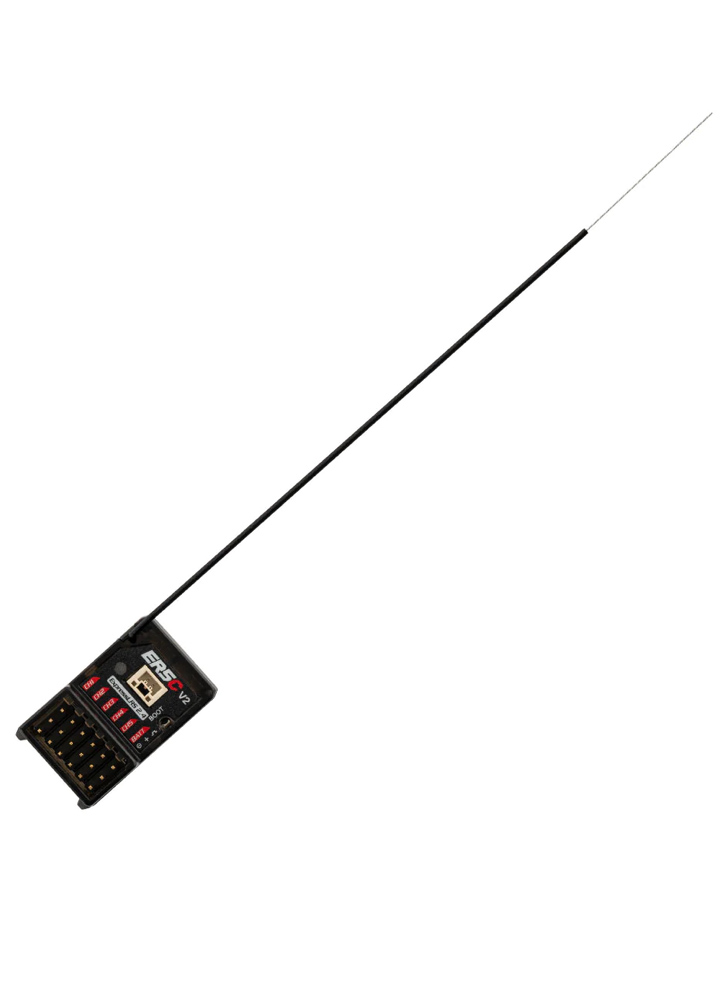

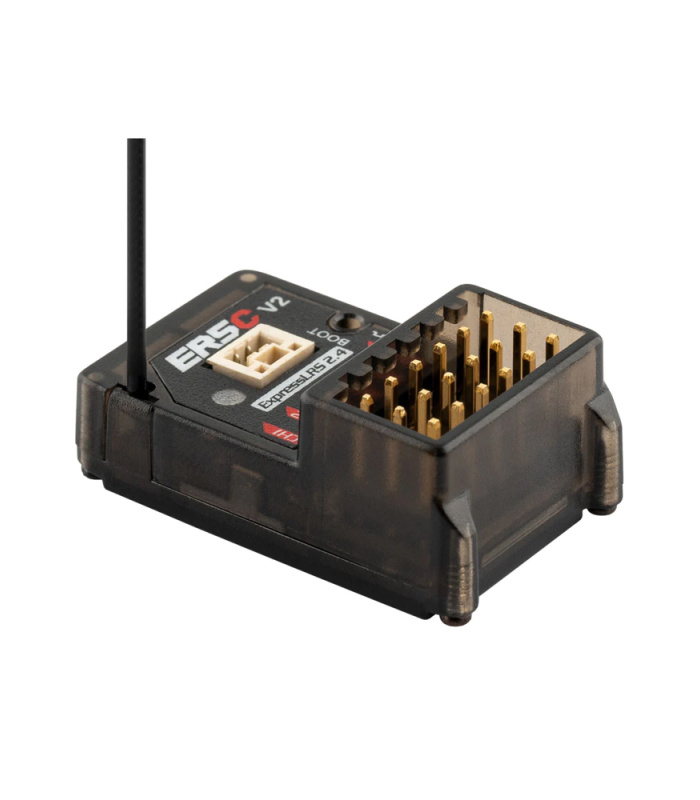

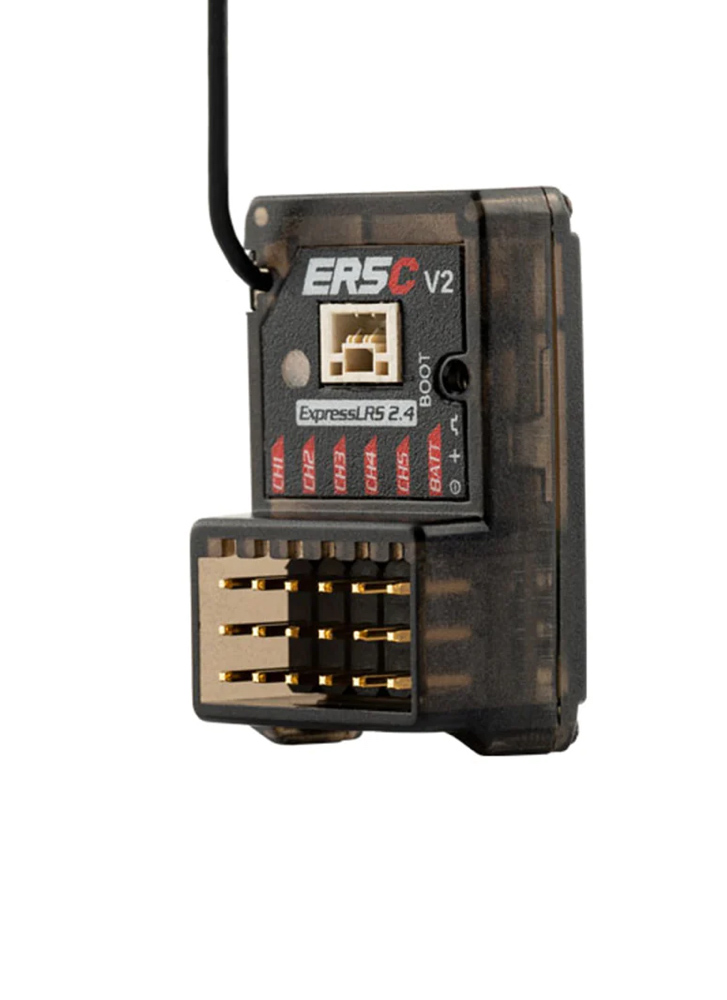

ER5C V2 is a plastic cased ELRS Rx with 5 PWM outputs (vertical pins).

In stock

Compare

0 People watching this product now!

SKU: RX-ER5CV2 Categories: ELRS Receivers, Radio Control, Long Range RC, ExpressLRS Tags: ELRS, ER-Series, ExpressLRS, PWM, Receiver

Description

ER5C V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5C V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for all types of surface & marine R/C applications.

Features

Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range
Support 5 PWM Channels
Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
Optimized ground up PCB design
Supports Wi-Fi updates and WEBUI configuration
Compact size, easy to install. Perfect for surface & marine R/C applications
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Associated Products

ER SERIES ELRS PWM RECEIVERS
MT12 Surface Radio

Specification

Item: ER5C V2 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5-8.4V
Antenna type: High-sensitivity antenna
Wireless Protocol: ELRS 3.3.0 pre-installed
Channels: 5
Telemetry Voltage Detection Range: DC 4.0 – 35V
RF Telemetry: Yes
Telemetry Power: 10mw
Weight: 5.7 grams
Size: 30.0×18.5×13.0mm
Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX

Included:

1 x ER5C V2 2.4GHz ELRS PWM Receiver

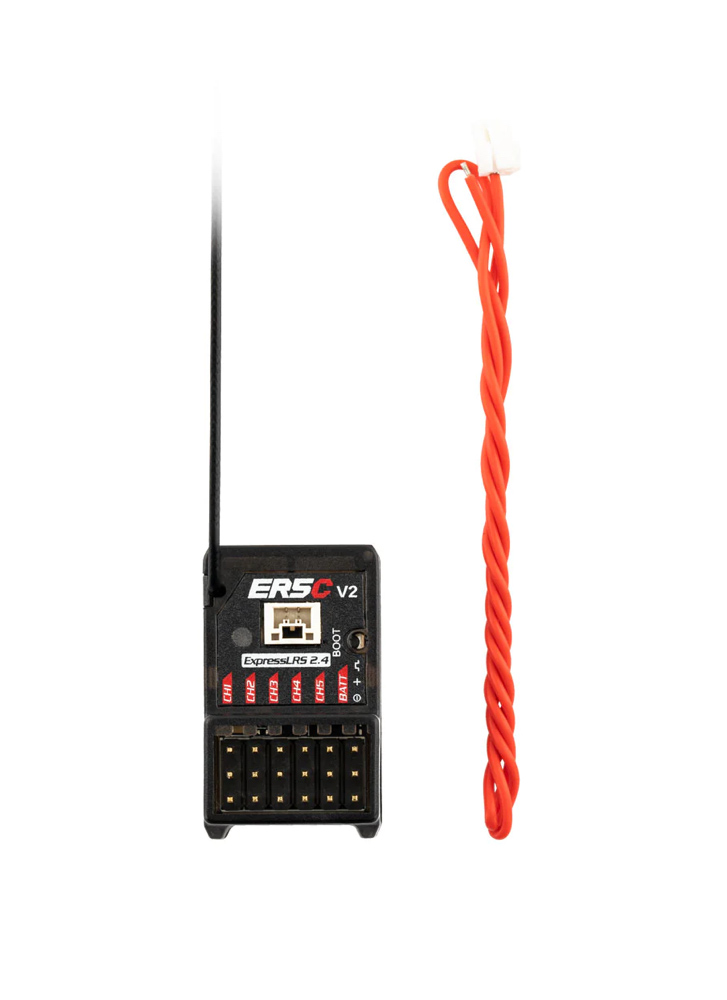

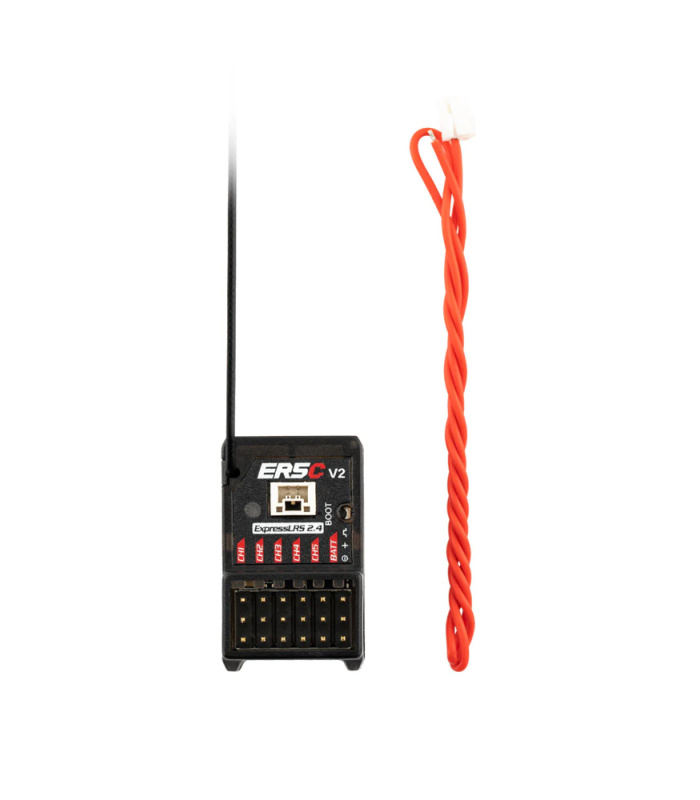

1 x Voltage telemetry wire
1 x User Card
