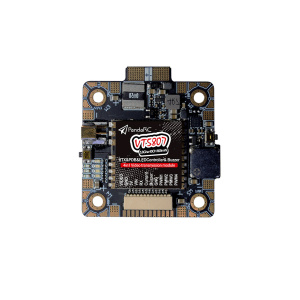

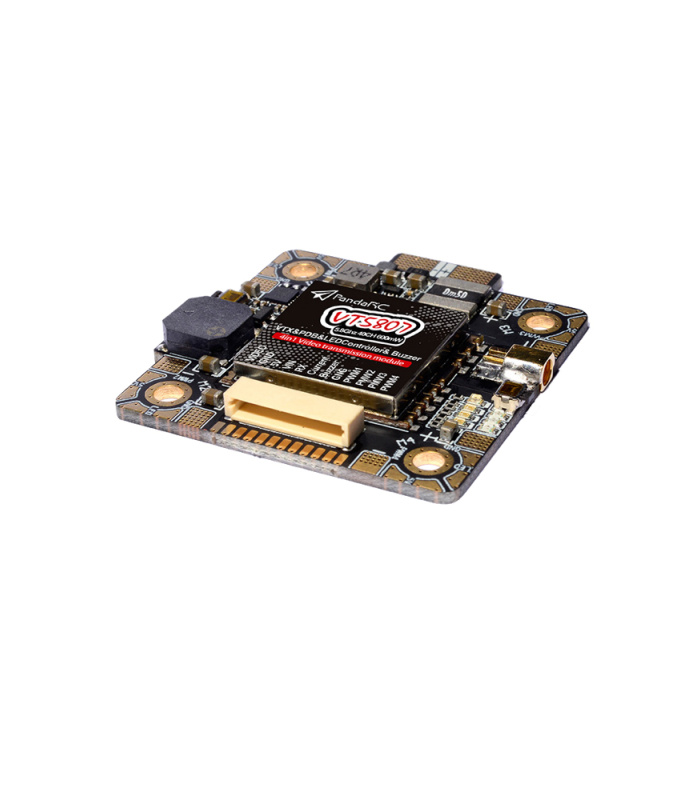

Discontinued: PandaRc VT5807 4-in-1 VTX PDB LED Controller & Buzzer

The VT5807 is more than just a video transmitter. It also functions as a PDB, LED Controller and Buzzer.

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

0 People watching this product now!
Description

Product Discontinued – for an alternative please see PandaRc VT5804M L1

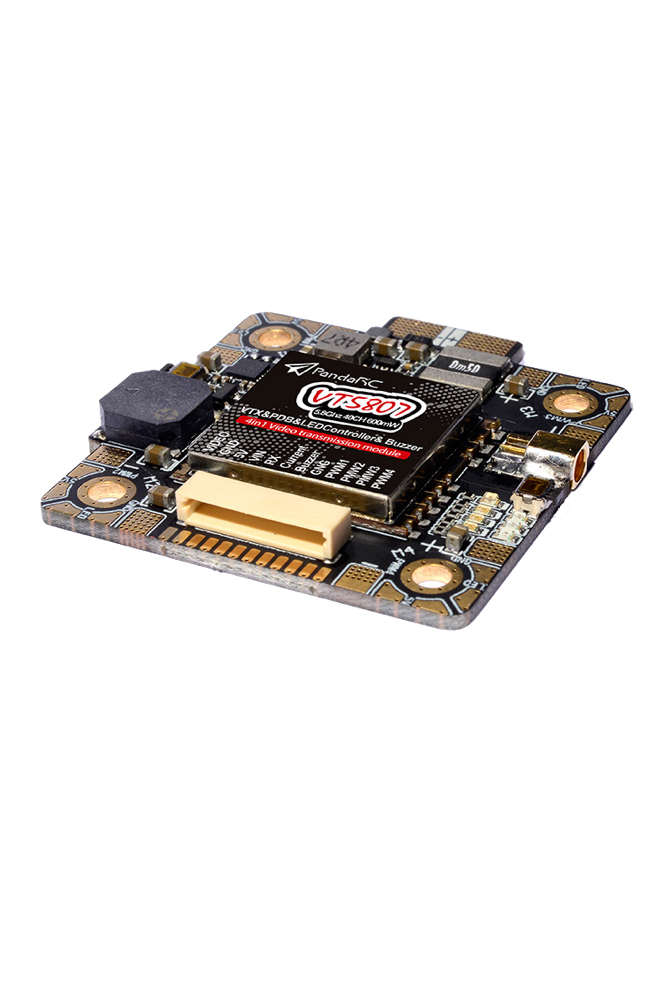

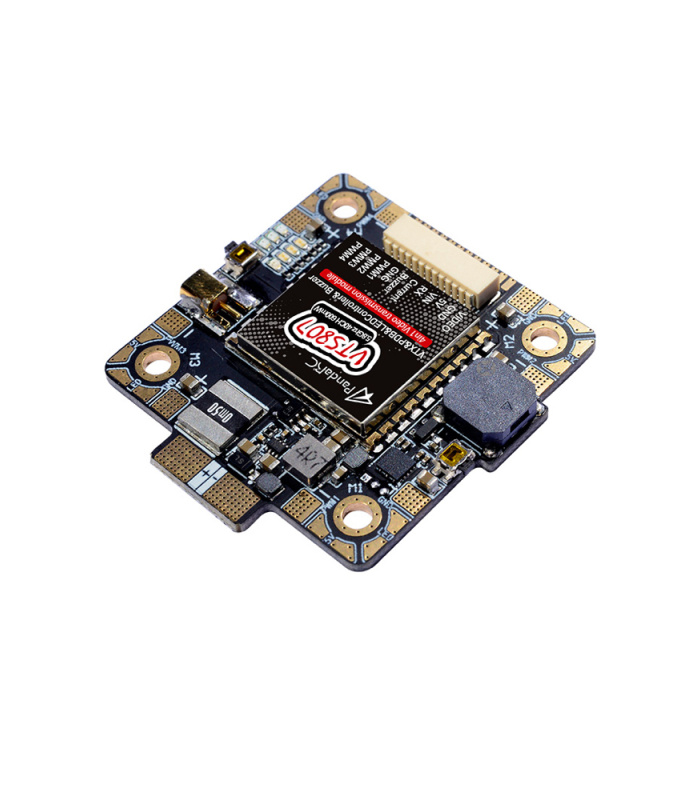

The PandaRC VT5807 4in1 VTX is more than just a video transmitter. In addition to being a video transmitter, the VT5807 also functions as a PDB, LED Controller and Buzzer. Itโ€™s a great choice for pilots who like using individual speed controllers, rather than a 4in1 ESC.

5.8GHz VTX:

The PandaRC VT5807 transmits via 40 different channels within the 5.8GHz frequency band. It has an adjustable transmission power output: 0/25/100/200/400 / 600mW. Thereโ€™s also a Pit Mode, which means a battery can be safely plugged in without disturbing the FPV image of other pilots. Finally the VTX is equipped with MMCX antenna connection.

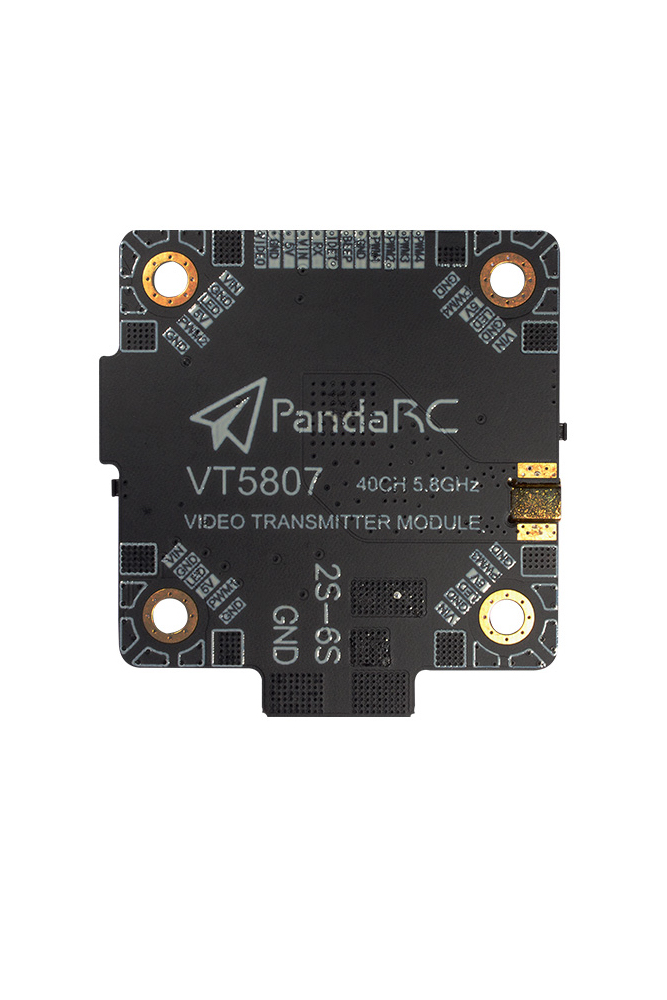

PDB:

The PandaRC VT5807 4in1 VTX is actually a Power Distribution Board (PDB) with integrated VTX. The PDB has handy solder pads for connecting 4 separate ESCs. Thereโ€™s also an onboard BEC power supply, which outputs 5V and can be used to power your flight controller. Connection with your FC is made easy, thanks to a 12pin plug. The PDB comes in a design with a 30.5×30.5mm mounting pattern. As a result, it can be neatly integrated into any 30×30 flight stack.

LED Controller:

Another cool feature of the VT5807 is that is also functions as an LED controller.ย  It comes with 4x 4 LED strips which you can equip your quadcopter with and enjoy the different lighting patterns it offers.

Buzzer:

To top it all off, it also has a built-in buzzer. The buzzer produces a loud 85dB and can be used to help find a lost quad.

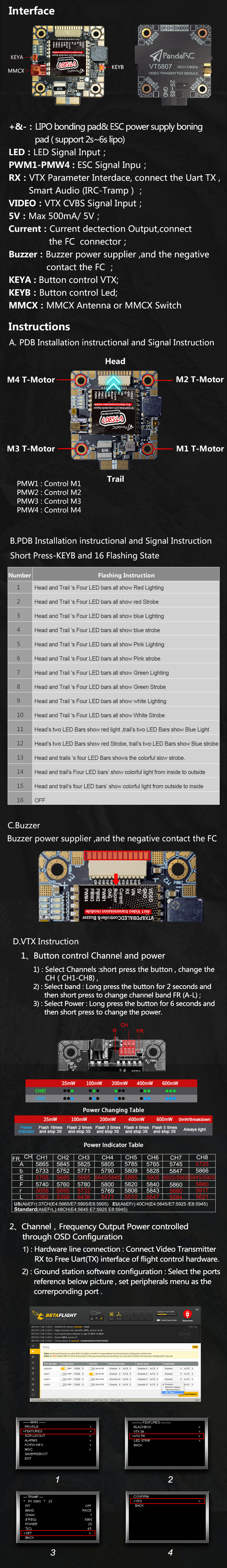

VT5807

Legal Notice:ย Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licensesโ€™ to operate vary from region to region.

Specification
  • Weight: 13g
  • Size:45mmx42mmx5mm
  • Mounting holes:ย 30.5mmx30.5mm
  • Input voltage:6-26V (2S-6S)

PDB

  • Continous current: 4x50A
  • BEC output 5V/500mA

VTX

  • Channel: 40CH, A/B/E/F/R band
  • Output power:Omw/25mw/100mw/200mw/400mw/600mw
  • Connector: MMCX
  • Video format: NTSC/PAL
  • Video input resistance: 75 ohm
  • Power consumption: 3.5w @ 600mw
  • Smart audio: IRC-Tramp

LED Controller

  • Each mounting hold can support 6 pcs vs2812
  • Switch 16 programmer type

Buzzer

  • Built in 85db buzzer

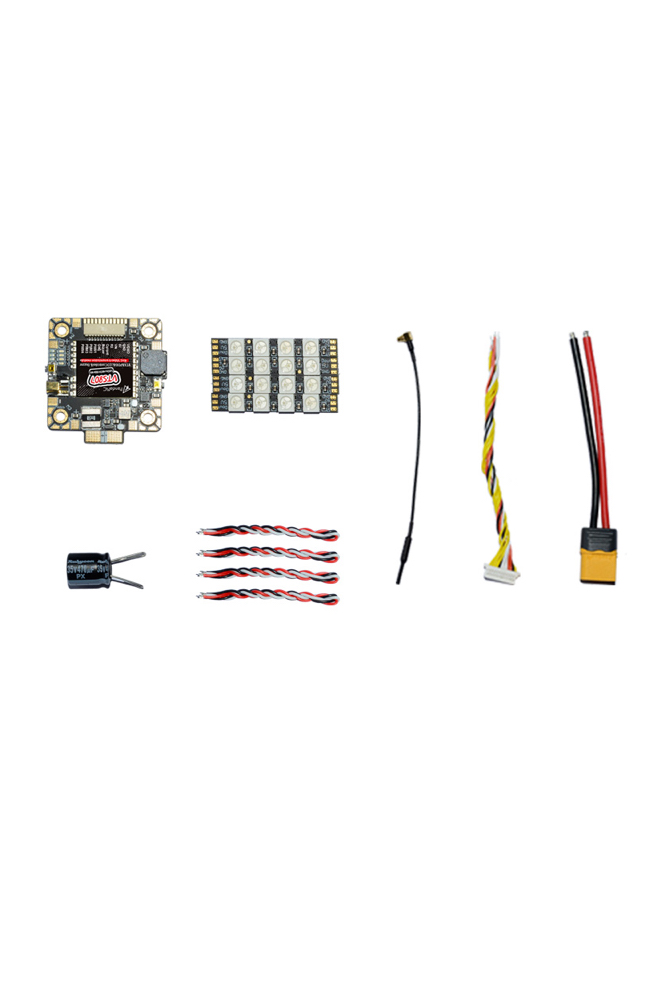

Included:

  • 1 x PandaRC VT5807 4in1 5.8GHz 25-600mW VTX – MMCX
  • 4 x LED0539
  • 1 x 5.8G MMCX Linear Antenna
  • 1 x 12pin 100mm Cable
  • 4 x 3pin 100mm Cable
  • 1 x 100mm 14AWG Silicone Cable with XT60 Connector
  • 1 x Rubycon 470uF 35V Capacitor
Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

How to light your multirotor:ย Lighting is obviously a necessity for nighttime flying, however it’s also really helpful when flying in daylight. Unlike helicopters, multicopters typically lack defining features to help with orientation; lighting is therefore a great solution. It makes most sense to employ a navigational lighting setup – Red on the Port (left) side, Green on the Starboard (right) side and a white strobe astern. When it comes to selecting your lights there are lots of options: LEDs, HPLEDs (High power LEDs), Strip lights and Strobes. Regular LEDs are inexpensive and come in an array of colours. While they consume little power, LEDs are best suited to nighttime applications as they are usually too dim to be seen in bright daylight. Alternatively the next generation of LEDS, namely HPLEDs and CREE LEDs are much brighter. They can be driven by much greater currents meaning that some can emit over 1000 lumens. At night they can be seen for miles, but more importantly they are visible in bright daylight. Since overheating is destructive, HPLEDs must be mounted on a heat sink to allow for heat dissipation. Both regular and HP LEDs are easy to wire up – however note that LEDs will only light up with correct electrical polarity and that they have a maximum current rating which must not be exceeded. To limit the amount of current through an LED a suitable resistor should be used. Strips lights are fun when it comes to night flights and are fantastic for orientation purposes. Some can be powered/controlled with an LED RGB Driver to cycle between different modes and colours. LEDs of all types can be turned into a strobe by using a suitable controller, strobes have the added bonus of low power consumption. The key to all lighting installations is to think about voltage and current requirements, a voltage regulator/UBEC will usually be necessary to help meet this requirements. Finally it is advisable to power lights from a separate battery to your flight battery.
