PandaRC – VT5804 Q1 / X1 5.8G Adjustable Power FPV VTX

£32.90 – £37.90 Inc. VAT

This VTX comes in an all metal case which gives it a premium look and some extra crash protection.

Version	Clear

Compare

0 People watching this product now!

SKU: N/A Categories: FPV Video Transmitters (VTXs), FPV, Analog FPV Tags: MMCX, Video Transmitter, VTX

Description

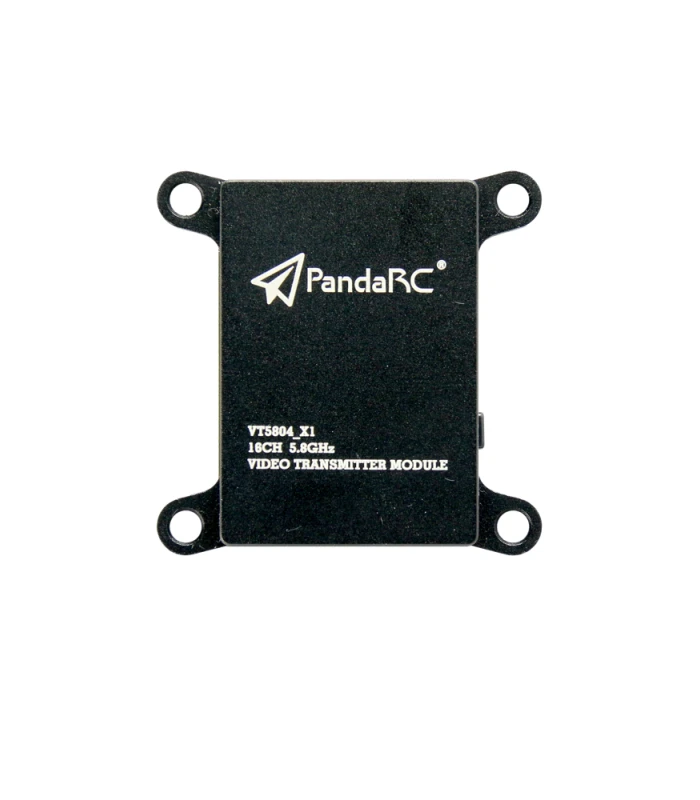

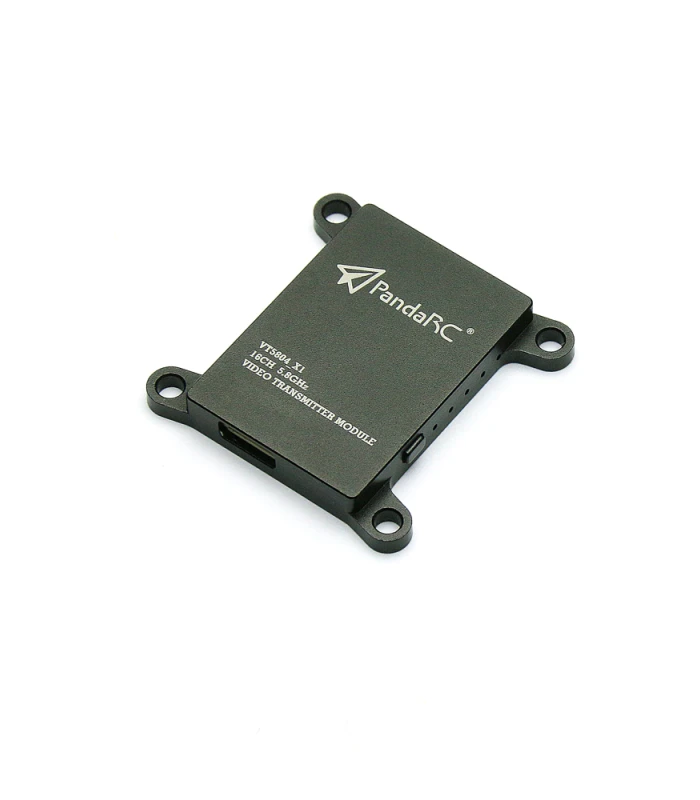

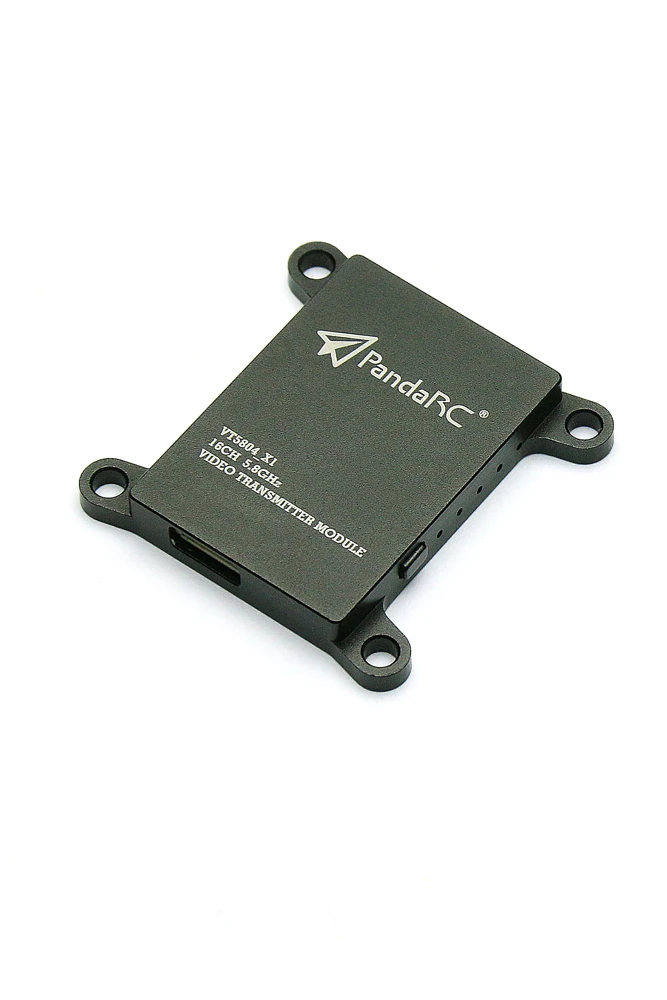

This FPV Video Transmitter (VTXs) from PandaRC comes is an all metal case which gives it a premium look and some extra crash protection. There are two versions of the transmitter, one fitted with hole mounts to suit a 30×30 stack (VT5804 X1) and the other without the hole mounts (VT5804 Q1). The transmitter is feature packed, so boasts a variable power output ranging from 25mW to a massive 800mW and also a Pitt Mode so you can start the VTX without interrupting other pilots. Channels and output power can be set via a push button and more conveniently you can configure it remotely using OSD control via the Tramp Protocol, when used with a flight controller.

Features:

Switchable transmitting power, including 0mW / 25mW / 100mW / 200mW / 400mW / 800mW mode.
Ultra-clean transmission (Up to 8 pilots at once)
Flexible 6-26v (2s-5s input)
PitMode – Power up your quad during a race
Supports IRC Tramp OSD Control, with fallback button menu
5V Onboard quiet switching regulator for FPV camera
Fully enclosed metal housing
CE Certified

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Specification

Input Voltage: 6-26V
Output Power: 28.5-29.5dBm
Video Bandwidth: 8MHZ
Audio carrier frequency: 6.5MHZ
Video input level: 0.8-1.2 VP-P
Audio input level: 0.5-2.0 VP-P
Radio Frequency Output Impedance: 50 Ohm
Audio input impedance: 10K Ohm
Connector: MMCX
Size: 34x24x5.5MM
Weight: 9g

Included:

1x PandaRC VT5804 5.8GHz 25-800mW VTX – MMCX
