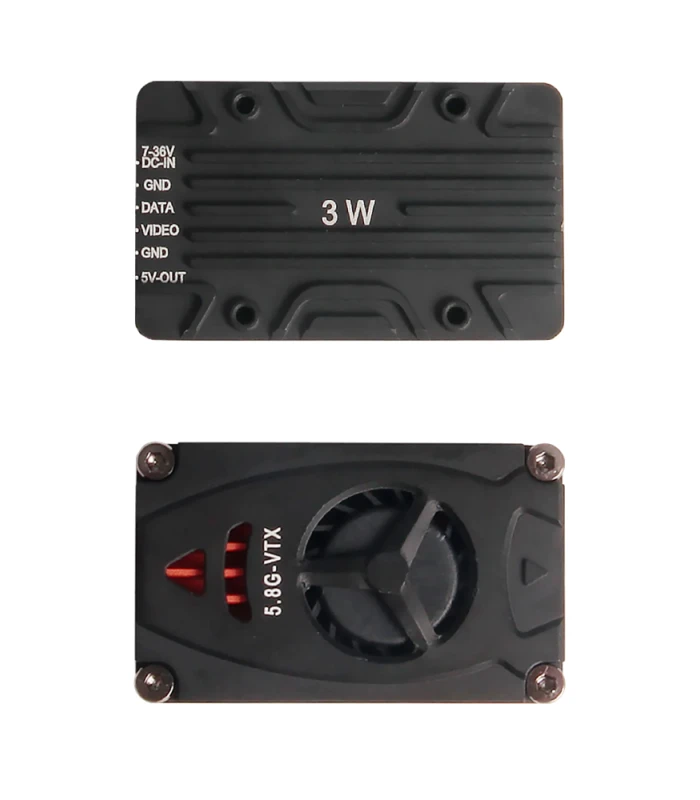

Holybro’s latest Atlatl VTX.

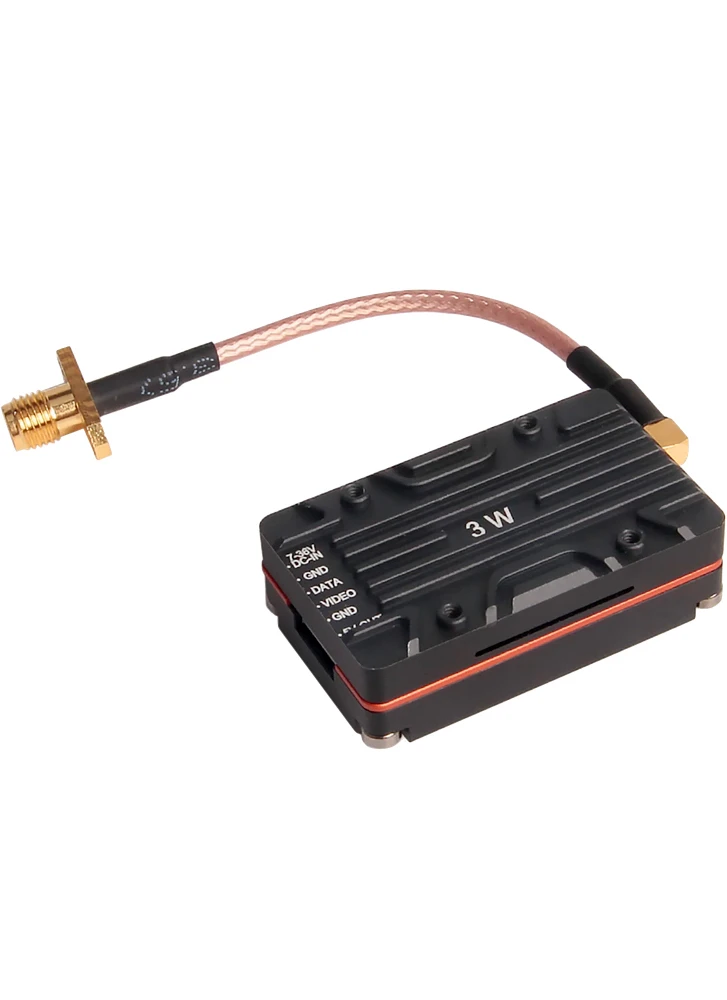

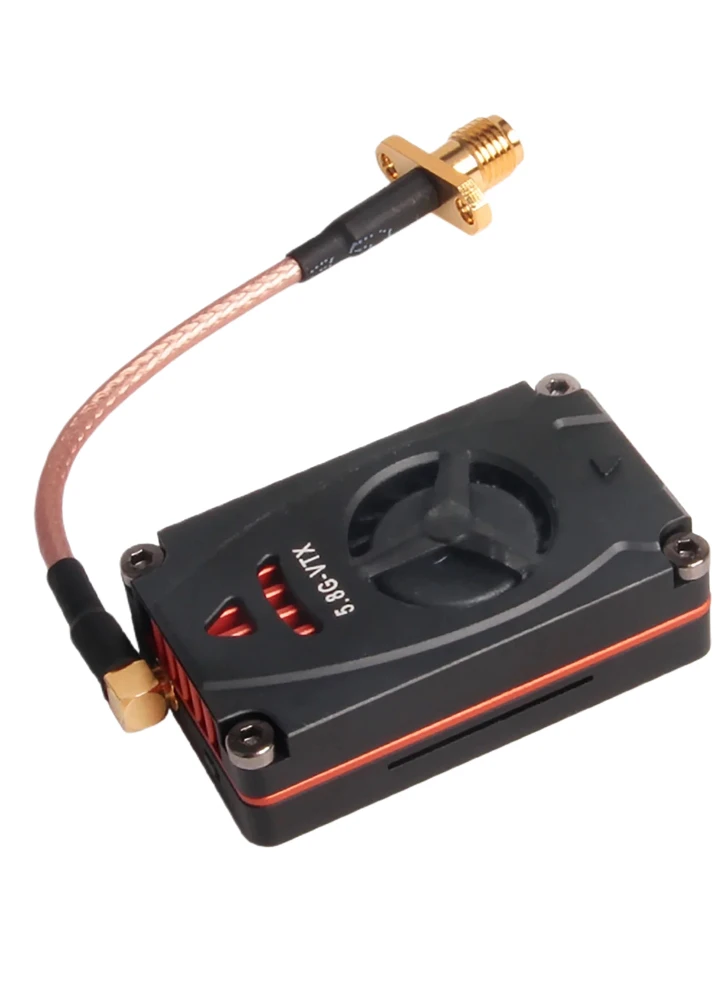

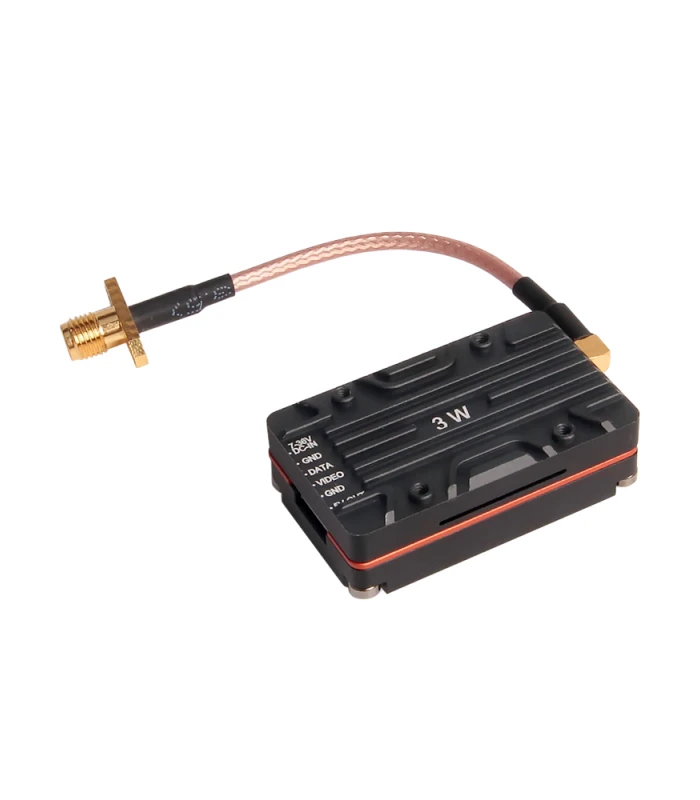

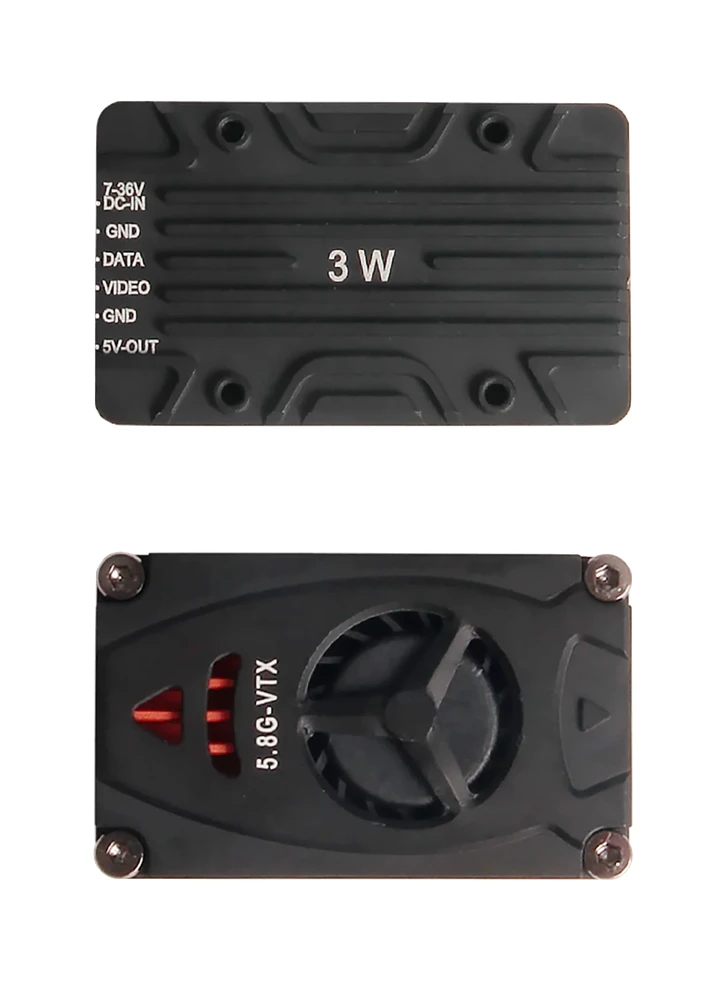

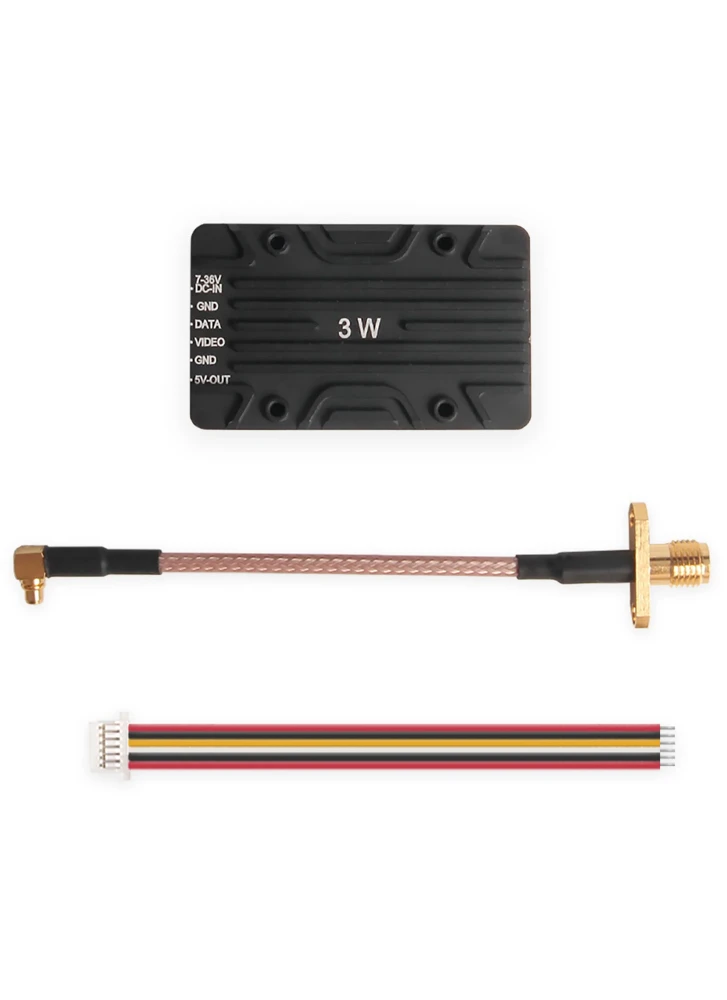

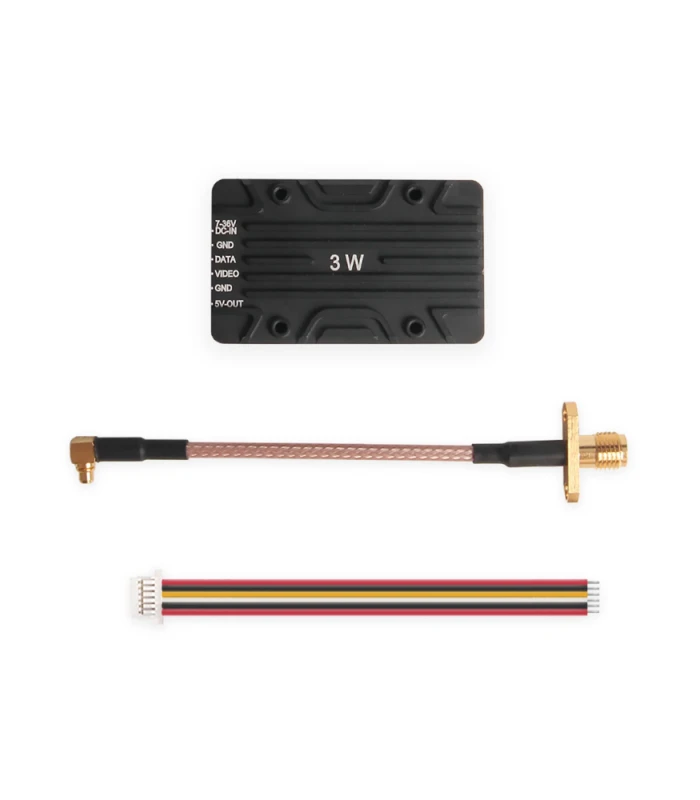

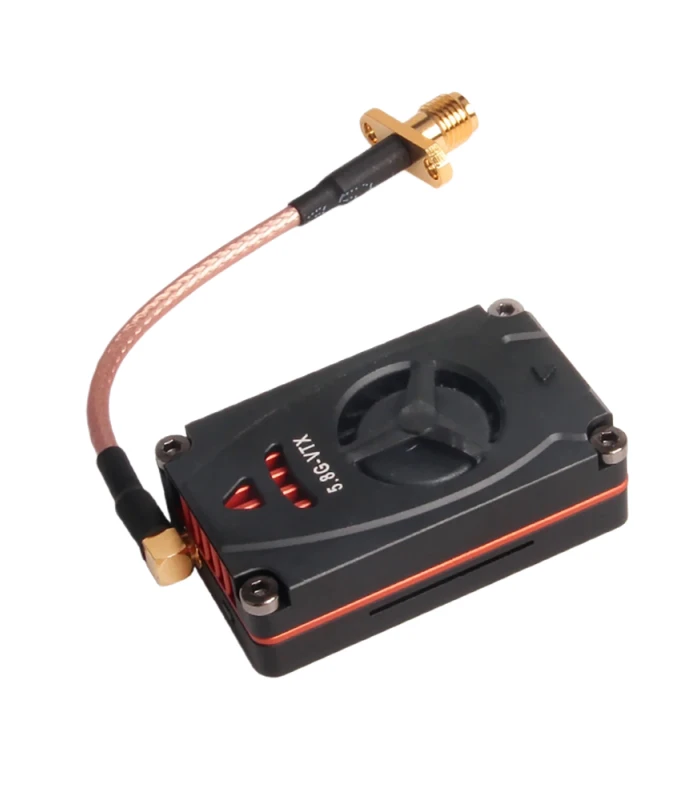

This video transmitter offers a variable power supply, from 25mW (UK legal limit) up to 3W. Running at 3W generates a lot heat, so the VTX incorporates a built-in fan. It also has Pit Mode so that you can power up your VTX to change settings without knocking other pilots out of the air. There is also SmartAudio which allows you to control your VTX via your flight controller to change channel and transmitting power remotely from your RC. The Atlatl VTX comes with a durable MMCX connector and also with a pigtail SMA converter.
WARNING: MAKE SURE TO INSTALL ANTENNA BEFOREย TURNING ON THIS VIDEO TRANSMITTER
Indicator Light Description
- #1 Power light
- Off – 25mW
- Steady on – 3000mW
- Flashing – PIT mode

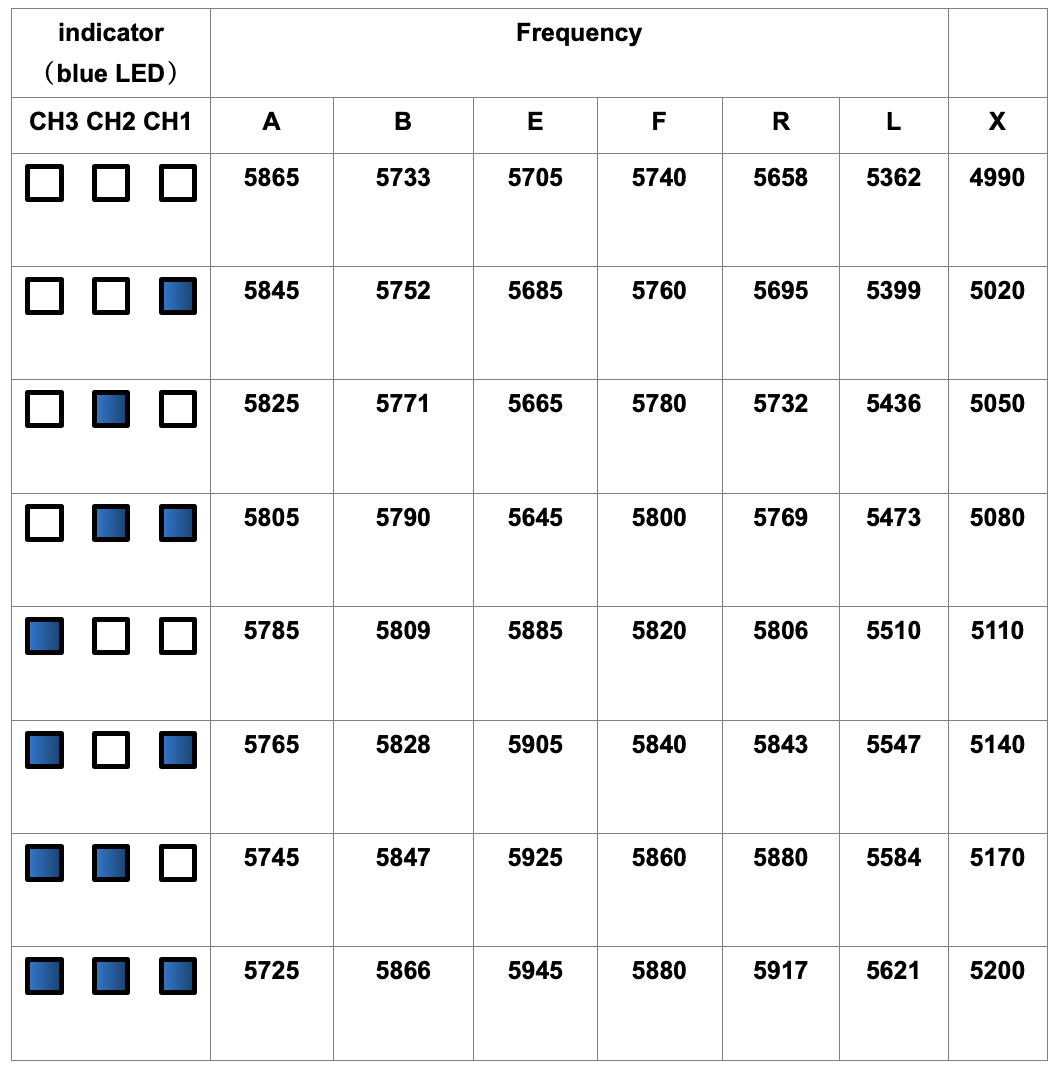

- #2 Frequency indicator light
- The first frequency of each frequency band is always on and flashes when switching.
- #3-#7 Frequency band lights
- #3 – F frequency band
- #4 – E frequency band
- #5 – A frequency band
- #6 – R frequency band
- #7 – B frequency band
Function Button Operation Instructions
- To switch frequencyย – Click the button, the red-light flashes and goes out, then you can switch to the next frequency.
- (Note: The red light of the first frequency of each frequency band is a constant light indicator)
- To switch frequency bandย – Press and hold the button for 2 seconds. When the blue light flashes, release the button to switch to the next frequency band.
- To switch powerย – Press and hold the button for 4 seconds
