Matek PDB-HEX 2-12S PDB w/ BEC & Current Sensor

£19.90 Inc. VAT

This PDB can be used for hexacopters and quads. Capable of handling 140A continuous current / 264A burst current.

Only 2 left in stock

0 People watching this product now!
Description

PDB HEX 1

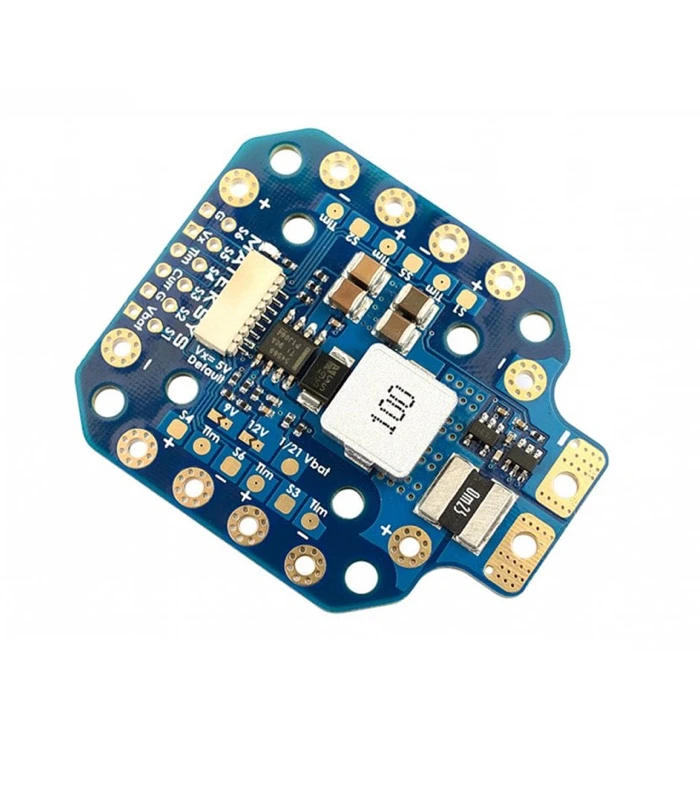

Matek’s latest HEX-PDB is capable of handling high power draws necessary to push UAV’s or X-Class drones. Capable of providing power for a hexacopter or quad this PDB is capable of handling 140A continuous current and 264A burst current.

It has both 30×30 and 20×20 mounting patterns.

Specification

PDB

  • Input voltage range: 6~60V (2~12S LiPo)
  • PDB/current sense resistor: 140A cont, 264A burst.
  • ESC power pads: 60A cont. 100A burst
  • 6x ESC power /signal/ telemetry pads
  • Current Senor: 264A,ย  3.3V ADC
  • Current Scale 125(INAV/BF),ย  BATT_AMP_PERVLTย  80 (ArduPilot)

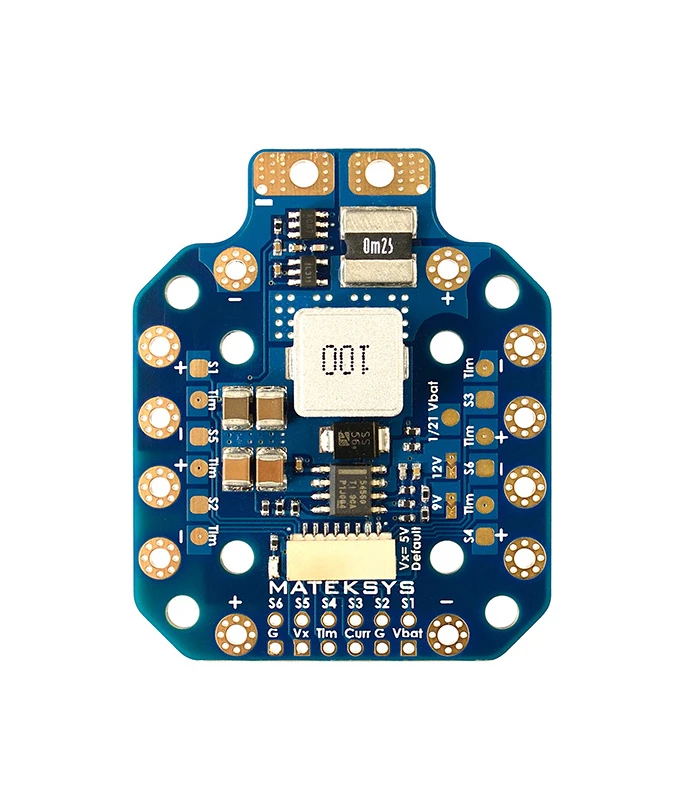

JST-SH-8P Connector and Pads

  • Vbat: Battery voltage
  • G: ground
  • Curr: current signal
  • Tlm: Duplicates Tlm pads for ESC telemetry
  • S1/S2/S3/S4/S5/S6: ESC signal
  • Vx: Regulator output

BEC Vx output (5V default)

  • Vx= 5V by default, ย  Continuous 5 Amps
  • Bridge 9V jumper,ย  Vx= 9V,ย  Continuous 4 Amps,ย  Max.5A
  • Bridge 12V jumper,ย  Vx= 12V, Continuous 4 Amps,ย  Max.5A
  • Output Short-circuit tolerant (1 seconds)
  • Overcurrent protection & self-recovery

Voltage divider

  • 1K:20K resistors
  • Output 1/21 Vbat voltage

Physical

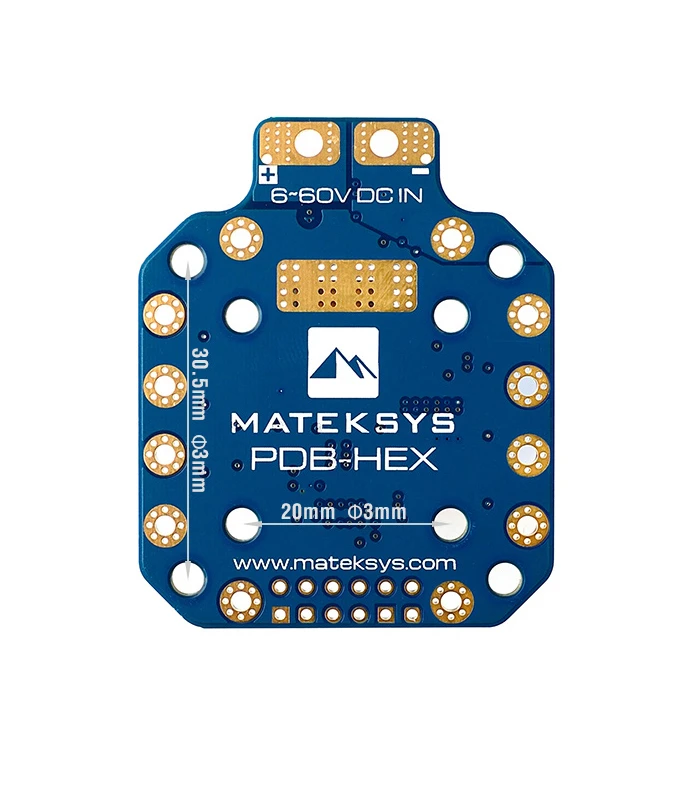

  • Mounting: 30.5 x 30.5mm, 20 x 20mm, ฮฆ3mm
  • Dimensions: 49 x 40 x 6 mm
  • Weight: 12g

Included:

  • 1 x PDB-HEX 2-12S PDB w/ BEC
  • 1 x Rubycon ZLJ 63V 390uF
  • 1 x JST-SH1.0_8pin cable, 5cm
  • 2 x JST-SH1.0_8pin connectors
Downloads
Manual (pdf, 13922KB)
