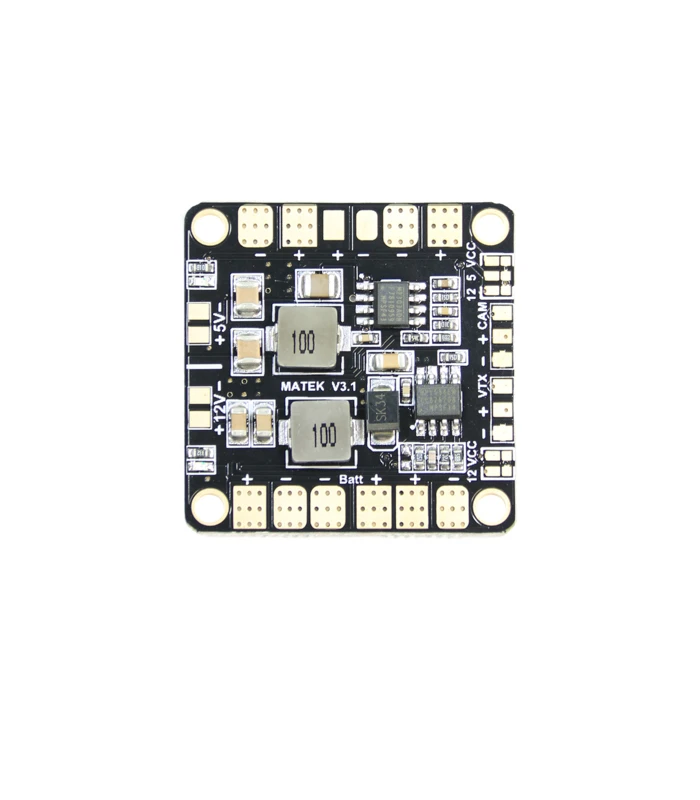

Matek Mini Quad PDB with 5V & 12V BEC Outputs (36x36mm)

Click to enlarge

Matek Mini Quad PDB with 5V & 12V BEC Outputs (36x36mm)

Name: Matek Mini Quad PDB with 5V & 12V BEC Outputs (36x36mm) - Flying Tech
Brand: Matek Systems
SKU: PDB-MATMINI512V
Price: 5.90 GBP
Availability: InStock

£5.90 Inc. VAT

This is our best selling 36mm Power Distribution Board, perfect for any 250 quad build.

In stock

Add to compare

0 People watching this product now!

SKU: PDB-MATMINI512V Categories: Power Distribution Boards (PDBs), Electronics, Power Distribution Tags: 12V, 5v, PDB, Power Distribution, Power Distribution Board, SBEC, Voltage Regulator

Description

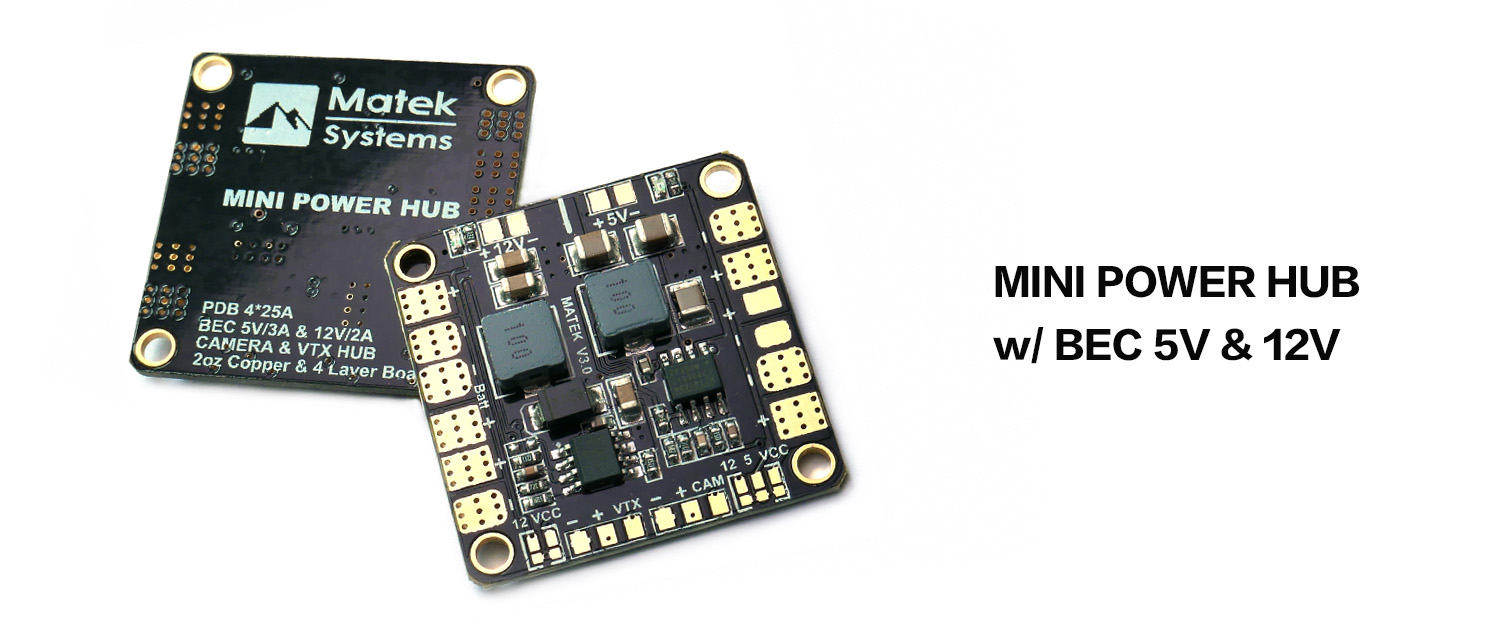

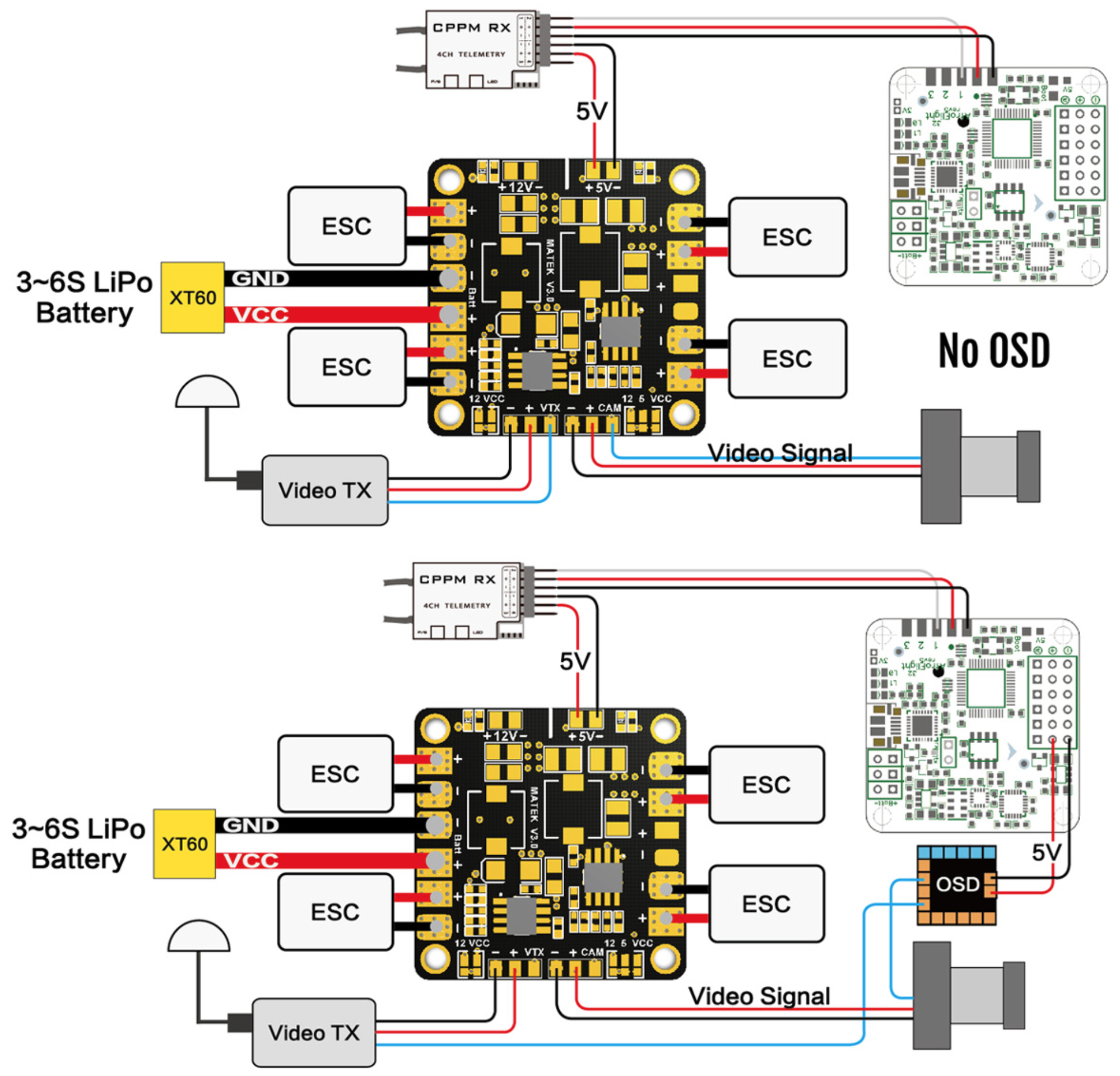

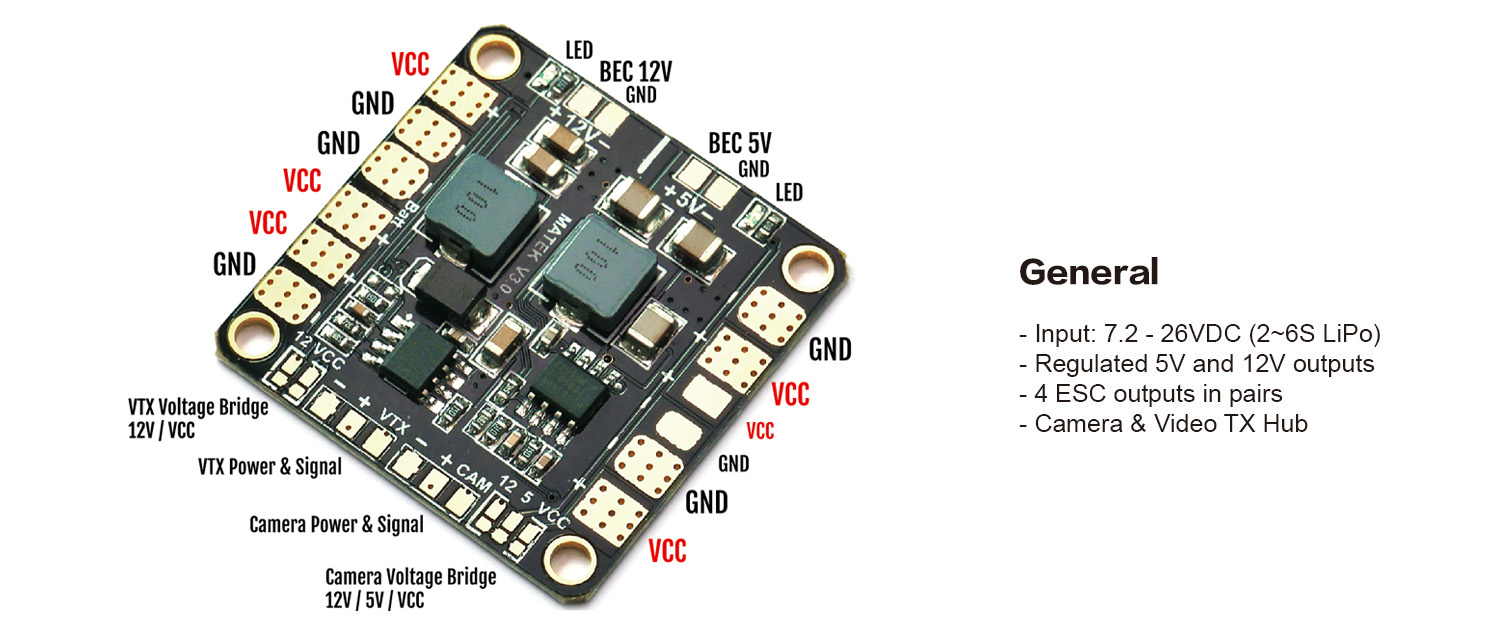

Matek’s mini power distribution board (PDB) has been engineered to provide the highest possible performance and reliability in a 36*36mm, 4 layered PCB. The power hub distributes power from a battery pack to 4 ESCs, as well as providing regulated 5 and 12 volt DC power outputs for powering electronics such as a flight controller, camera, servos, video transmitter, LEDs, etc. Both BECs are compatible with 2-6S LiPo. The 5V BEC is rated at 3amps continuous and the 12V BEC can provide 2 amps continuous. The board has dedicated connections for a FPV camera and a FPV video transmitter (VTX), with solder jumpers that let you select their output voltage (5/12v). So you can use a 5v camera with a 12v VTX, or a 12v camera with a 12v VTX. The board is a standard 36mm sized PDB, so you can stack it cleanly with the CC3D, Naze and most other board type flight controllers. If you require a smaller PDB, Matek’s micro PDB has all the functions of this PDB, except for the dedicated FPV connections.

Features:

Regulated 5V & 12V BEC outputs
Dedicated FPV camera & VTX connections
Output LED indicators & short circuit tolerant

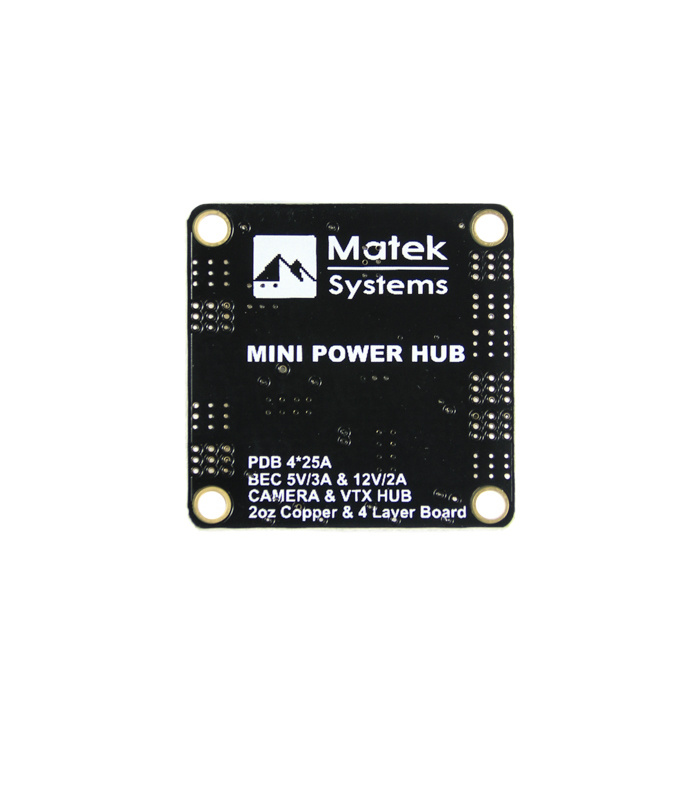

High quality 2oz copper, 4 layer PCB construction
Perfect for mini quads

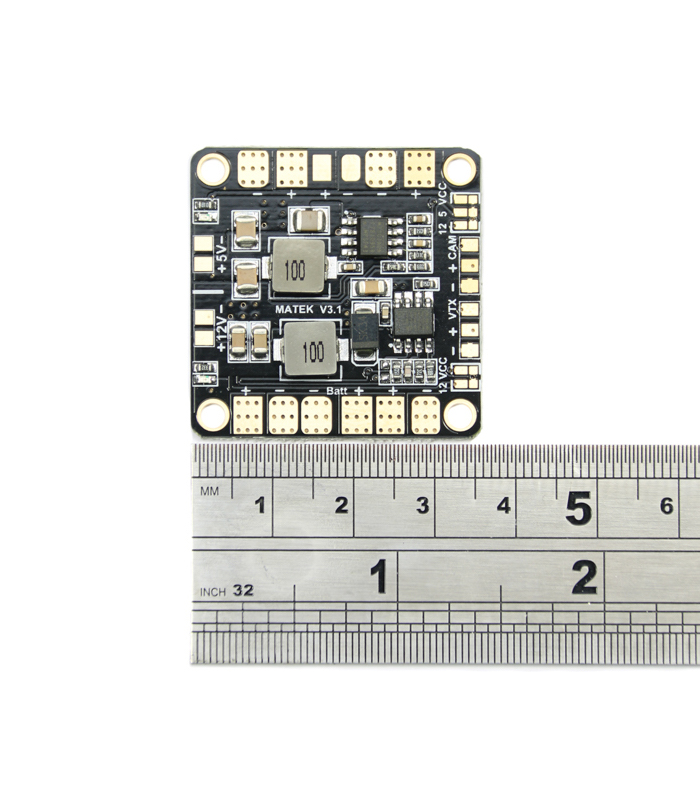

36x36mm with 30.5×30.5mm holes (stackable with Naze32, CC3D etc.)

New

Matek PDB – with Integrated XT60 Power Connector

Specification

Input voltage range: 3S-6S operation (9 – 26V DC)
BECs: Regulated 5V and 12V

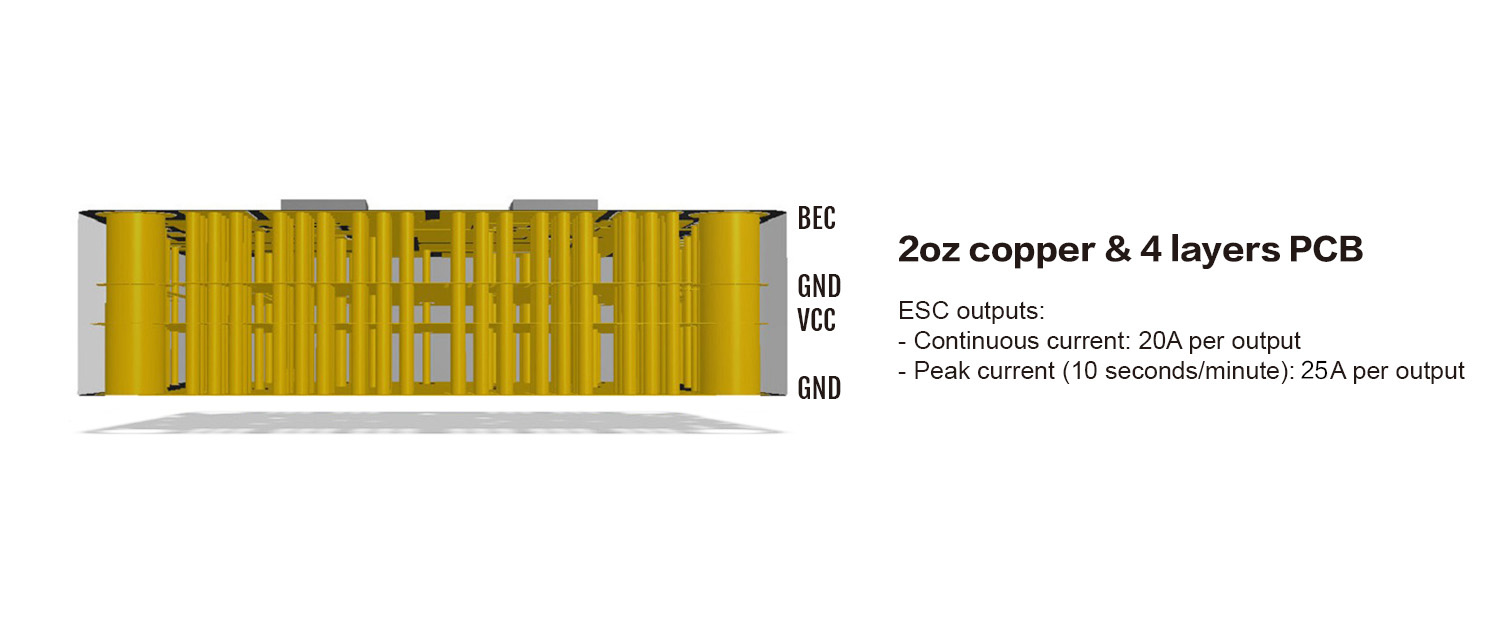

Construction: 2oz copper & 4-layers PCB
Dimensions: 36 x 36

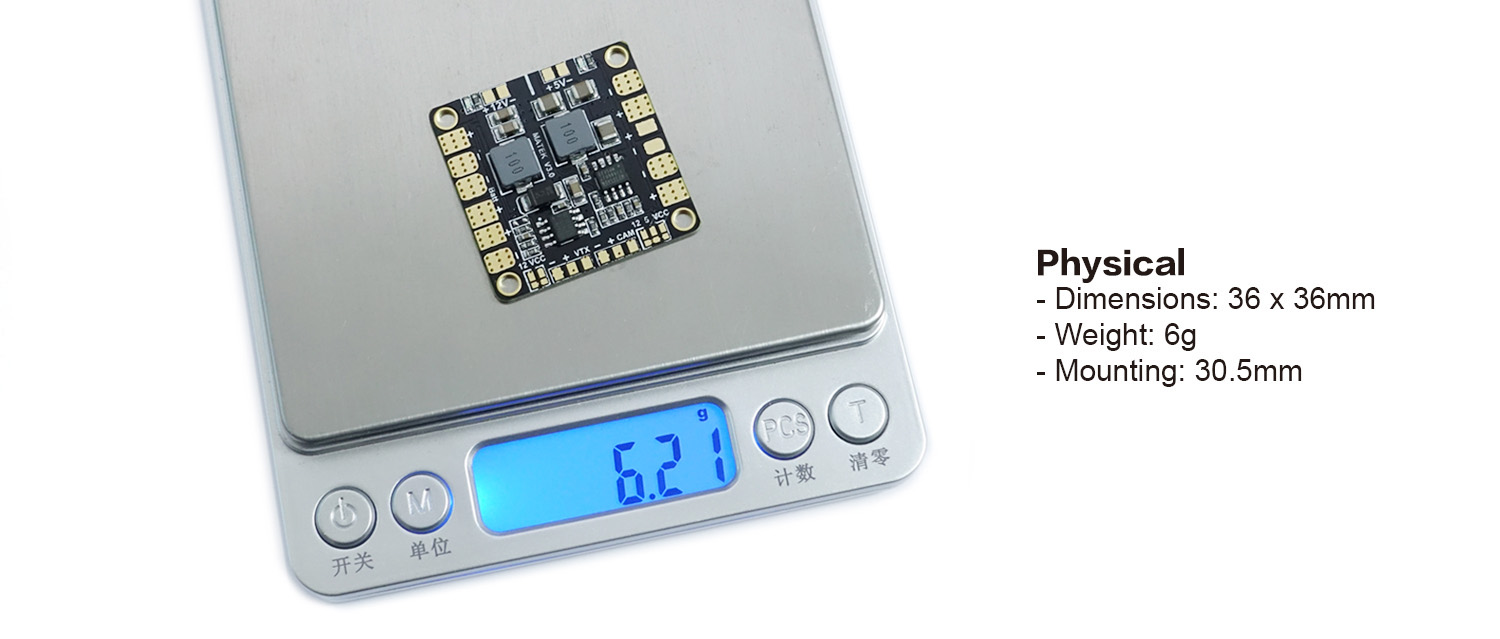

Weight: 6g

ESC outputs:

Continuous current: 20A per output
Peak current (10 seconds/minute): 25A per output

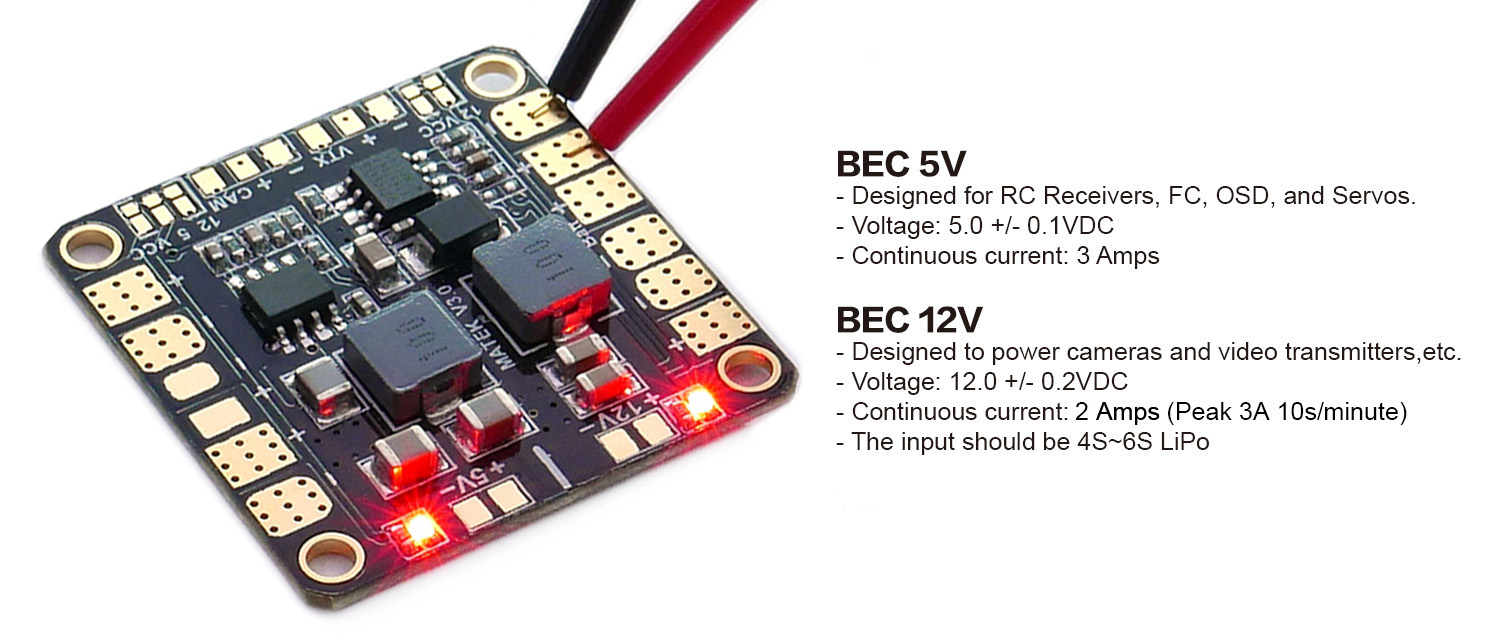

BEC 5V output:

Designed for RC Receivers, Flight controllers, OSD, and Servos.
DC/DC synchronous buck regulator, efficiency is up to 95%.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 3 Amps
Short-circuit tolerant (10 seconds/minute)
LED (indicates voltage is in regulation)

BEC 12V output:

The battery should be 4S~6S LiPo
Standard output designed to power cameras and video transmitters,etc.
Voltage: 12.0 +/- 0.2VDC
Continuous current: 2 Amps (Max.3A 10s/minute)
Short-circuit tolerant (10 seconds/minute)
LED (indicates voltage is in regulation)

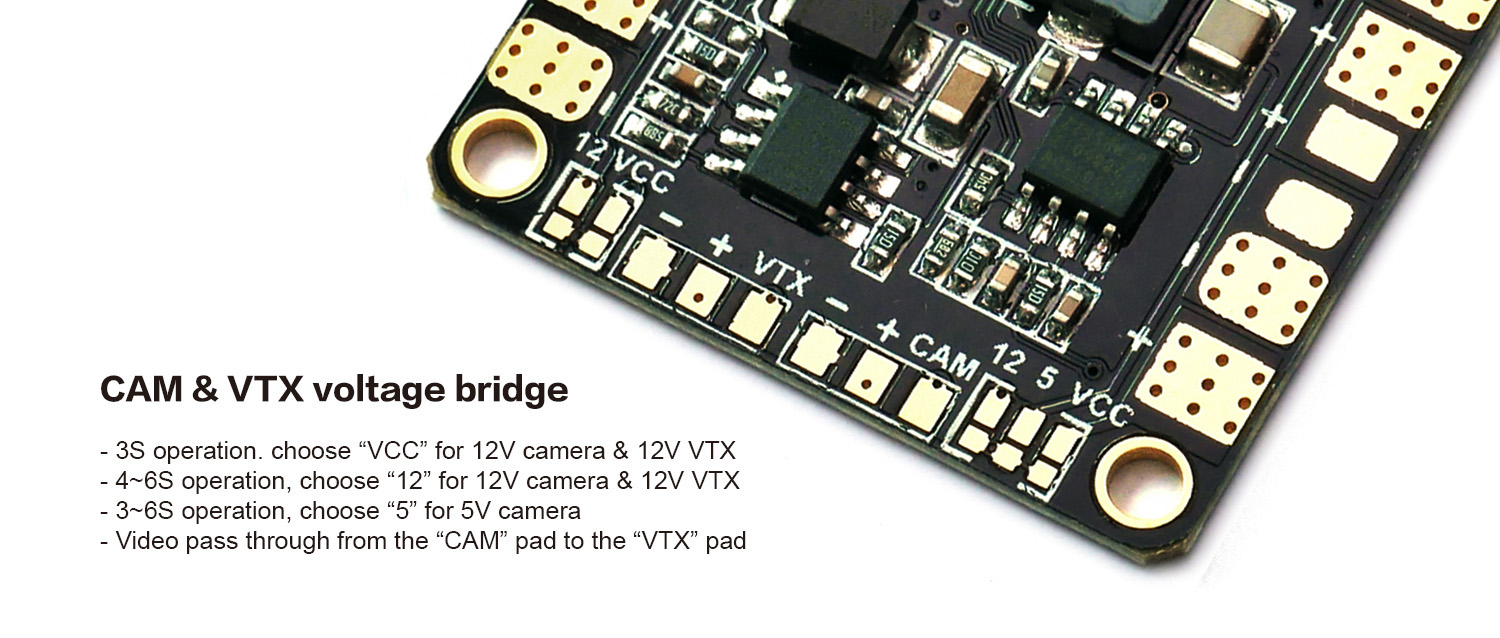

CAM & VTX voltage bridge:

3S operation. choose “VCC” for 12V camera & 12V VTX, VCC=Battery Voltage. –
4~6S operation, choose “12” for 12V camera & 12V VTX
3~6S operation, choose “5” for 5V camera
Video pass through from the “CAM” pad to the “VTX” pad

Included:

1x Matek Mini Quad PDB with 5V & 12V BEC Outputs

Downloads

Manual (pdf, 1446KB)

Download
