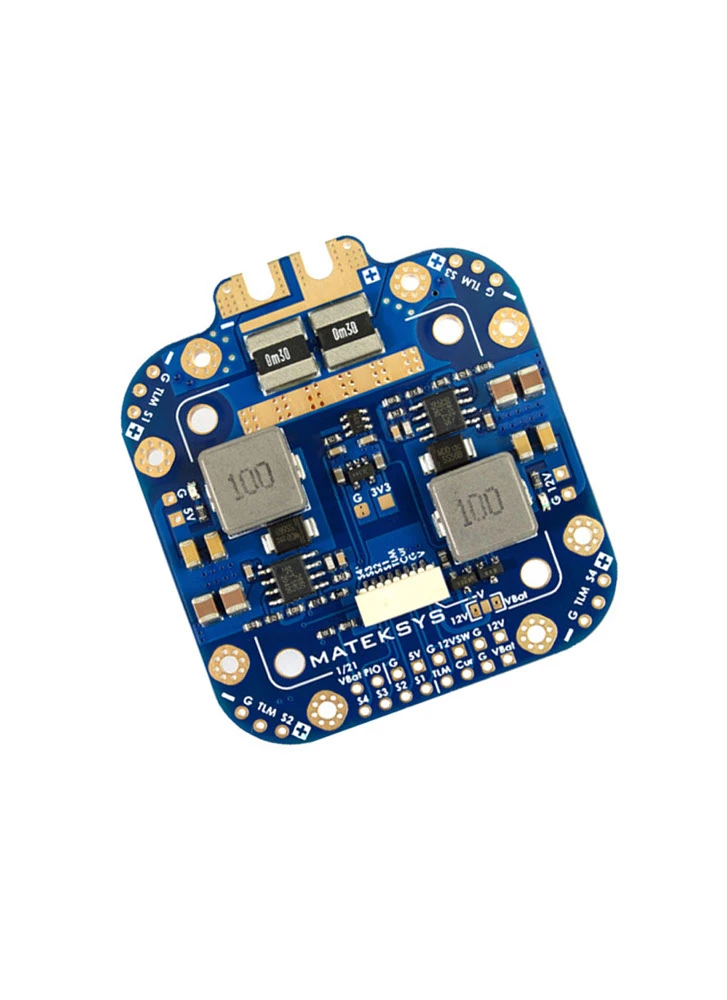

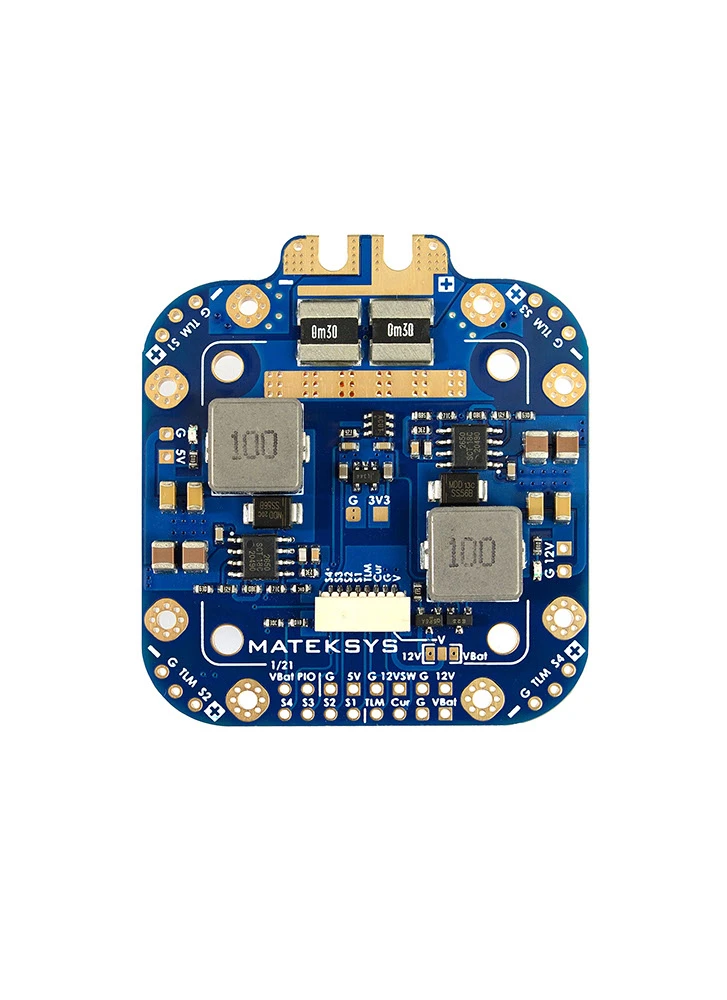

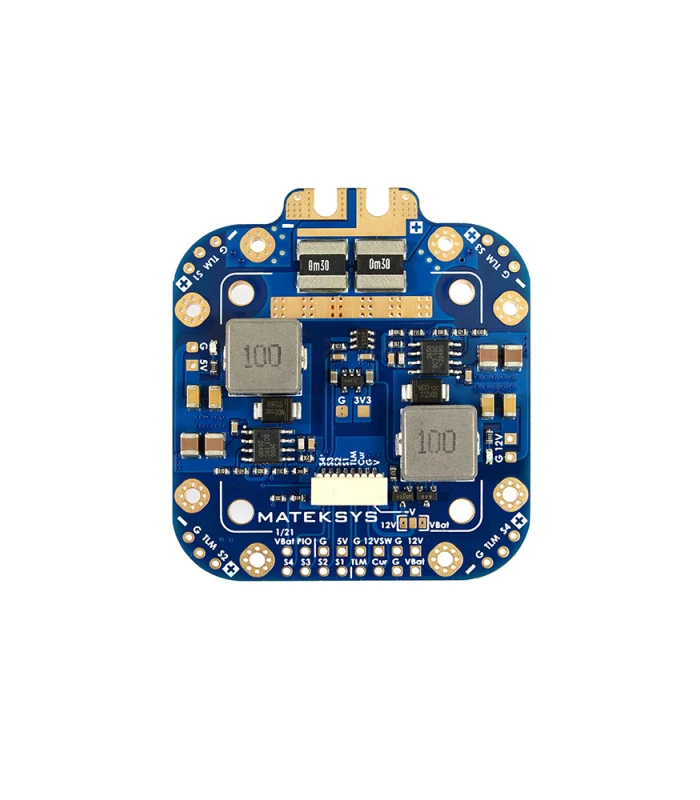

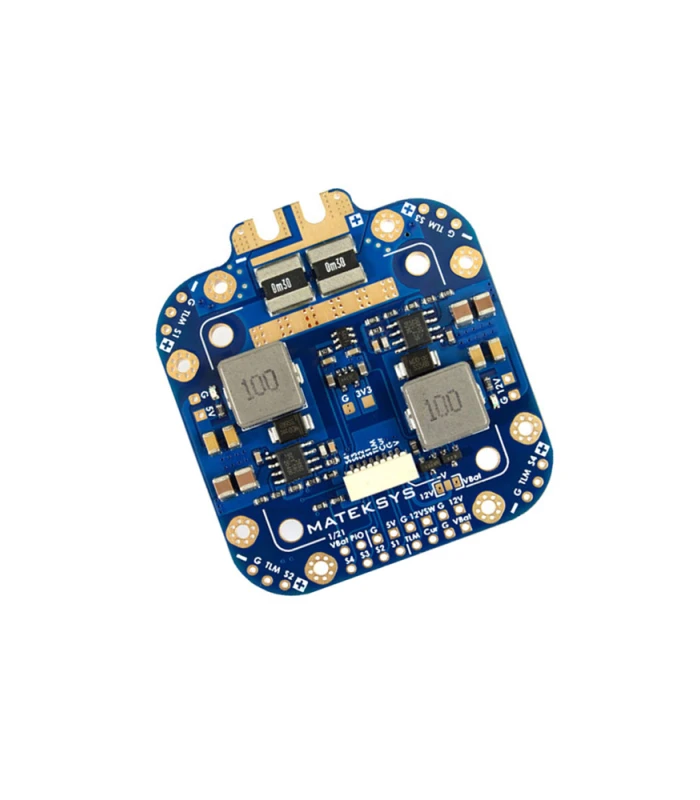

Matek FCHUB-12S V2 PDB with 440A Current Sensor & Dual BEC for X Class Quad

Name: Matek FCHUB-12S V2 PDB with 440A Current Sensor & Dual BEC for X Class Quad - Flying Tech
Brand: Matek Systems
SKU: PDB-FCHUB-12SV2
Price: 27.90 GBP
Availability: InStock

£27.90 Inc. VAT

This is the updated version of the Matek FCHUB-12S PDB – a power board for X Class quads.

In stock

Add to compare

0 People watching this product now!

SKU: PDB-FCHUB-12SV2 Categories: Power Distribution Boards (PDBs), Electronics, Power Distribution Tags: High Amp PDB, PDB, Power Distribution, Power Distribution Board, X Class, X Class PDB

Description

XCLASS PDB FCHUB-12S

Designed specificaly for XClass Quads. Supports 8~60V DC Input. 5V 5A / 12V 4A Regulators, High Precision Current Sensing up to 440A.

This is the second version of the Matek FCHUB-12S PDB. It has an 8pin JST-SH connector as well as a 1K:20K voltage divider.

There’s a new exciting class of quadcopters emerging in this hobby called X Class. It’s basically a giant racing quad, measuring about 800mm to 1200mm. With the greater size much more powerful motors can be used, but that calls for a PDB which can handle lots of power and hence the need for the Matek FCHUB-12S. This is a seriously capable PDB, it can take up to 12S voltage and has a current rating of 280A continuous / 440A burst. The PDB integrates everything else you need from a PDB, so regulated 3.3V, 5V & 12V outputs and current sensing. The PDB can be connected to compatible FCs via the JST-SH connector.

Features:

Designed for X Class Quadcopters
Wide Voltage Support 8-60V (3-12S LiPo)
280A Current Rating / 440A Burst
Regulated Voltage Outputs: 3.3v (linear), 5V & 12V
Switchable 12V Output – can be used as a VTX Power Switch
440A Current Sensing / VBAT for FC Voltage Detection

Specification

PDB

Input voltage range: 8~60V (3~12S LiPo)
4x70A cont, 4x110A burst
4x ESC power / signal / telemetry pads
Current Senor: 440A, 3.3V ADC, Scale 75
2x LED indicators for 5V, 12V
1K:20K voltage divider built-in

JST-SH 8PIN CONNECTOR

“V” pad: 12V or VBat voltage selectable
G: GND
Curr: current sensor signal
TLM: for BlHeli32 ESC telemetry
S1~S4: ESC signal

BEC 5V output (5V pad)

Voltage: 5.0 +/- 0.1VDC
Continuous current 5 Amps, Max.6A
Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery

BEC 12V output (12V pad)

Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
Continuous current 4 Amps, Max.5A
Input voltage<12V, Output voltage = Input voltage
Probably there is audible sound in the BEC12V inductor when Input voltage<12V
Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery

Switchable 12V output (SW12V pad)

12V ON/OFF can be switched via PINIO
can be use for powering VTX,LED etc.

BEC 3.3V output

Linear Regulator
Continuous current: 500mA

Physical

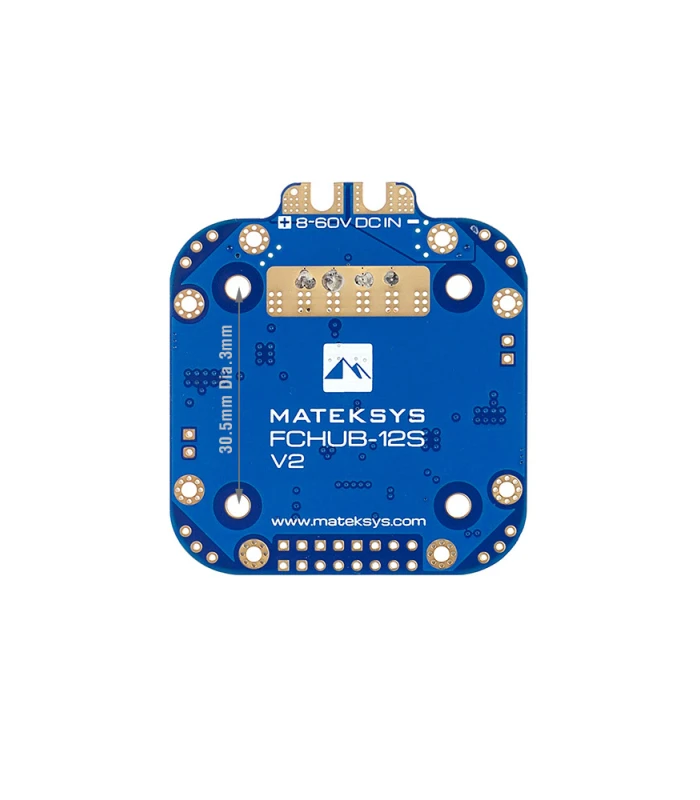

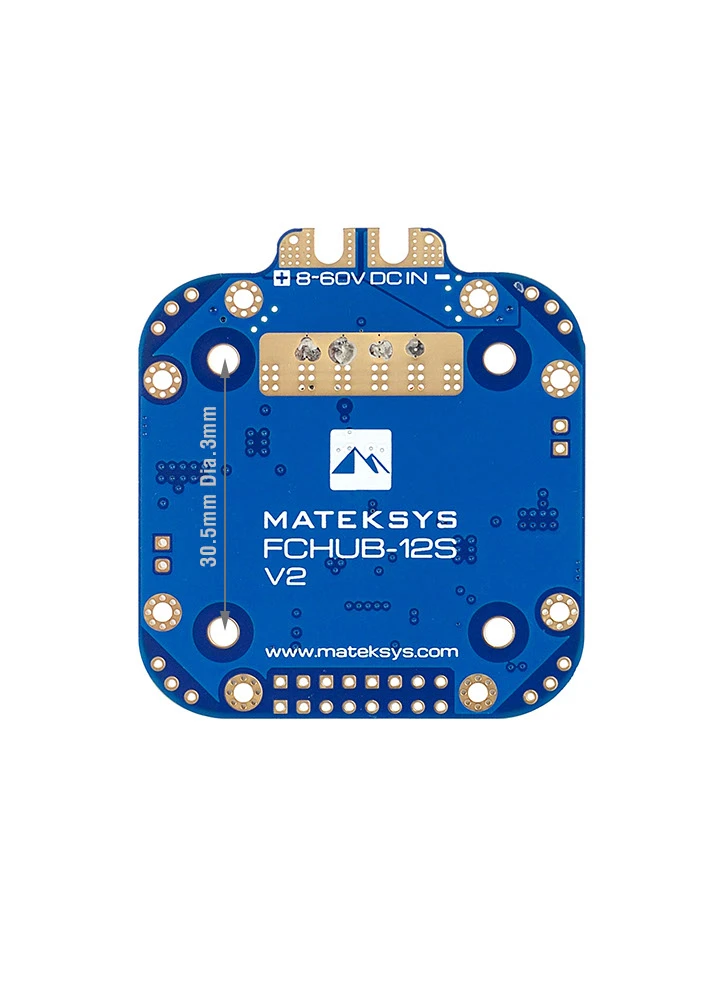

Mounting: 30.5 x 30.5mm, Φ3mm
Dimensions: 55 x 50 x 6 mm
Weight: 21g

Included:

1x Matek FCHUB-12S PDB (Power Distribution Board) V2
1x Capacitor
Nylon mounting fixtures
