CC3D Mini Power Distribution Board PDB with 5/12v BEC & LED Switch (36mm)

CC3D PDB V2 with SMD BECs and Led Switch

Click to enlarge

New CC3D Mini PDB with 5/12v BEC & LED Switch

CC3D V2 Mini Power Distribution Board with 5/12v BEC & LED Switch

Name: CC3D V2 Mini Power Distribution Board with 5/12v BEC & LED Switch - Flying Tech
SKU: PDB-CC3DV2
Price: 4.75 GBP
Availability: InStock

£4.75 Inc. VAT

A popular 36mm Quad PDB. It features 5 & 12 volt BECs for powering your FC / FPV and a switched power output.

In stock

Add to compare

0 People watching this product now!

SKU: PDB-CC3DV2 Categories: Power Distribution Boards (PDBs), Electronics, Power Distribution Tags: 12V, 5v, BEC, CC3D, PDB, Power Distribution, Power Distribution Board, Power Switch

Description

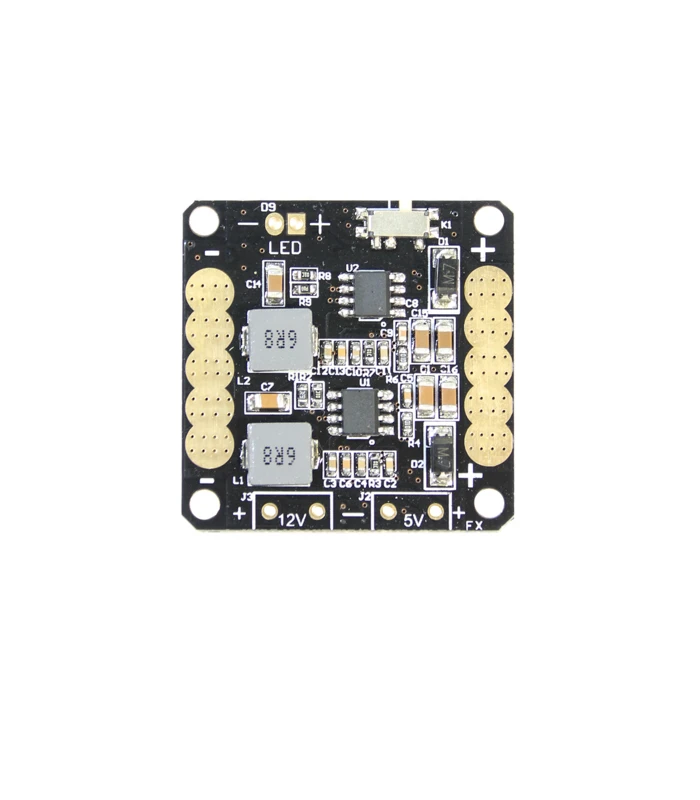

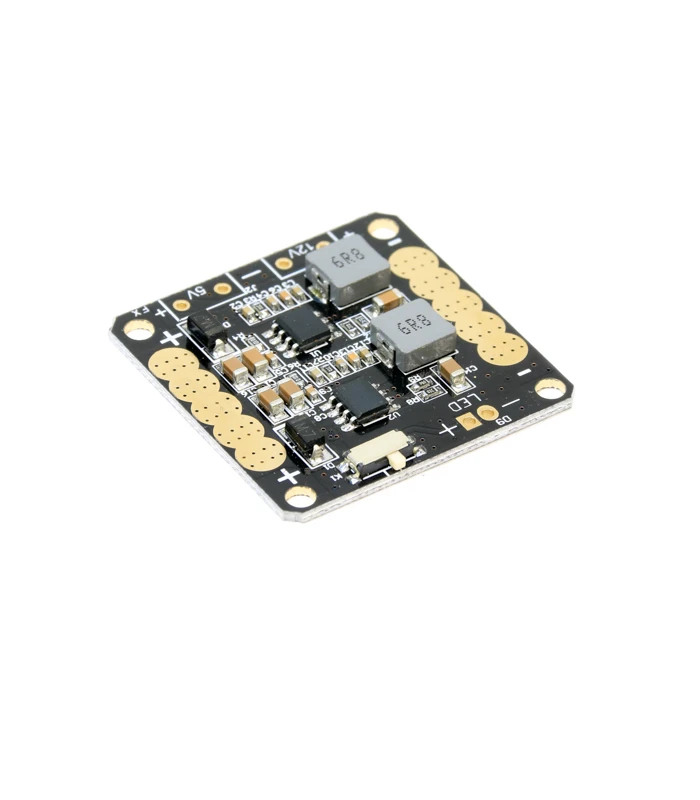

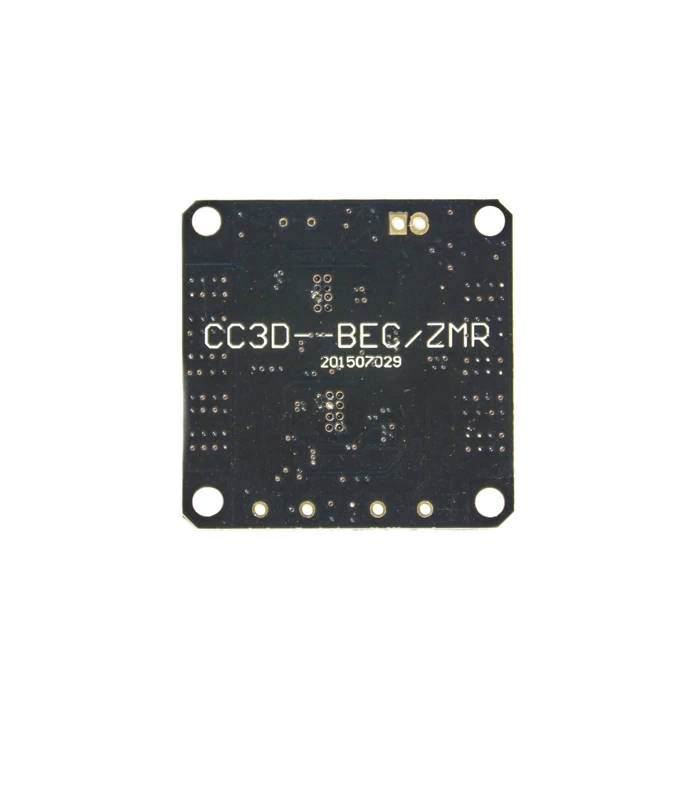

This is the latest version of the popular CC3D power distribution board (PDB) with 5 and 12 volt BECs. The layout remains the same as the V1 PDB, but the BECs are now integrated into the PCB using surface-mount-technology, which makes them much more reliable. The 5V BEC connection is ideal for powering your flight controller or RC receiver, while the 12V output could be used to power FPV components or lighting. Both BECs are compatible with 2-6S LiPo and can output up to 3amps continuous. The board also features an unregulated output for powering LEDs, which is switchable so you can turn your lights off when you don’t need them or to save power. The board is a standard 36mm sized PDB, so you can stack it cleanly with the CC3D, Naze and most other board type flight controllers.

Specification

Input Voltage: 2-6S
BEC Output: 5V & 12V (3A Current) – 12V BEC requires >4S
LED Output: (VCC Battery Voltaged – Switchable: ON / OFF)

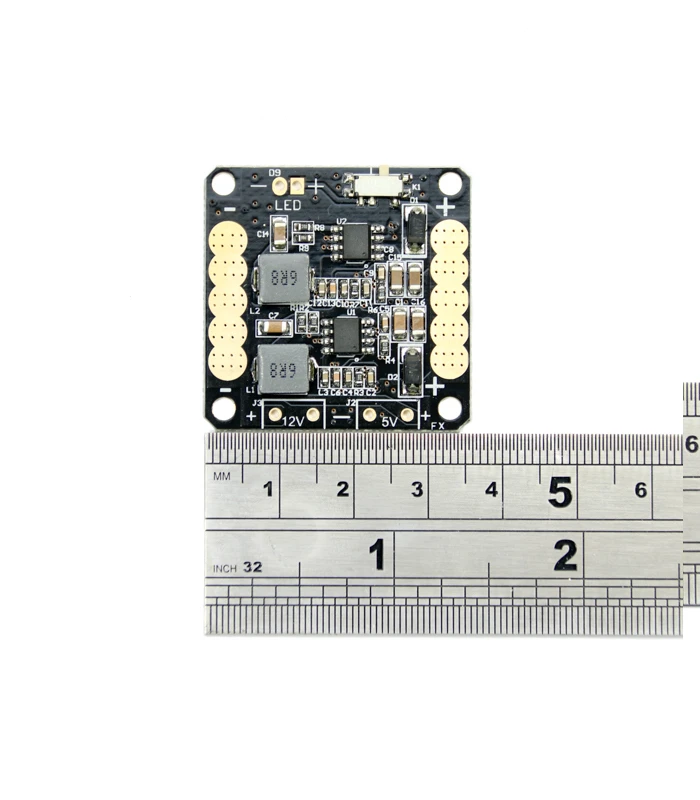

Size: 36x36mm
Installation Screw Hole: M3 (30.50mm distance between the center of two M3 holes)
Weight: 6g
Suitable for: 250 Mini Racing Multicopter

Included:

1x CC3D Mini PDB with 5/12v BEC & LED Switch
