Tarot Octocopter Power Distribution Board Signal Hub – TL8X018

£54.90 Inc. VAT

Thisย PDB for large Octocopters takes care of both power distribution and ESC signal wiring all in one neat package.

Only 3 left in stock

0 People watching this product now!
Description

If you’ve built a multirotor beforeย you’ll appreciate that there is a lot of wiring involvedย and it can be hard to keep all of itย neat and tidy. This board has been designed to simplify the wiring andย help keep it organised. It takes care of both power distribution and ESC signal wiring all in one neat package.

The board is designed for octocopters so itย features eight ESC signal inputs labeled M1 to M8. The connections are outputted together respectively at the signal hub, ready for you to connect withย your flight controller*. Onย the power distribution side of things, theย board has eight coaxial power ports to power your ESCโ€™s and a couple of XT30 connectors to power auxiliary devices like UBECs and FPV gear.

The board comes completes with a full wiring harness. It comes with eight coaxial power cables and eight signal wires, ready for you to solder to your ESC’s and then plug straight into the board. The cables are long; 66cm and 42cm respectively, so they haveย enoughย length if you prefer to mount your ESCโ€™s under the motors away from the main frame. The packageย also comes with high currentย 10AWG power leads soldered to a 7mm gold plated Amass AS150 anti-spark battery connector. Finally, a foam adhesive pad is included which should be stuck to the back of the boardย to insulate itย from your frame.

*Important:ย The signal hub does not have a positive connection, only signal and ground connections.

Specification
  • ESC Signal Connections: 8ย connection ports
  • ESC Power Connections: 8ย coaxial power ports
  • Auxiliaryย Power Outputs: 2ย female XT30 connections
  • Battery Connection: Amass AS150 7mm anti spark connector
  • Size: 99ย x 106ย x 17mm
  • Mount Holes: 4x M3 (80 x 39mm)
  • Weight: 79g main board /ย 335g including wiring harness

Included:

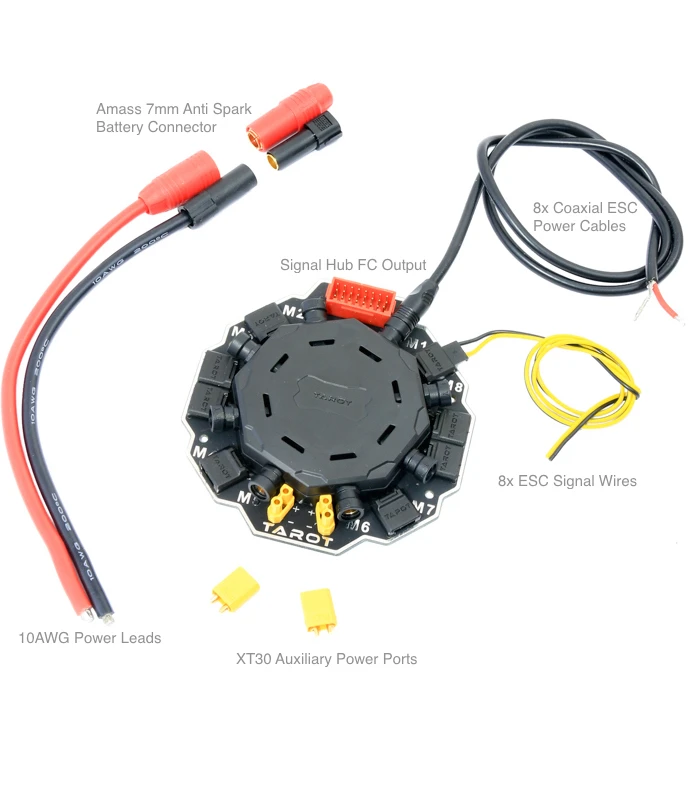

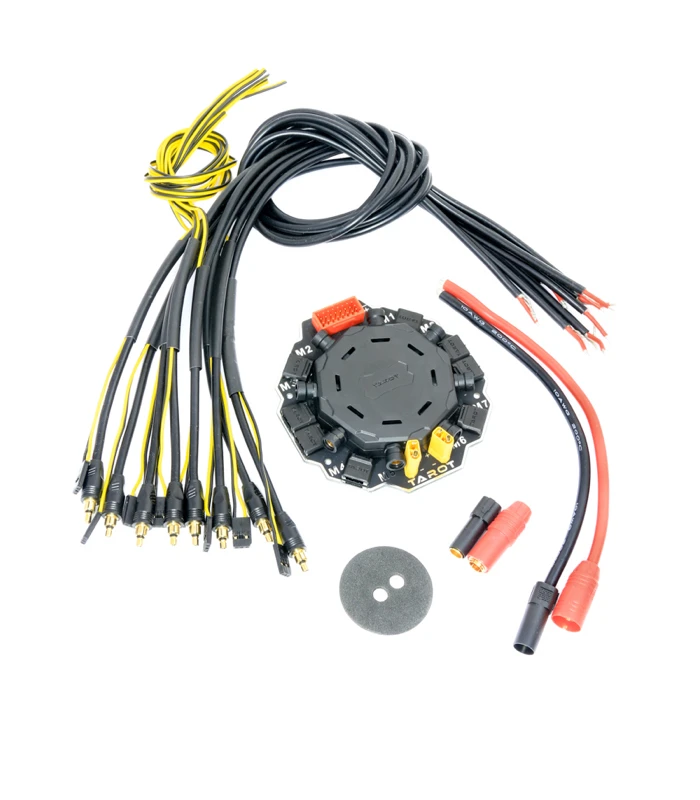

  • 1x Octocopterย PDB Signal Hub
  • 8x ESC Coaxial Powerย Cable (TL8X004)ย – 66cm
  • 8x ESC Signal Wire – 42cm
  • 1x Insulation Sticker
  • 2x XT30 Male Connectors
  • 1x 10AWG Silicone Wire Power Cable – 18cm
  • 1x Amass AS150 7mm Anti Spark Connector
  • Heat Shrink
