Matek F405-WMO Wing Flight Controller
£53.90 Inc. VAT
A compact wing FC for smaller planes.
Only 2 left in stock|Next shipping: 09/03/2026

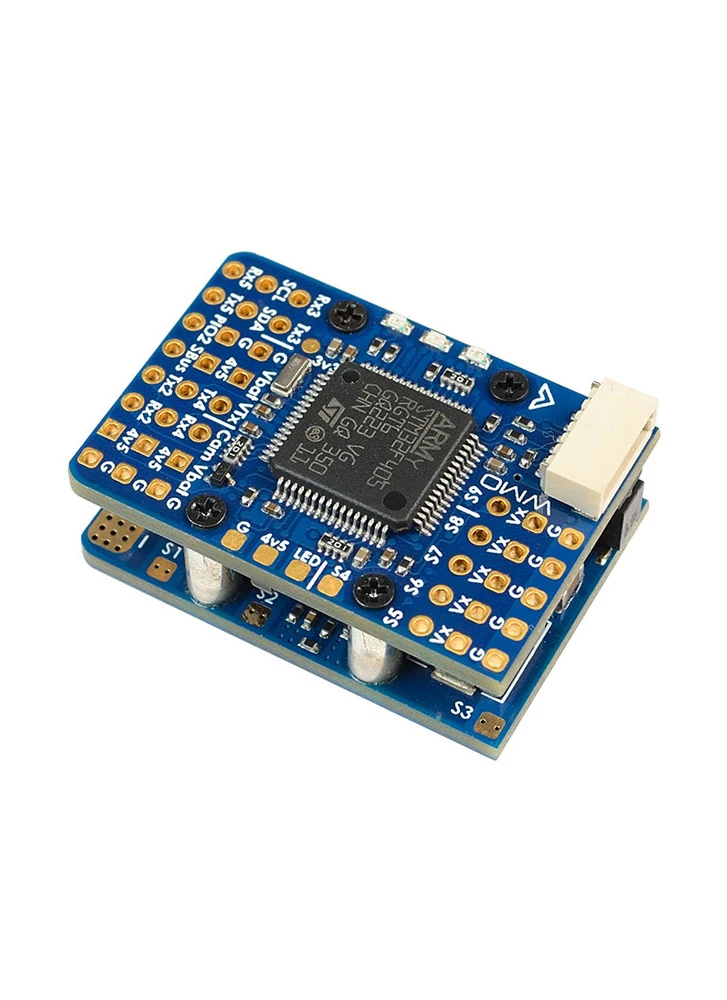

Flight Controller F405-WMO
STM32F405RGT6, ICM42688P, SPL06, OSD, SD slot, 4×UARTs, 9×PWM, 1×I2C, 2×ADC
Compact F405 flight controller for fixed-wing and VTOL aircraft with integrated PDB, current sensor and SD blackbox logging.
The Matek F405-WMO Wing Flight Controller is a compact all-in-one autopilot designed for fixed-wing UAVs, RC aircraft, and VTOL platforms. Built around the reliable STM32F405 processor, it combines flight control, power distribution, and sensor integration in a lightweight two-board stack.
The controller includes the modern ICM-42688-P gyro and a SPL06 barometer, providing accurate attitude and altitude data for stable flight performance. A microSD card slot allows full blackbox logging, making it easy to analyse and tune aircraft behaviour.
The integrated power distribution board (PDB) supports 5.4–30V input (2–6S LiPo) and includes a 90A current sensor, along with onboard regulators providing 5V/2A for the flight controller and Vx/7A for servos and peripherals.
Connectivity is designed for flexible aircraft builds, offering 10 PWM outputs, 4 UARTs, I²C support, and ADC inputs for voltage and current monitoring. The board also includes filtered VBAT output for video transmitters, helping deliver clean power for FPV systems.
With its compact size, integrated power management, and comprehensive I/O, the F405-WMO provides an efficient and reliable flight control solution for modern fixed-wing and VTOL builds.
Key Features
- STM32F405 flight controller processor
- Modern ICM-42688-P gyro
- SPL06 barometer for altitude sensing
- Integrated power distribution board (PDB)
- Supports 2–6S LiPo input (5.4–30V)
- 90A current sensor for power monitoring
- MicroSD blackbox logging
- 10 PWM outputs for servos or ESCs
- 4 UARTs + I²C support for peripherals
- Filtered VBAT output for FPV systems
FC Specifications
- MCU: STM32F405RGT6, 168MHz , 1MB Flash
- IMU: ICM42688-P
- Baro: SPL06-001
- OSD: AT7456E
- Blackbox: SD card slot
- 4x UARTs
- 10x PWM outputs
- 1x I2C
- 2x ADC (VBAT, Current)
- 1x spare PINIO
- Vbat output ON/OFF control
- USB/Beep Extender with Type-C(USB2.0)
- Built in inverter on UART2-RX for SBUS input
Power
- 5.4~30V DC IN (2~6S LiPo)
- 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
- PDB/Current sense resistor: 90A continuous, 132A burst.
- BEC 5V(4v5) 2A for FC & Peripherals
- BEC Vx 4.5A cont.(7A peak) for servos, 5V/ 6V option
- Filtered Vbat for VTX and camera
- LDO 3.3V 200mA
- Battery Voltage Sensor: 1k:20k
FC Firmware
- ArduPilot: MatekF405-TE
- INAV: MATEKF405TE_SD

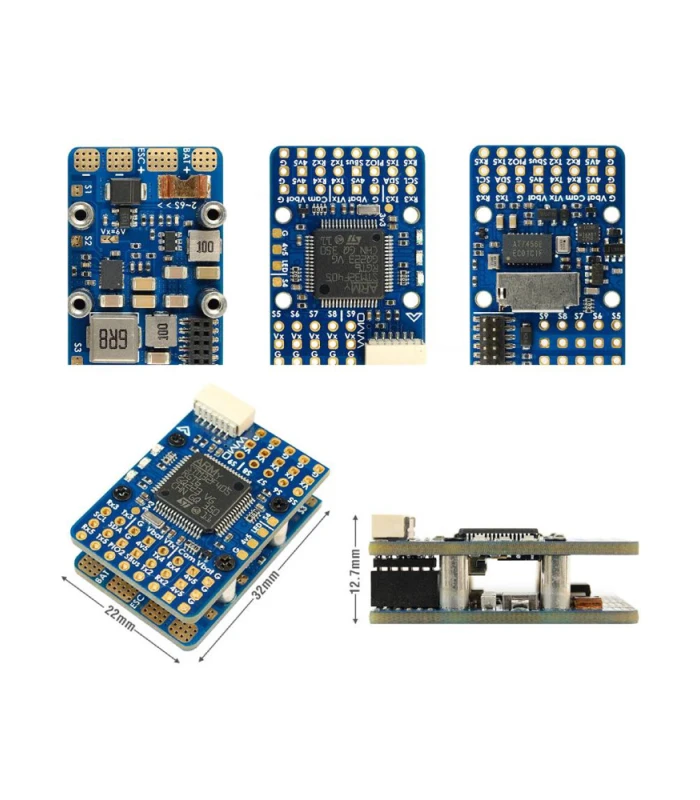

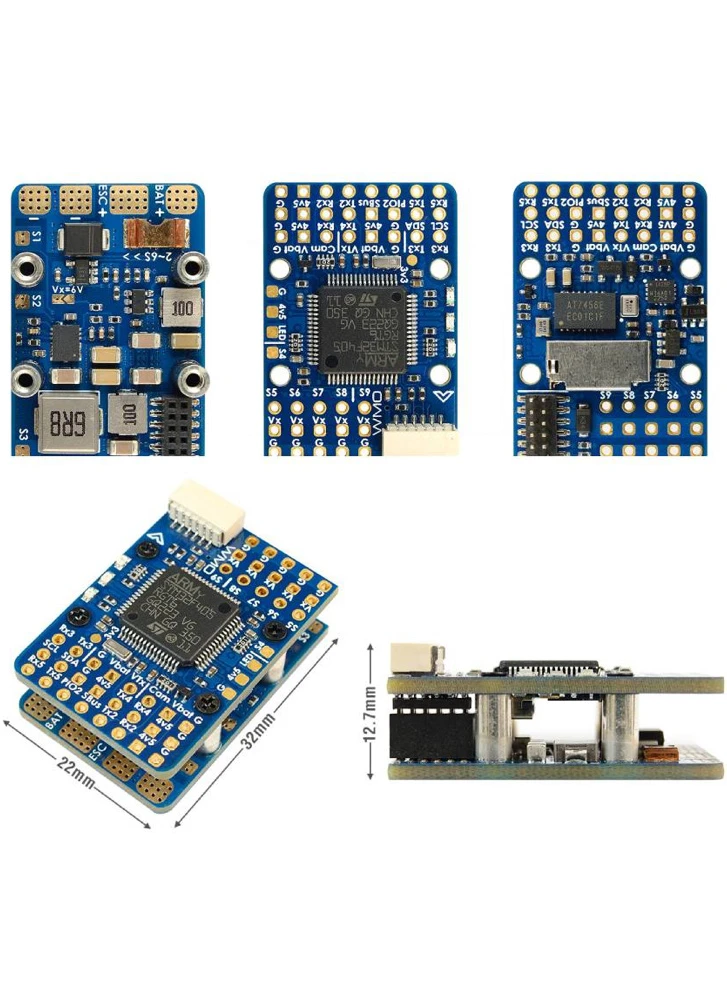

Physical
- Dimensions: 32 x 22 x 12.7 mm
- Weight: 9g
Including
- 1x F405-WMO
- 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P cable for USB extender.
- Dupont 2.54 pins (Board is shipped unsoldered)
