Hobbywing XRotor 3030 Combo Stack – F7 FC + 65A G2 4-in-1 ESC

Name: Hobbywing XRotor 3030 Combo Stack - F7 FC + 65A G2 4-in-1 ESC - Flying Tech
Brand: Hobbywing
SKU: FC-HWXRF765A
Price: 123.50 GBP
Availability: InStock

£123.50 Inc. VAT

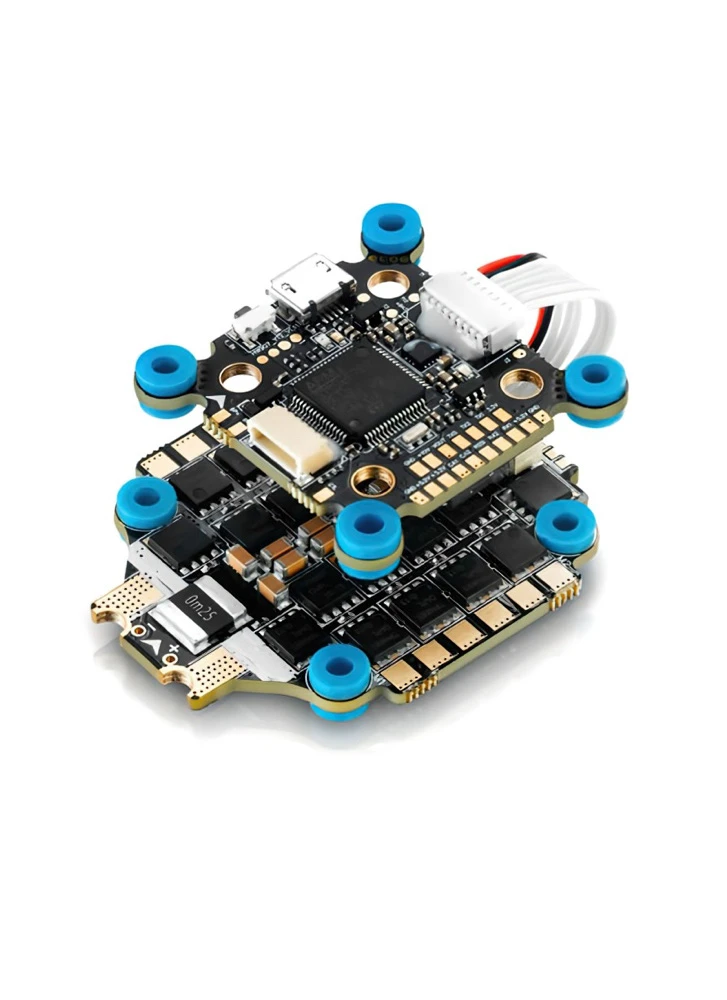

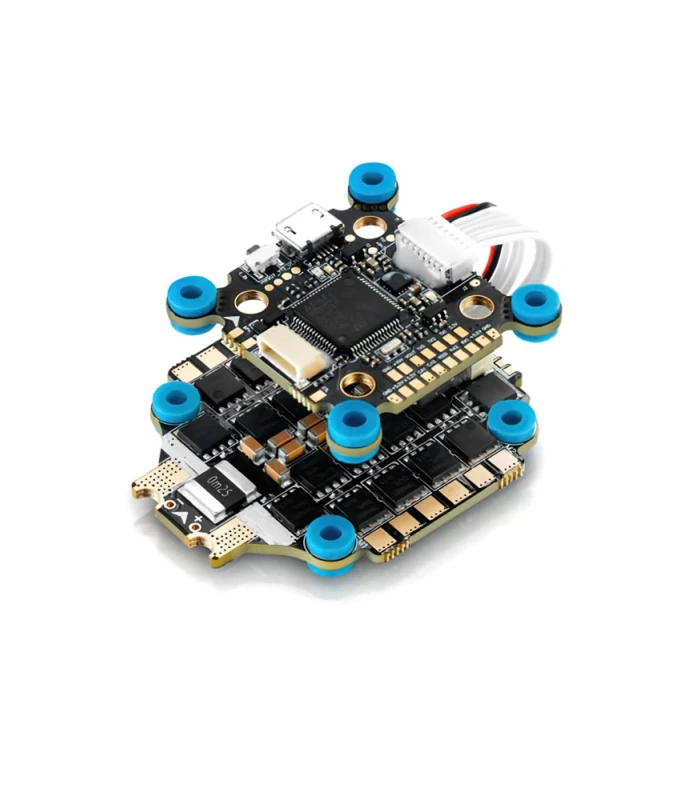

This 30×30 flight stack combines the XRotor F7 FC and XRotor Micro 65A G2 4in1 ESC.

Only 3 left in stock

Add to compare

0 People watching this product now!

SKU: FC-HWXRF765A Categories: FC / ESC Flight Stacks, Electronics, Flight Controllers / Autopilots, Racing Drone Flight Controllers Tags: ESC, FC, Flight Stack, Stack, XRotor

Description

This 30×30 flight stack combines the XRotor F7 FC and XRotor Micro 65A G2 4in1 ESC.

XRotor F7 FC:

The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. This is Hobbywing’s first flight controller to implement a super fast F7 MCU and the MPU6500 gyro. It also now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system, allowing support for both analogue and DJI digital FPV video systems. As before, it supports other useful features such the BetaFlight OSD, voltage monitoring and on-board pit switch.

XRotor 65A ESC:

Hobbywing’s XRotor 65A G2 4-in-1 ESC raises the bar for ESCs. This 4-in-1 ESC is equipped with the latest high-performance 32-bit ARM F4 microprocessor, increasing operating frequency to 120MHZ. In addition it supports 24K-128KHz PWM frequency, which can be dynamically adjusted adjusted for precision throttle control.

Features:

F7 FC

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.
Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
DJI image transmission system port equipped with corresponding flat cable
Supports bidirectional DShot digital throttle communication.
Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.
On-board 5V & 12V dual BEC circuit.
On-board Pit Switch module.

65A 4-in-1 AM32 ESC

AM32 open-source firmware for faster updates and feature expansion
32-bit ARM F4 MCU running at 120 MHz for ultra-fast processing
Variable PWM refresh rate (48–96 kHz) with dynamic adjustment
Built-in voltmeter for real-time amp and voltage monitoring
Adjustable motor KV settings for precise throttle control
Integrated 4 high-performance ESCs in one compact unit
Shock-absorbing mounting holes reduce vibration impact
Higher sustained power output for demanding flights
Supports DShot 300/600 and traditional PWM signals

Specification

F7 FC

Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
Mounting Holes: Convertible 20x20mm / 30.5×30.5mm
Programming via: Betaflight/Cleanflight-configurator
Firmware: HOBBYWING_XROTORF7CONV
Voltage Monitoring: Supported
Current Monitoring: Supported
FC Programming: Supported
External Buzzer: Supported
BEC: 5V@1.5: 10V@1.5A
LED Control: Supported
USB Port: MicroUSB
Size: 32x32mm
OSD: Built-in
Weight: 3.3g

65A 4-in-1 ESC

Telemetry: Voltage & current monitoring via built-in voltmeter
Mounting Holes: 30.5×30.5mm, M3 with shock-absorbing design
PWM Frequency: 48–96 kHz (auto-adjusting)
Burst Current: 80A (per channel, 10s)
Continuous Current: 65A
Firmware: AM32 (open-source)
MCU: 32-bit ARM Cortex-M4 @ 120 MHz
Voltage Input: 3–6S LiPo
Throttle Signal: DShot 300/600, PWM
Weight: ~15g (without wires)
BEC Output: None

Included:

1x Hobbywing XRotor Micro Combo Stack – F7 FC + 65A G2 4-in-1 AM32 ESC
1x Soft Mounting Grommets Set
1x Signal Cable
