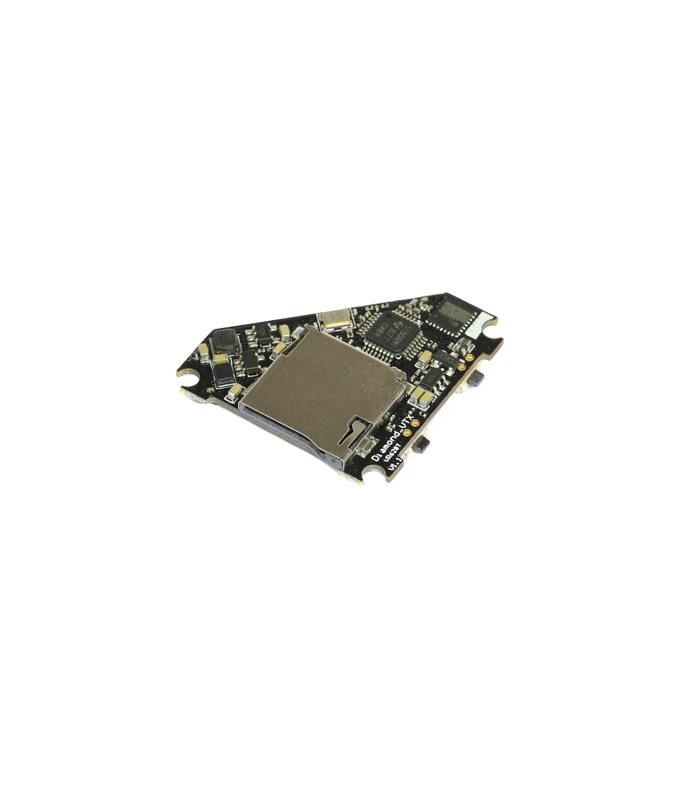

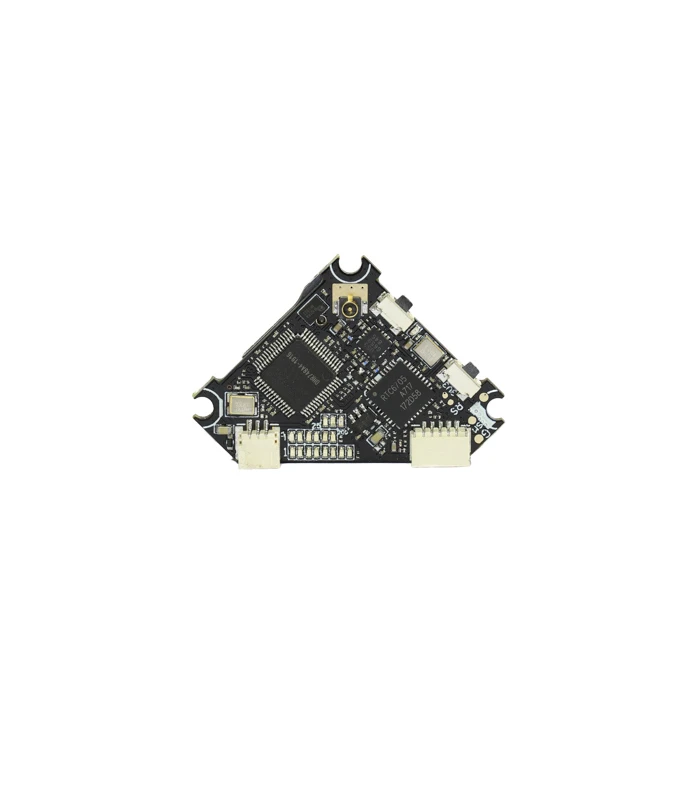

Tiny Whoop VTX 5.8GHz 25~200mw VTX with DVR

Happymodel Diamond VTX 5.8GHz 25mw~200mw VTX with DVR

Name: Happymodel Diamond VTX 5.8GHz 25mw~200mw VTX with DVR - Flying Tech
Brand: Happymodel
SKU: FPV-VTX-HMDIA
Price: 18.50 GBP
Availability: OutOfStock

£18.50 Inc. VAT

Designed to fit in most tiny whoop style frames and packs in both a 5.8Ghz video transmitter and DVR all in one board.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Add to compare

0 People watching this product now!

SKU: FPV-VTX-HMDIA Categories: FPV Video Transmitters (VTXs), FPV Tags: 5.8Ghz, DVR, FPV, Transmitter, VTX, Whoop, Whoop VTX

Description

The Happymodel Diamond VTX is designed to fit in most tiny whoop style frames and packs in both a 5.8Ghz video transmitter and DVR all in one board, so now even the tiniest of Tiny Whoops can record video.

The VTX has an adjustable power output from 25 – 200mW so you’ll get a decent range. It is also SmartAudio ready, hook it up to your FC and you’ll be able to change channel and power output remotely on your RC. The DVR function lets you install a micro SD card into it so that you can easily record FPV footage directly without signal interferance or any extra latency.

Features:

Easy upgrade Mobula7 / Eachine Trashcan, direct replacment for stock VTX.
Small size, light only 3gram and easy to mount in a regular whoop
Built-in DVR(Video size 1280×720)
Button to Start/Stop Video recorder
Smartaudio ready / Pit Mode

Note: Auto-save when Power off is not support, please remember to press the stop button after landing

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Specification

Output power: 25~200mw switchable
Frequency: 5.8GHz 5bands 40 channels With Raceband
Input voltage: 3.3V 5.5V
Current consumption: 250mA~510mA(type)
Antenna: RG178 antenna
U.FL interface
Smartaudio ready
Weight: 3g without antenna
Video Output Size: VGA (640×480)
Video Output format: NTSC
Record video size : 1280×720 @25FPS
TF Card support: Max.32G
Interface:
- JST SH1.0 3pin for Camera
- JST SH1.0 5pin for Connect with F3/F4 Flight controller

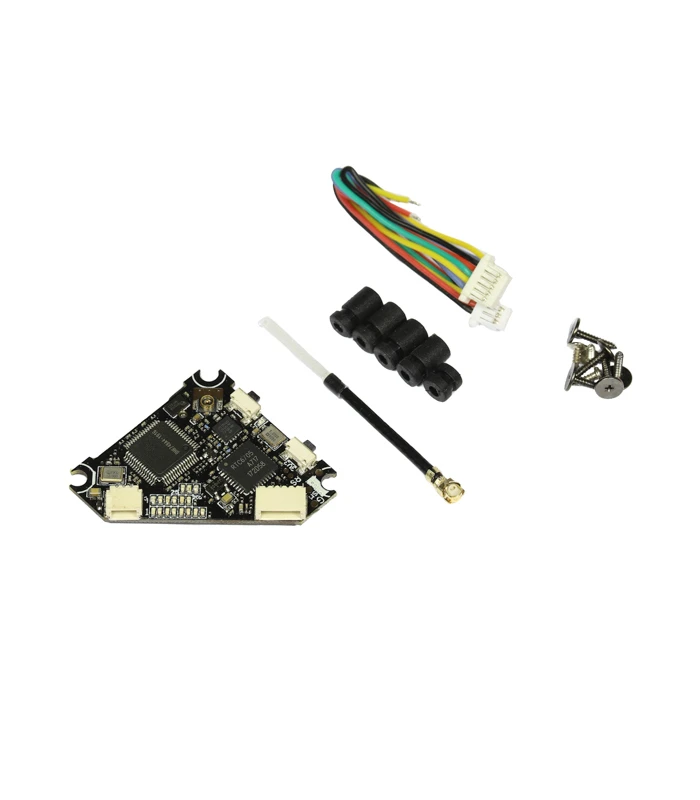

Included:

1 x Diamond VTX
1x U.FL Dipole Antenna
1 x JST SH1.0 3Pin wire for camera
1 x JST SH1.0 5Pin wire for flight controller
