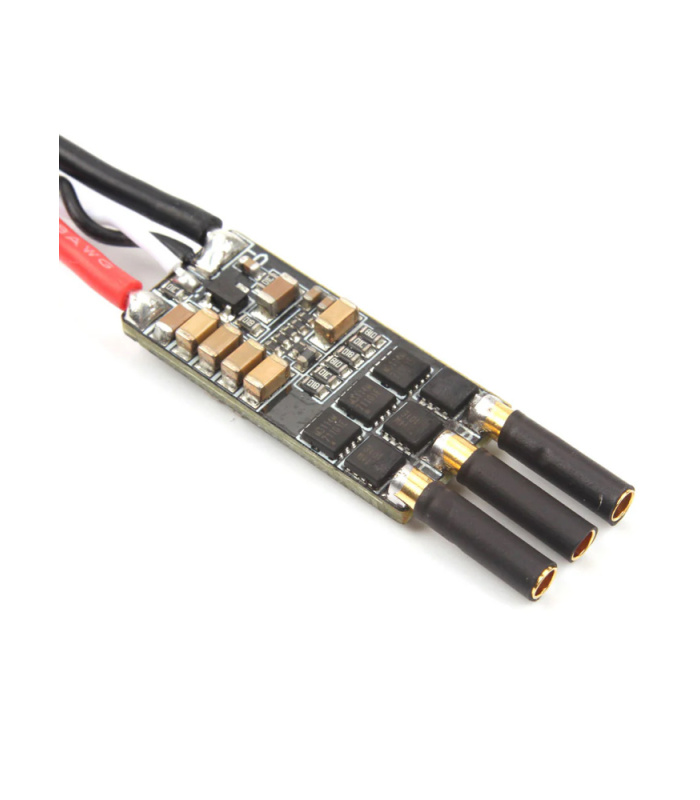

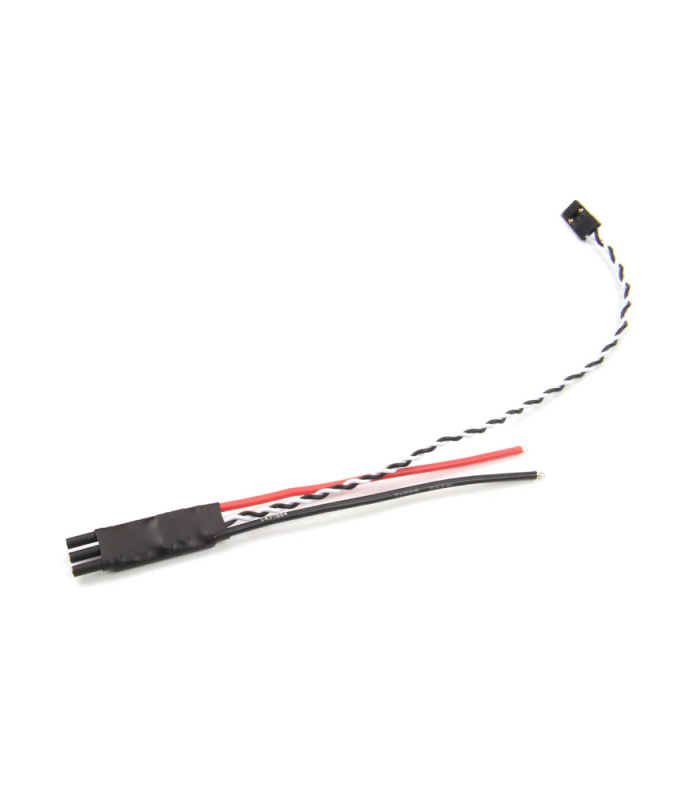

Holybro BLHeli S ESC 20A 2-4S Speed Controller for QAV250

Name: Holybro BLHeli S ESC 20A 2-4S Speed Controller for QAV250 - Flying Tech
Brand: Holybro
SKU: ESC-HB-20A520041
Price: 14.50 GBP
Availability: InStock

£14.50 Inc. VAT

This ESC is a spare part for the Holybro QAV250 quadcopter kit. It comes pre-soldered with 2mm bullet connectors attached.

In stock

Add to compare

0 People watching this product now!

SKU: ESC-HB-20A520041 Categories: Single ESCs, Electronics, Speed Controllers (ESCs), Spare Parts, Holybro Tags: BlHeli-S, ESC, QAV250 Spare Part, Speed Controller

Description

A BLHeli S 20A ESC designed for use with Holybro’s 2207 KV1950 V2 Motor / QAV250 Quadcopter.

It comes pre-soldered with power wires and 2mm bullet connectors attacehd for a quick and easy installation.

Main features

● EFM8BB21F16G MCU, pipelined 8-bit C8051 core with 50 MHz maximum operating frequency.
● Dedicated high frequency driver, makes the start more smooth. ESC maximum speed is 500k eRPM.
● BLHeli-S firmware is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation.
● Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
● Supports higher KV motor and more power load.
● The code supports regular 1-2ms pulse width PWM input, as well as Oneshot and Multshot . The input signal is automatically detected by the ESC upon power up.
● Supports Dshot150, Dshot300 and Dshot600. Dshot is digital signal, anti-interference ability is stronger and do not need throttle calibration.
● The silicone twisted-pair of the throttle signal cable reduces the crosstalk caused by signal transmission and makes flight more stable.

Specification

Con. Current: 20A
Burst Current(10S): 30A
BEC: NO
LiPo cells: 2-4S

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
