30A SimonK Brushless Speed Controller ESC 2S-4S & 5V BEC

Name: 30A SimonK Brushless Speed Controller ESC 2S-4S & 5V BEC - Flying Tech
SKU: ESC-30A-SK
Price: 14.80 GBP
Availability: InStock

£14.80 Inc. VAT

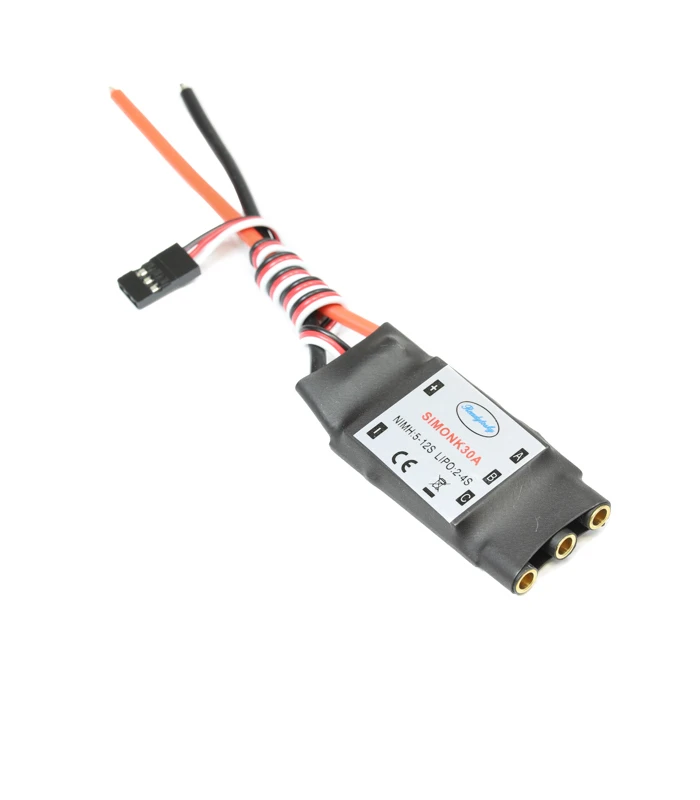

30A 2-4S ESC with 3.5mm female bullets for the motor wire connections.

Only 1 left in stock

Compare

0 People watching this product now!

SKU: ESC-30A-SK Categories: Single ESCs, Electronics, Speed Controllers (ESCs) Tags: 30A, BEC, ESC, SimonK, Speed Controller

Description

This 30A speed controller has been developed and setup specifically for multirotor use, so no programming required. Unlike generic helicopter / aeroplane ESCs, this ESC come preloaded with multirotor specific firmware preinstalled. Best still, it’s not just any old firmware; it’s the highly regarded SimonK firmware, which is optimised for multirotor applications. Google ‘SimonK firmware’ and you’ll come across lots of forum posts singing its praises. It’s designed to improve throttle precision but most importantly it can radically improve flight stability. It works by increasing the ESC refresh rate, in simple terms this means a SimonK ESC tells the motor what to do much more frequently than a non-SimonK ESC. The end product is a more ‘locked in’ feel, as the motors are able to make faster adjustments to the flight controller commands.

This particular ESC is rated at 30amps (35amp burst) and it supports 2S to 4S (11.1v – 14.8v) operation. It’s well suited to medium sized quadcopters and hexacopters. We recommend pairing this ESC with motors like the Tarot 4006 620KV.

Features:

Developed specifically for multi rotor use
Smooth, linear and precise throttle response
Extreme low output resistance, super current endurance
Supports high RPM motors
Safe start, motor will not run until ESC is armed correctly
N-FET design
No low voltage cutoff – essential for multirotors
Includes 5V 2amp BEC
Soldered with 3.5mm gold female plugs

Specification

Continuous current: 30A
Burst current (10S): 35A
BEC output: 5v / 2A (linear)
Input voltage: LiPo 2S-4S
Wire gauge: 16AWG
Pre-Loaded with SimonK Firmware: Up to 490Hz refresh rates
Weight: 24g

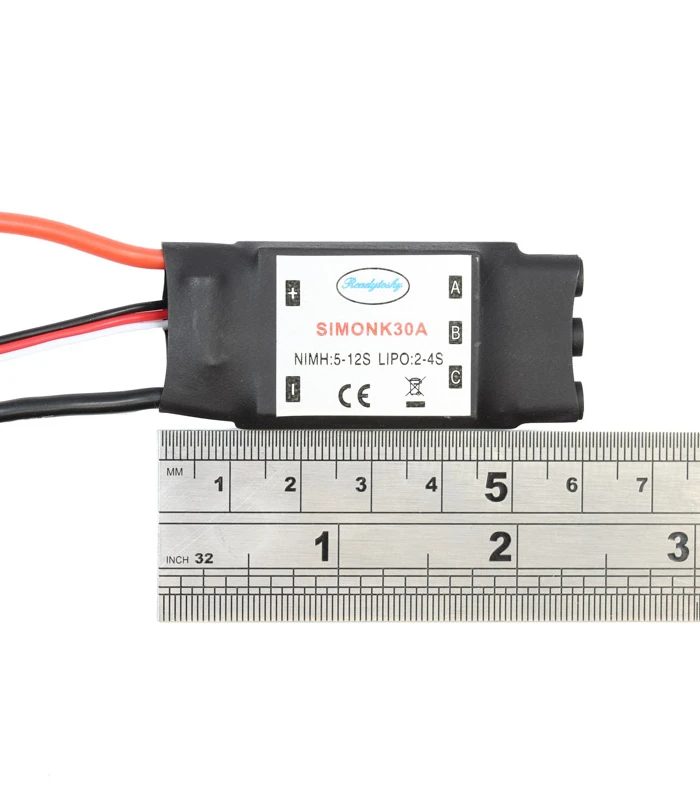

Dimension: 55mm x 26mm x 8mm

Included:

1x 30A Multirotor ESC (SimonK Firmware)

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
