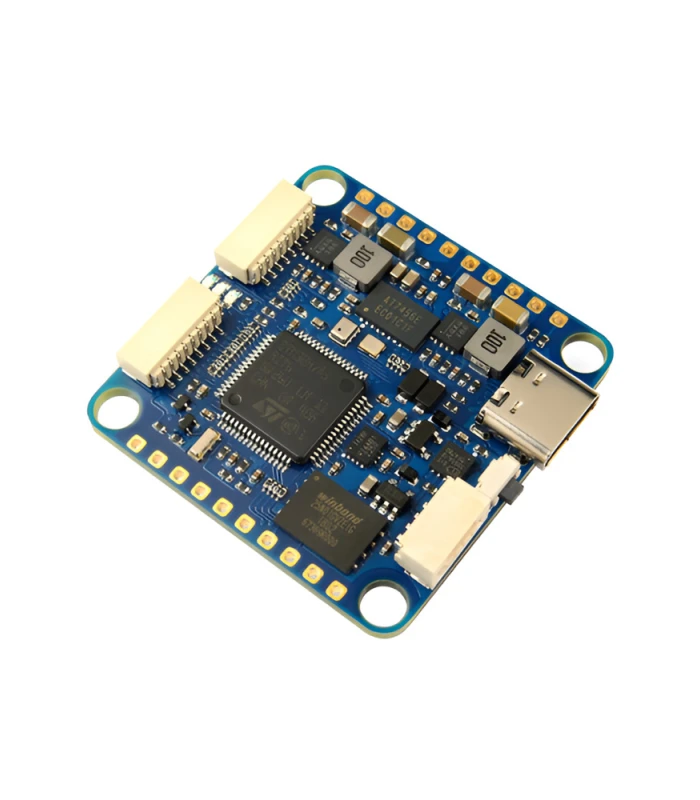

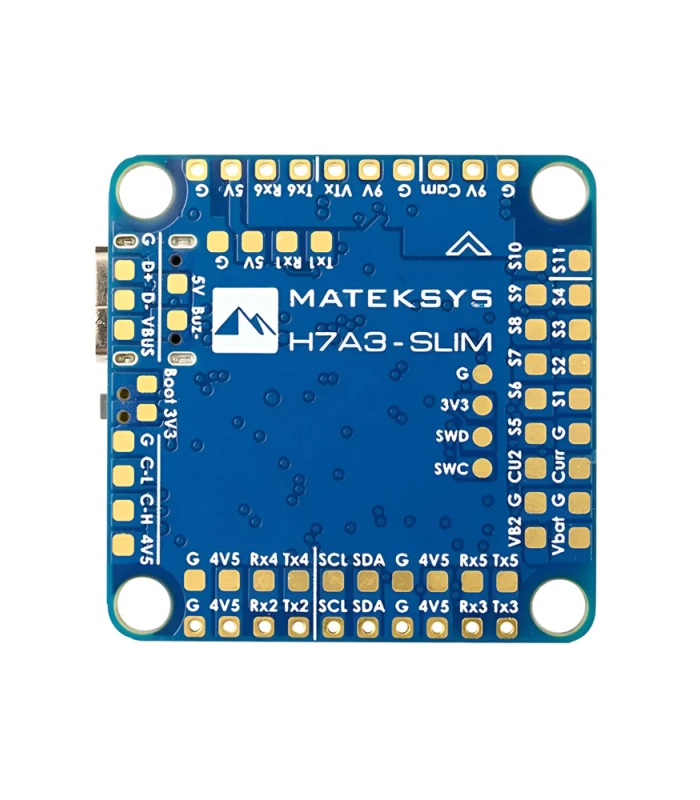

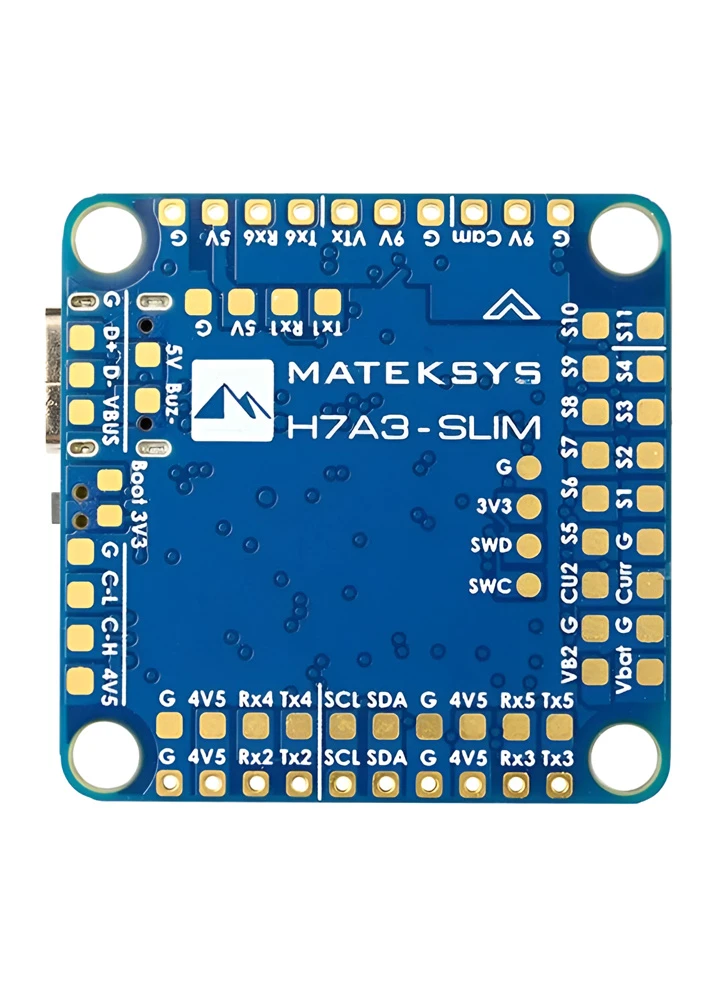

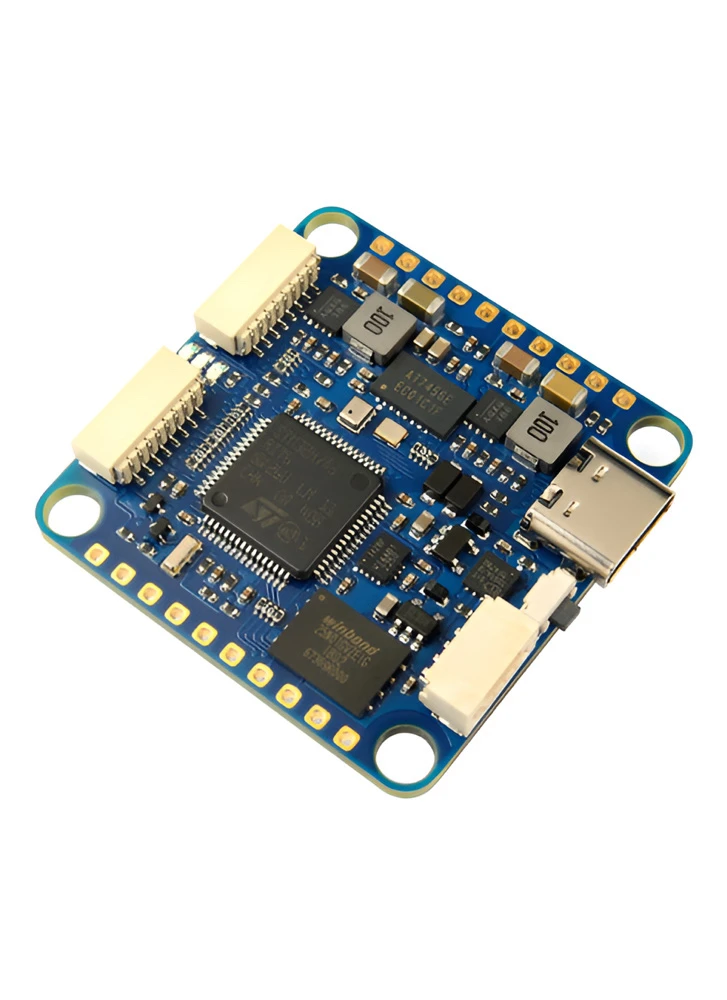

Matek H7A3 Slim 30×30 Flight Controller
£56.85 Inc. VAT
This FC features an advanced STM32H7A3RIT6 MCU and ICM42688P IMU for top-of-the-line performance.
Only 1 left in stock|Next shipping: 16/03/2026
FLIGHT CONTROLLER H7A3-SLIM
STM32H7A3RIT6 280MHz, ICM42688P, SPL06-001, OSD, 6x UARTs, 1x I2C, 1xCAN, 11x PWM outputs, BEC5V, BEC9V,
The MATEKSYS H7A3-SLIM Flight Controller offers high performance in a compact 30x30mm design. It features the STM32H7A3RIT6 MCU, 280MHz Cortex-M7 processor, 1.4MB RAM, and 2MB Flash. With the ICM42688P IMU, SPL06-001 barometer, AT7456E OSD, and 128MB Flash Blackbox, it provides precise data and ample logging. The controller includes 6 UARTs, 11 PWM outputs, 1 I2C, 1 CAN port, and 4 ADC channels. It also has three status LEDs, a USB Type-C port, and a switchable 9V output. With a 30.5 x 30.5mm mounting pattern, 4mm holes, 3mm grommets, and weighing just 7g, it’s perfect for FPV racing and freestyle flying.
Compatible with INAV, Betaflight, and ArduPilot.
Links
- MCU: STM32H7A3RIT6, 280MHz Cortex-M7, 1.4MB RAM, 2MB Flash
- IMU: ICM42688P
- Baro: SPL06-001
- OSD: AT7456E
- Blackbox: 128MB Flash (1G-bit NAND)
- 6x Uarts (1,2,3,4, 5, 6) with built-in inversion.
- 11x PWM outputs
- 1x I2C
- 1x CAN
- 4x ADC (VBAT, Current, VB2, Cur2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- USB Type-C(USB2.0)
- 8x PWM outputs on 2x JST-SH1.0_8pin connector for 2x 4in1 ESC
- 1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
- 9V output ON/OFF switchable
- Digital video OSD is supported by any spare UART
Power
- Vbat Input: 6~36V (2~8S LiPo)
- BEC: 5V 2A cont. (Max.3A)
- BEC: 9V 2A cont. (Max.3A)
- LDO 3.3V: Max.200mA
- No Current Sensor built-in
- ADC VB2 pad supports Max. 69V (voltage divider: 1K:20K)
FC Firmware
- ArduPilot: MATEKH7A3 (4.6 or newer)
- ArduPlane https://firmware.ardupilot.org/Plane/latest/MatekH7A3/
- ArduCopter https://firmware.ardupilot.org/Copter/latest/MatekH7A3/
- Flashing with STM32CubeProgrammer
Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Dimensions: 36 x 36 x 5 mm
- Weight: 7g
- 3D step H7A3-SLIM_step.zip
Including
- 1x H7A3-SLIM
- 6x Silicon grommets M4 to M3
- 2x JST-SH1.0_8pin cable, 5cm, & 8pin connectors
- 1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
