Matek F405-WTE ELRS Wing Flight Controller

Matek F405-WTE ELRS Wing Flight Controller

Name: Matek F405-WTE ELRS Wing Flight Controller - Flying Tech
Brand: Matek Systems
SKU: WFC-MT-F405WTE
Price: 69.90 GBP
Availability: OutOfStock

£69.90 Inc. VAT

This fixed-wing flight controller features an integrated ELRS receiver.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Add to compare

0 People watching this product now!

SKU: WFC-MT-F405WTE Categories: Fixed Wing Autopilots, Airplane Gyros & Stabilizers, Electronics, ELRS Receivers, ExpressLRS, Flight Controllers / Autopilots, Plane Electronics, Plane Flight Controllers, Planes & Wings Tags: ELRS, ExpressLRS, FC, Flight Controller, Wing FC

Description

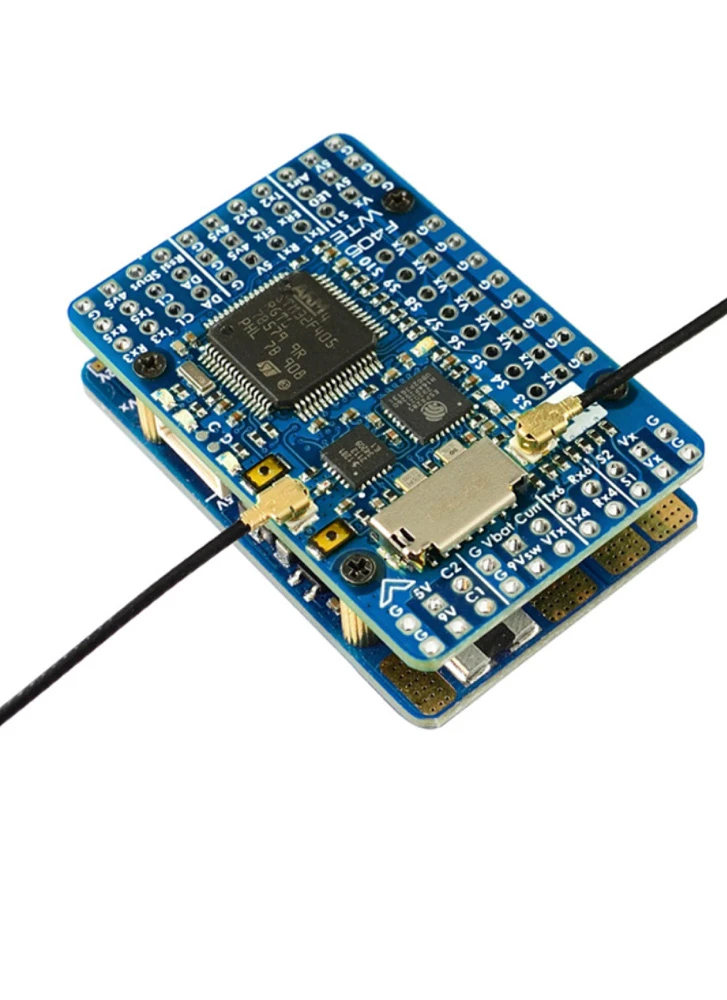

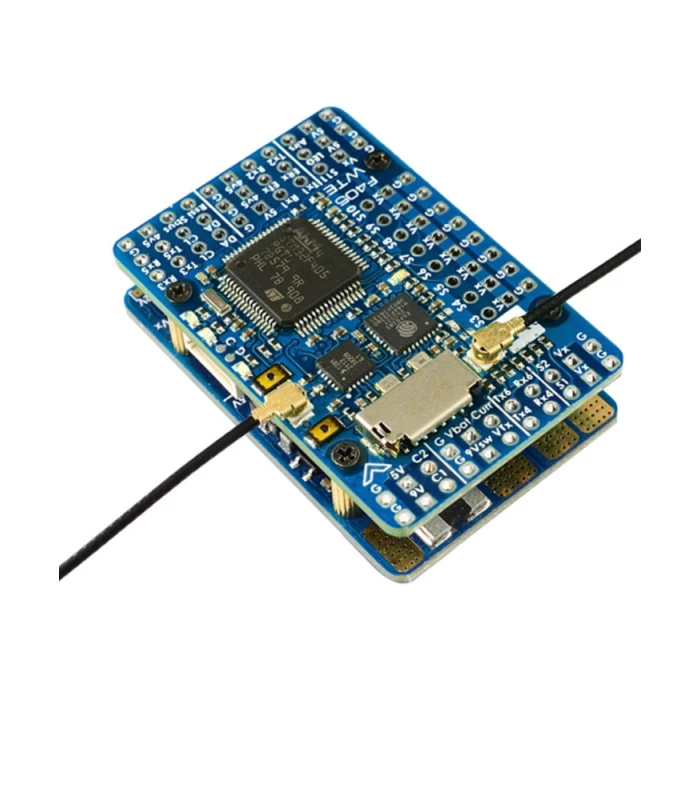

The Matek F405 WTE is a fixed wing flight controller compatible with Ardupilot, and iNav. The FC includes a ESP32 module onboard that lets you use this as either a expressLRS (ELRS) 2.4Ghz receiver, or a WiFi telemetry module with Ardupilot (MAVlink). This FC uses the 3rd generation ICM42688-P IMU along with a SPL06-001 Barometer. The USB port is on an external breakout/buzzer board for easier access when installed inside the body of the model.

Specification

FC Specifications

MCU: STM32F405RGT6, 168MHz , 1MB Flash
IMU: ICM42688-P
Baro: SPL06-001
OSD: AT7456E
Blackbox: MicroSD card slot
ESP WiFi Telemetry(MAVLink, 14dBm)
ExpressLRS 2.4G receiver(CRSF protocol, Telemetry 12dBm)
6x UARTs, 1x Softserial_Tx option(INAV)
12x PWM outputs
1x I2C
4x ADC (VBAT, Current, RSSI, Airspeed)
USB/Beep Extender with Type-C(USB2.0)
Dual Camera Inputs switch
9V(12V) for VTX power switch

FC Firmware

ArduPilot: MatekF405-TE
INAV: MATEKF405TE_SD (not available in INAV configurator 4.x)

PDB

Input voltage range: 6.8~30V (2~6S LiPo)
1x ESC power pads
Battery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
Sense resistor: 90A continuous, 220A peak

BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A

BEC 9V /12V output

Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
for stable 9V/12V output, input voltage should > output voltage +1V

BEC Vx output

Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 8 Amps, Max.10A
for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output

Designed for Baro / Compass module and external 3.3V peripherals
Linear Regulator
Continuous current: 200mA

Physical

Mounting: 25 x 25mm, Φ2mm
Dimensions: 44 x 29 x 12.7mm
Weight: 22g w/ USB/buzzer adapter

Included:

1x F405-WTE

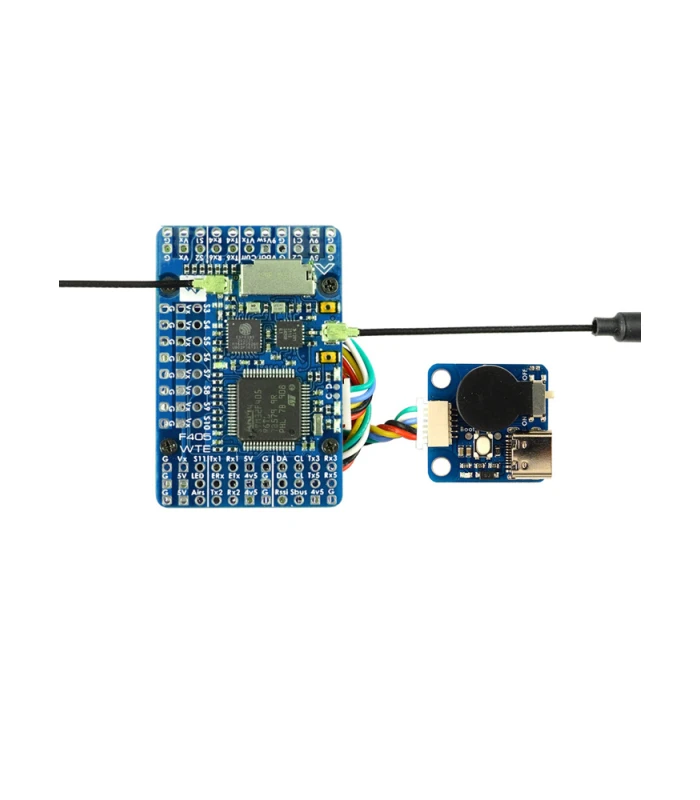

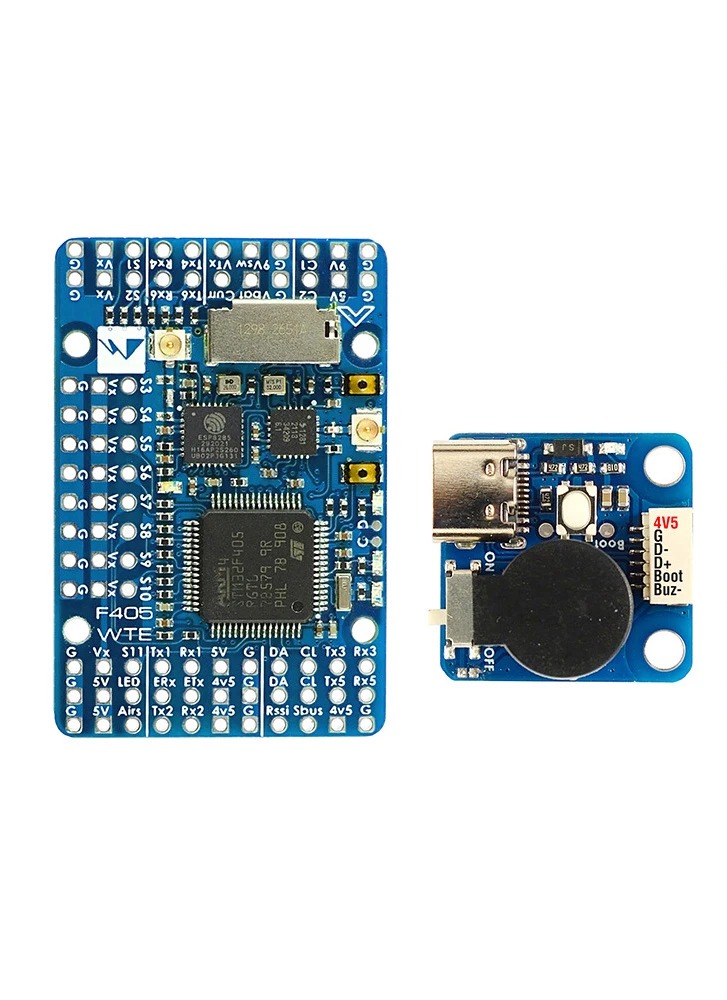

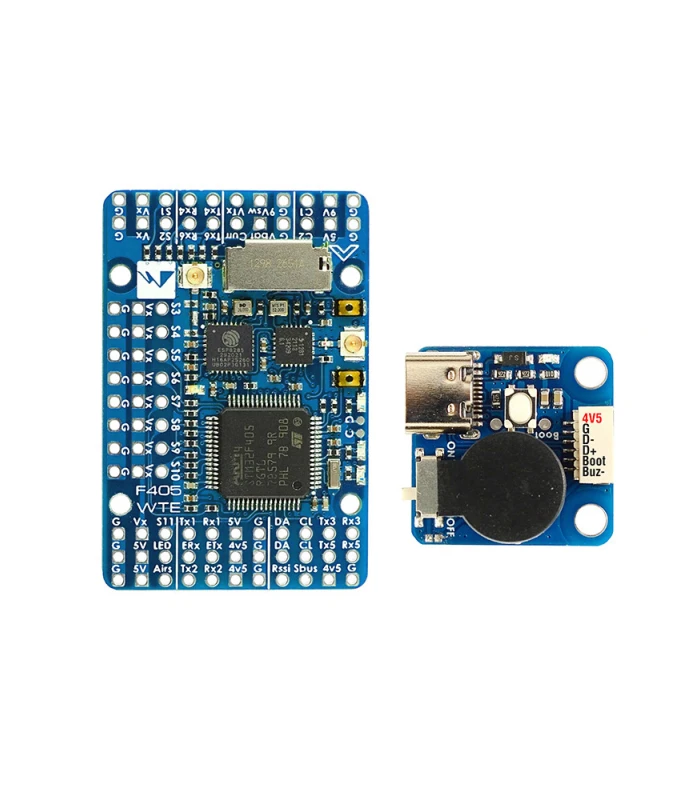

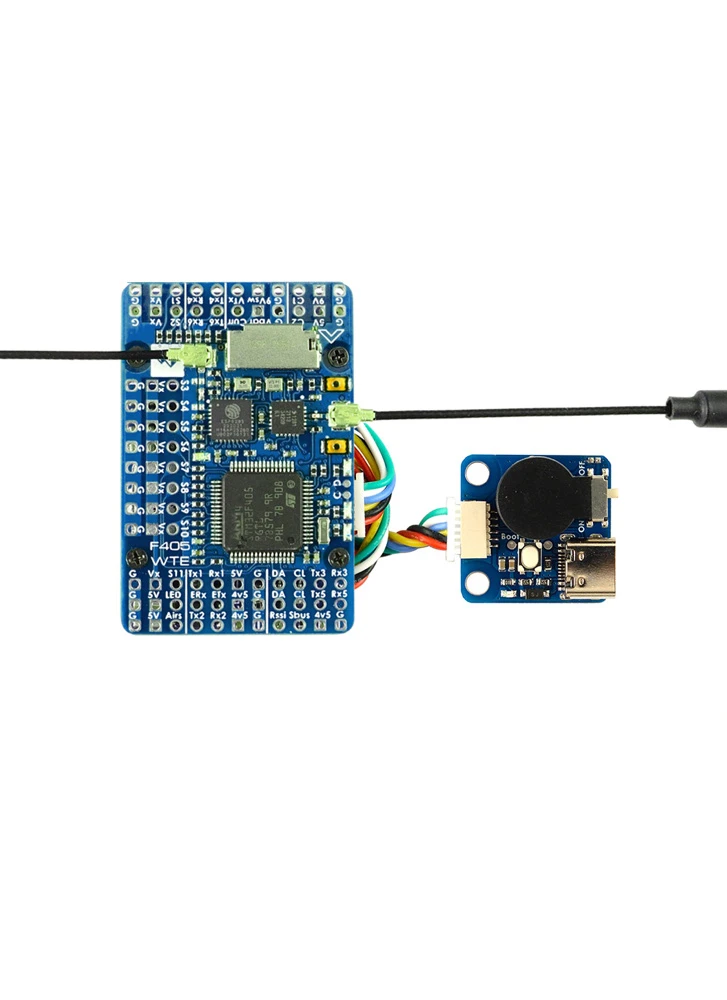

1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
2x IPEX-MHF1 2.4G Antennas
1x Rubycon ZLH 35V 470uF capacitor
Dupont 2.54 pins (Board is shipped unsoldered)
