Skyzone Receiver Bay Mount Fat Shark Style Module Adapter Original price was: £24.90.Current price is: £19.90. Inc. VAT

Lilliput WS500 Wireless 1080P HD Video Transmission System

£389.95 Inc. VAT

A wireless video transmission solution for broadcasting HD Video from HDMI sources.

Only 1 left in stock

0 People watching this product now!
Description

The WS500 Wireless Video Transmission System from Lilliput is a wireless video transmission solution for broadcasting HD Video (1080p/1080i/720P), viaย both 3G-SDI (BNC) and HDMI interfaces. Itย can achieveย low latency wireless video transmission (80ms)ย and features up to aย 500′ line-of-sight range,ย making use of 13 available channels andย automatic channel selection.

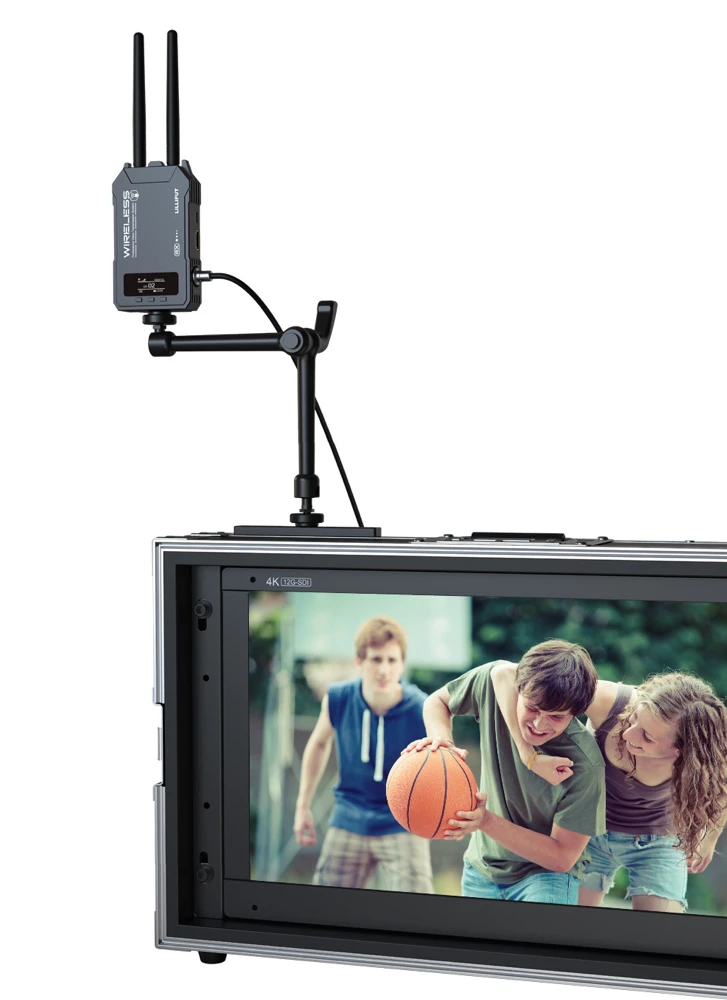

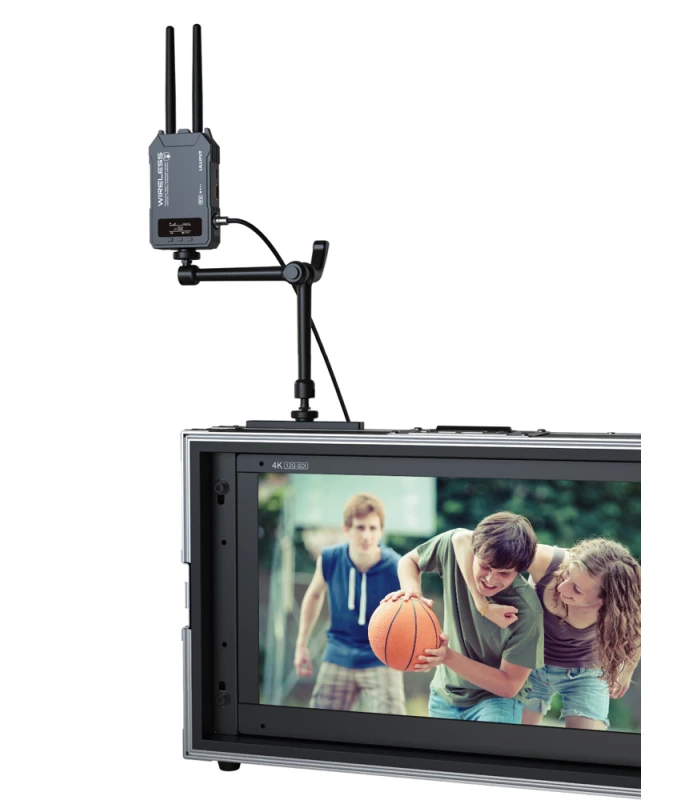

To view the video output you will need aย monitor with a HDMI inputย or 3G-SDIย connection – we recommend this display. Alternatively, the system has built-in WiFi connectivity. Using the ‘Wireless Videoย App’ for iOS (Android version in development), you can monitor your video transmission in real time. The systemย can be linked to up to three mobile devices, enabling multiple viewers to watch your video feed simultaneously.

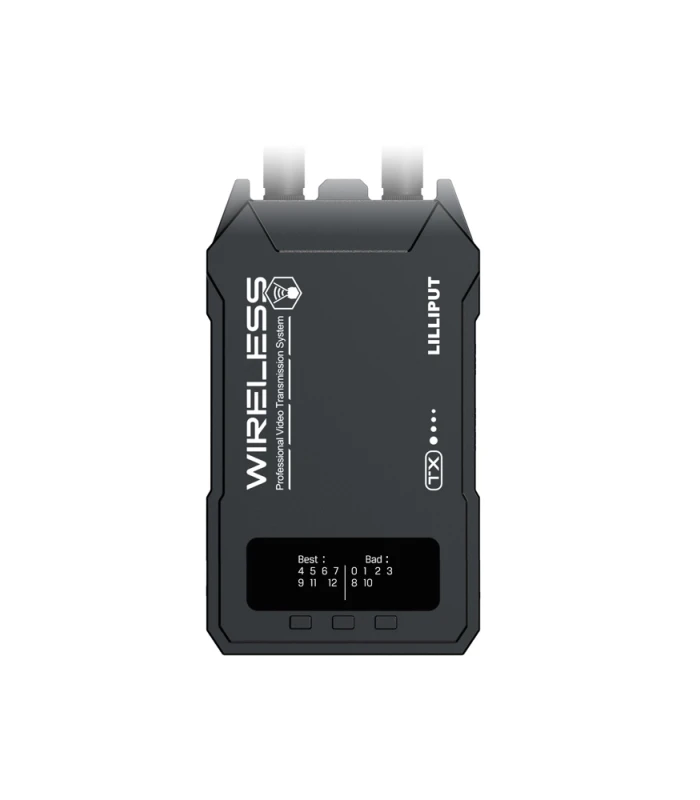

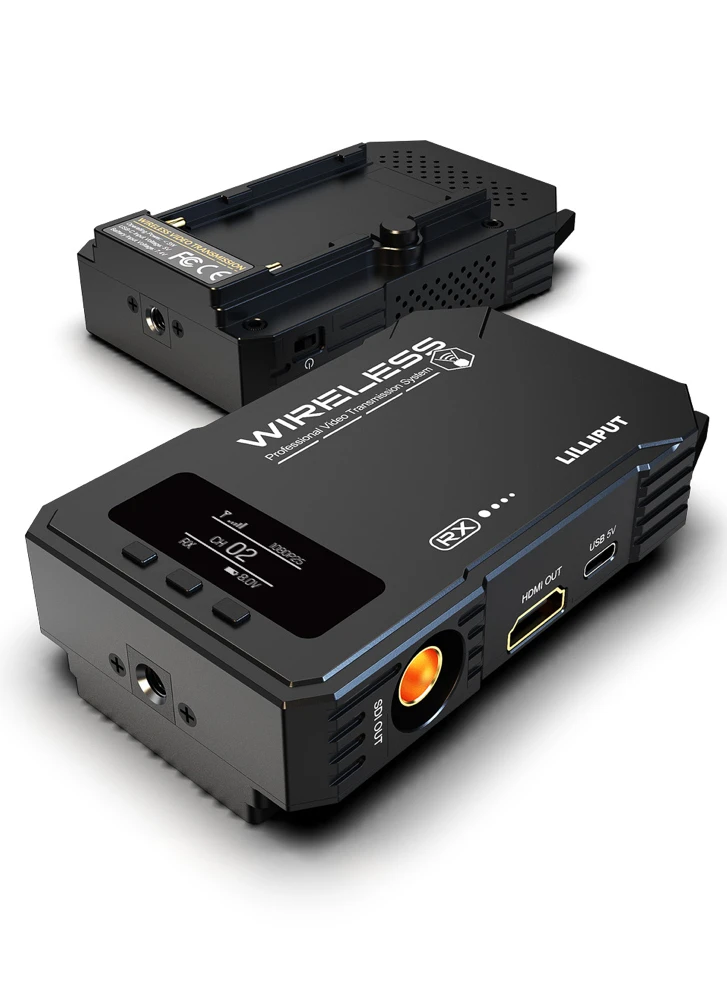

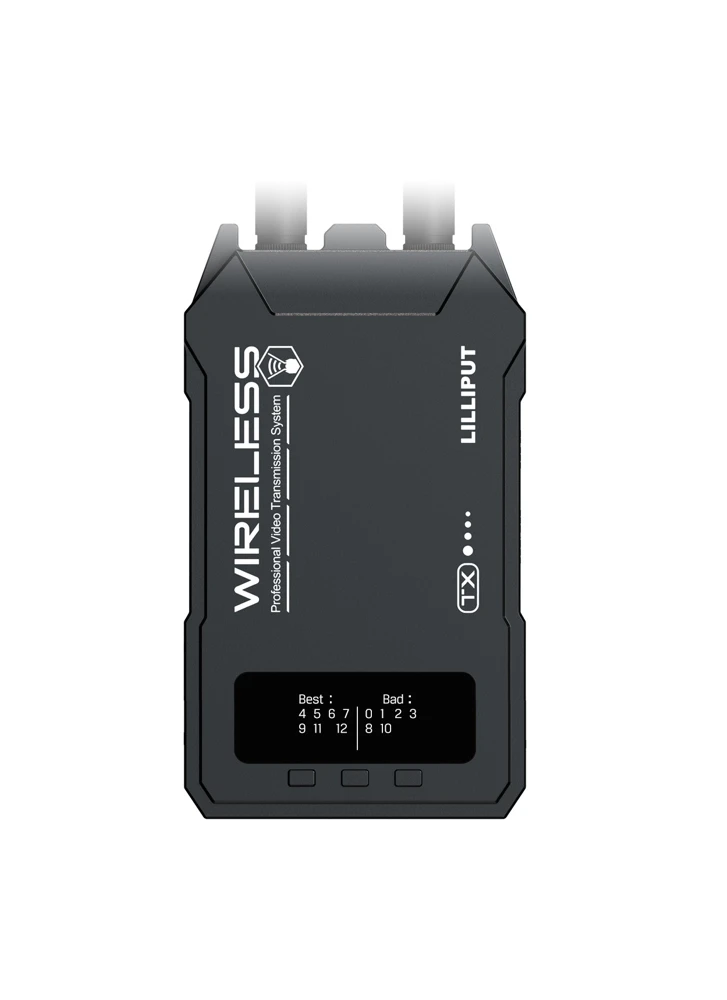

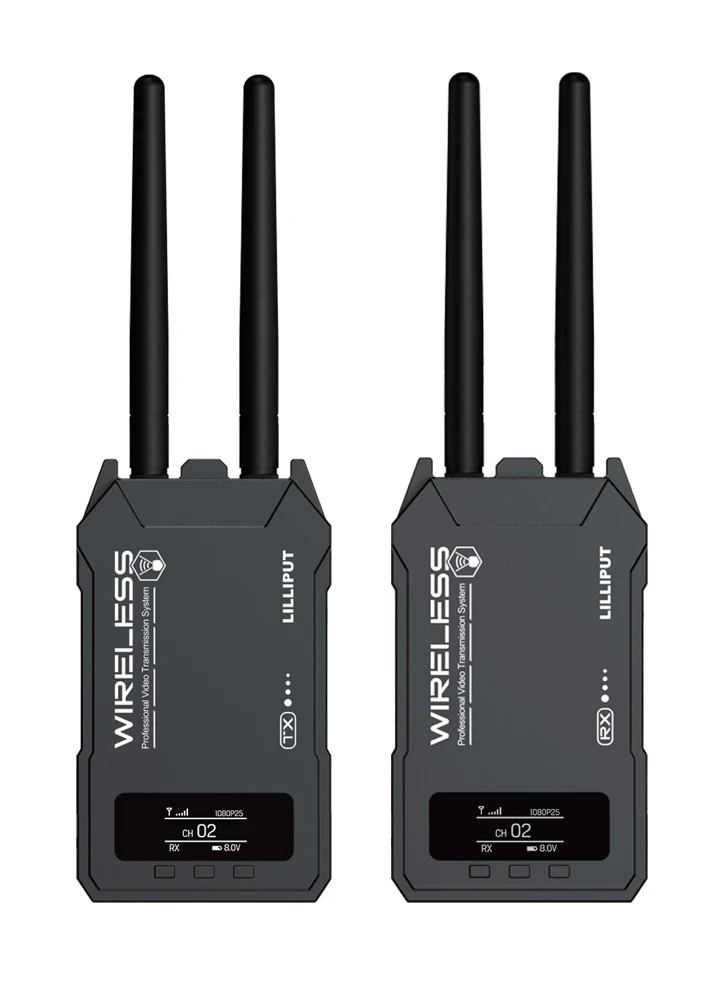

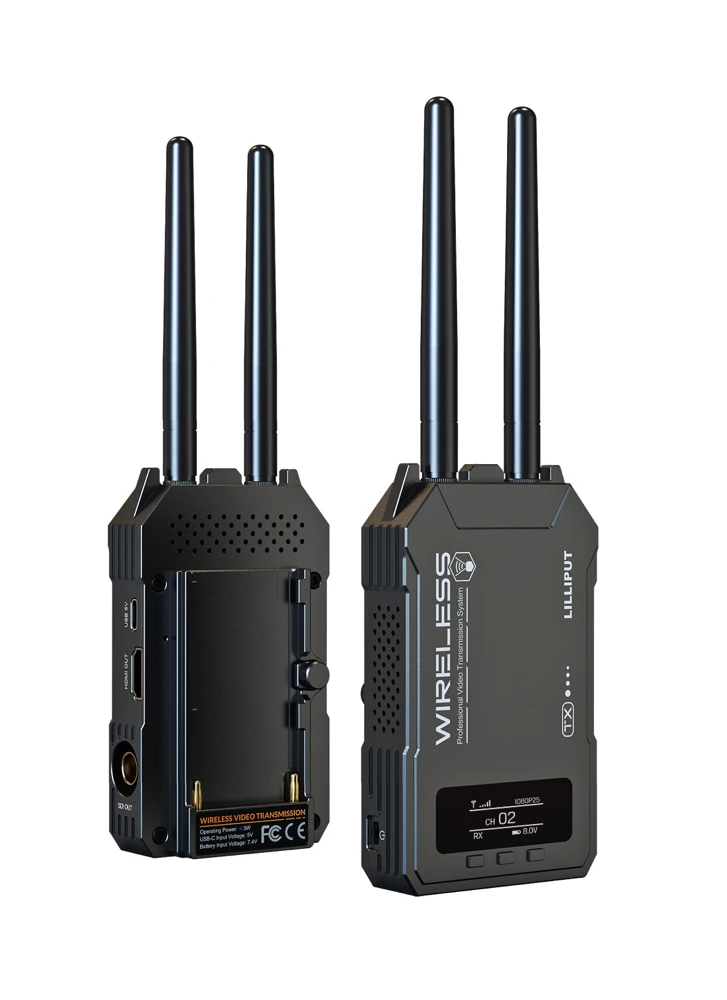

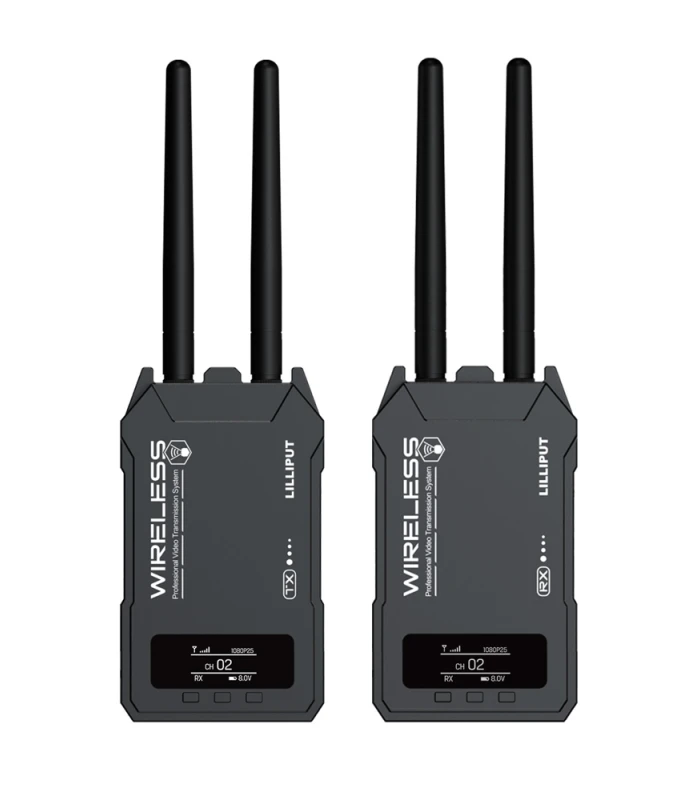

The transmitter and receiver are compact in size, feature a bright OLED display for configuration, and they each feature a 1/4inch-20 mounting thread. Each can be powered using a USB Type-C source from aย Sonyย L-series type battery.

500′ Transmission Range

Extend your wireless video transmission up to 500ftย (line of sight) with just 80ms latency

SDI and HDMI Input/Output

Switch between SDI (BNC) and HDMI inputs and outputs depending on your choice of camera and monitoring devices

Mobile Device Streaming

Use with the Lilliput app and your mobile device for uploading to a live streaming platform

Automatic Channel Selection

This system automatically searches for the clearest of 13 available channels

App Display Controls

Use the Lilliput app to adjust controls like focus peaking, exposure, zoom, markers, and start/stop recording

App QR Code Scanning

Use the transmitter to generate a QR code that can be scanned using your mobile device to link up to three devices simultaneously

Compact Design/Dual Power

These compact, fan-less components can be powered using their USB Type-C input or Sony L-Series batteries

Display Screen

A 1.3″ LED screen displays the channel selection, signal strength, and more

App Video Viewer:ย IOS

Key Features

  • Transmits up to 1080p60 HDMI video
  • Up to 500′ Range
  • Low latency 80ms
  • 3G-SDI and HDMI Inputs and Outputs
  • Live Streaming via Mobile Device & App
  • 13 Channels with Automatic Selection
  • Scan QR Code to Link to Mobile Device
  • Dual Power Supply:ย L-Series Battery or USB Type-C Power
  • Compact LED Screen
  • Quiet, Fan-Less Design
  • 1/4-20 mounting threads

Please noteย – this system isย NOT designed for a UAV application.ย It isย intended for filmmakers who require a remote viewing setup on a larger monitorย and for other Live Stream applications.

Lilliput wireless video transmission1wireless video transmission2wireless video transmission3wireless video transmission4wireless video transmission5Lilliput wireless video transmission6wireless video transmission7wireless video transmission8

Specification
  • DISPLAY: Screenย 1.3โ€ OLED
  • VIDEO SIGNALS:
    • HDMI / 3G-SDI
      • 1080p: 60/59.94/50/30/29.97/25/24/23.98
      • 1080i: 60/50
      • 720p: 60/50
  • AUDIO SIGNALS:ย Audioย 24-Bit 48 kHz
  • TRANSMISSION:
    • โ€‹Latency: 80 ms
    • Frequency Range: 5 GHz
    • RF Power: 17 dBm
    • Number of Channels: 13
    • Channel Bandwidth: 20 MHz
    • Wireless Range:ย 500′ / 152.4ย m (Line-of-Sight)
    • Wi-Fi:ย Yes
  • POWER:
    • โ€‹Input Voltage: DC 5Vย โ‰ค3Wย DC Input Power: 5VDC
    • Power Consumption:ย โ‰ค3W
  • ENVIROMENT:ย
    • โ€‹Operating Temperature: 0 to 50ยฐ
    • IP Rating: None
  • SIZE:
    • Dimensions:ย Transmitter/Receiver: 113 x 65 x 29.2 mm
    • Weight Transmitter/Receiver: 200g
    • Mounting: 1/4″-20 Femaleโ€‹

Included:

  • Lilliput WS500 Wireless Video Transmission System
  • Transmitter
  • Receiver
  • 4 x Antenna
  • USB-C to USB-A Cable
Downloads
User Manual (pdf, 1386KB)
Specification (pdf, 1543KB)
