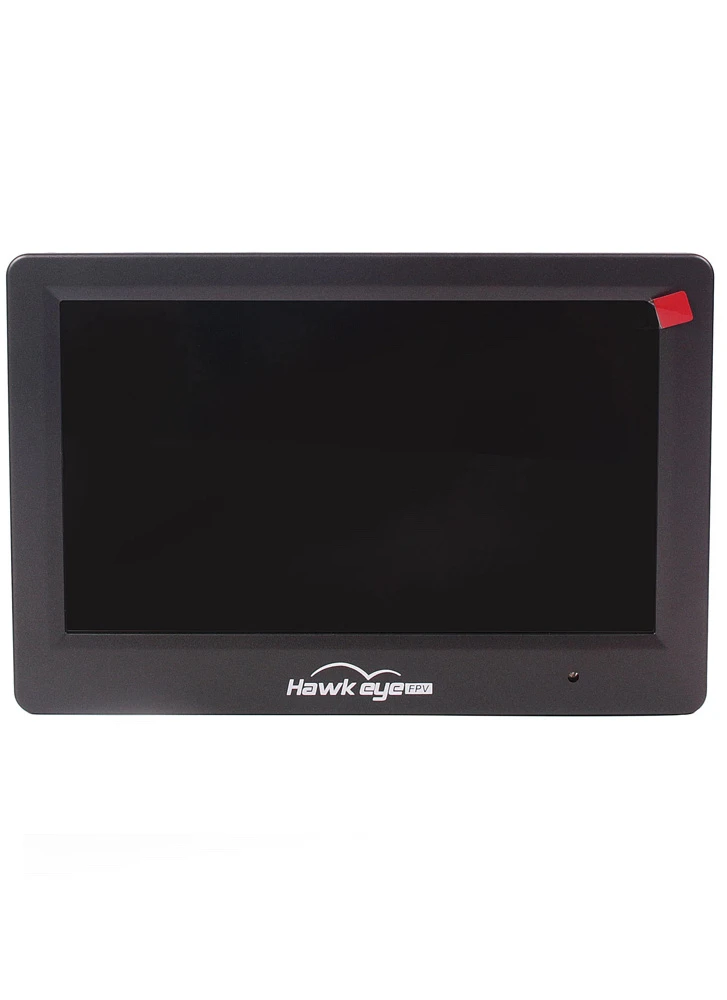

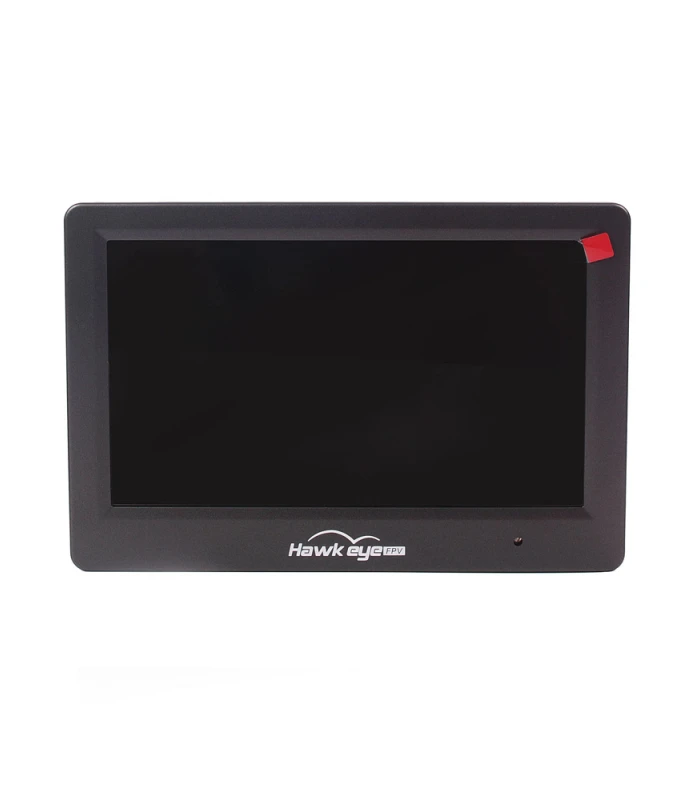

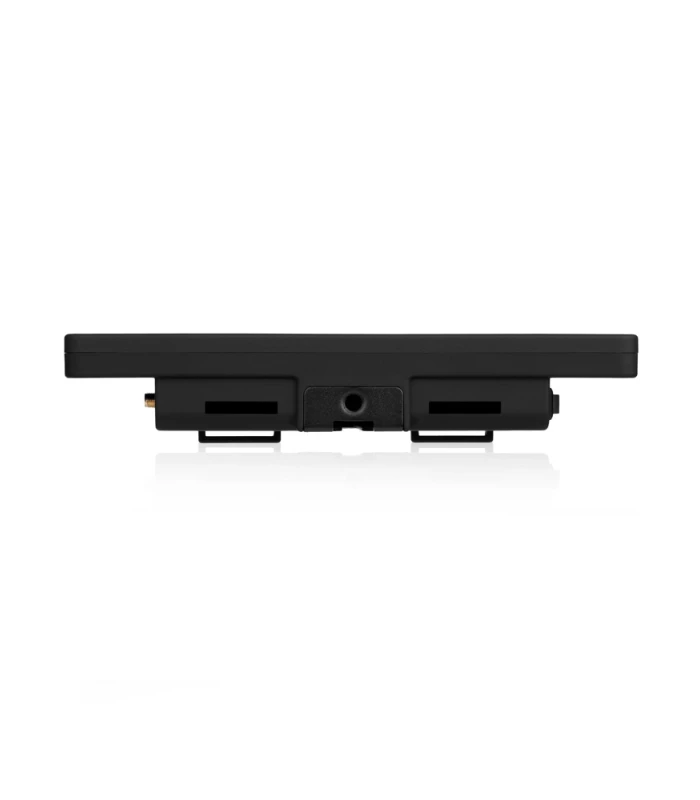

Hawkeye 7 inch Sharp Vision II FPV Monitor with Diversity RX

£129.90 – £149.99 Inc. VAT

The Sharp Vision II monitor offers excellent quality with crisp images and strong bright colours.

Version	Clear

0 People watching this product now!

Description

Designed for aerial photography and FPV systems, the Sharp Vision II is an all-in-one monitor that is perfect for ground station monitoring of flying. It offers excellent quality with crisp images and strong bright colours. It offers 1024×600 resolution and high brightness (10000LUX) for outdoor use. It has built in analog dual diversity 5.8GHz 48 channel receivers with auto/manual scan. There is also a HDMI input which allow a HDMI video source to be connected to the display, such as the Walksnail VRX or other compatible HD FPV systems. The power input for the display is 2-6S and it comes with a XT60 power lead.

There are 2 versions of the monitor: The top level model includes a built in DVR with SD card slot. The DVR supports both recording and video playback at D1 resolution. Furthermore, if you don’t require the built-in analog FPV receiver, you can buy the version without internal diversity RX here.

Specification

Display resolution: 1024×600
Backlight: LED
Size: 7 Inch
Brightness: 1000 Lux
Aspect ratio: 16:9
Response time: <10ms
System: PAL/NTSC
Signal: Video (PAL/NTSC/Auto)

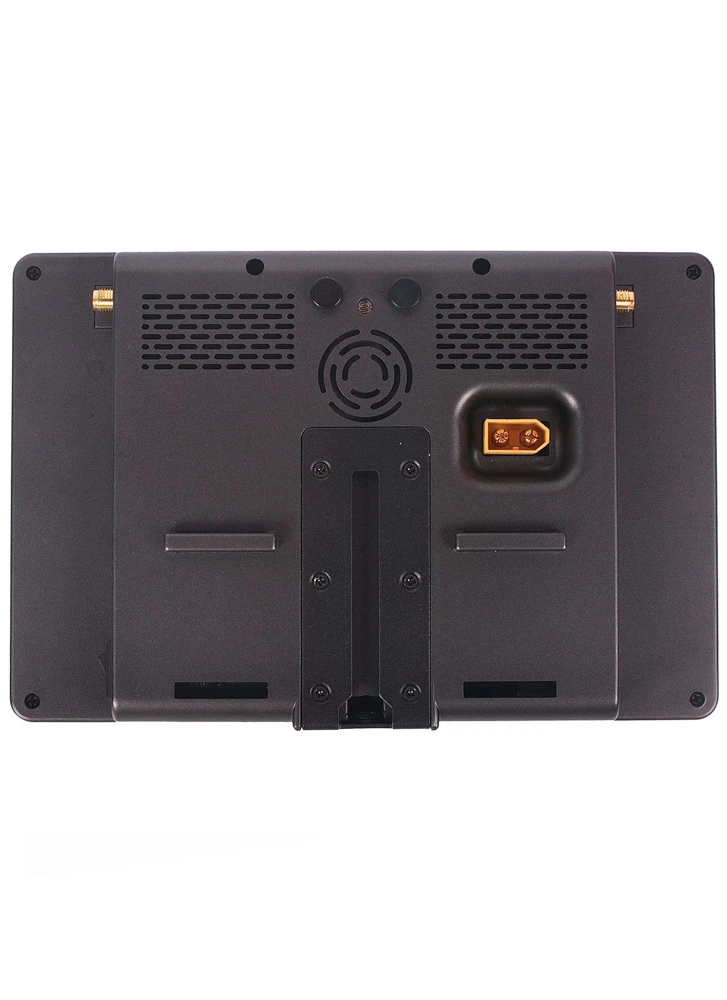

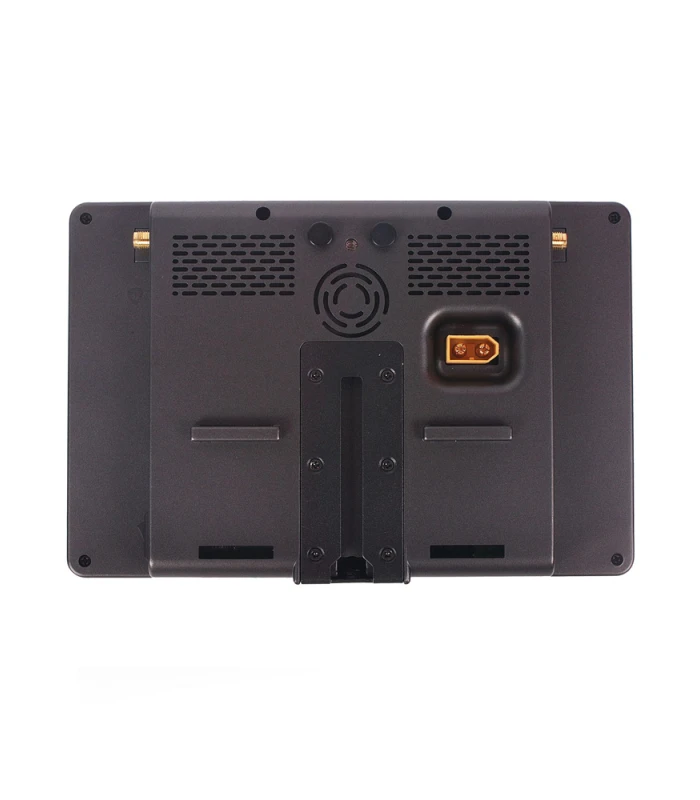

Power connector: DC 3-6S battery (XT60 connector)
Current: 820MA @3S / 410MA @6S
Monitor size: 183mmx122mmx30mm
Gross weight: 0.58KG
5.8G Sensitivity: -93dB
Connector: SMA
Video Output: 3.5mm interface

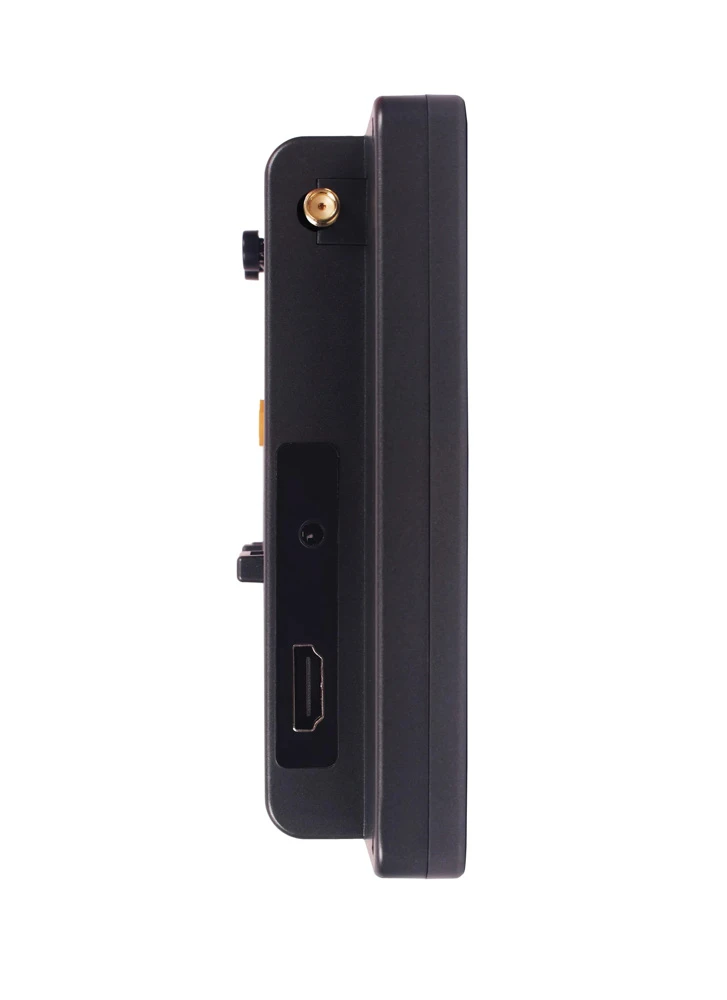

Video Input: HDMI
Channels: 48CH
DVR:
- Resolution D1/VGA/QVGA (only on model with DVR)
- TF card supported: Max 64G

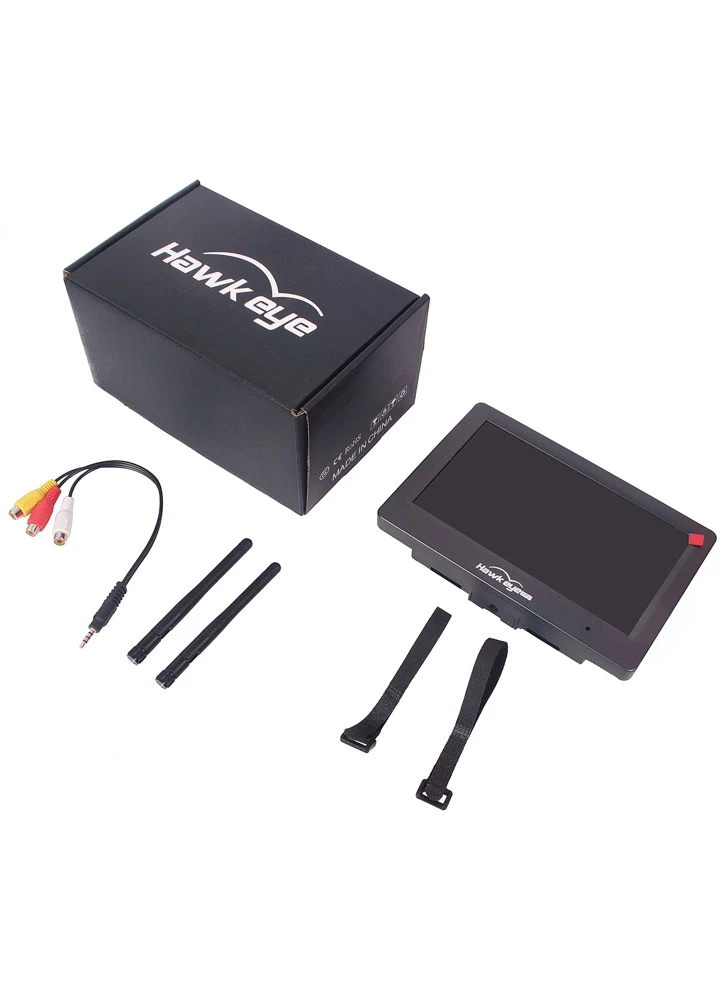

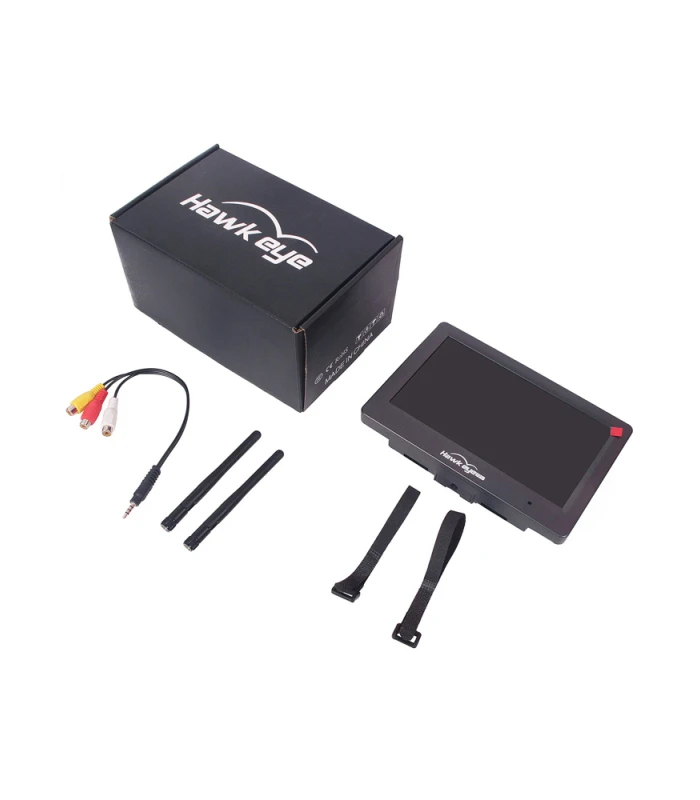

Included:

Hawkeye Little Pilot 7inch FPV Screen
2x Linear Antennas
Video /input output cable
