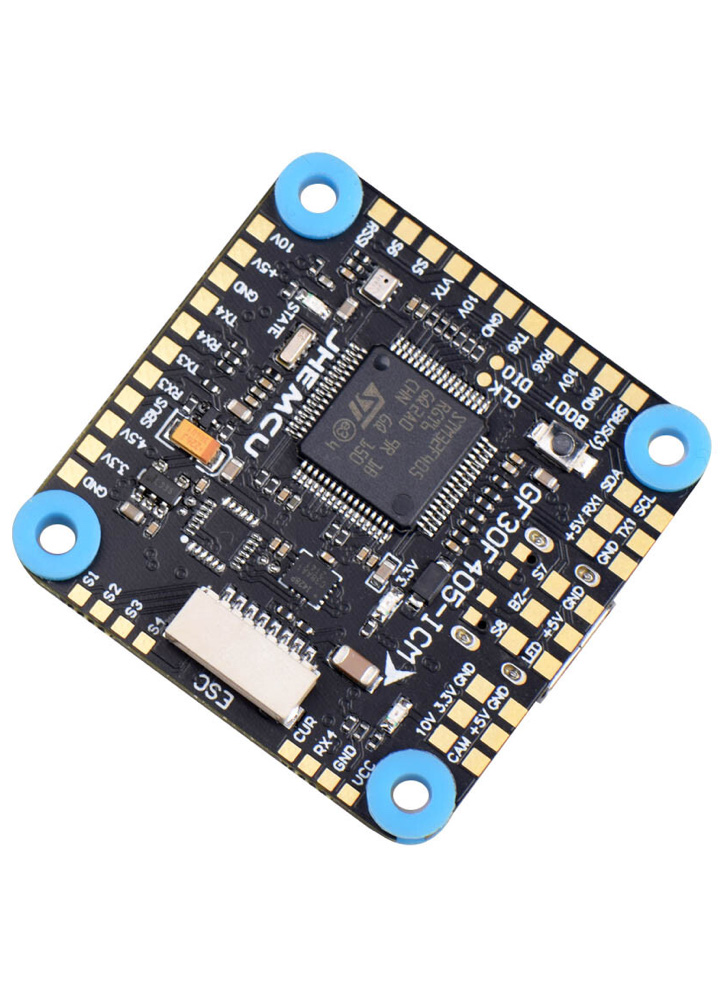

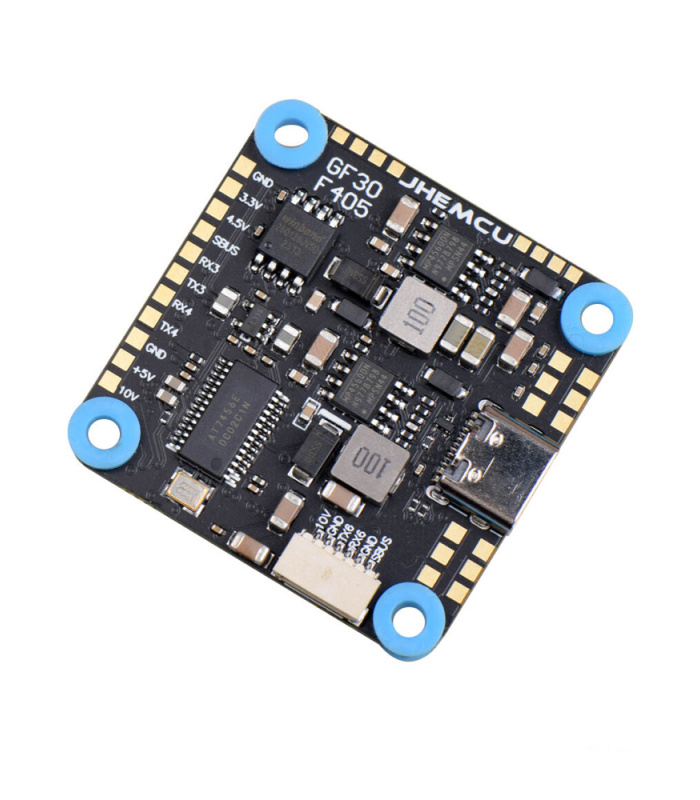

JHEMCU GF30F405-ICM 5V 10V Dual BEC F405 Flight Controller 3-8S 30X30
£36.99 Inc. VAT
Affordable F405 flight controller with ICM-42688 gyro, dual BEC outputs, and wide 3–8S input support.
In stock|Next shipping: 09/03/2026
Affordable F405 flight controller with ICM-42688 gyro, dual BEC outputs and 3–8S input support.

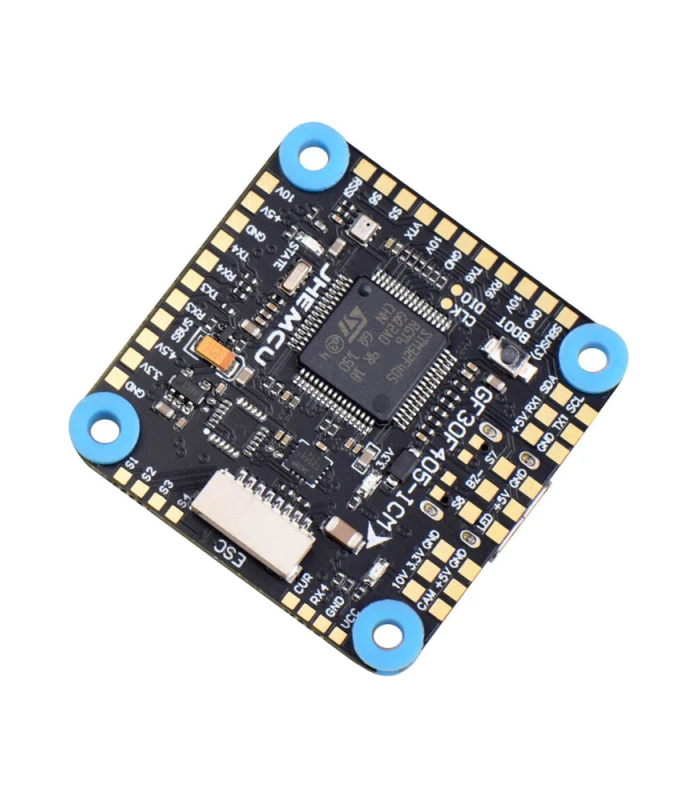

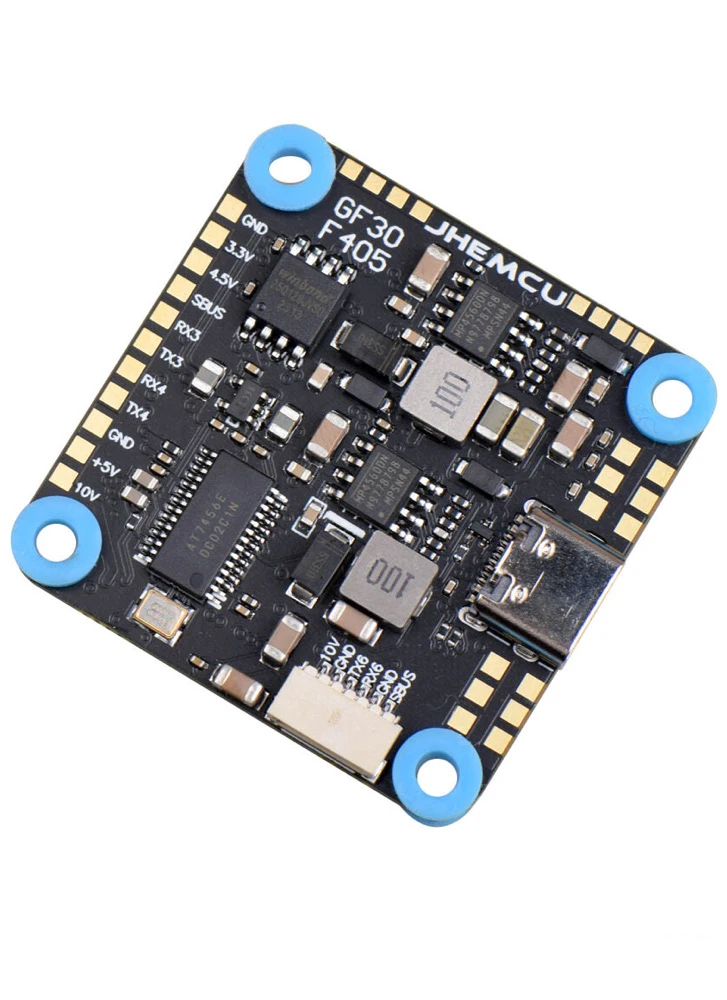

The JHEMCU GF30F405-ICM Flight Controller is a reliable and cost-effective option for FPV drone builds, combining a powerful STM32F405RGT6 processor with a wide 3–8S LiPo input range.

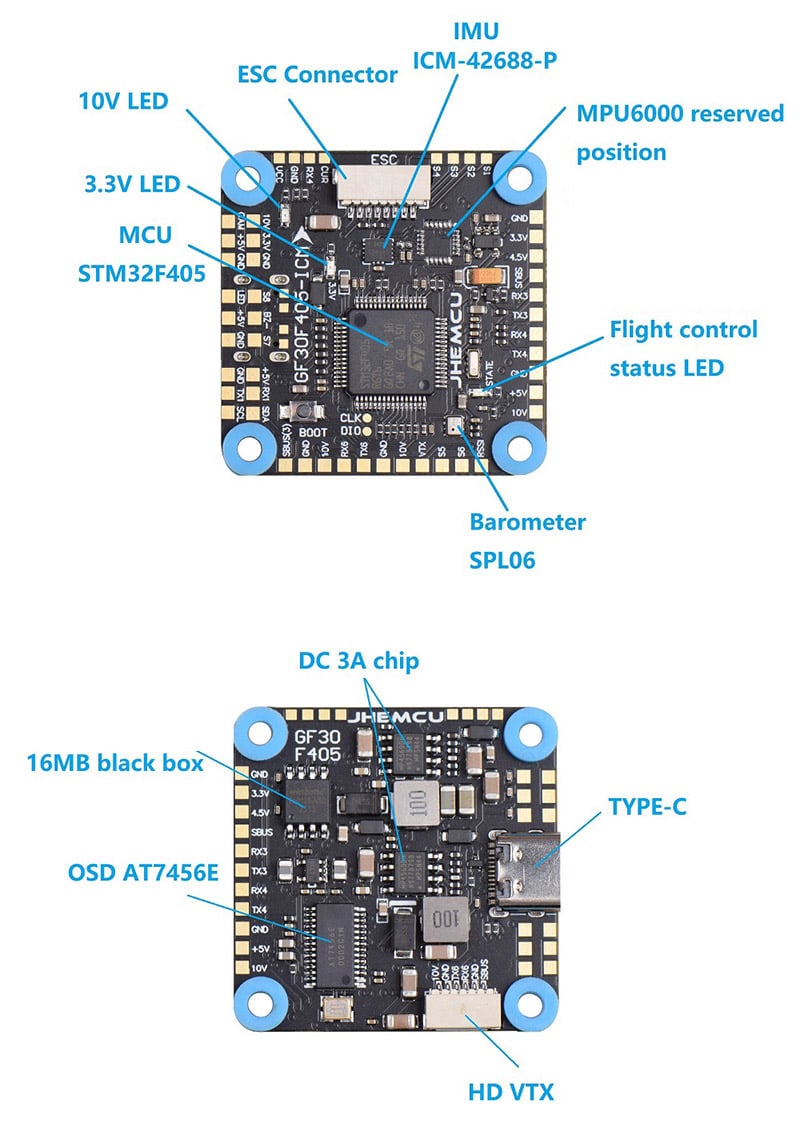

It features the modern ICM-42688-P gyro for accurate flight performance, along with a SPL06 barometer, 16MB onboard blackbox logging, and an integrated OSD. Dual onboard BEC outputs (5V 3A and 10V 2A) provide stable power for receivers, cameras, and video transmitters.
Connectivity includes four UARTs, I2C support, WS2812 LED output, buzzer support, and a reserved interface for DJI digital VTX systems. A Type-C USB port allows quick configuration and firmware updates.
With its 30.5 × 30.5mm mounting pattern, lightweight design, and practical feature set, the GF30F405-ICM offers excellent value for a wide range of FPV builds.
- MCU: STM32F405RGT6
- Power supply: 3-8S (11V-36V)
- Signal Protocol: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,Dshot600.
- Sensor: ICM-42688-P
- Size: 36*36mm (30.5mm mounting hole, 4MM diameter)
- Firmware version: Betaflight JHEF405pro / INAV_6.1.0_JHEMCUF405
- Black box: 16MB
- Barometer: SPL06
- OSD: Support
- Support DJI VTX: with reserved interface
- USB: TYPE-C interface
- IIC: Support

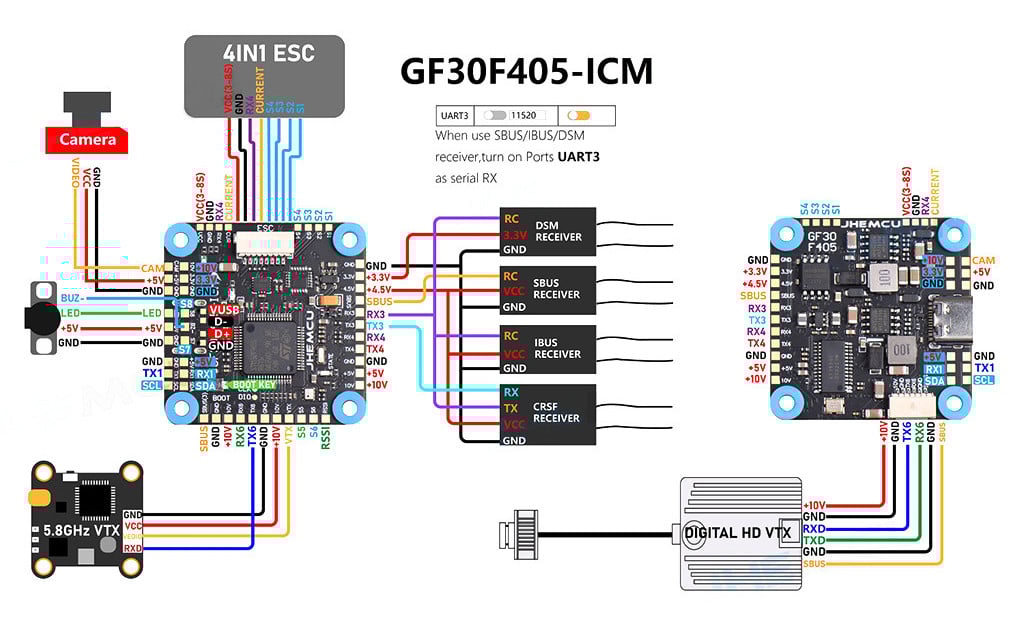

- UART: 4 ways, UART1, 3, 4, 6, where UART3 is the receiver
- BEC: BEC 5V/3A and 10V/2A
- Receiver: SBUS, IBUS, DS M2/X, TBS, CRSF, etc.
- Support WS2812 programmable LED
- Support buzzer
- Built-in voltage sensor with current detection port

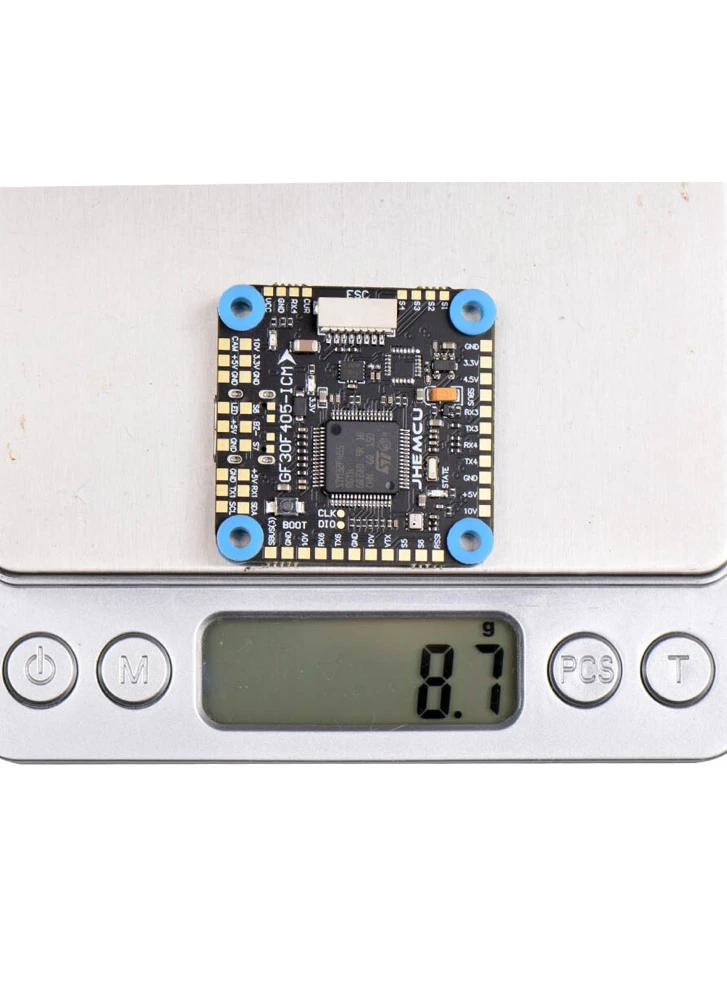

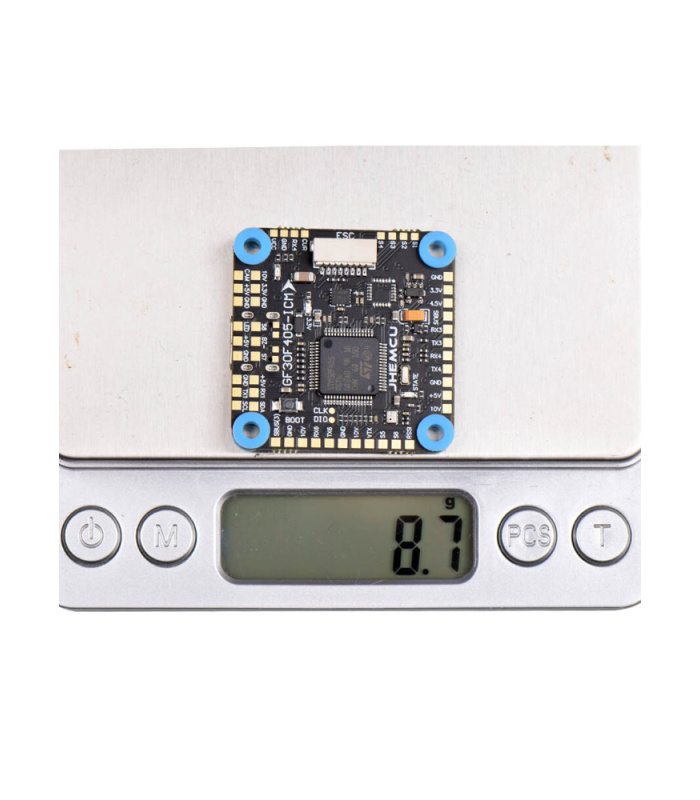

- Weight: 8.7g

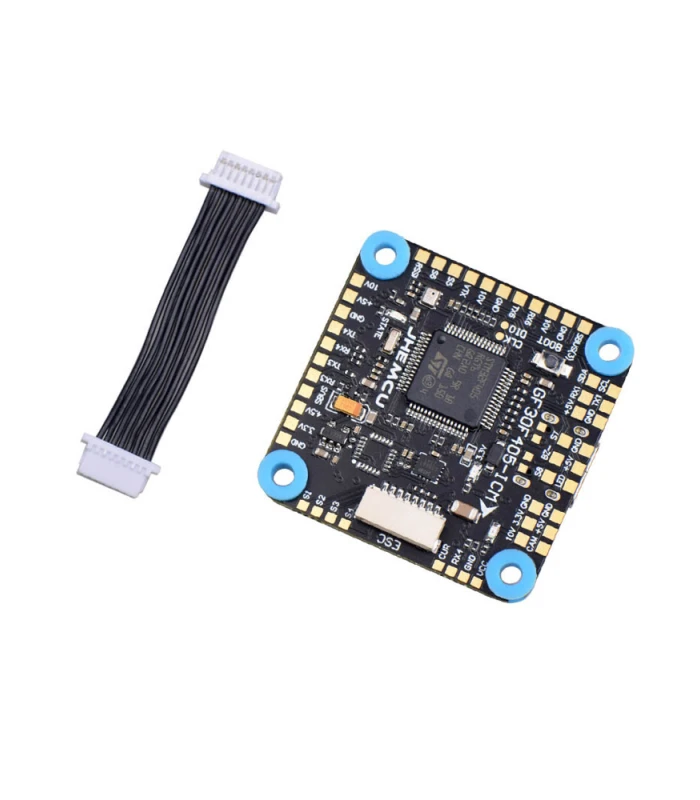

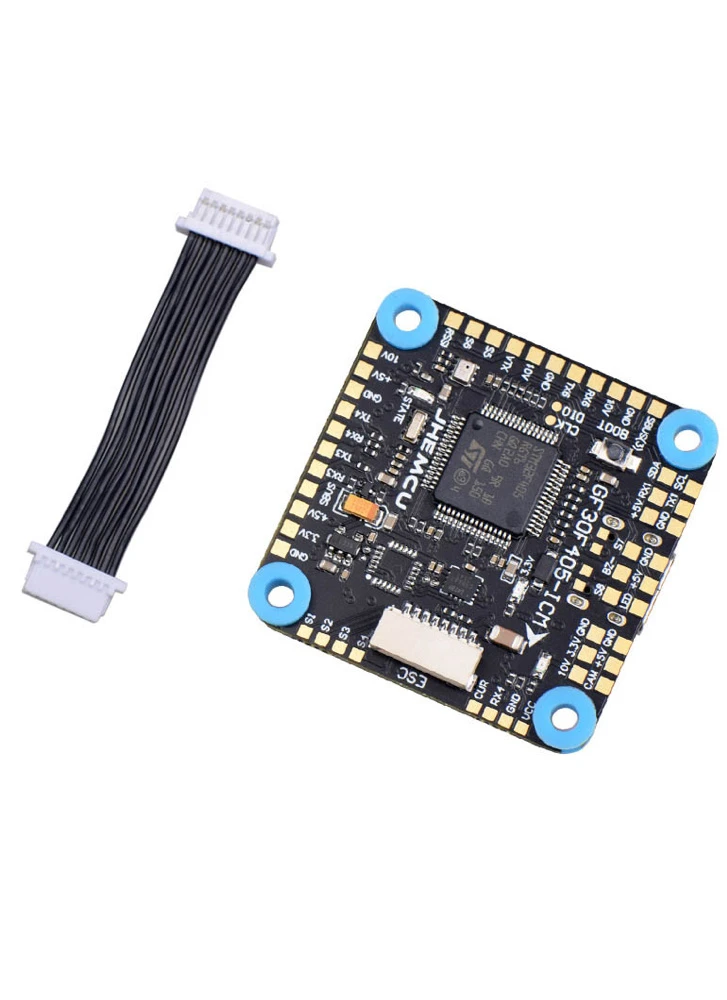

Included:
- 1 x GF30F405-ICM
- 1 x 8P Plug Cable
- 4 x M3 Shock Absorption Ball
