200A Double-Sided Multirotor ESC Power Distribution Board

200A Double-Sided Multirotor ESC Power Distribution Board - Image 3

200A Double-Sided Multirotor ESC Power Distribution Board

Name: 200A Double-Sided Multirotor ESC Power Distribution Board - Flying Tech
SKU: PDB-200A
Price: 9.90 GBP
Availability: InStock

£9.90 Inc. VAT

This simple PDB features 8 outputs and has a high current rating, 200Amps.

In stock

Add to compare

0 People watching this product now!

SKU: PDB-200A Categories: Power Distribution, Electronics, Power Distribution, Power Distribution Boards (PDBs), Wiring & Connectors Tags: High Amp PDB, PDB, Power Distribution Board, X Class PDB

Description

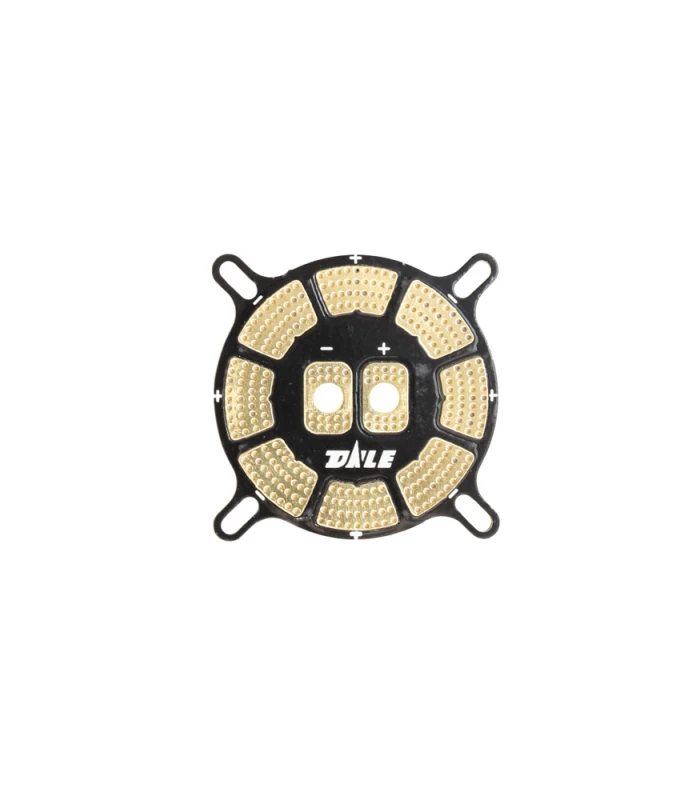

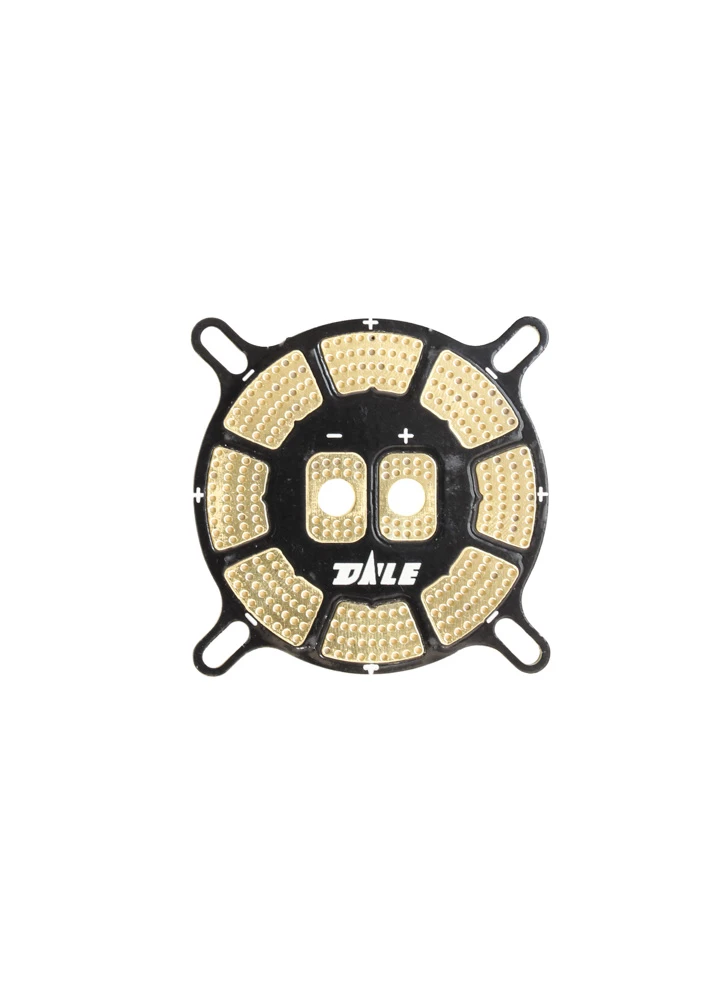

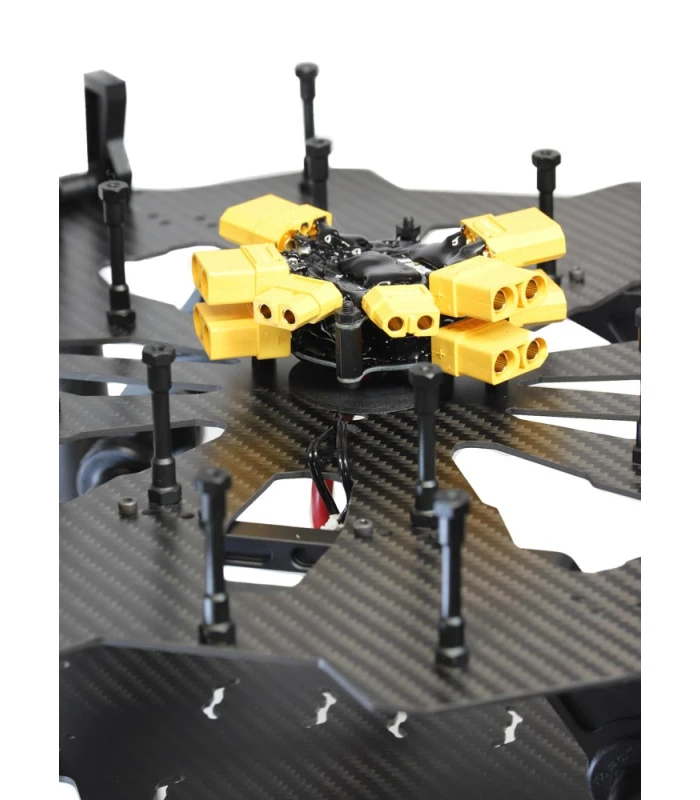

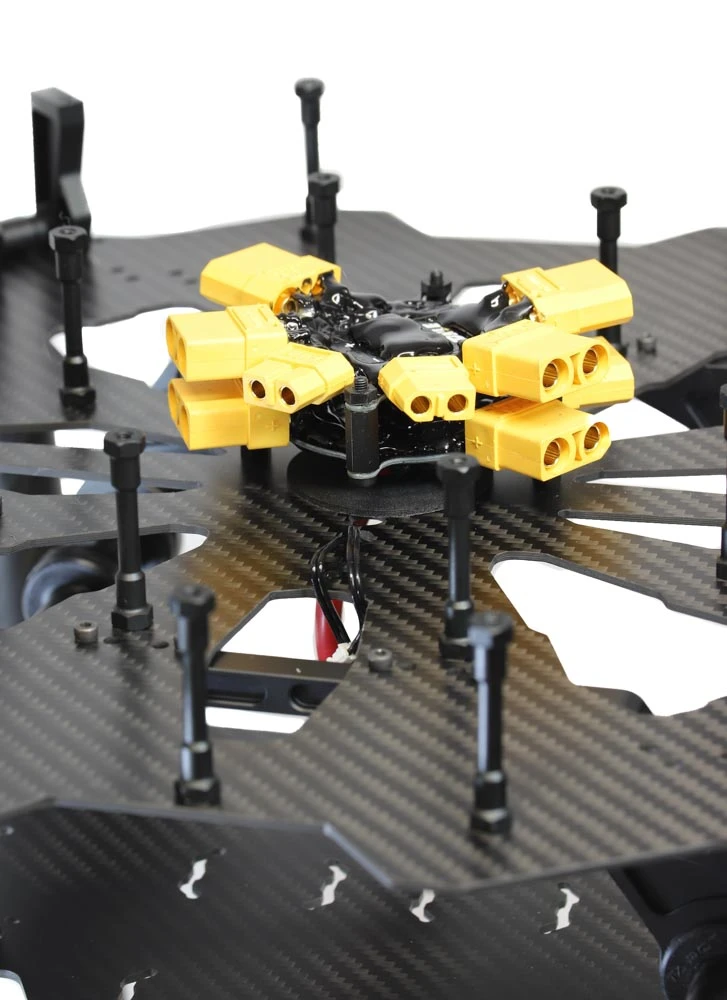

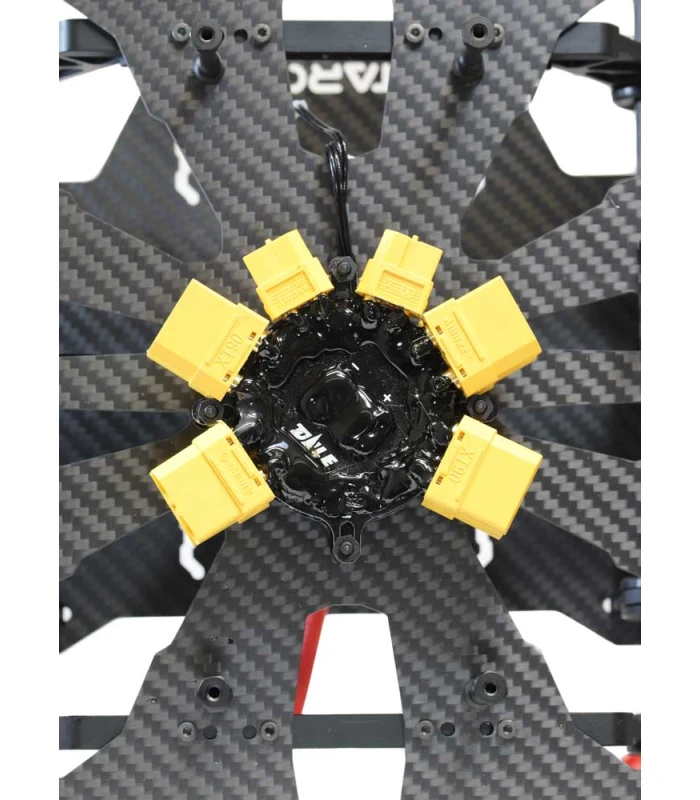

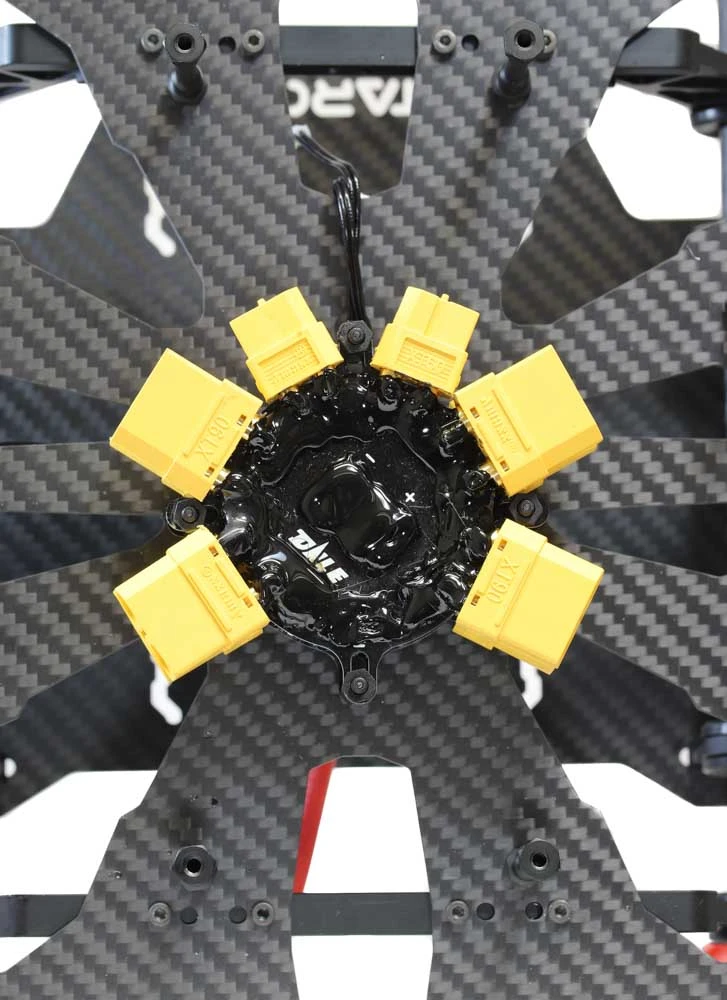

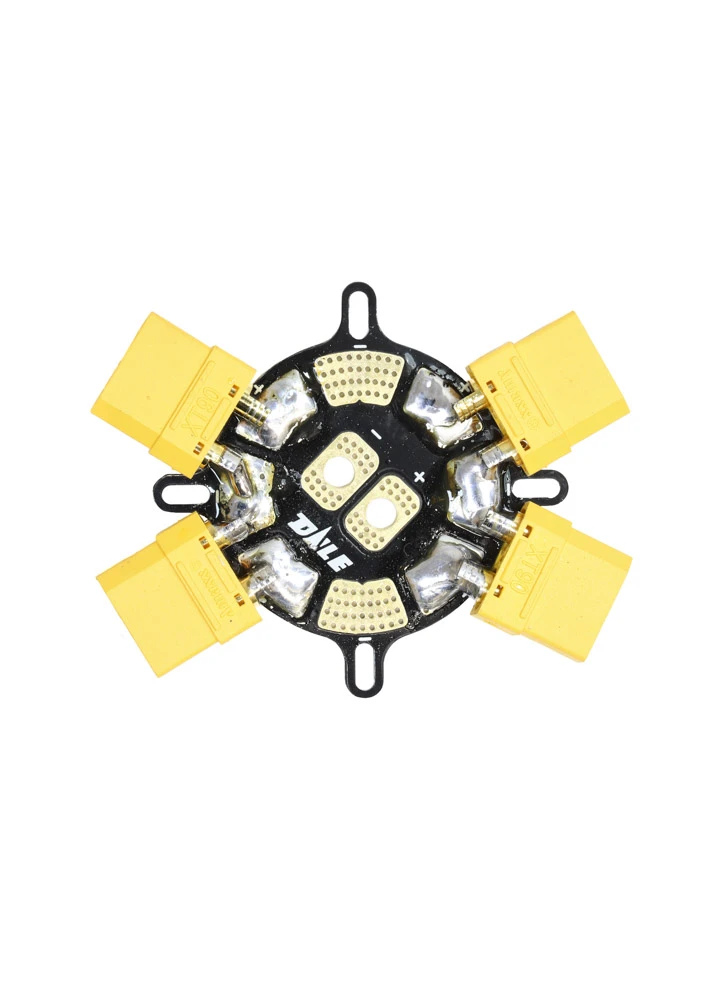

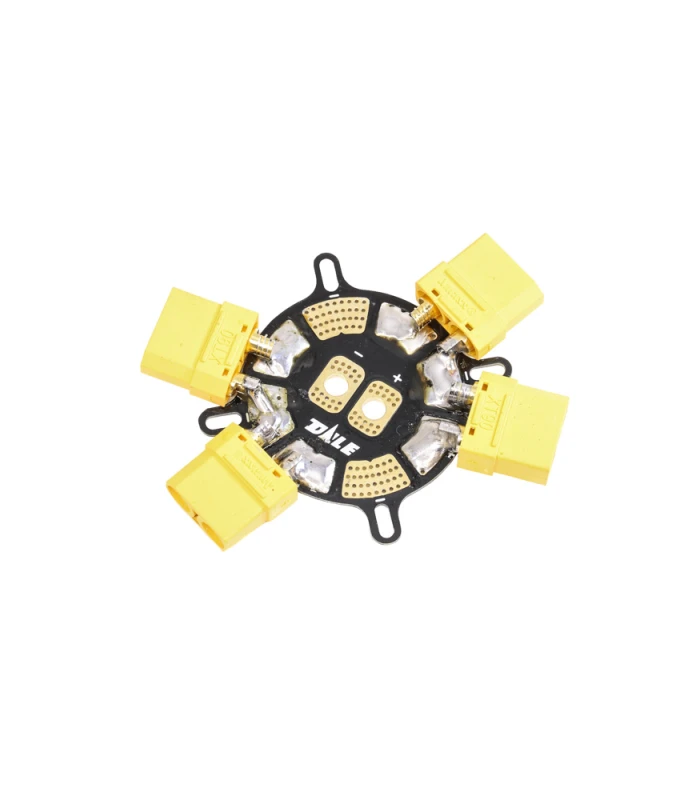

This simple Power Distribution Board (PDB) features 8 outputs (4 +/- pairs on each side of the PCB) and has a high current rating, 200Amps. The board has a well-designed layout with the power input in the centre and the outputs circling the board. If you find that you need more connections or greater current handling, you can stack two boards together (as pictured). Lastly the PDB features large contact areas which makes soldering larger cables and connectors to it straightforward. Once you have soldered the PDB, we recommend using some hot glue to insulate the contacts.

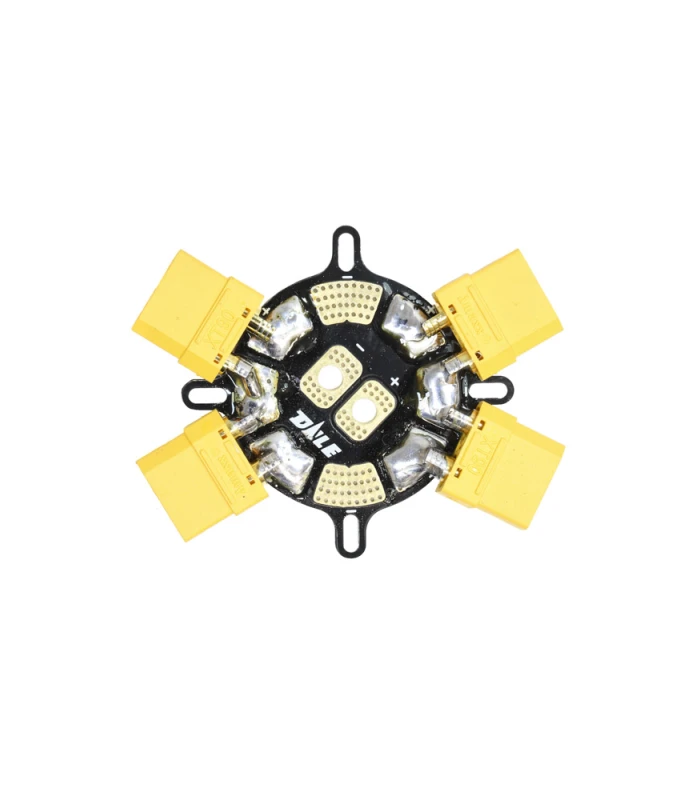

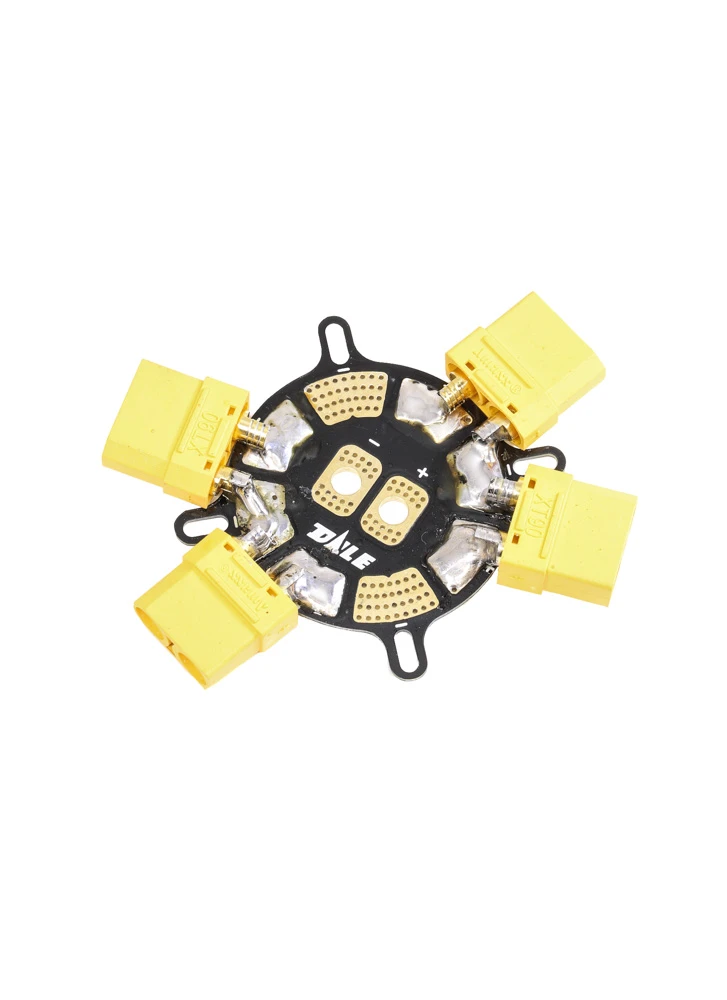

Please Note – XT90 connectors are sold separately.

Specification

Current: 200A
Power output: 16 contact points (8 either side)
Dimensions: 50mm Dia
Weight: 9.7g
Mounting holes: M3

Included:

1x 200A Power Distribution Board

Q&A

Questions and answers of the customers

What is the voltage rating of the 200A Double-Sided Multirotor ESC Power Distribution Board, and does each package include 2 PCBs?

0 votes

Q What is the voltage rating of the 200A Double-Sided Multirotor ESC Power Distribution Board, and ...... Read more answer now

A
Hi, this product doesn't have a voltage rating. As there are no electrical components on this board, the input voltage isn't really relevant. It is the current draw that would be damaging to the board if it was exceeded. The product includes one board. The board is double sided, so four pairs of solder pads each side. It doesn't include XT90 connectors.
