Tarot Quad Power Distribution Board Signal Hub TL4X004

Name: Tarot Quad Power Distribution Board Signal Hub TL4X004 - Flying Tech
Brand: Tarot
SKU: PDB-SHUB-QUAD
Price: 18.50 GBP
Availability: InStock

£18.50 Inc. VAT

This PDB for large Quads takes care of both power distribution and ESC signal wiring all in one neat package.

Only 2 left in stock

Compare

0 People watching this product now!

SKU: PDB-SHUB-QUAD Categories: Power Distribution, Electronics, Power Distribution, Power Distribution Boards (PDBs), Spare Parts, Tarot, Wiring & Connectors Tags: High Amp PDB, PDB, Power Distribution, Signal Hub, X Series, X4

Description

If you’ve built a multirotor before you’ll appreciate that there is a lot of wiring involved and it can be hard to keep all of it neat and tidy. This board has been designed to simplify the wiring and help keep it organised. It takes care of both power distribution and ESC signal wiring all in one neat package.

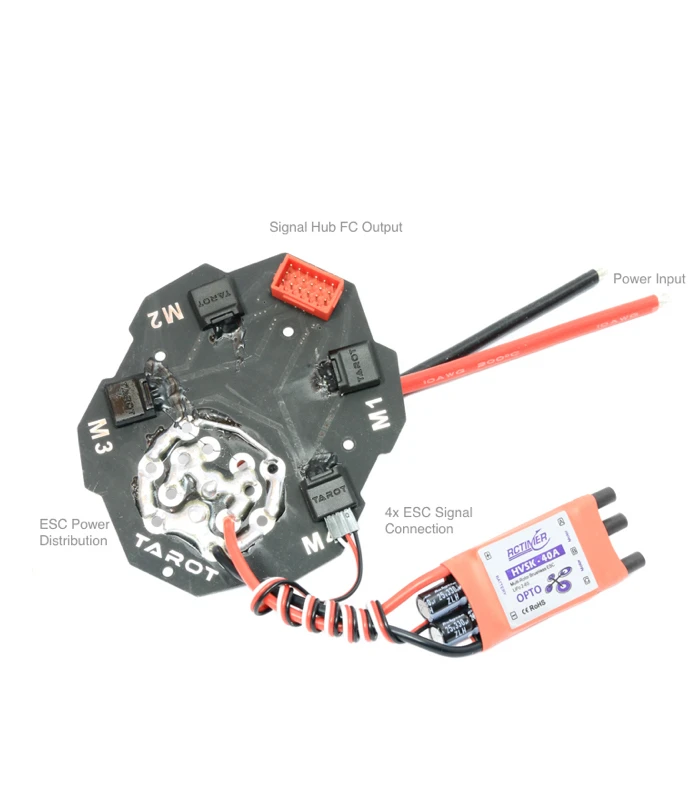

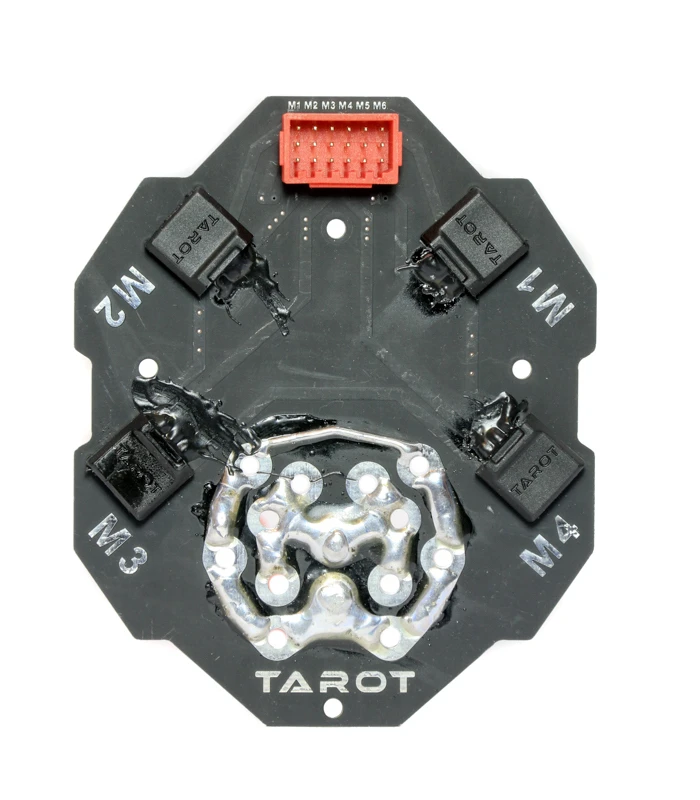

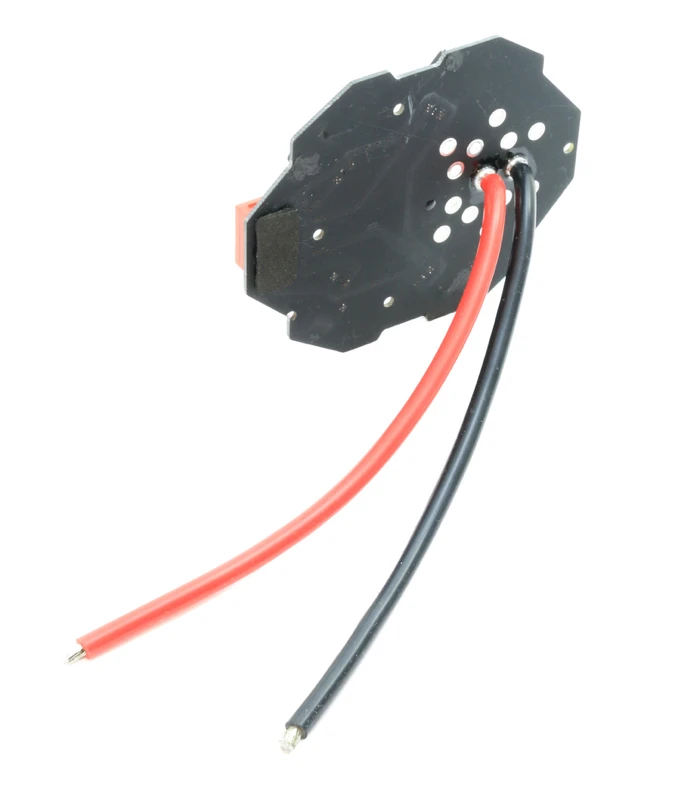

The board is designed for quadcopters so it features four ESC signal inputs labeled M1 to M4. The connections are outputted together respectively at the signal hub, ready for you to connect with your flight controller*. On the power distribution side of things, the board has six 3.5mm pre-tinned contacts to solder four ESC’s to; leaving a couple spare to power other devices like UBECs and FPV gear. High current 10AWG power leads come pre-soldered to the board ready for you to solder your preferred battery connector to. To increase the current handling capacity of the board you can apply extra solder to the positive and negative connections. A foam adhesive pad is included which should be stuck to the back of the board to insulate it from your frame.

*Important: The signal hub does not have a positive connection, only signal and ground connections.

Specification

ESC Signal Connections: 4 connection ports
Power Output: 6 x 3.5mm connections for 12-14AWG
Battery Connection: 10AWG bare 180mm leads
Size: 101 x 84 x1.5mm
Mount Holes: 4x M3
Weight: 54

Included:

1x Quadcopter PDB Signal Hub TL4X004
Insulation Sticker
Wiring Diagram
