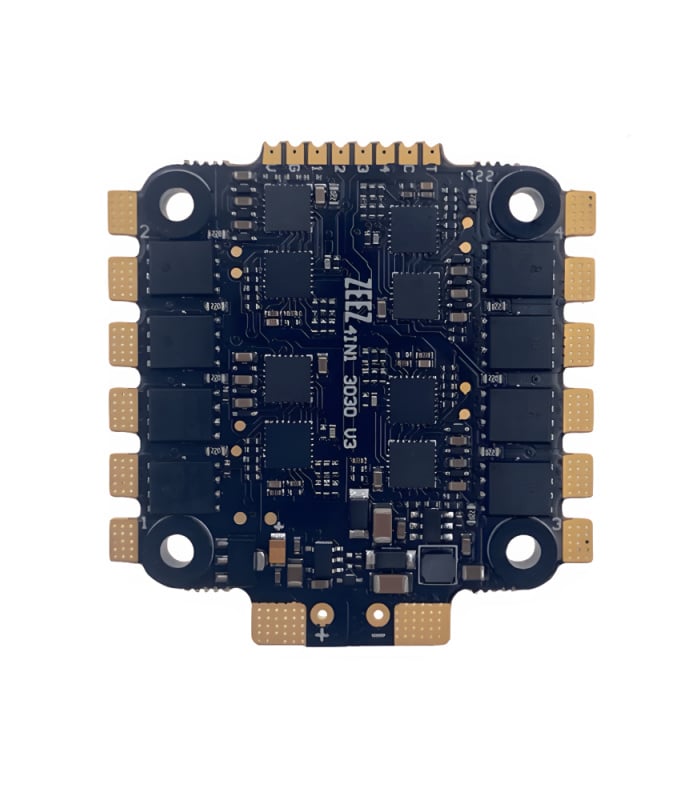

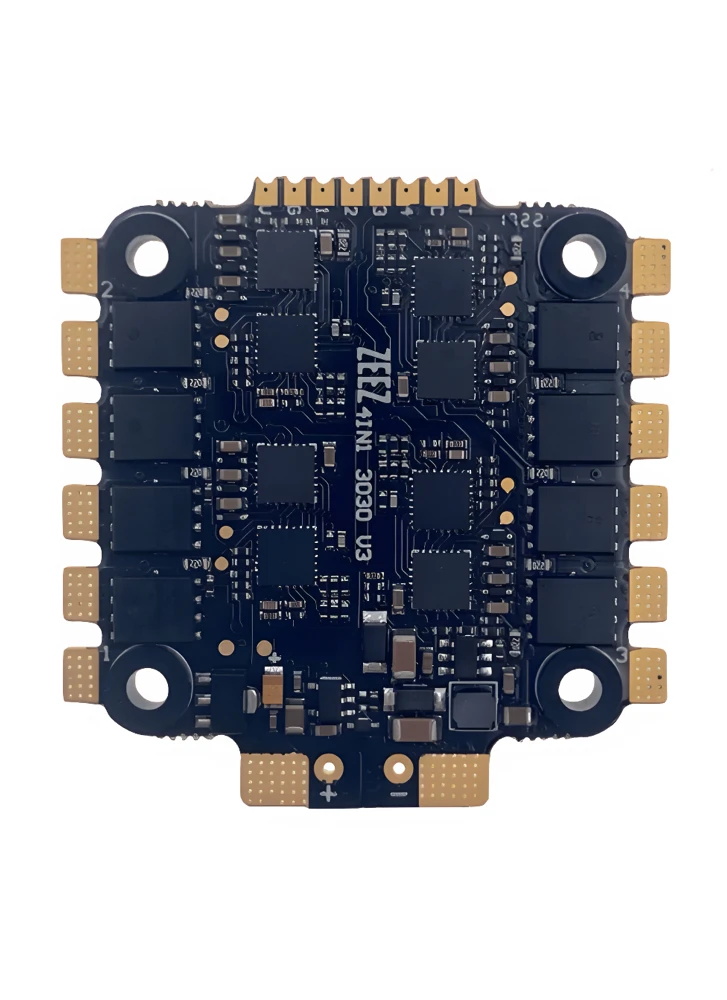

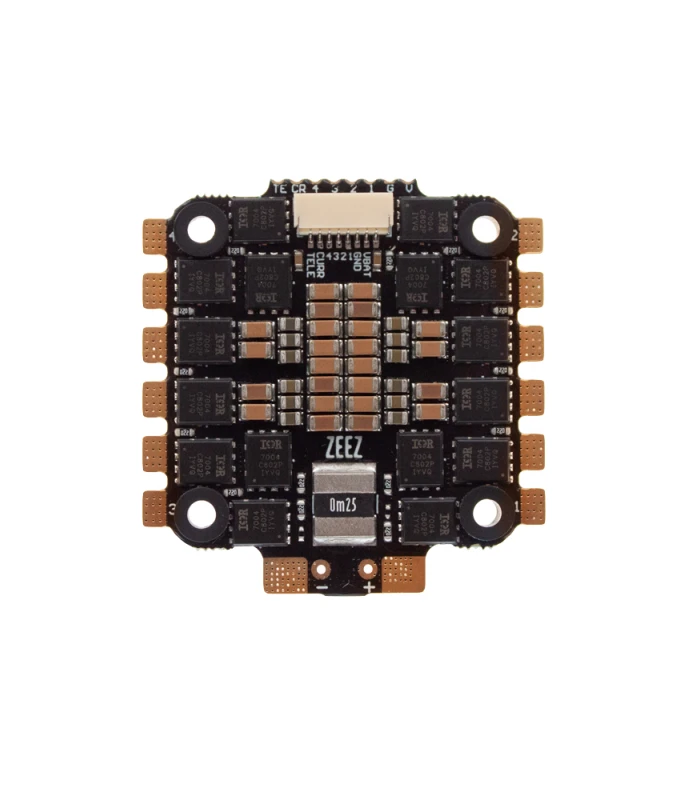

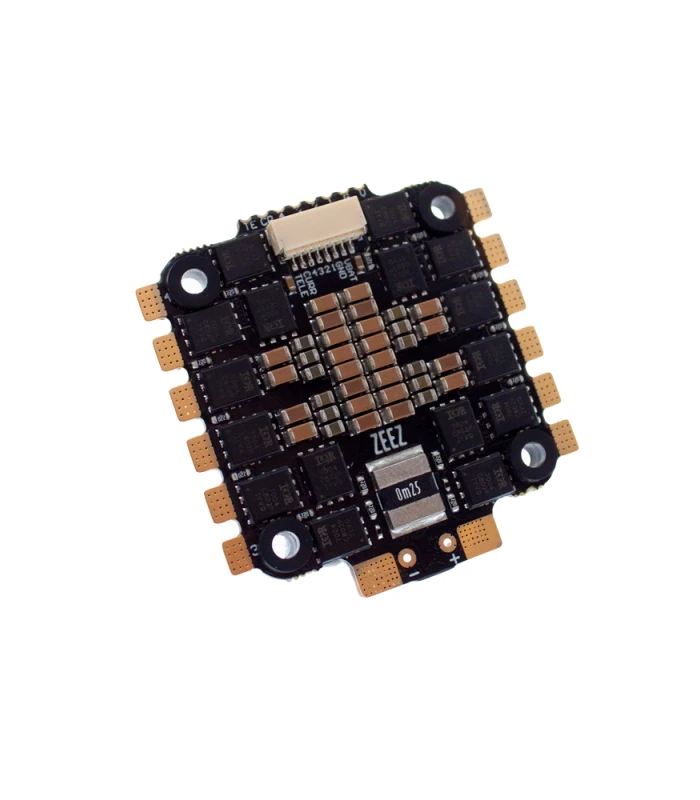

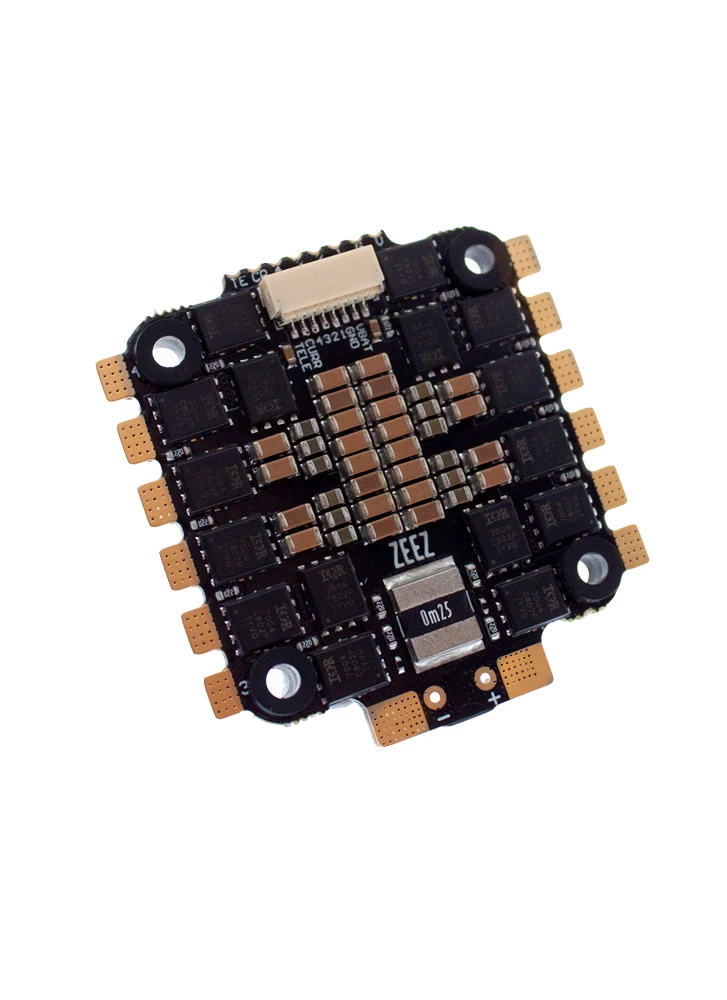

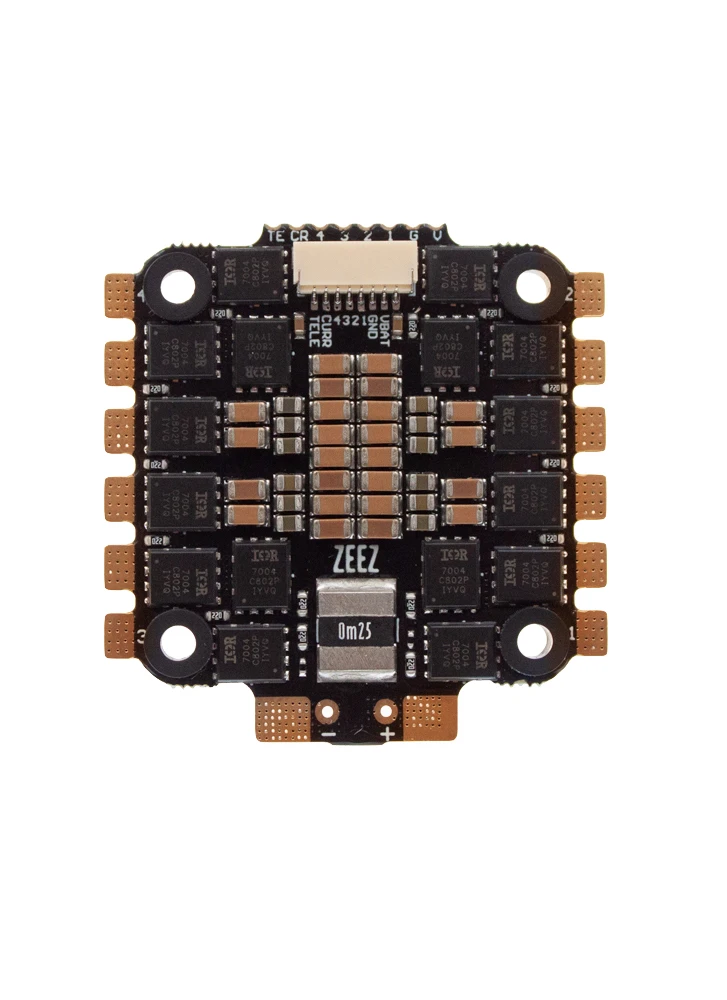

Zeez 55A 4-in-1 BLHeli32 3030 ESC V3
£59.90 Inc. VAT
The ZEEZ 55A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32.
Only 4 left in stock
Theย ZEEZ 55A 4-in-1 ESCย is an improved version of last yearโs 3030 ESC. We took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.
Theย ZEEZ 55A 4-in-1 ESCย comes with theย fastest MCUย available which is fully supported byย BLHELI32, theย STM32L4,ย it is 12% FASTER than the old STM32F3 and 67% FASTER than STM32F0. It supports Bi-directional DSHOT and all digital protocolsย (DSHOT150, DSHOT300, DSHOT600)ย out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).
We took advice from some of our newer pilots and haveย improved the solder pads by giving them more clearance, which makes solderingย as easy as 1,2,3. We also addedย additional copperย around the pads for greater strength.
 |
||
30 X 30MOUNTING HOLES |
3S-6SBATTERY INPUT |
55A-75ACONTINOUS & PEAK DRAW |
STM32G064 MHZ FREQUENCY |
BLHELI32O.G FIRMWARE |
96KHZMAX PWM FREQUENCY |
MOSFETHIGH QUALITY RDS(ON) .75 Mฮฉ |
HIGH CAPACITANCEONBOARD & EXTERNAL CAPACITOR HOLES |
CURRENTSENSOR SCALE: 250 |
- LiPo Power input: 3S-6S
- Cont. Current: 55Amps x 4
- Burst Current: 75Amps x 4
- Input wires: 12AWG-130mm* (Red/Black)
- Output Wire: solder pads and 8P connector
- Mounting holes: 30.5×30.5mm
- ESC Firmware: BLHeliSuite32
- High quality MOSFET with RDS(on) 1.1 mฮฉ 40V
Included:

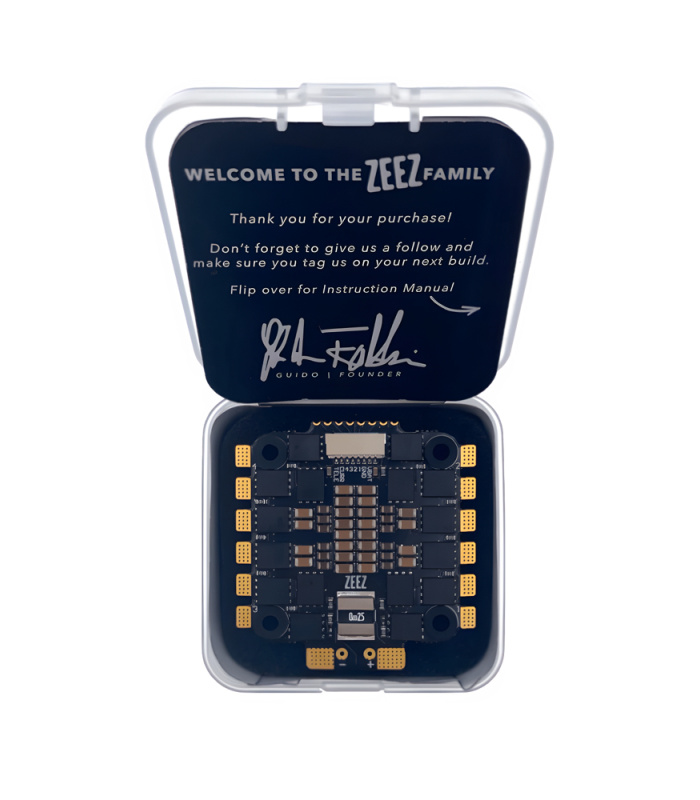

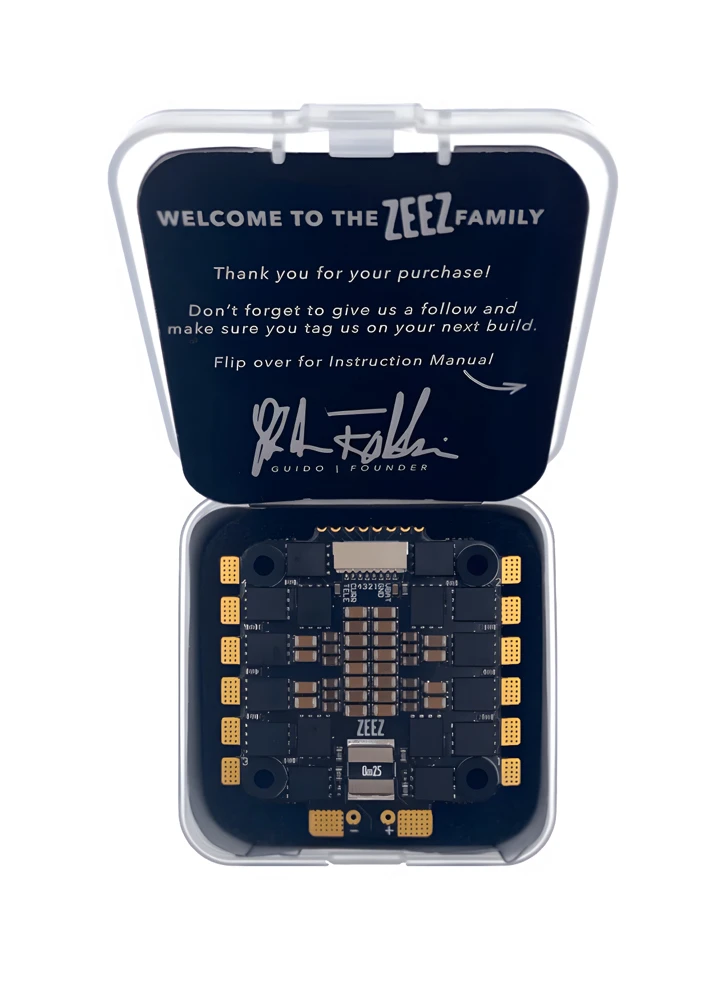

- (1X) ZEEZ 55A 4-in-1 ESC
- (4X) Aluminum Standoff
- (1X) ESC to Flight Controller 8 Pin to Servo Connector JST SH
- 1.00mm connector
- (2X) 470uF 35V Low ESR Capacitor
- (1X) XT60 with 12AWG Silicon Cable for battery connection
