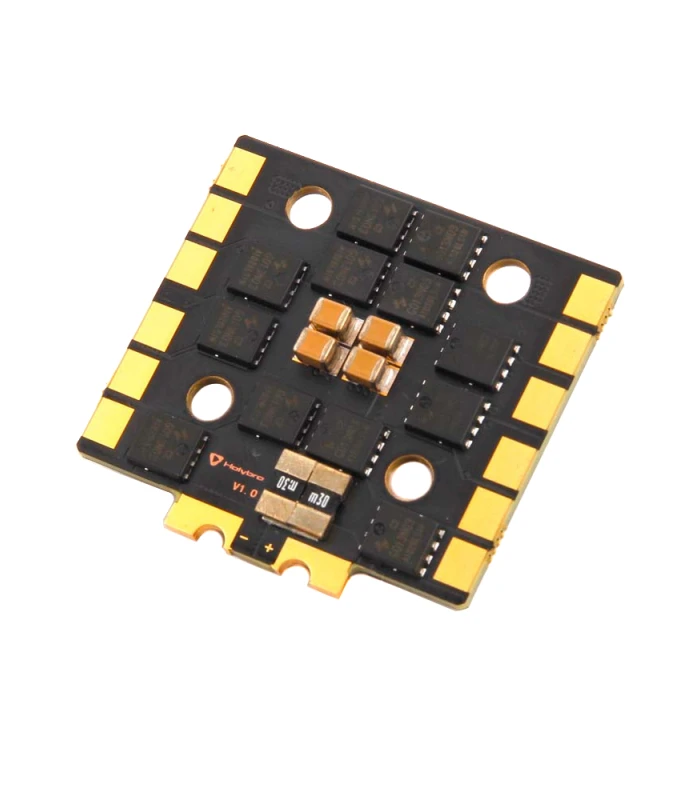

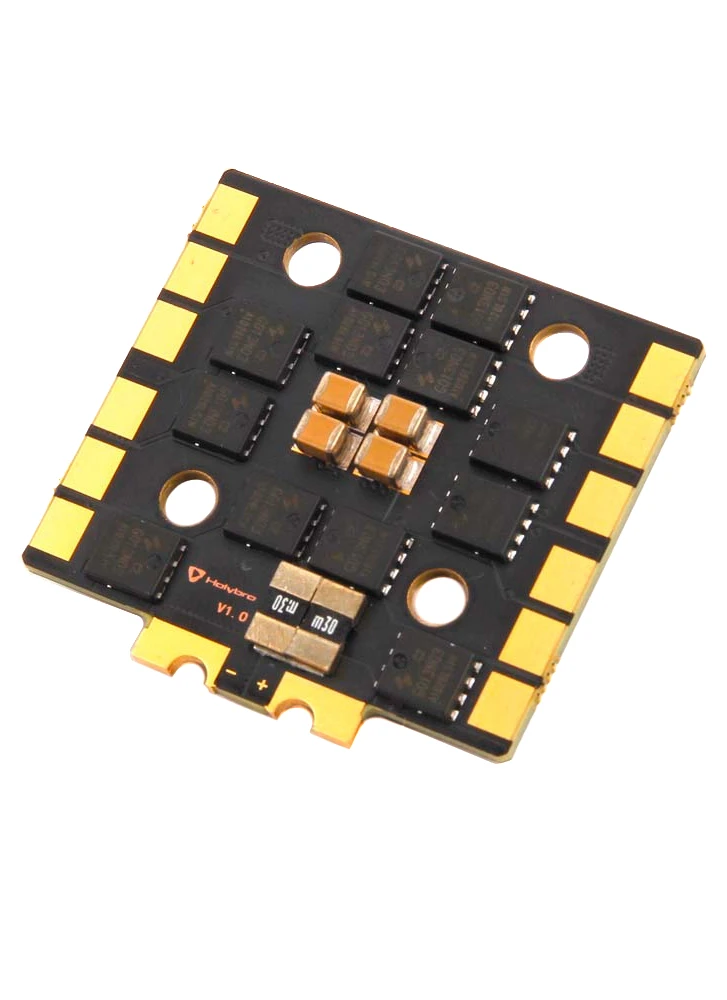

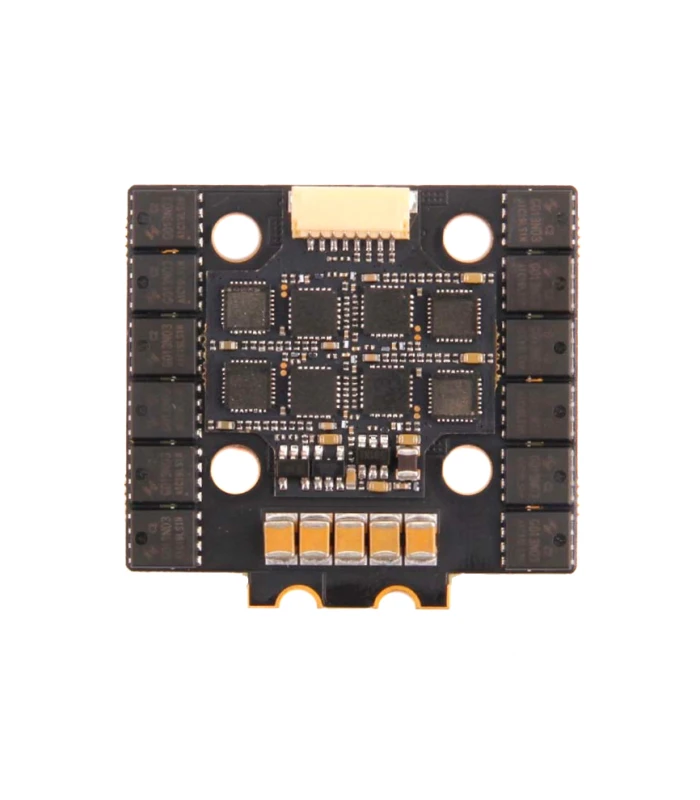

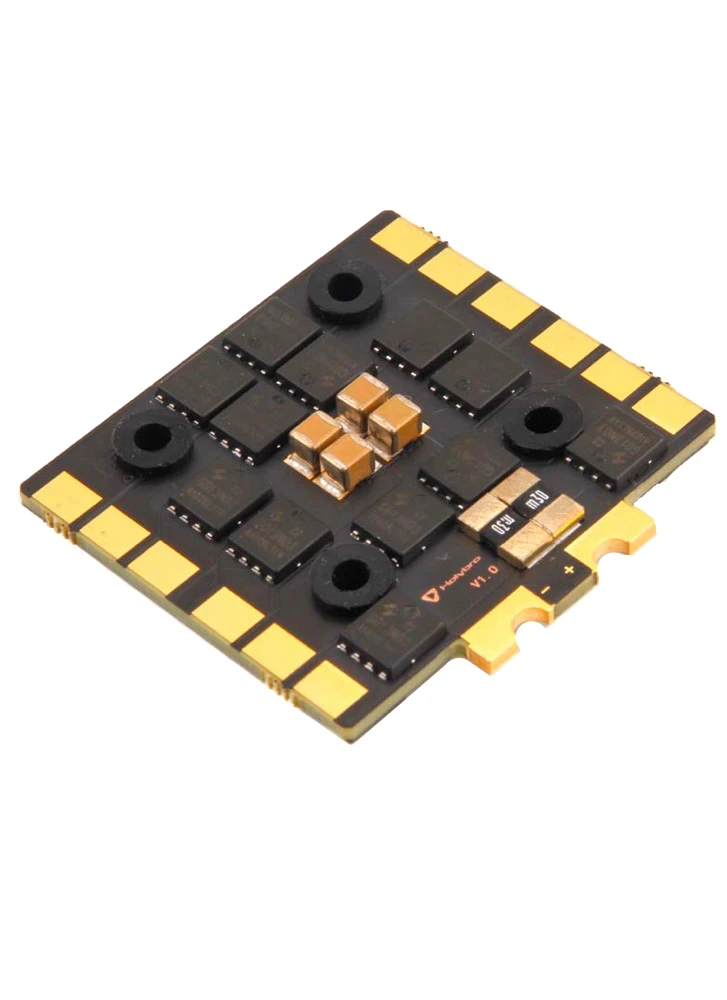

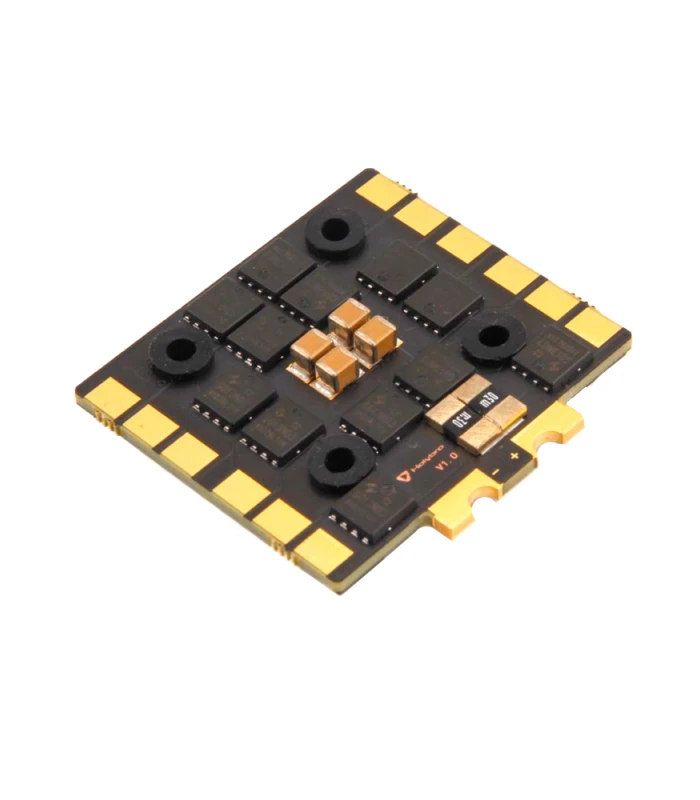

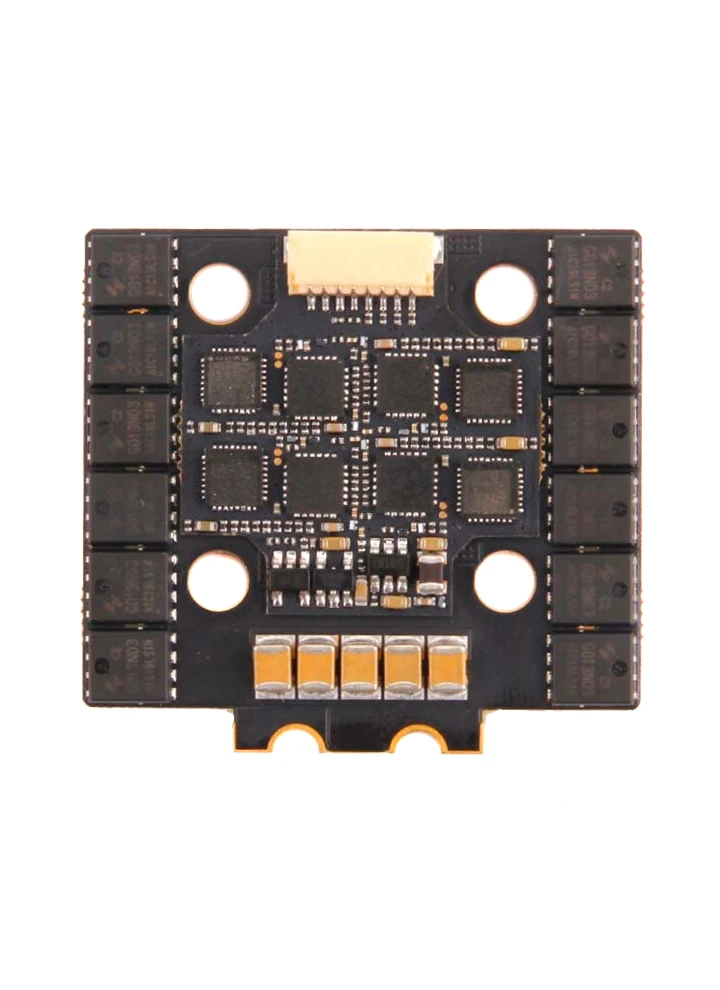

Holybro Tekko32 F4 BigFET 4in1 2020 50A ESC

Original price was: £69.50.Current price is: £54.90. Inc. VAT

BigFET stands for Big Mosfets – it is a 20×20 ESC but with its oversized mosfets, it’s mighty!

In stock

0 People watching this product now!
SKU: ESC-HB-4IN1-BIGFET50 Categories: , , Tags: , ,
Description

Tekko32 F4 BigFET 4 in 1 ESC is made for those that use the smaller 20×20 mount, but also need the power of big MOSFETs found in larger ESCs. The F4 MCU & quality MOSFET onboard will provide smooth control, quick response, and big power for racers and freestyle pilots.

Features:

  • New F4 MCU, much faster than F3 & F0
  • PWM output up to 96K (default 48K)
  • 20×20 Mount design with big MOSFET
  • Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Specification
  • Continuous Current: 50A x4
  • Burst Current: 60A x4
  • Supports 4-6S battery
  • Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
  • ESC telemetry Supported
  • Onboard analog current sensor
  • No output BEC
  • BLHeli_32 firmware
  • 1000uf 35v capacitor included (highly recommended for 6s setup)
  • Amperage meter scale ratio: 168

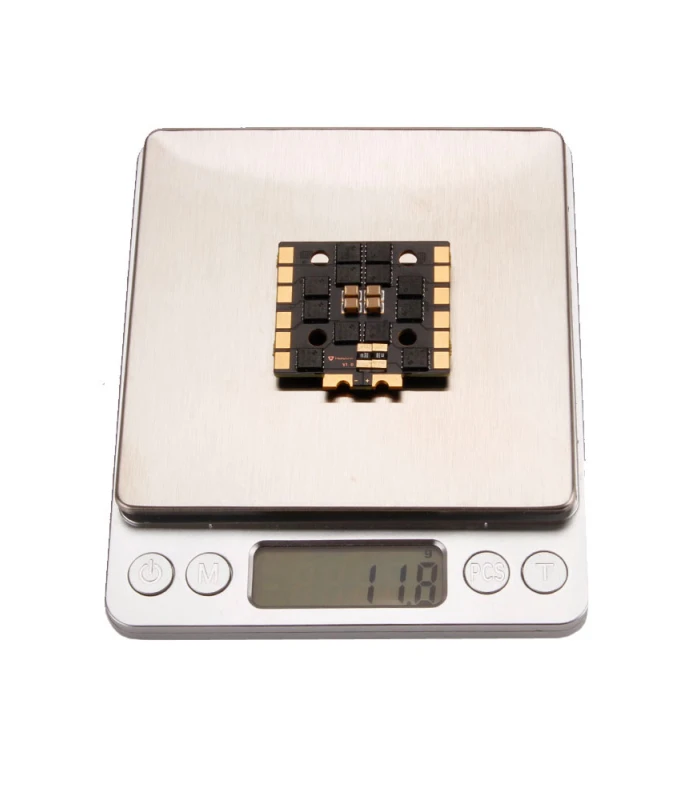

  • Dimensions: 39×36.5x6mm / Weight: 11.8g
  • Mounting holes: M4 30.5×30.5mm (M3 grommets included)

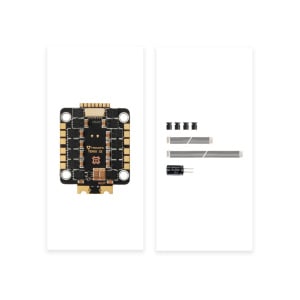

Included:

  • 1x Tekko32 F4 BigFET 4in1 50A ESC
  • 4x M3 Anti-Vibration Silicone Grommet Insert
  • 1x Electrolytic capacitor: 1000uF 35v
  • 1x 8pin to 8pin 1mm pitch 65mm cable
  • 1x 8pin to 8pin 1mm pitch 25mm cable
