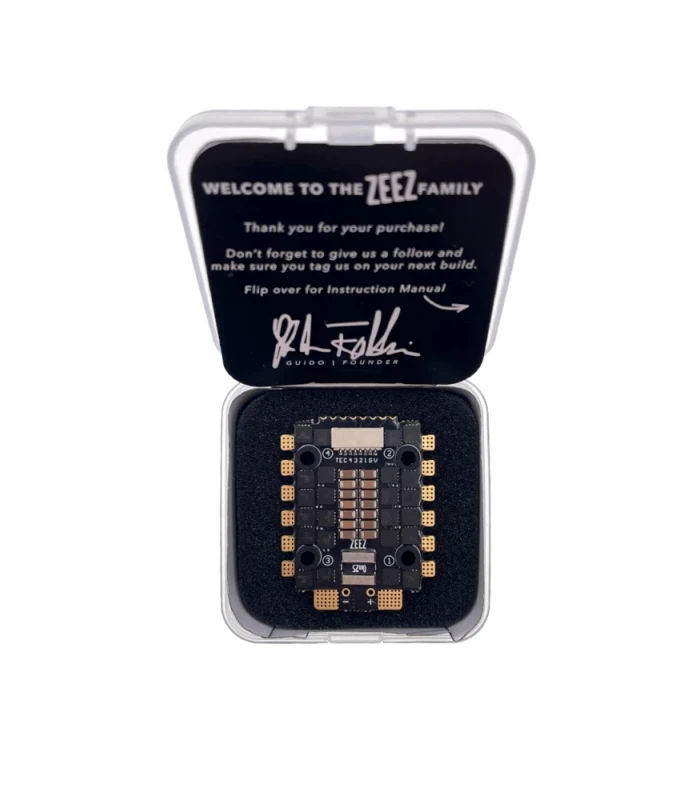

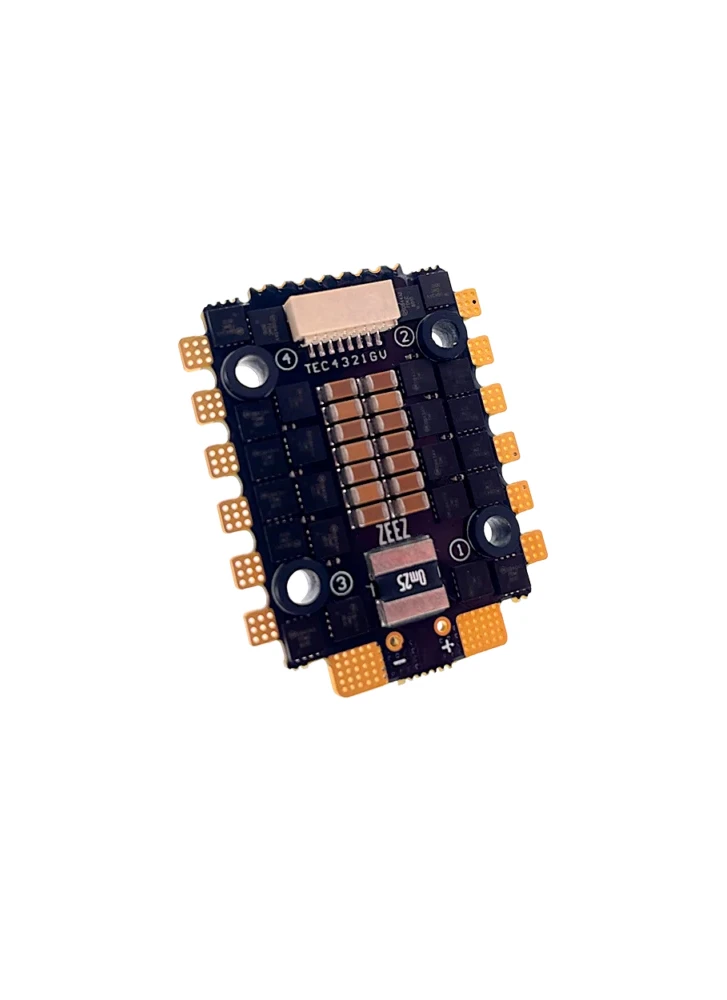

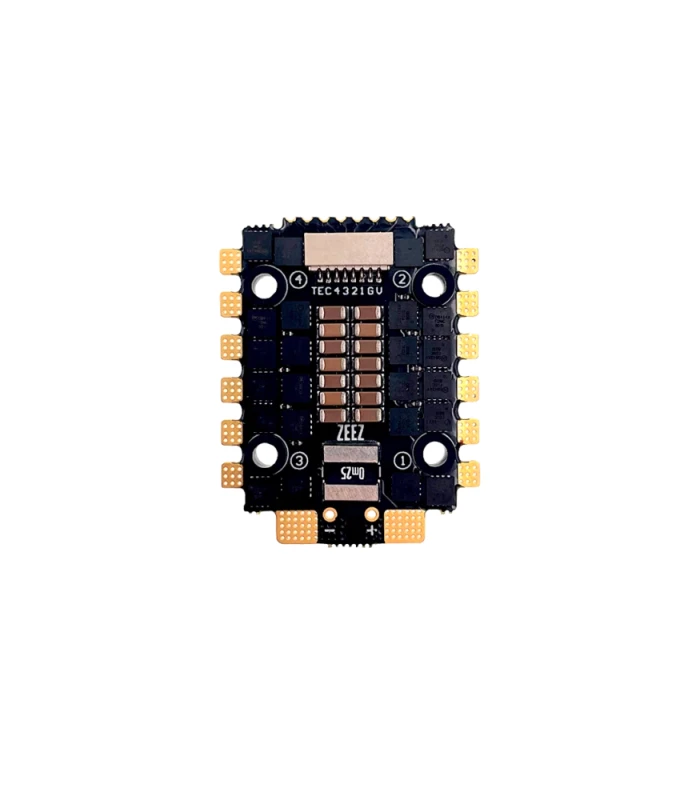

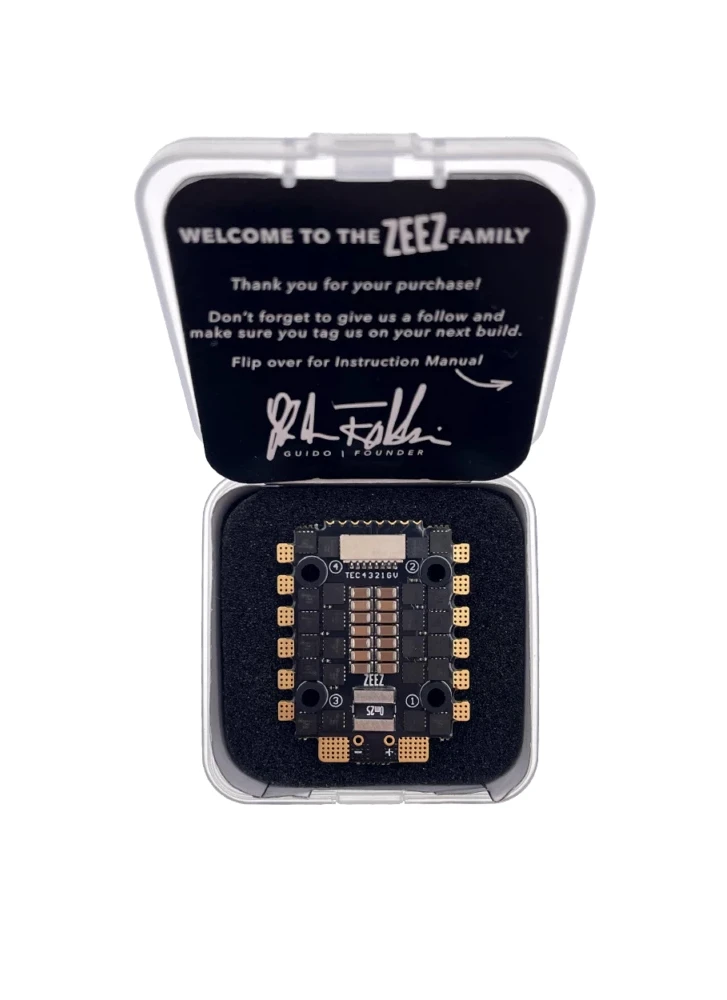

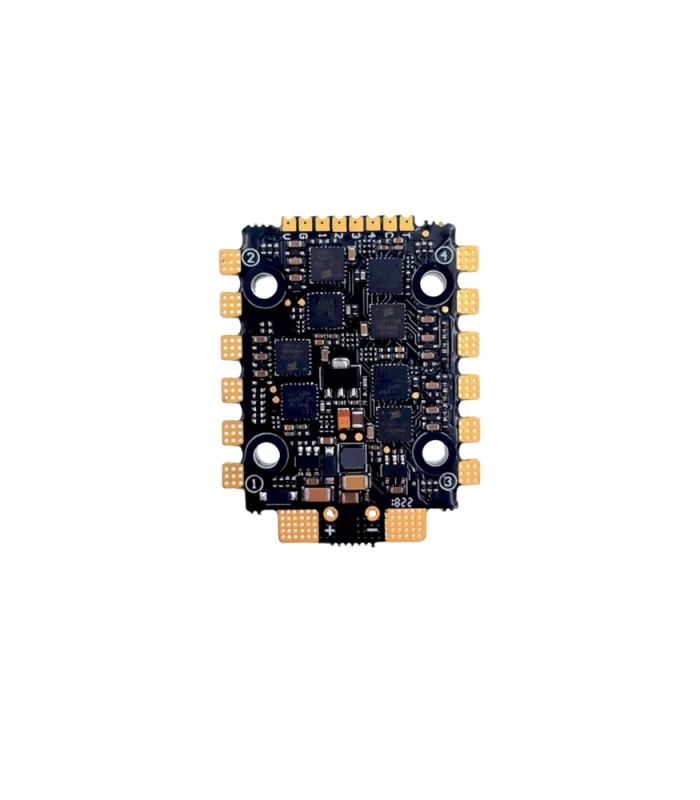

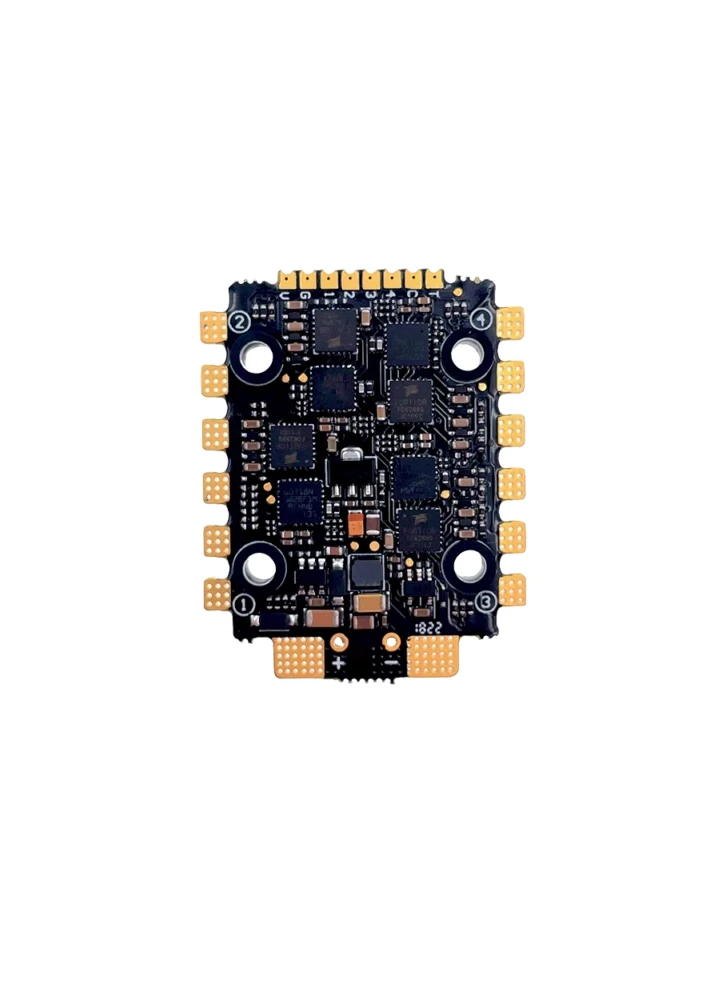

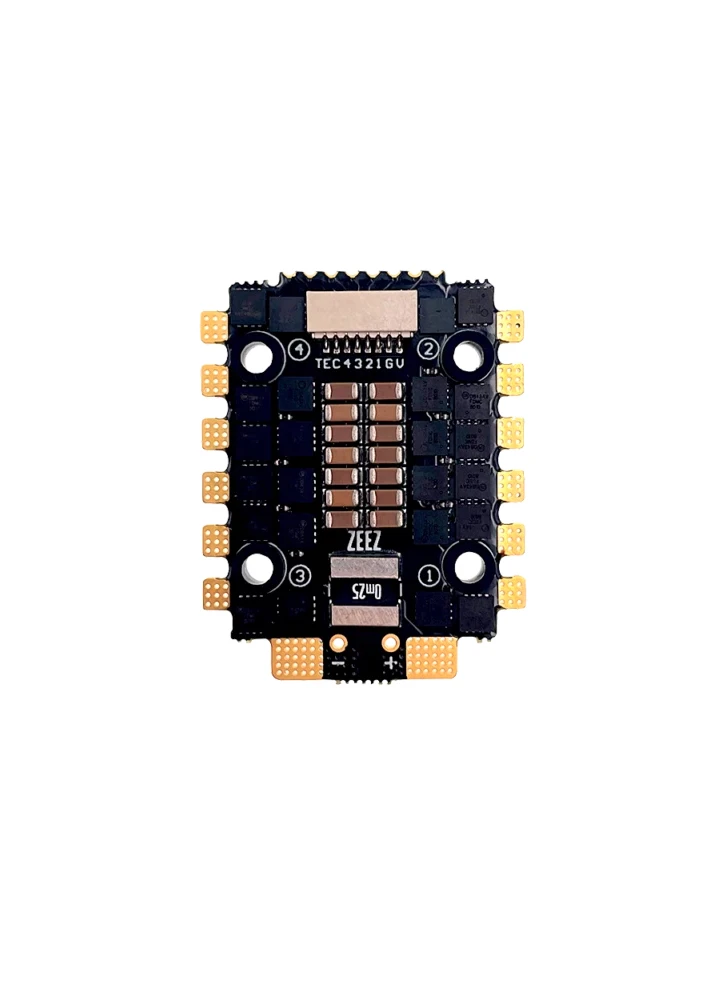

Zeez 45A 4-in-1 BLHeli32 2020 ESC V3

£59.99 Inc. VAT

The Zeez Design 2020 4-in-1 ESC supports up to 6S input and it features the powerful STM32G0 MCU.

In stock

0 People watching this product now!
Description

The ZEEZ 45A 4-in-1 ESC is an improved version of last yearโ€™s 2020 ESC. We took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.

The ZEEZ 45A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32GO. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).

We took advice from some of our newer pilots and have improved the solder pads by giving them more clearance.

45A V3

20 X 20

MOUNTING HOLES

3S-6S

BATTERY INPUT

45A-55A

CONTINOUS & PEAK DRAW

STM32GO

60 MHZ FREQUENCY

BLHELI32

O.G FIRMWARE

96KHZ

MAX PWM FREQUENCY

MOSFET

HIGH QUALITY RDS(ON)ย 1.3ย Mฮฉ
30Vย  RATED

HIGH CAPACITANCE

ONBOARD & EXTERNAL CAPACITOR HOLES

CURRENT

SENSOR SCALE: 250

Zeez 45A 4 in 1 Banner

Specification
  • LiPo Power input: 3S-6S
  • Cont.Current: 45Ax4
  • Burst Current: 55Ax4
  • Input wires: 14AWG-130mm* (Red/Black)
  • Output Wire: solder pads and 8P connector
  • High Quality MOSFET 30V rated with RDS(on) 1.3 mฮฉ
  • Mounting holes: 20x20mm
  • ESC Firmware: BLHeliSuite32

Included:

  • (1X) ZEEZ 45A 4-in-1 ESC V3
  • (4X) Aluminum Standoff
  • (1X) ESC to Flight Controller 8 Pin to Servo Connector JST SH
  • 1.00mm connector
  • (2X) 470uF 35V Low ESR Capacitor
  • (1X) XT60 with 12AWG Silicon Cable for battery connection
Downloads
Manual (pdf, 3872KB)
