Holybro Tekko32 F4 4-in-1 60A ESC BLheli_32 Dshot 1200

£77.50 Inc. VAT

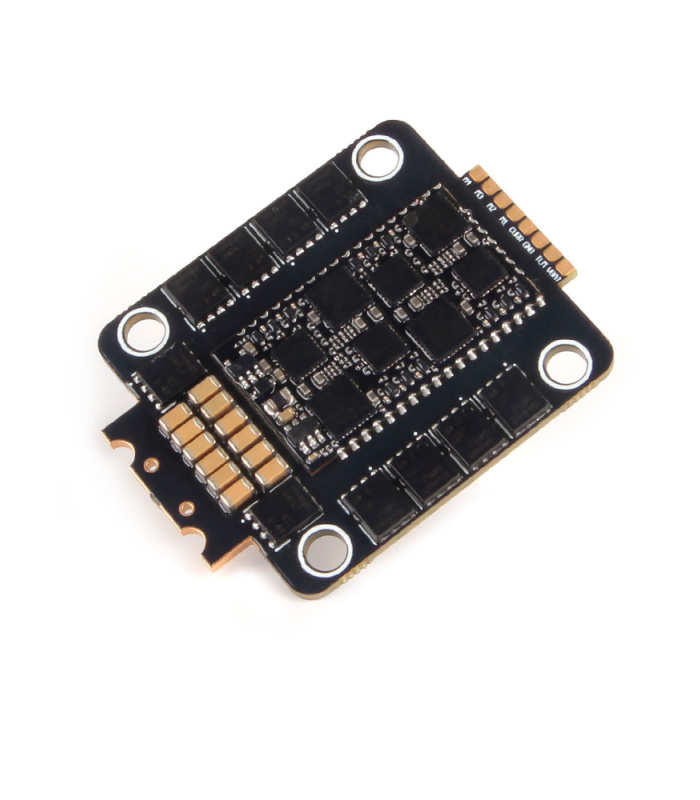

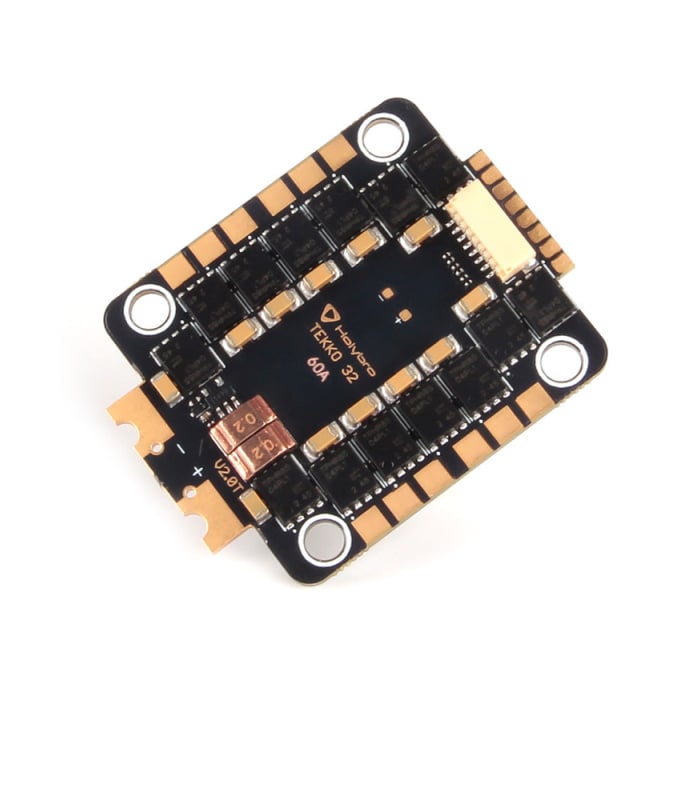

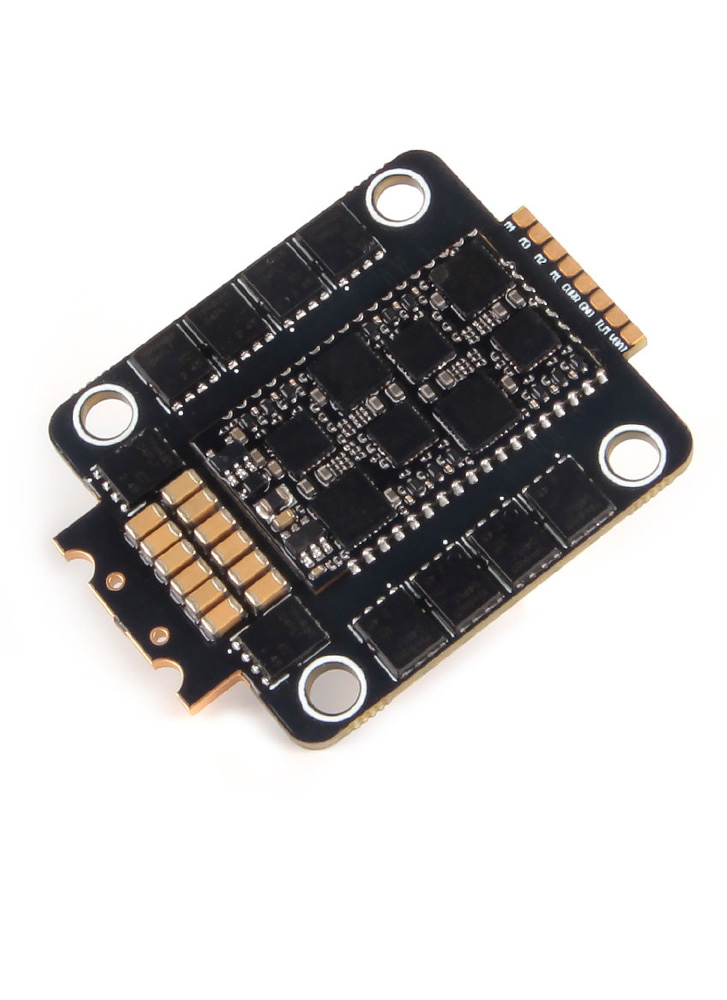

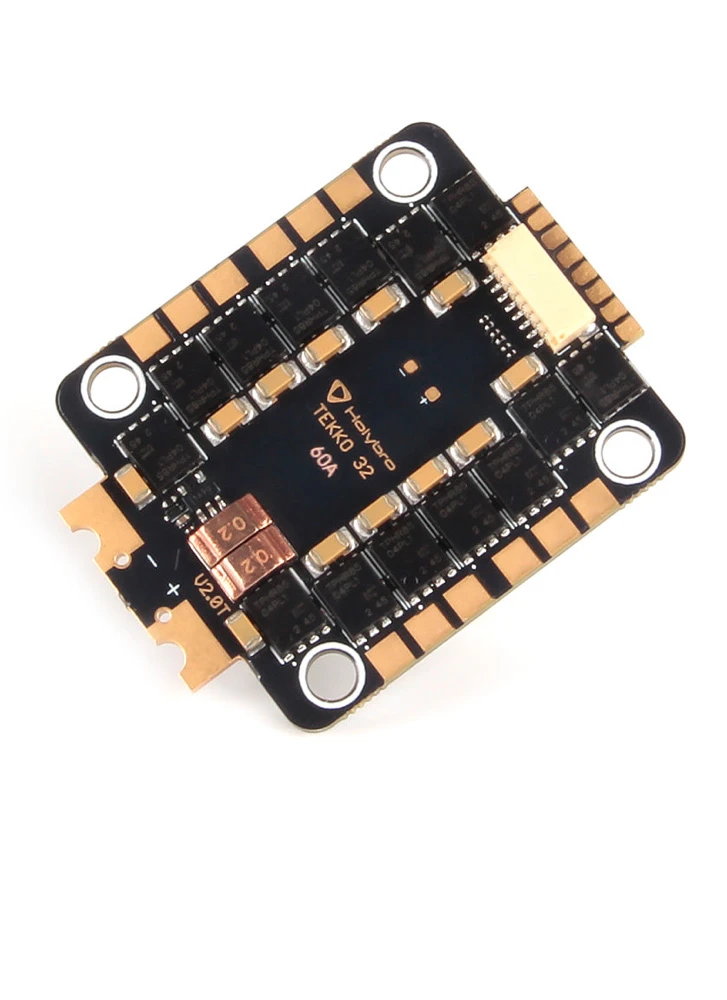

The Tekko32 F4 is a 60A 4in1 ESC with 30x30mm mounting holes from Holybro.

Out of stock

Notify me when item is back in stock.

0 People watching this product now!

Description

The Tekko32 F4 4-in-1 now upgraded to 60A

The Tekko32 F4 4in1 60A ESC is a high-performance electronic speed controller. This compact 4-in-1 ESC is designed with a 30×30 mounting pattern and supports 4-6S LiPo batteries. It has all new High-quality MOSFETs with low internal resistance and low heat generation, ensuring efficient power delivery and a smooth flight experience while allowing the ESC to boast a continuous current of 60A. It has a separate drive and control circuit to broaden the current capability of the drive circuit while reducing electrical interference in the control circuit. With its cutting-edge BLHeli_32 firmware and 96K PWM frequency, enjoy lightning-fast response times and exceptional motor control. The layout of the PCB is very logical and with large contact pads it’s also easy to solder.

For 6S setups please use the included extra low ESR 35V capacitor. This can be attached to the dedicated + / – pads on top of the ESC.

Features:

All new High-quality MOSFETs with low internal resistance and low heat generation
Fast F4 MCU @150MHz (compared to F3 @108MHz & F0 @48MHz)
A separate drive and control circuit, reducing the electrical interference
Continuous Current Rating of 60 Amps
32bit ESC with BLHELI32 firmware
Supports Oneshot / Multishot / Dshot PWM / DSHOT 1200 / Damped light

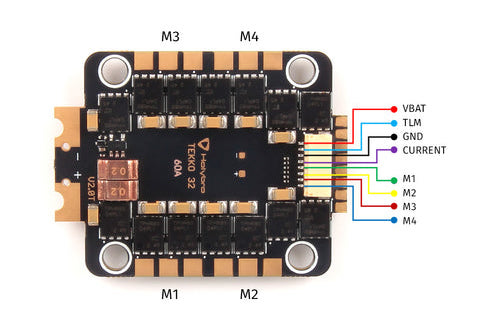

Separate current sensors for each motor, Voltage output (VBAT), ESC Telemetry (TELEM)
4-in-1 ESC with 30.5×30.5mm mounting holes
4S – 6S LiPo Input
No BEC

Specification

Continuous Current: 60A x4
Burst Current: 70A x4
Battery Supports: 4-6S
PWM Frequency: 16k to 96k
Supports DShot 150/300/600/1200/2400
Supports MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry Supported
Onboard analog current sensor
BLHeli_32 firmware
1000uf 35v capacitor included (highly recommended for 6s setup)
Amperage meter scale ratio: 120

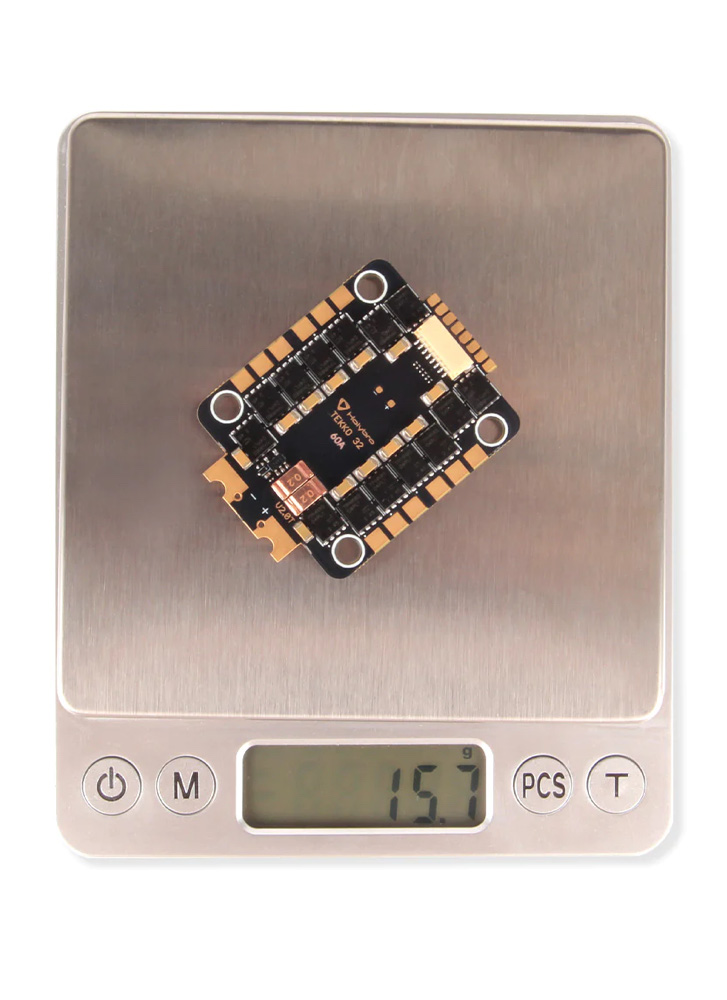

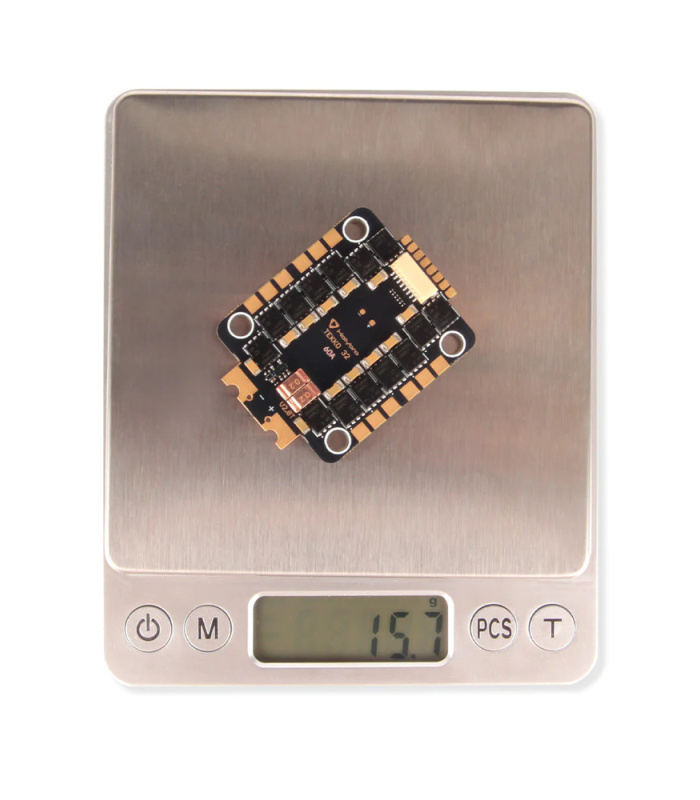

Dimensions: 48x37x6mm / Weight: 15.7g
Mounting holes: M4 30.5×30.5mm (M3 grommets included)

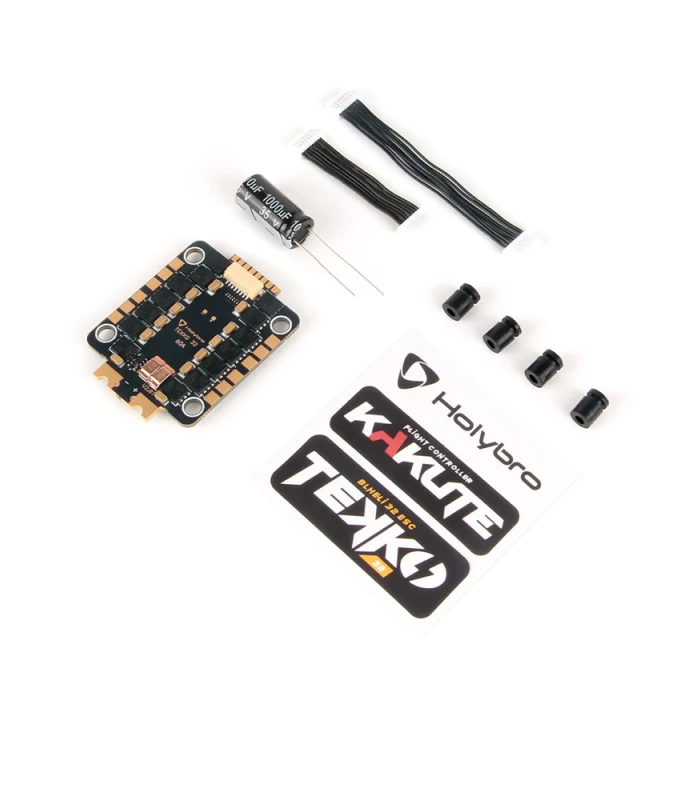

Included:

1x Tekko32 F4 4in1 60A ESC
4x M3 Anti-Vibration Silicone Grommet Insert
1x Electrolytic capacitor: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
