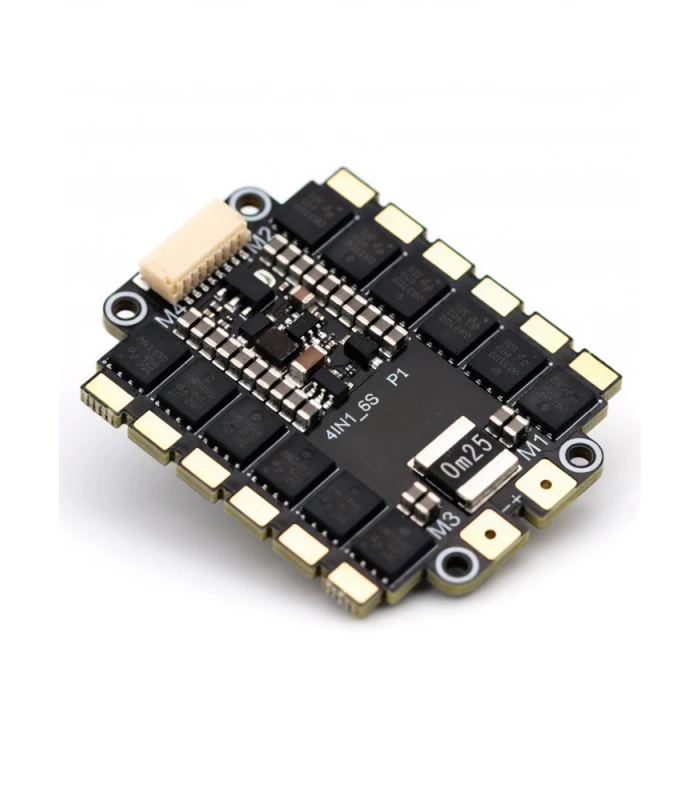

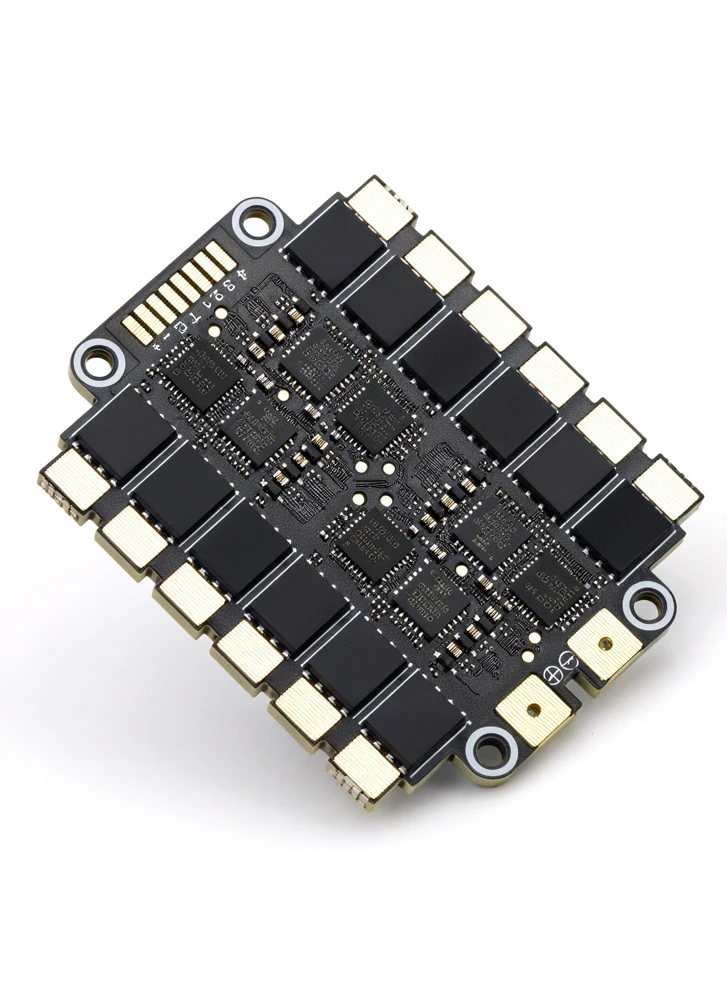

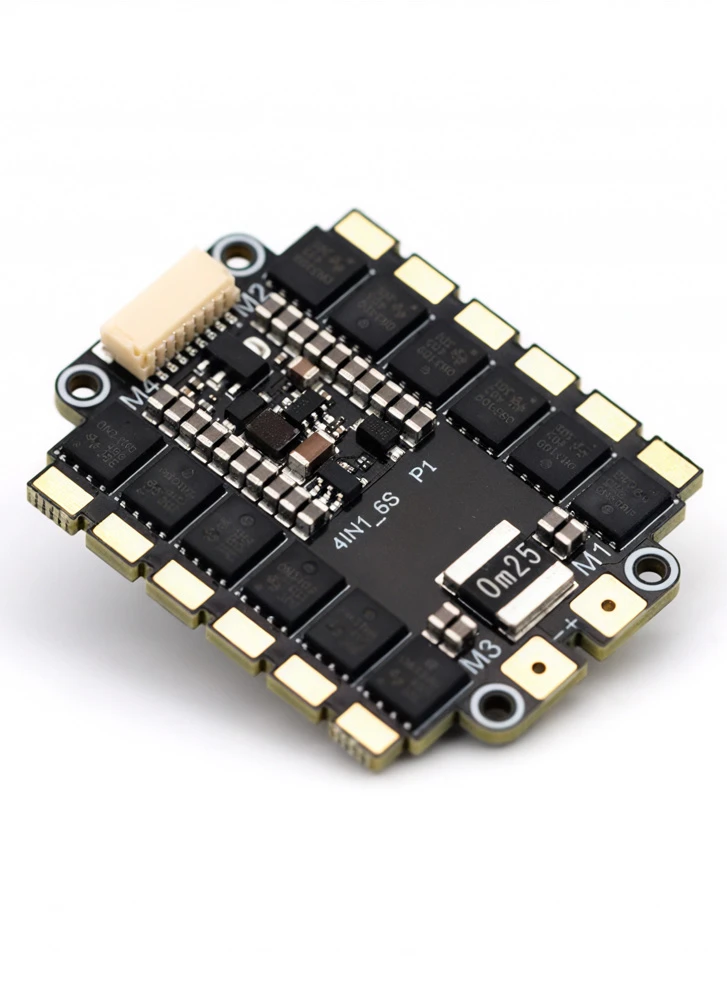

TBS Lucid 6S 4in1 ESC with AM32 Firmware

£49.90 Inc. VAT

4in1 AM32 6S ESC with 60A continuous, 70A burst rating. Gorilla mounting pattern.

In stock

Frequently Bought Together

TBS Gorilla 20x20 Adapter

Backwards-compatibility for mounting the new TBS Lucid 6S flight stack on any 20x20 compatible frame.

TBS Gorilla 30x30 Adapter

Backwards-compatibility for mounting the new TBS Lucid 6S flight stack on any 30x30 compatible frame.

0 People watching this product now!
Description

The TBS Lucid 4in1 6S ESC is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

Featuring an 8 layer high current density board with twice the market average on-board capacitance, the ESC is built to withstand the harshest punishment of everyday FPV flying while delivering buttery-smooth flight characteristics paired with face-melting acceleration. By focusing on thermal dissipation from the ground up, the flight stack achieves excellent power to weight density without the need of heavy heat sinks.

A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.

Features

  • 4in1 ESC, 60A continuous/ 70A peak(60s), 3-6s input, 13.81g
  • AlkaMotors32 (AM32) FW, current-sensor port
  • Bi-directional Dshot 300/600, KISS ESC Telemetry

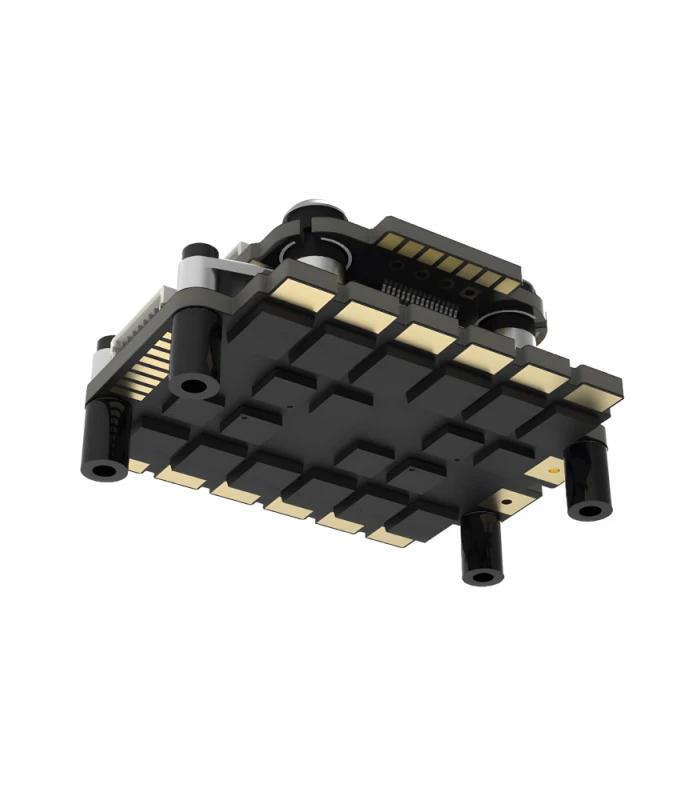

GORILLA MOUNT

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.

Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.

DOWNLOADS

Specification
  • ESC software: AlkaMotors32 (AM32)
  • ESC target: tbslu6s4in1
  • Rated current: 60A x 4, 300 seconds
  • Peak Current: 70A x 4, 60 seconds
  • Propellers: Up to 9″, over 7″ requires good airflow
  • Input: 3-6S Lipo
  • Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry
  • ESC Current port: Yes
  • BEC: No
  • Size: 34mmx44mm
  • Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets forย 20×20 mm, 30.5×30.5 mm
  • Weight: 13.81g, 19g incl. brackets

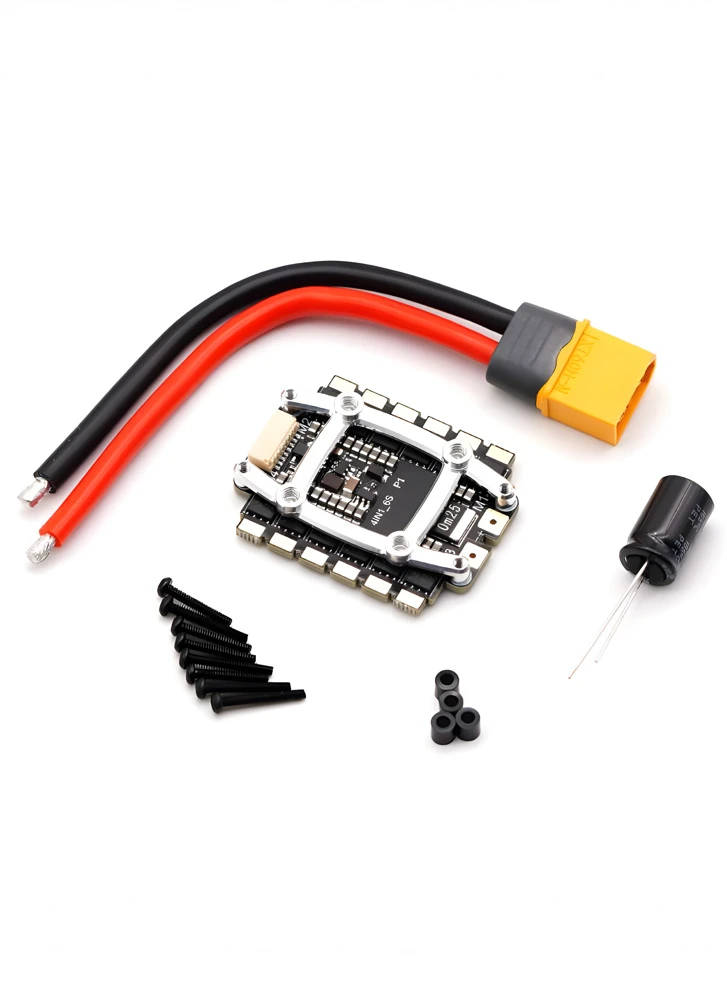

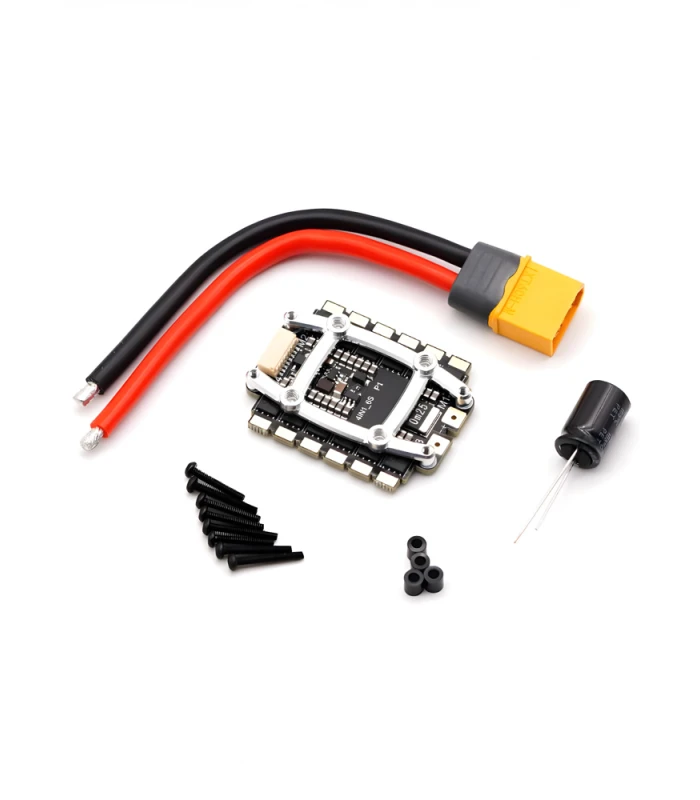

Included:

  • TBS Lucid 4in1 ESC
  • 4x 2.2x4mm standoffs
  • Aluminum top bracket for 20×20 FCs
  • XT60 power connector
  • 470uF 6S Capacitor
  • 4x M2x12 screws
  • 4x M2x14 screws
Downloads
Manual (pdf, 364KB)
