Matek AP_Periph CAN Node L431 DroneCAN Peripheral Interface Board
£15.90 Inc. VAT
Convert supported GPS, compass, barometer, airspeed and GPIO peripherals into native DroneCAN devices for seamless integration with ArduPilot flight controllers.
In stock|Next shipping: 29/07/2026

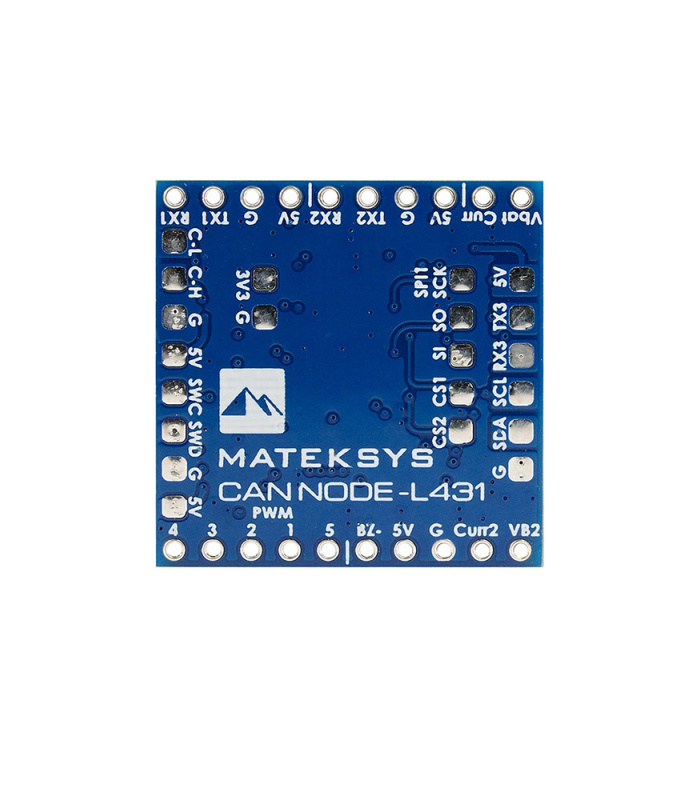

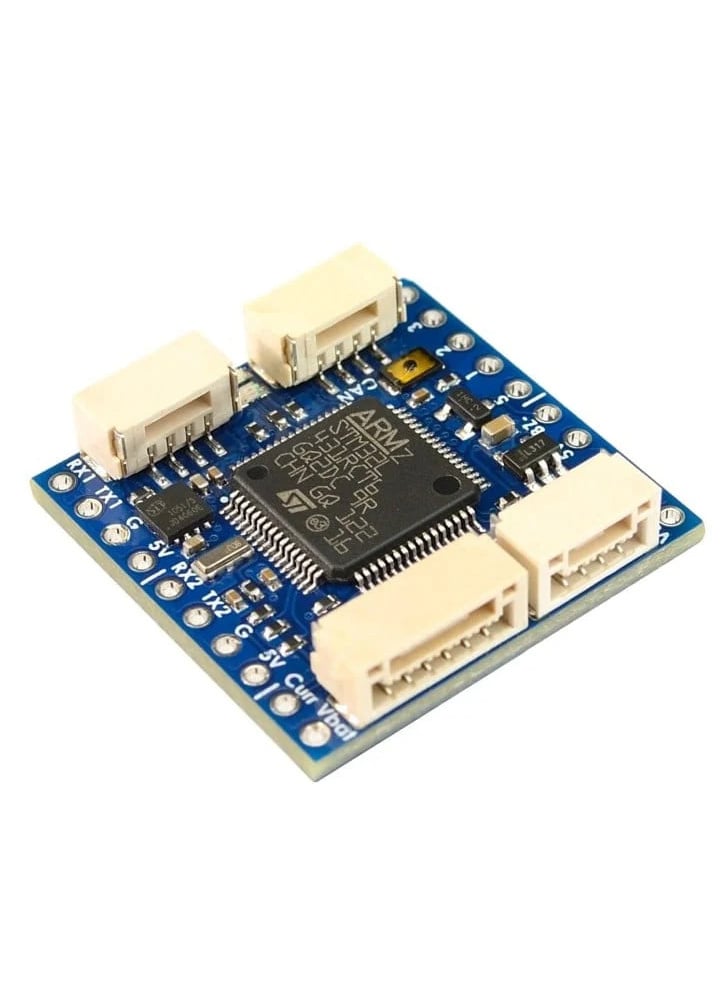

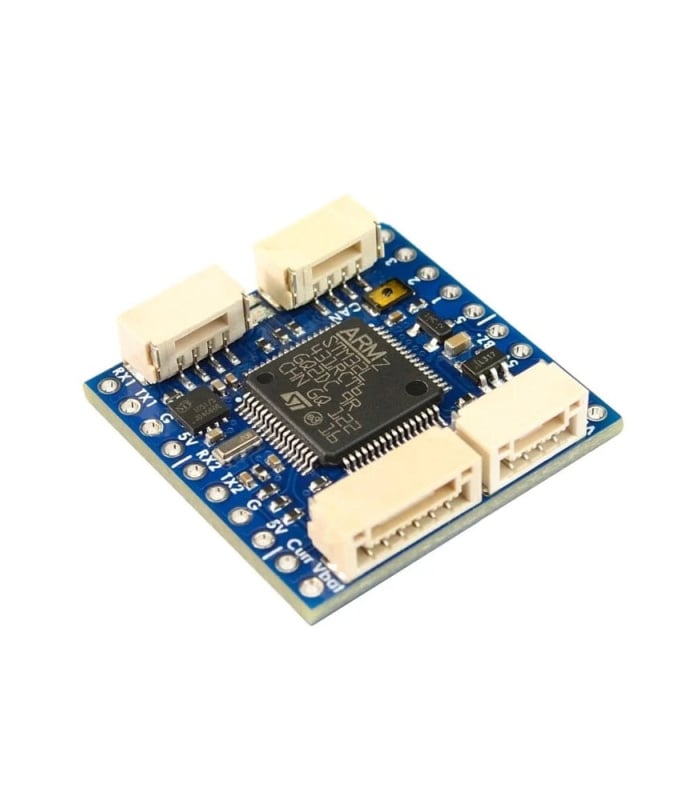

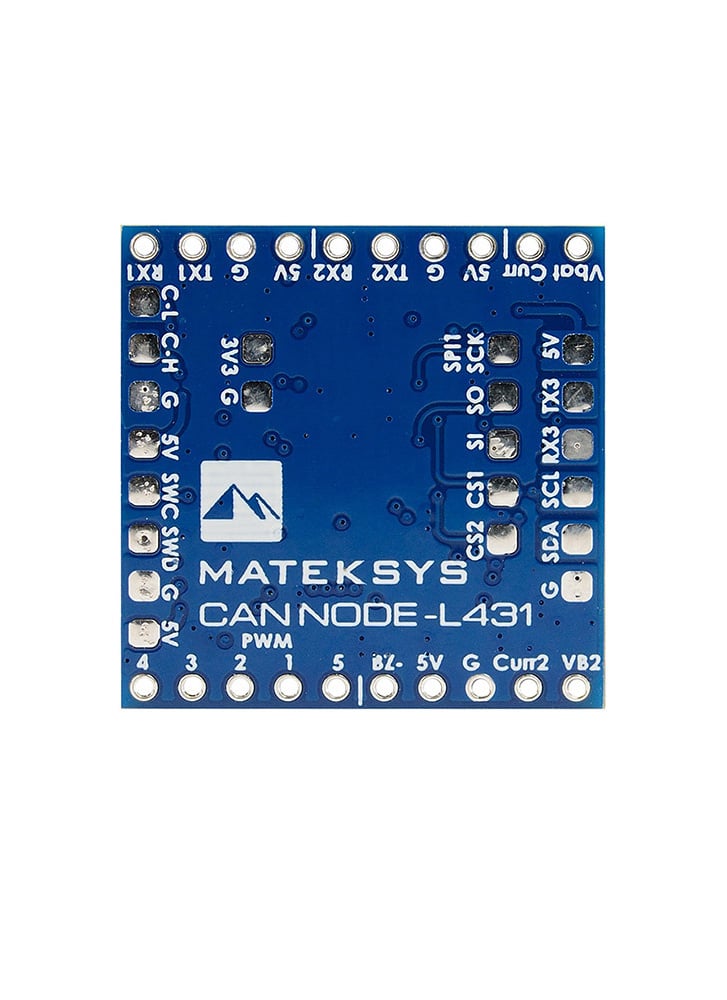

The Matek AP_Periph CAN Node L431 is a versatile DroneCAN peripheral interface board designed for ArduPilot systems. Running ArduPilot’s AP_Periph firmware on an STM32L431 microcontroller, it allows supported UART, I²C, SPI and GPIO devices to be converted into native DroneCAN peripherals, simplifying wiring while improving reliability and expandability.

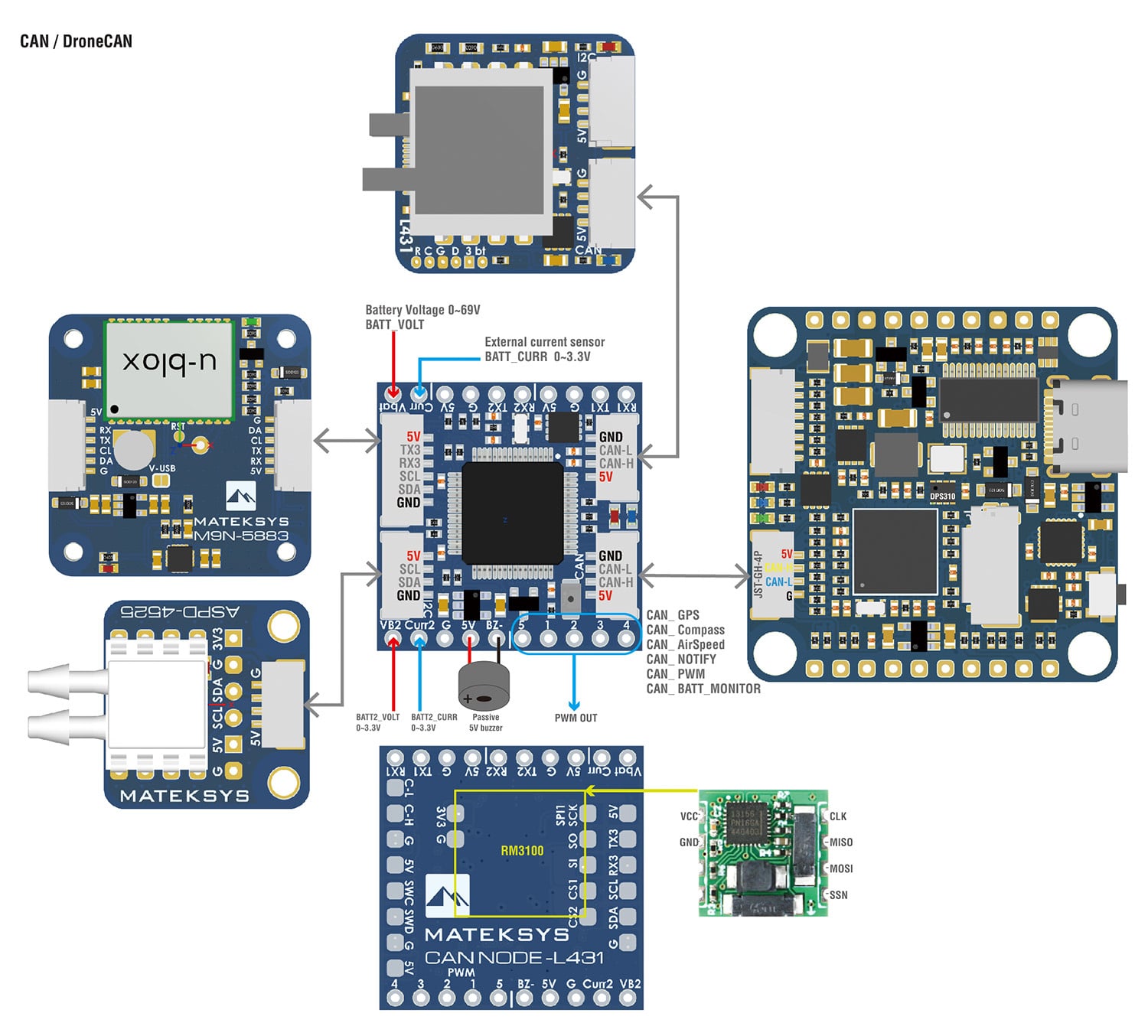

The CAN Node L431 can interface with supported GNSS receivers, compasses, barometers and airspeed sensors, as well as providing PWM outputs, buzzer/LED notification and battery voltage/current monitoring over the DroneCAN bus. It features three UARTs, I²C, SPI, four ADC inputs and five PWM outputs, making it ideal for creating custom DroneCAN peripherals or integrating existing sensors into an ArduPilot CAN network.
With dual JST-GH CAN connectors for easy daisy-chaining and support for firmware updates through the DroneCAN GUI Tool, the CAN Node L431 is a flexible solution for both UAV builders and developers looking to expand the capabilities of their ArduPilot-based aircraft.
Features
- Converts supported peripherals into DroneCAN devices using ArduPilot AP_Periph firmware
- Compatible with supported GNSS, compass, barometer and airspeed sensors
- STM32L431 MCU with 256KB Flash memory
- Dual JST-GH DroneCAN connectors for simple network integration
- 3 × UART interfaces
- 1 × I²C interface
- 1 × SPI interface
- 4 × ADC inputs for battery voltage and current monitoring
- 5 × PWM outputs
- GPIO output with buzzer/LED notification support
- Supports firmware updates via DroneCAN GUI Tool
- Compact 26 × 26mm design weighing just 3.7g
- MCU: STM32L431xC (256KB Flash)
- CAN Protocol: DroneCAN
- CAN Data Rate: Up to 1Mbit/s
- CAN Connectors: 2 × JST-GH 4-pin (parallel)
- UART: 3
- UART1: General purpose
- UART2: MSP (default), DFU
- UART3: GPS (default)
- I²C: 1
- SPI: 1
- ADC Inputs: 4
- PWM Outputs: 5
- GPIO: 1 (TIM16 buzzer output)
- Debug Interface: SWD
- Input Voltage: 4.5–5.5V
- Current Consumption: Approx. 40mA
- Operating Temperature: -20°C to +80°C

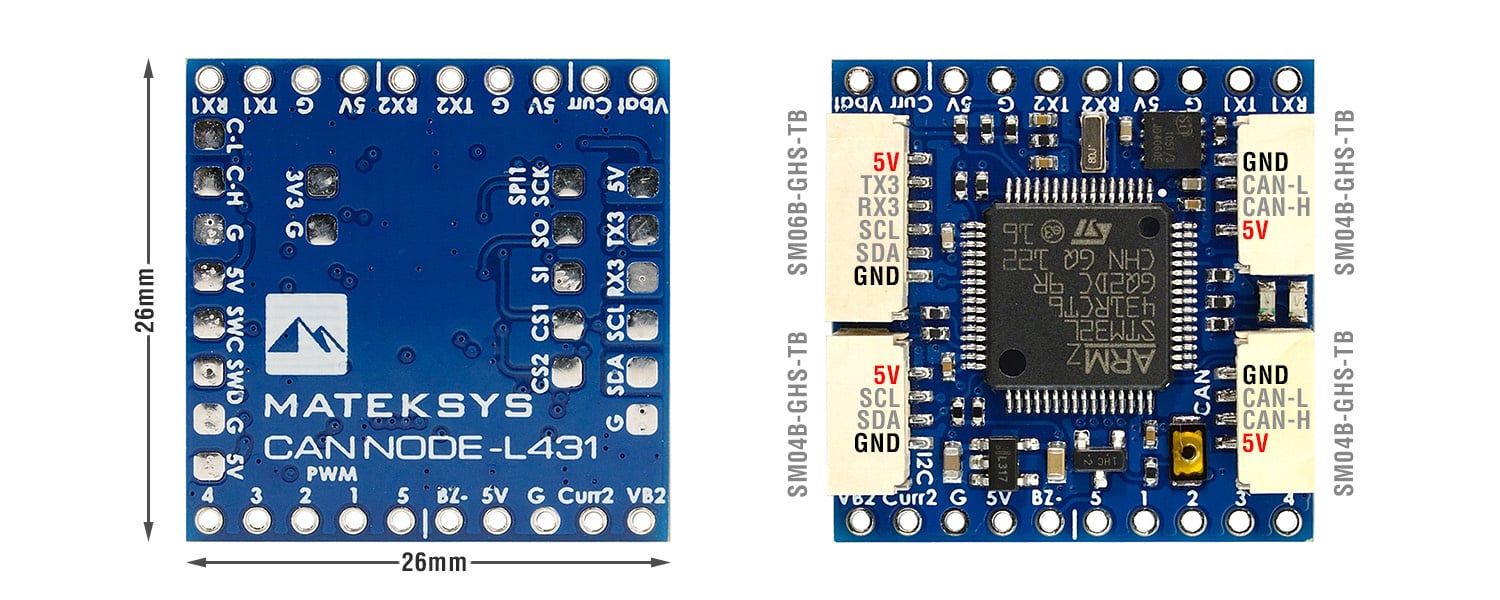

- Dimensions: 26 × 26 × 6mm
- Weight: 3.7g
Included:
- 1 × Matek AP_Periph CAN Node L431
- 1 × JST-GH 4-pin to JST-GH 4-pin 20cm cable
- 1 × JST-GH 6-pin to JST-GH 6-pin 20cm cable
