Matek AP_Periph DroneCAN Magnetometer RM3100

Name: Matek AP_Periph DroneCAN Magnetometer RM3100 - Flying Tech
Brand: Matek Systems
SKU: FC-SEN-MT-RM3100
Price: 36.00 GBP
Availability: InStock

£36.00 Inc. VAT

Matek CAN-L4-3100 is a professional grade DroneCAN Magnetometer.

In stock

Compare

0 People watching this product now!

SKU: FC-SEN-MT-RM3100 Categories: Compass Modules, GPS & Compass Modules Tags: Compass, DroneCAN, Magnetometer, RM3100

Description

If you’re having trouble with magnetic noise affecting your flight controller’s on-board compass, you may want to switch to an external compass that you can mount further away from noise sources such as motors, ESCs and your power distribution system.

CAN-L4-3100 is a professional grade DroneCAN Magnetometer based on RM3100 & ArudPilot AP_Periph firmware. This dedicated magnetometer helps to eliminates any noise in your magnetic field measurements for accurate heading and orientation calculations, allowing your to drone to navigate through waypoints accurately. RM3100 sensor technology provides high resolution, low power consumption, large signal noise immunity, a large dynamic range, and high sampling rates. Measurements are stable over temperature and inherently free from offset drift.

Tips

CAN-L4-3100 is pre-installed with “MatekL431-GPS” firmware.
MSP feature is disabled in “MatekL431-GPS”. If you want to use MSP feature, reflash it with “MatekL431-Periph” firmware(AP_Periph_with_bl.hex) over SWC/SWD pads via ST-LINK.
Put magnetometer far from power lines/ESC/motors/iron based material. >=10cm
2 ears for mounting can be cut off if you don’t need it.
If the CAN wires are too long, bridge the “120R” jumper.

Specification

PNI RM3100 Geomagnetic Sensor
CAN node MCU: STM32L431xC, 256KB Flash

Interface
- CAN, DroneCAN Protocol
- UART2, MSP output (MatekL431-Periph fw)
- UART3, for external GNSS module
- ST debug, SWCLK & SWDIO

LED
- Blue, Fast blinking, Booting
- Blue, Slow blinking, working
- Red, 3.3V indicator

Power supply for CAN-L4-3100 board : 4.5~5.5V @5V pad/pin
Power consumption: 22mA
Operating Temperatures: -40~85 °C

Physical

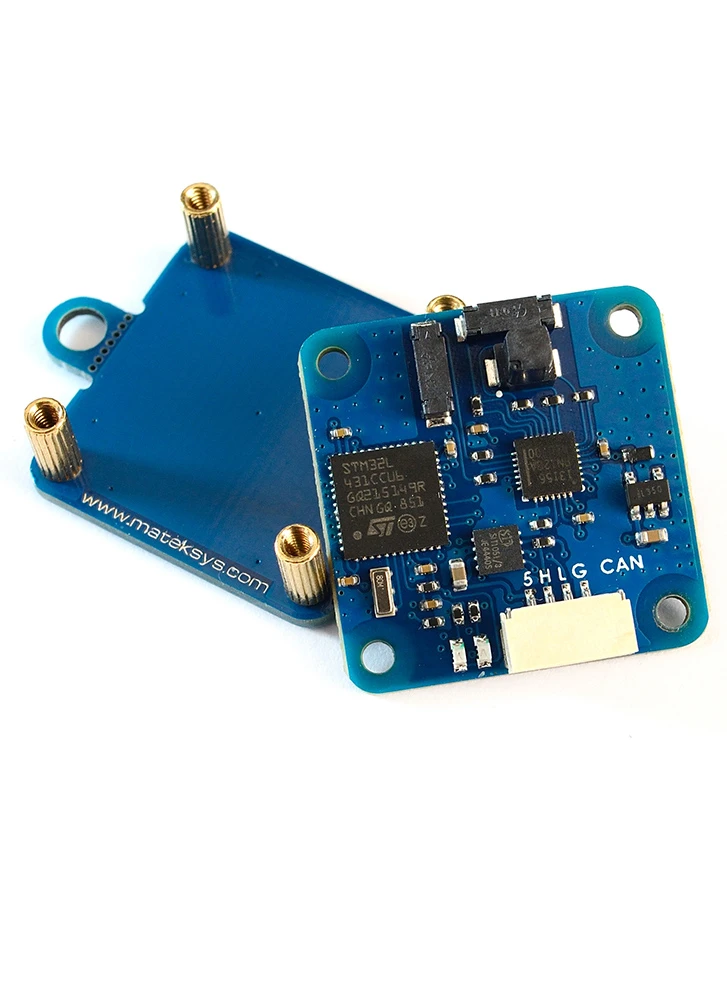

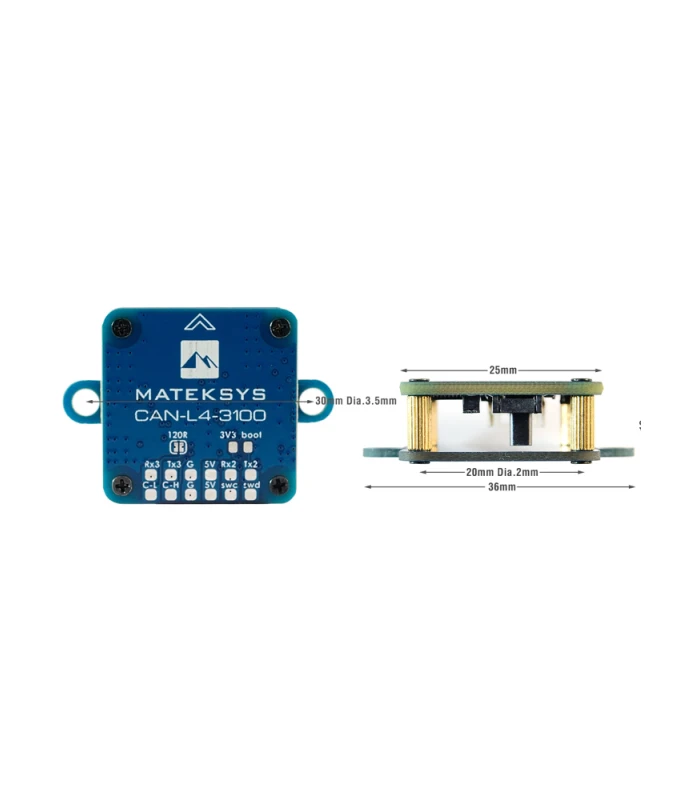

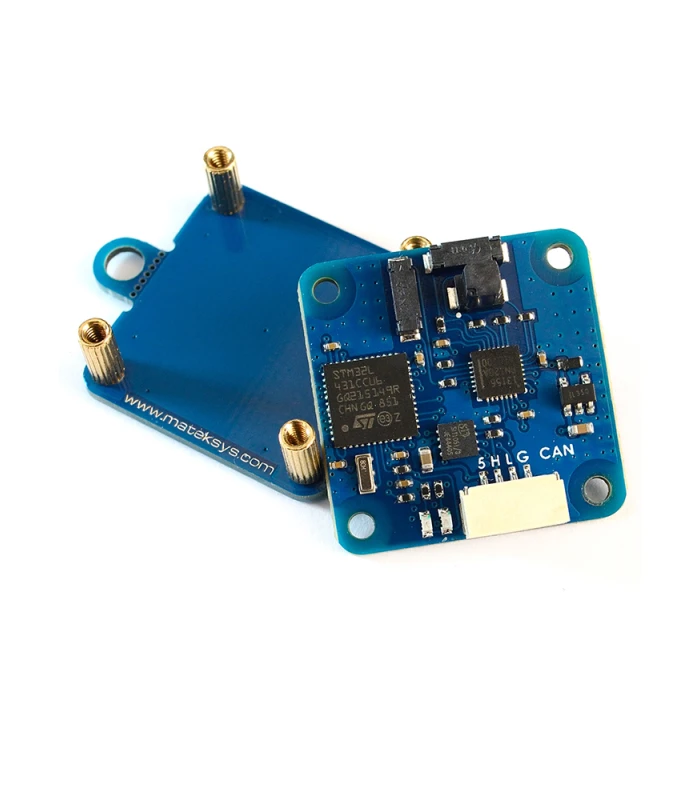

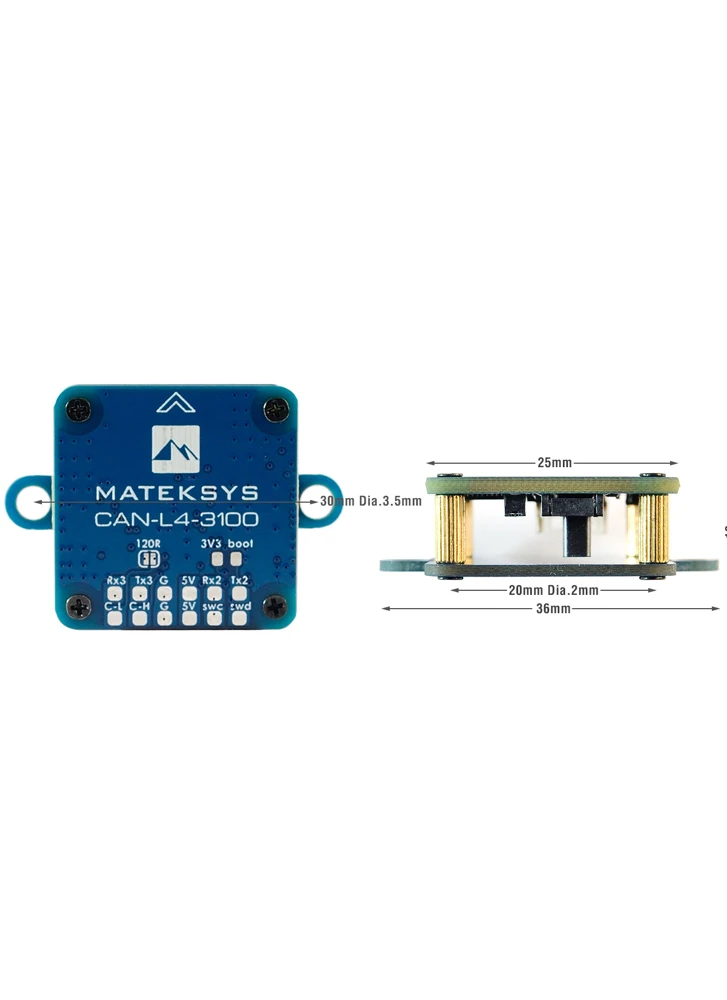

- Board Size: 36mm*25mm*10mm. 6g
- 3D File CAN-L4-3100_step.zip

Firmware
- ArduPilot AP_Periph: MatekL431-GPS or MatekL431-Periph
- Update via DroneCAN GUI Tool or Mission Planner (AP_Periph.bin)
- Update via STLink (AP_Periph_with_bl.hex)

Parameters
- CAN_P1_DRIVER = 1 if attached to CAN bus1 port or CAN_P2_DRIVER = 1 if attached to CAN bus2 port
- COMPASS_AUTODEC = 1

Included:

1x CAN-L4-3100 board

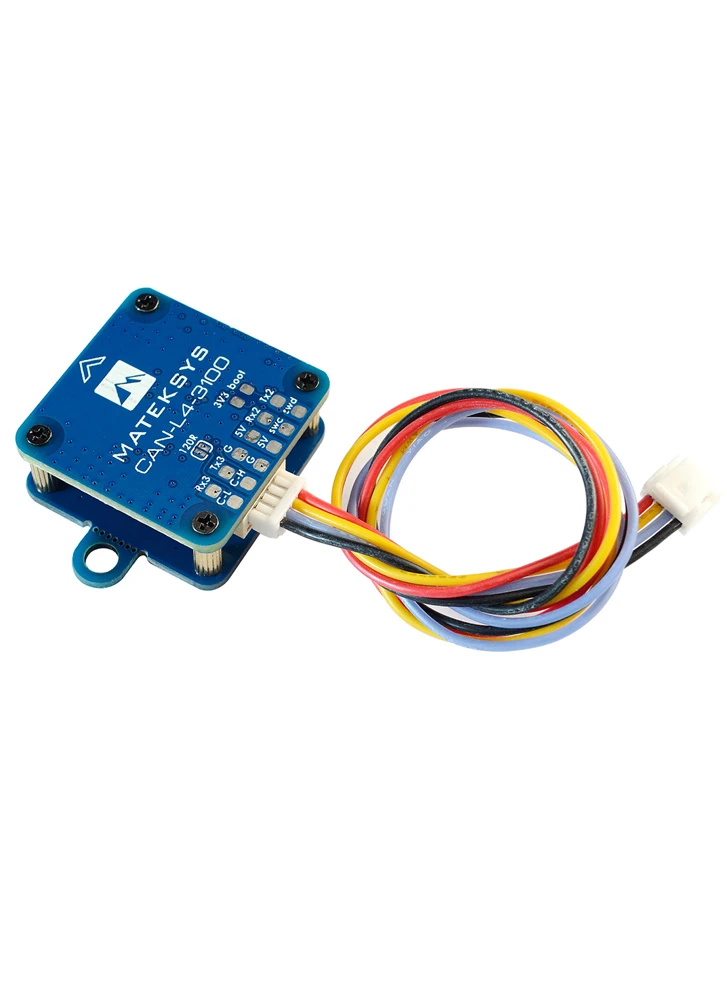

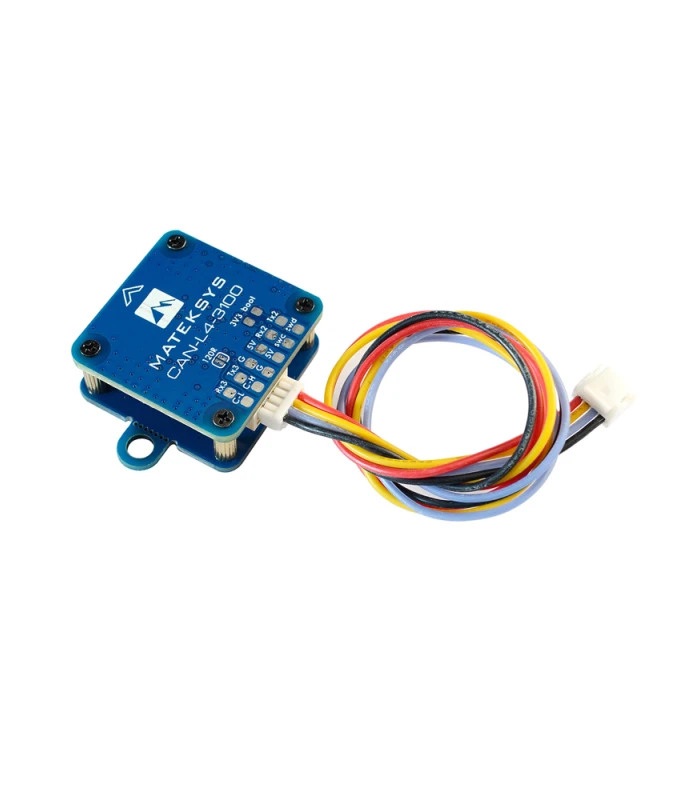

1x JST-GH-4P to JST-GH-4P 20cm silicon wire
