Discontinued: Matek 1G3 VRX V2 Long Range 1.2GHz – 1.3GHz Video Receiver

Long range FPV receiver compatible with Fat Shark module bay.

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

0 People watching this product now!
SKU: FPV-RX-MT1G3V2-9 Categories: , , , Tags: , , , , , , ,
Description

Product Discontinued: For another 1.2G VRX please see: Skyzone Long Range 1.2GHz โ€“ 1.3GHz Diversity Video Receiver

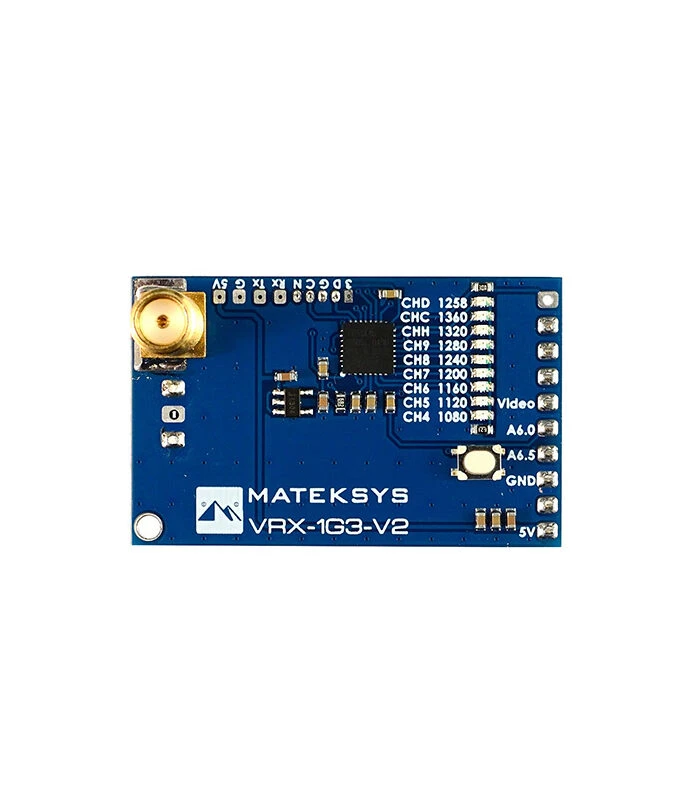

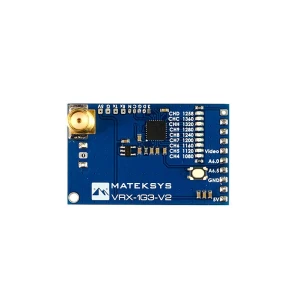

VRX 1G3 V2 1

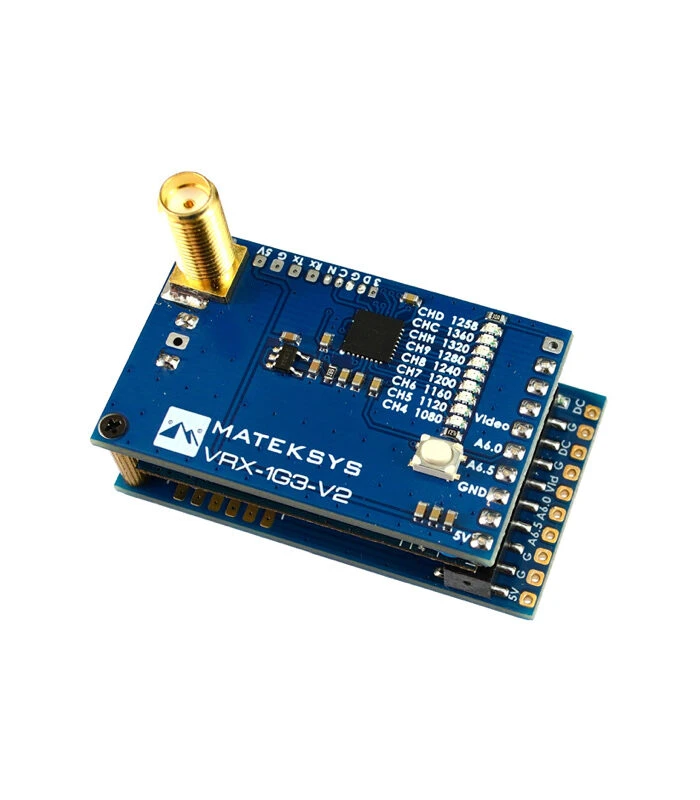

This is the Version 2 – which is equipped with a Ground Station Dock PCB.

This is a 9CH 1.2GHz – 1.3GHz Long Range Video Receiver from Matek. It’s designed to match their 1G3 Video Transmitter. The neat thing about this video receiverย is that it fits a Fat Shark module bay, so you can install it in compatibleย FPV goggles or ground stationย docks. The module comes complete with a PCB antenna.

FrSky R9 / TBS Crossfire Usersย – these radio control systems can interference with the Matek 1G3 video link as they operate on adjoiningย frequencies. To help reduce interference we recommend fitting a notch filter or using a 5.8Ghz relay station so that the 1G3 VRX can be positioned away from your radio control.

Settings

  • Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
  • Press the button to select the frequency
  • When the LED blinks at new frequency, no RF input isย enabled on this frequency
  • New frequency will be saved if no button action within 3 seconds

VRX 1G3 V2 2ANT Y1240 2

Specification
  • Receiving frequency: 9CHย (1080MHz to 1360MHz)
  • RX Sensitivity: -95dBm
  • Band-pass filter 950MHz~1450MHz
  • Dual input options: 4~5V via pinsย  or 6-30V via pads
  • Button control and LED indicators
  • On board regulator output: 5V 2.5A @ input voltage 6~30V
  • Current Consumption: 0.3A @5V
  • Video format: NTSC or PAL
  • Video Output impedance: 75ฮฉ, Typ.
  • Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
  • ANT. input impedance: 50ฮฉ, Typ.
  • RF Connector: SMA
  • Weight: 12g ( w/o dock), 19g (w/ dock)
  • Size: board 43x27mm
  • 2.54mm pins and PCB size are compatible with FS module

Included:

  • 1x 1.2/1.3G Video receiver VRX-1G3 V2
  • 1x VRX-DK
  • 1x Dipole antenna (SMA)ย center freq 1240MHz
Q&A

Questions and answers of the customers

    Can this be programmed to auto-scan the channels and when it finds a channel in use output the video and when that stream stops start scanning again?
  1. 0 votes
    Q Can this be programmed to auto-scan the channels and when it finds a channel in use output the vi...... Read more answer now
    A

    Hi, it can auto-scan, but it won't automatically scan again if the signal is lost.
