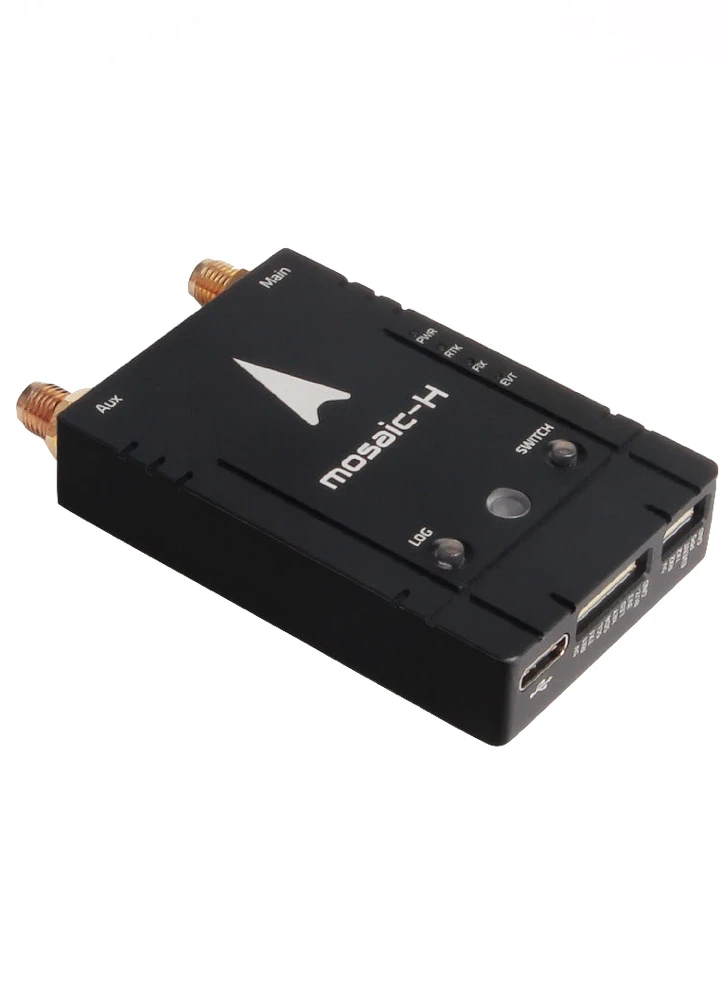

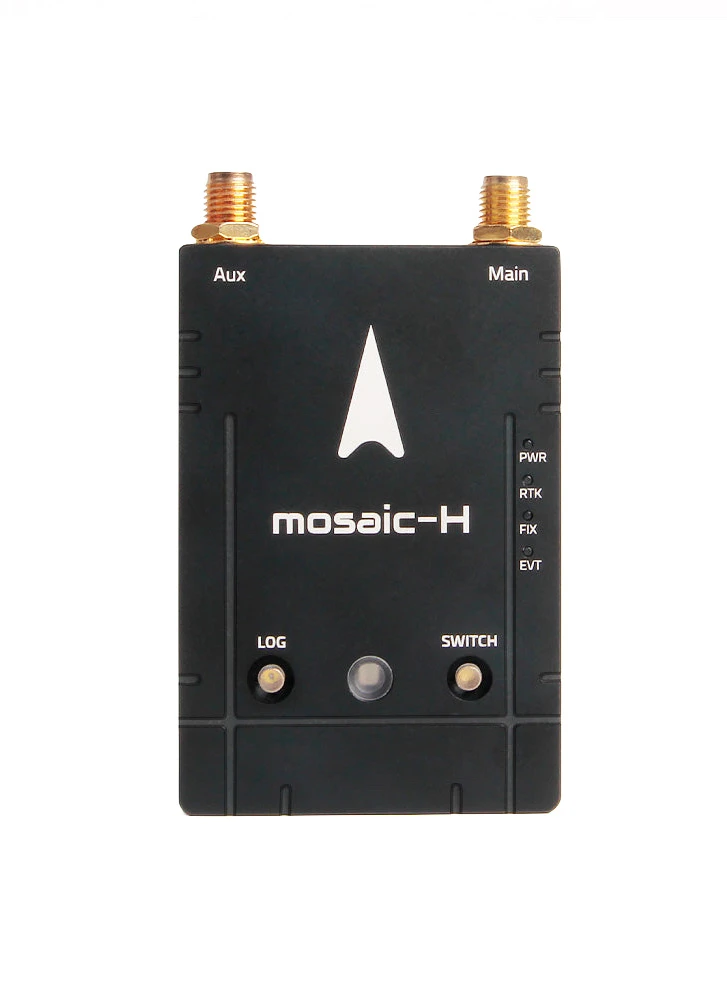

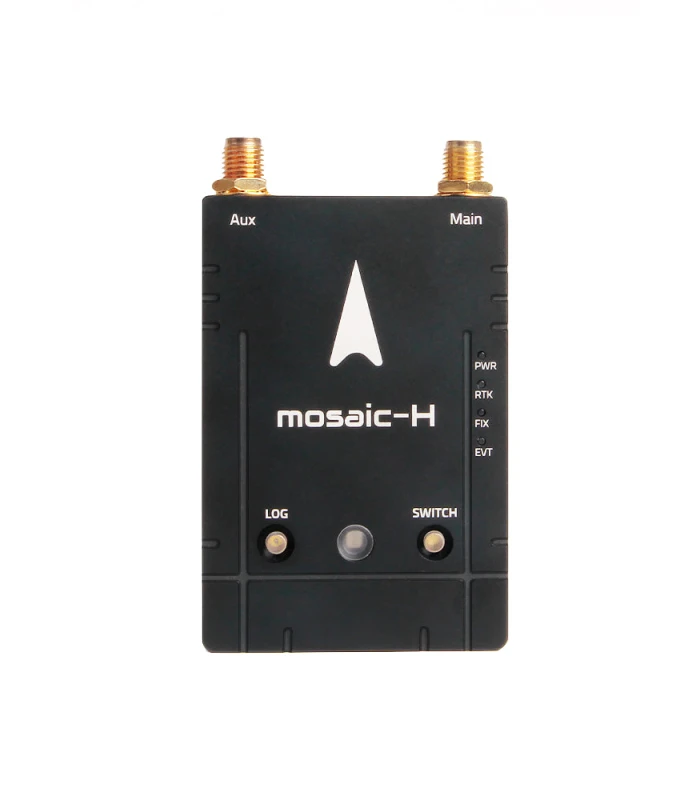

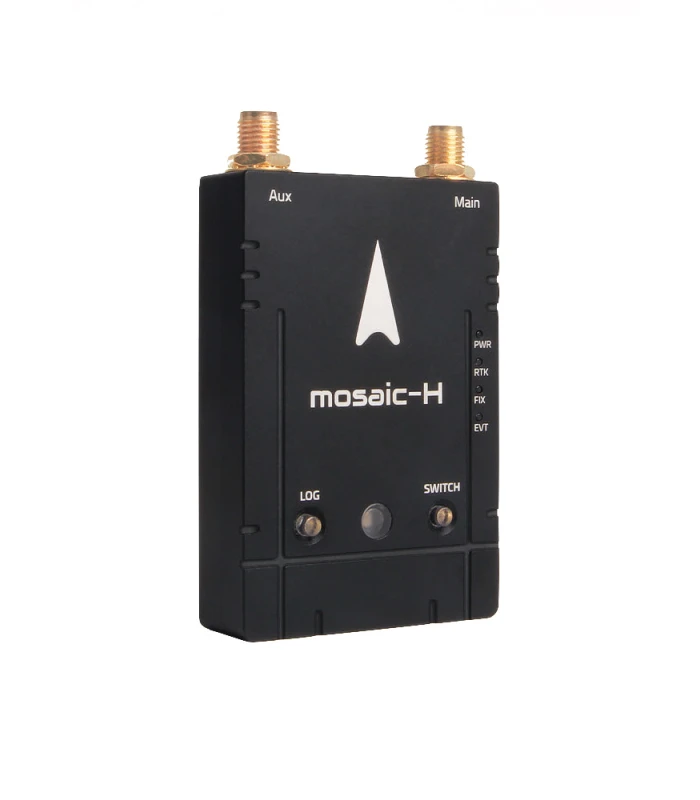

Holybro H-RTK mosaic-H (Dual Antenna Heading)
£795.00 Inc. VAT
The mosaic-H is a cutting-edge RTK GPS module that harnesses the power of Septentrio’s elite mosaic-H GNSS receiver.
In stock|Next shipping: 21/09/2026
The Holybro mosaic-H is a cutting-edge RTK GPS module that harnesses the power of Septentrio’s elite mosaic-H GNSS receiver. It comes with an IST8310 magnetometer, two high-performance antennas, and an aluminum CNC enclosure. It is packed with versatile features such as effortless configuration, spectrum analysis, data logging, and post-processing for a wide range of applications.
With its dual-antenna input, mosaic-H can provide compass-less YAW information to the autopilot (commonly called GPS Heading or Moving Baseline Yaw). By employing GPS as the yaw source instead of a traditional compass, it eliminates the inaccuracies caused by magnetic interference from vehicle motors, electrical systems, and environmental sources like metallic structures or power lines, ensuring precise yaw reports to the autopilot and enhancing overall navigation reliability and performance in challenging environments.
Septentrio’s mosaic-H GNSS receiver module boasts a suite of proprietary technologies that set it apart from the competition. Septentrio’s AIM+ (Advanced Interference Mitigation) technology safeguards against intentional and unintentional jamming sources, ensuring consistent and reliable performance even in challenging RF environments.
Septentrio’s LOCK+ technology ensures optimal tracking even under rapid antenna displacement in the event of high vibrations or shocks, maintaining high accuracy and stable operation in high-dynamic situations. It is ideal for demanding applications such as UAVs and robotics. Furthermore, Septentrio’s advanced RAIM+ (Receiver Autonomous Integrity Monitoring) algorithm delivers unmatched integrity and reliability, providing a safety net for mission-critical applications.
Features
- Advanced anti-jamming, anti-spoofing solutions with AIM+ technology & OSNMA

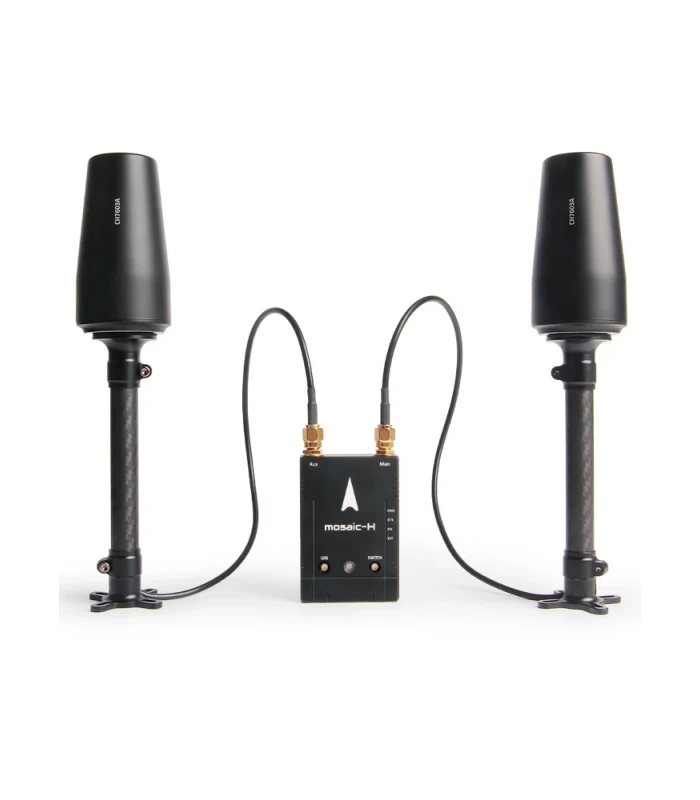

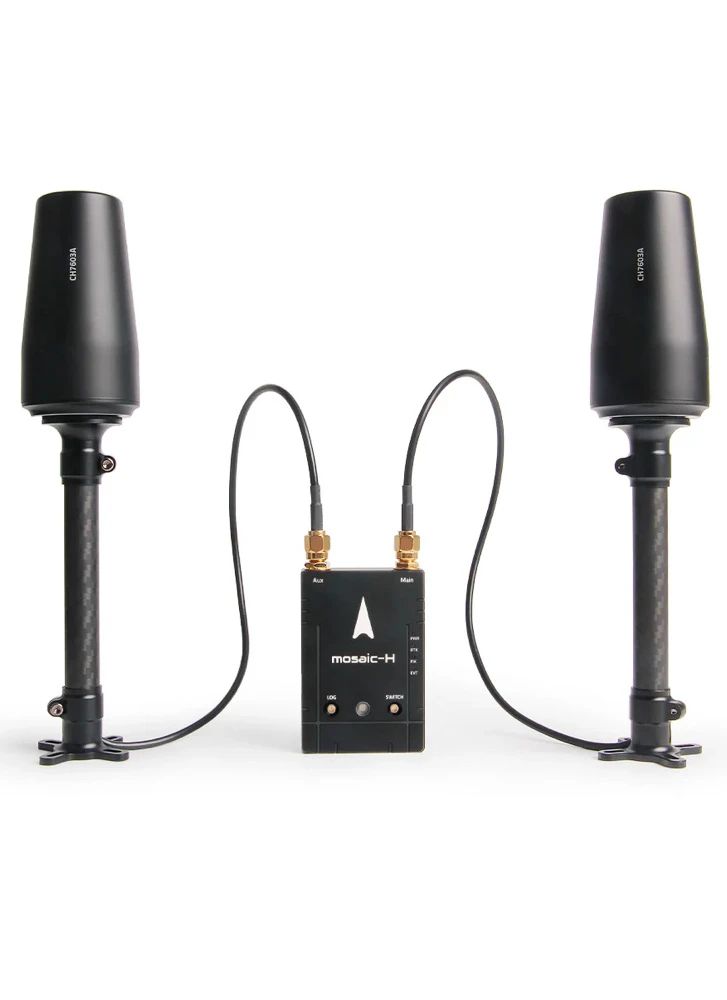

- Dual antenna support for moving baseline yaw (GPS Heading) with just one GPS module
- All-in-view satellite tracking: multi-constellation, multi-frequency (Supports L1/L2/E5)
- Best-in-class RTK performance
Setup Guide & Reference Links:
- Setup & Getting Started (Ardupilot)
- Setup & Getting Started (PX4)
- Advanced Applications
- GPS LED Meaning
- Septentrio mosiac-H GNSS receivier datasheet
- Septentrio Download Page
- Septentrio PPK Application
- Septentrio RXTools (GNSS receiver control and analysis software)
Comparison Between mosaic-H & mosaic-G5 P3H
| mosaic-H | mosaic-G5 P3H | |
| Bands supported | Â GPS: L1, L2
Galileo: E1, E5b GLONASS: L1, L2 Beidou: B1, B2, B3 QZSS: L1C/A, L1C/B, L2 SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1) |
GPS: L1C/A,L1C, L2C, L2P(Y), L5
Galileo: E1, E5a, E5b, E6 GLONASS: L1CA, L2CA, L2P, L3CDMA Beidou: B1I, B1C, B2a, B2I, B2b, B3I QZSS: L1C/A, L1C/B, L2C, L5, L6 |
| RTK Performance | Horizontal: 0.6cm + 0.5ppm
Vertical: 1cm + 1ppm |
|
| Other Positioning Modes Accuracy | Standalone: 1.2m
DGNSS: 0.4m SBAS: 0.6m |
Standalone: 1.2m
DGNSS: 0.4m |
| Velocity Accuracy | 3cm/s | |
| Heading accuracy | 0.15deg (1m baseline) | |
| Maximum update rate | Measurements only: 100Hz
Standalone: 50Hz RTK: 20Hz |
20Hz |
| latency | <10ms | |
| Acquisition | 33dBHz | 30dBHz |
| Time Precision | PPS resolution: 1.4ns
Event accuracy: <3ns |
PPS resolution: 5ns
Event accuracy: <20ns |
| Anti-jamming and anti-spoofing | Ÿ   AIM+ the most advanced anti-jamming, anti-spoofing on-board interference mitigation technology on the market (narrow and wide band, chirp jammers).
Ÿ   LOCK+ for robust tracking during high vibrations and Ÿ   APME+ multipath mitigation to disentangle direct signal and those reflected from nearby Ÿ   IONO+ provides advanced protection against ionospheric |
|
| OSNMA Support | Yes | No |
| Base/Rover | Base and Rover | Rover only |
| Protocols | NMEA, SBF, RINEX, RTCM, CMR | NMEA, SBF, RTCM input |
| Web interface and Ethernet | Yes | No |
| RAW data | Yes | No |
- Application: Moving Baseline Rover, Base Station, Rover, PPK
- Product: Holybro H-RTK Mosaic-H (Dual Antenna)
- Power Consumption: 0.6 W typ &1.1 W max
- Baud Rate: (Adjustable) 230400 5Hz default
- Operating Temperature: -40℃ to 85℃
- Magnetometer (Compass): IST8310

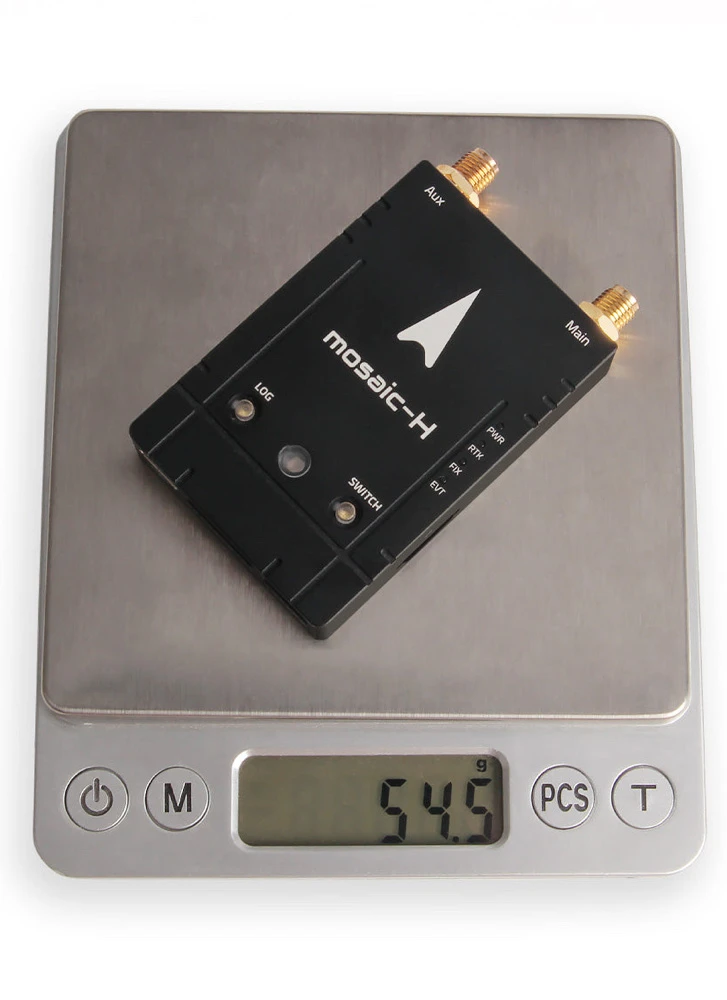

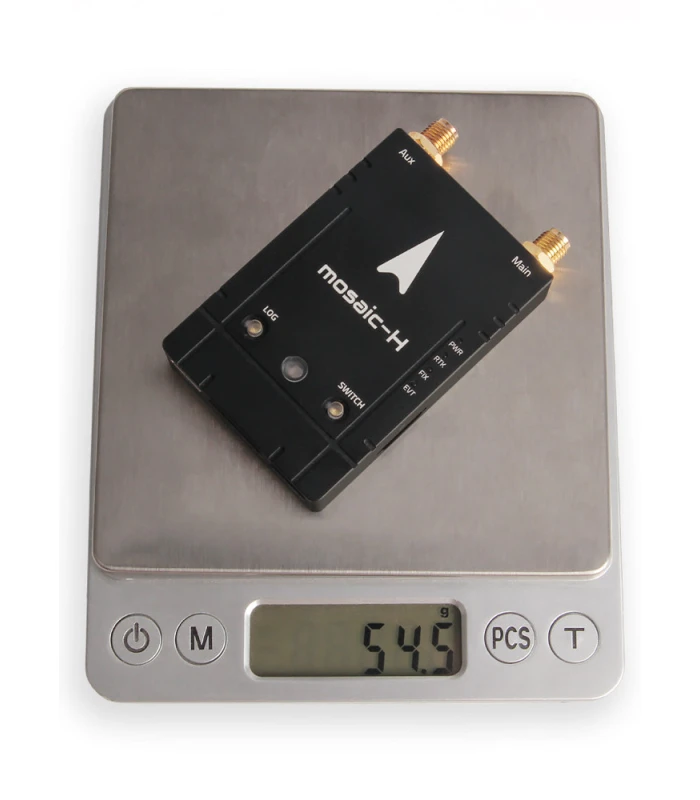

- Weight: 54.5g (without antennas)
- Working Voltage: 4.75V~5.25V
- LNA Gain: 33±2dB
- Latency: < 10 ms
- Antennas: 2dBi
- GNSS:
- SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1)
- QZSS: L1C/A, L1C/B, L2
- Beidou: B1, B2, B3
- GLONASS: L1, L2
- Galileo: E1, E5b
- GPS: L1, L2
- Data and Update Rate:
- Standalone, SBAS, DGPS + attitude: 50 Hz
- Measurements only: 100 Hz
- RTK + attitude: 20 Hz
- Data and Update Rate:
- Standalone, SBAS, DGPS + attitude: 50 Hz
- Measurements only: 100 Hz
- RTK + attitude: 20 Hz
- RTK Performance:
- Horizontal accuracy: 0.6 cm + 0.5 ppm
- Vertical accuracy: 1 cm + 1 ppm
- Port:
- Port 2: UART1 (GH1.25 10pin)
- Port 3: UART2 (GH1.25 6pin)
- Port 1: USB Type-C

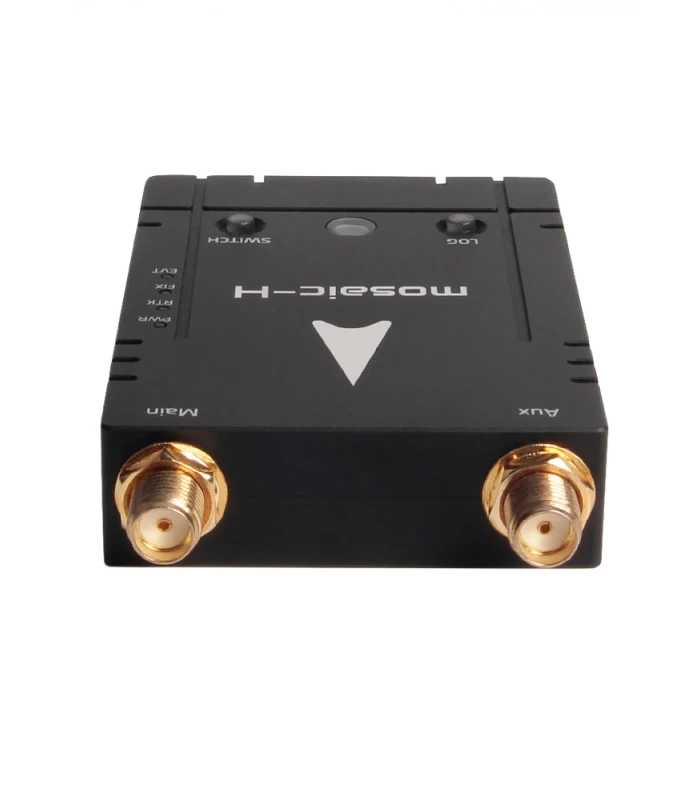

- Antenna Connection Type:
- Board: SMA female
- Antenna: SMA male
- Dimensions:
- Antenna Diameter: 40mm
- Board: 42.771.813.3mm
- Antenna Height: 76mm
- Time Precision:
- Event accuracy: < 20 ns
- xPPS out: 5 ns
Advanced Technologies inside:
- AIM+Â the most advanced anti-jamming, anti-spoofing on-board interference mitigation technology on the market (narrow and wide band, chirp jammers).
- LOCK+Â for robust tracking during high vibrations and
- APME+Â multipath mitigation to disentangle direct signal and those reflected from nearby
- IONO+Â provides advanced protection against ionospheric
- OSNMA Supported
Firmware Compatibility:
- Ardupilot*
- PX4*
*See this link for the latest information

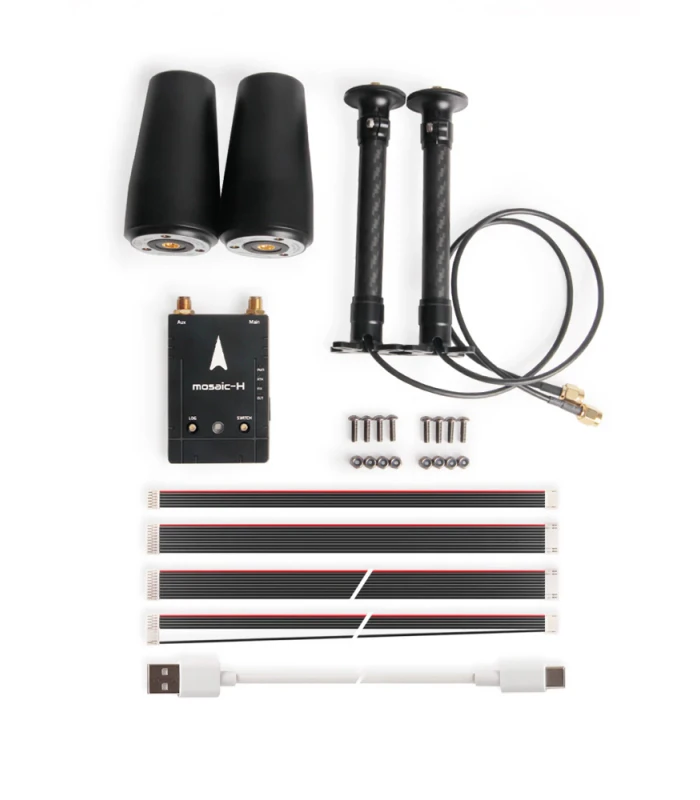

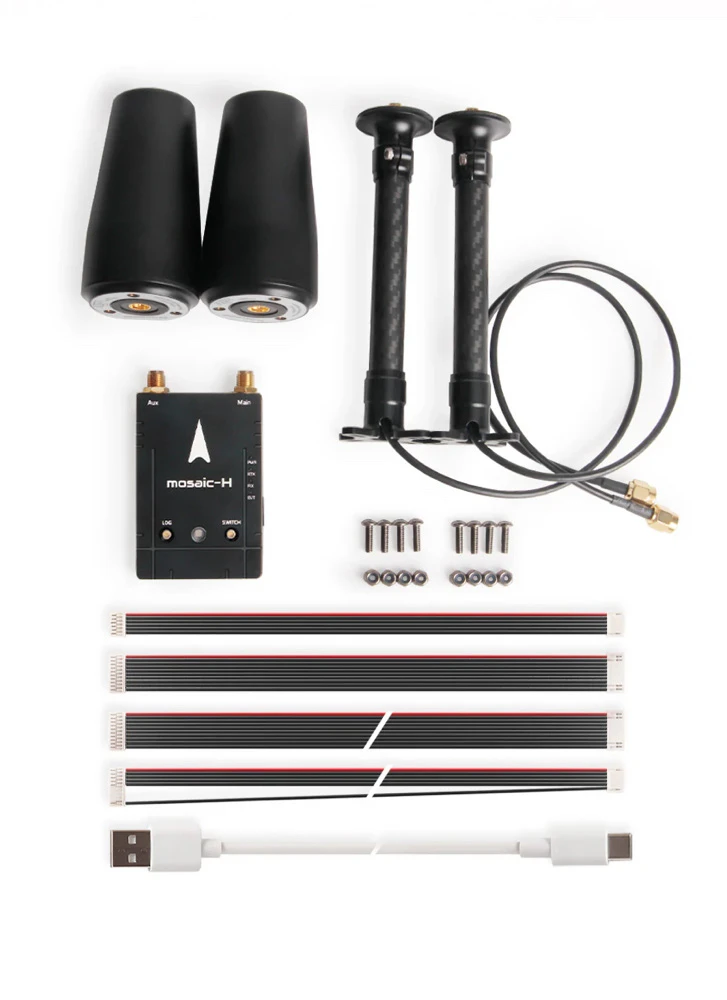

Included:
- 1x H-RTK Mosaic
- 2x High Performance Antenna
- 2x Antenna Mount for H-RTK
- 2x SMA Cable(40CM)
- 2x GH 10P Cable
- 1x GH 6P Cable
- 1x GH 10P to 6P Cable
- 1x USB-C Cable
